25mm Shank Right Hand MGT External Grooving Tool for 2mm Inserts (Korloy) - MGEHR/L Series

(MGEHR2525-2)
£106.64 £88.87

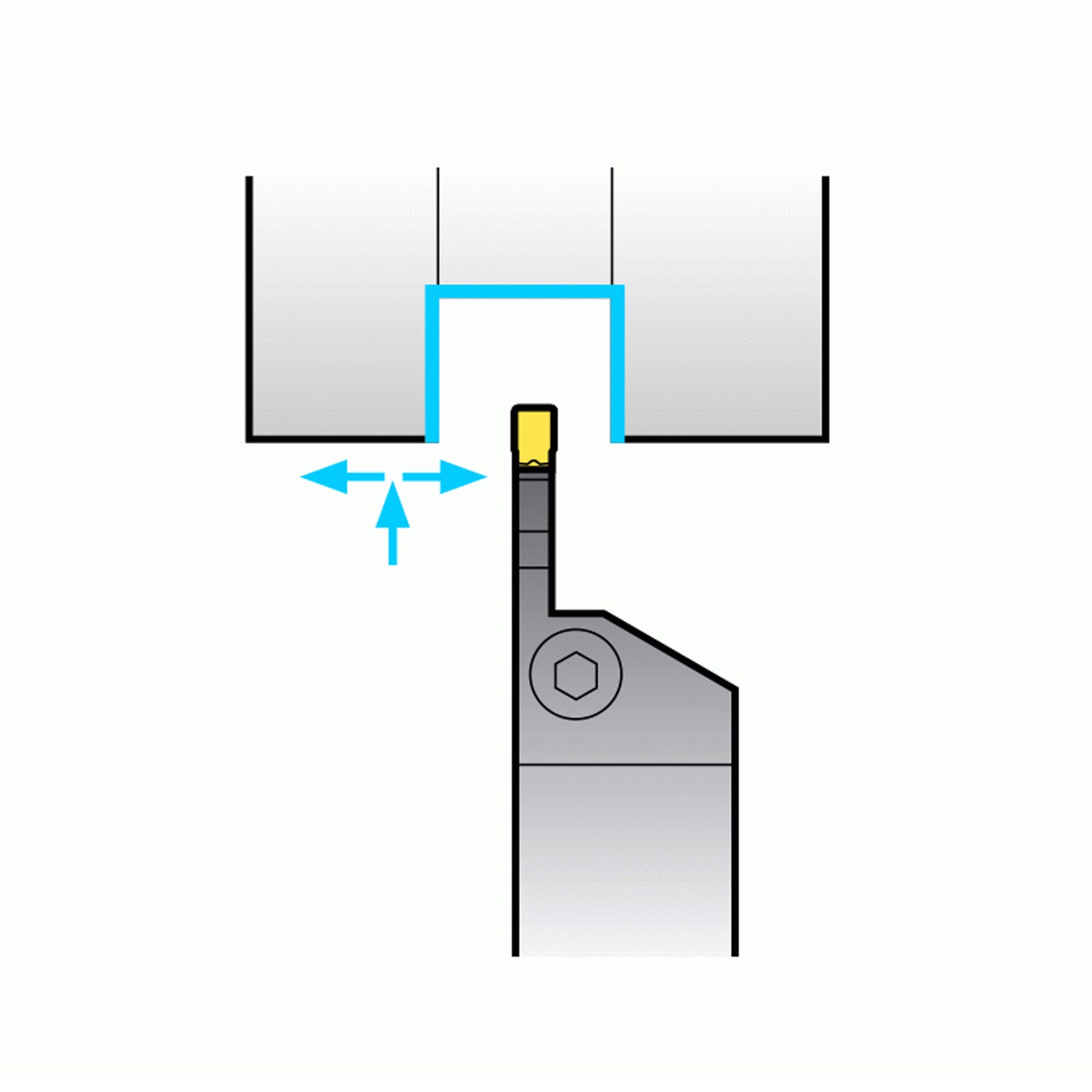

The MGT MGEHR/L series holders are suitable for grooving, turning, parting off, reliefing and profiling with just 1 tool. These holders are for insert widths from 1.5-8mm with T-Max from 10-28mm. MGT Holders & Inserts shorten changeover times & save on tool cost by performing multiple applications using a single holder. Reduce cycle times & increase your productivity today!
Approx. 4 days. Subject to availability
View all variants
Features & Benefits
  • Reduce changeover times & save on tool cost - MGT allows multiple applications to be performed using just 1 tool.
  • MGT inserts have a flat geometry on its cutting edge to ensure excellent surface finishes.
  • Multi-functional tool - Groove, Turn, Part Off, Relief groove & Profile using the same holder.
  • For 1.5-8mm insert widths.
  • Even in High Feed applications, Korloy ensures excellent surface finishes in roughing operations.
  • Double Edged Inserts for better economical machining.
Specification
Specification
S 25.25
T-Max 14
Wrench HW40L
Applicable Inserts MGMN200-G, MGMN200-M, MGMR200
Screw MHA0512
Shank Diameter 25
Holder Type External Grooving
Brand Korloy
Product Range MGT Multifunctional Grooving
Length 150
W (Shank Width) 25
H (Shank Height) 25
Hand Right
Insert Width 2
Cutwel Sku MGEHR2525-2
