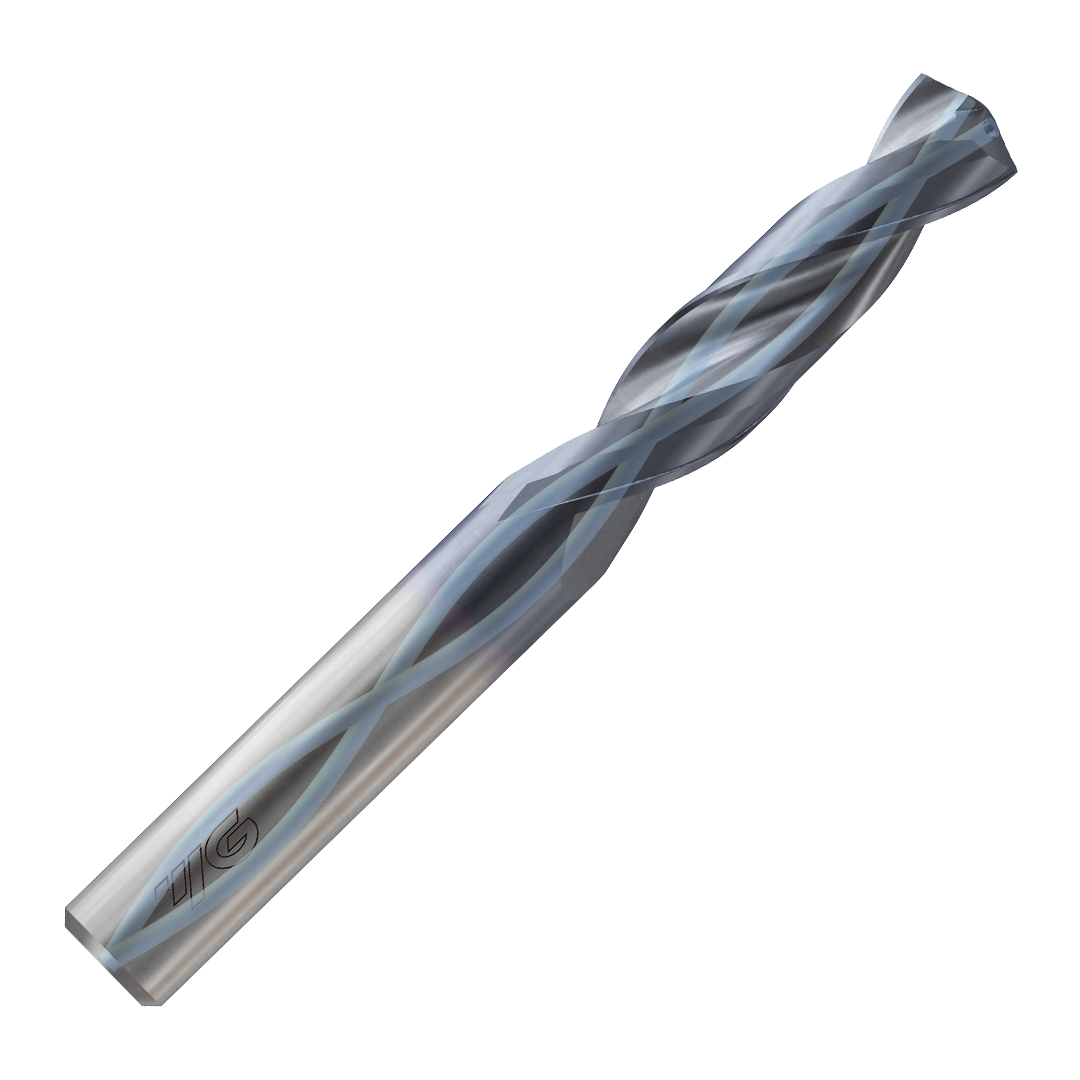

3.5mm Coated Carbide 3xD Stub Length Through Coolant Dream Drill X - DTX406 Series (YG-1)
3.5mm Coated Carbide 3xD Stub Length Through Coolant Dream Drill X - DTX406 Series (YG-1)

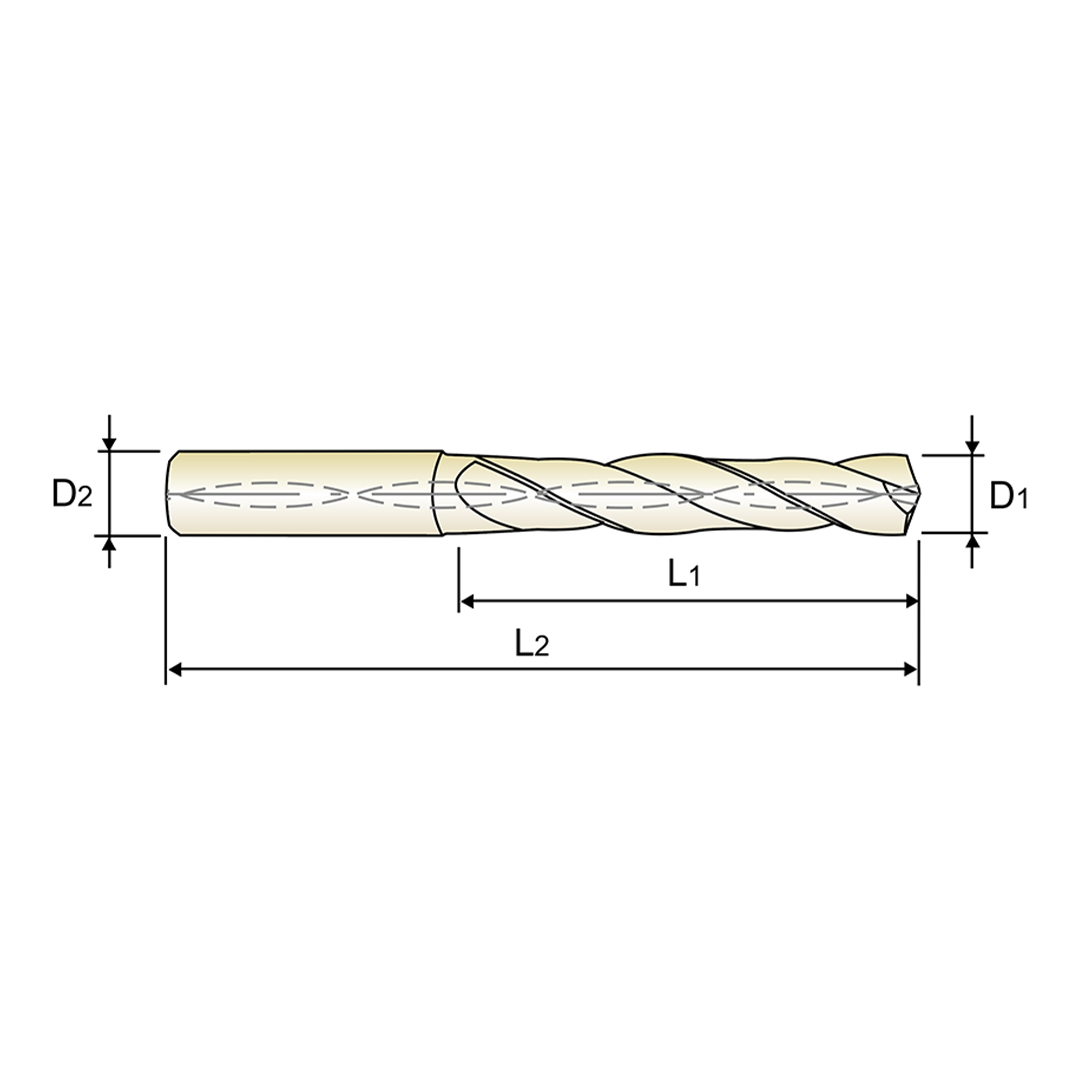

| Diameter (mm) | 3.5 |
|---|---|
| Overall Length (mm) | 62 |
| Flute Length (mm) | 20 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Universal point design gives a grinding-soft cutting action and reduced axial forces, making it easy to recondition
- Radius thinning provides very good self centering even at low feed rates, good for unstable machining
- Tailored flute design means excellent chip breaking and evacuation
- Edge preparation helps improve tool life.
- Multi-purpose solid carbide for drilling up to HRc50
- Proprietary coating upgrade boosting performance in steel and cast-iron applications
- Through coolant for easy lubrication
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Carbide Drills |
| Sub Category 2 | Dream Drill X |
| Diameter (mm) | 3.5 |
| Shank (mm) | 6 |
| Flute Length (mm) | 20 |
| Overall Length (mm) | 62 |
| Tolerance | m7 |
| Shank Tolerance | h6 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Drill Type | Stub |
| Depth | 3xD |
| Performance | 5 |
| Coating Description | RCH Coated |
| Through Coolant | Yes |
| Self Centring | Yes |
| Helix Angle | 30° |
| Brand | YG-1 |
