CTFPR/L Standard Turning Tool Holder 90 Degree Tool Approach, Top Clamp, for TPUN inserts - CTFPR/L Series (Korloy)

CTFPR/L Standard Turning Tool Holder 90 Degree Tool Approach, Top Clamp, for TPUN inserts - CTFPR/L Series (Korloy)

High quality solid steel shank turning tool holder suitable for use with TPUN style turning inserts. The CTFPR/L...
Read more
View Products

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm
Filter Items arrow

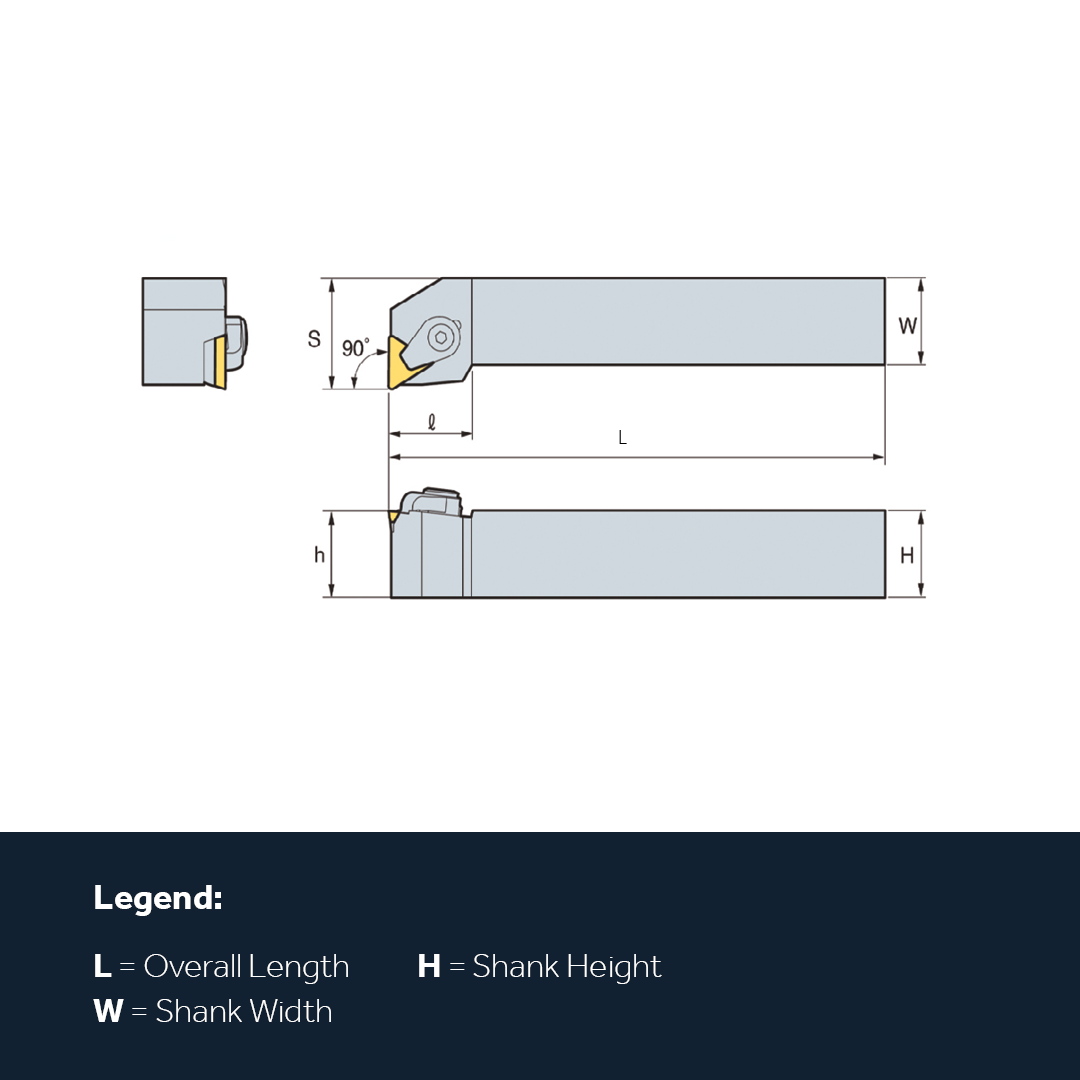

Code Shank (mm) Overall Length (mm) ISO Code Shank Hand Insert Size Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Shank (mm)
carrat-down
Overall Length (mm)
carrat-down
ISO Code
carrat-down
Shank
carrat-down
Hand
carrat-down
Insert Size
carrat-down
Shank (mm): 20 Overall Length (mm): 125 ISO Code: CTFPL2020-K16 Shank: 20mm x 20mm Hand: Left Insert Size: TP**1603
unavailable 21 days*
£91.74 £76.45
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: CTFPL2525-M16 Shank: 25mm x 25mm Hand: Left Insert Size: TP**1603
available In stock
£101.99 £84.99
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: CTFPR2020-K16 Shank: 20mm x 20mm Hand: Right Insert Size: TP**1603
available In stock
£91.74 £76.45
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: CTFPR2525-M16 Shank: 25mm x 25mm Hand: Right Insert Size: TP**1603
available In stock
£101.99 £84.99
minus plus

*Estimated lead time, subject to availability

Product Information

Features & Benefits

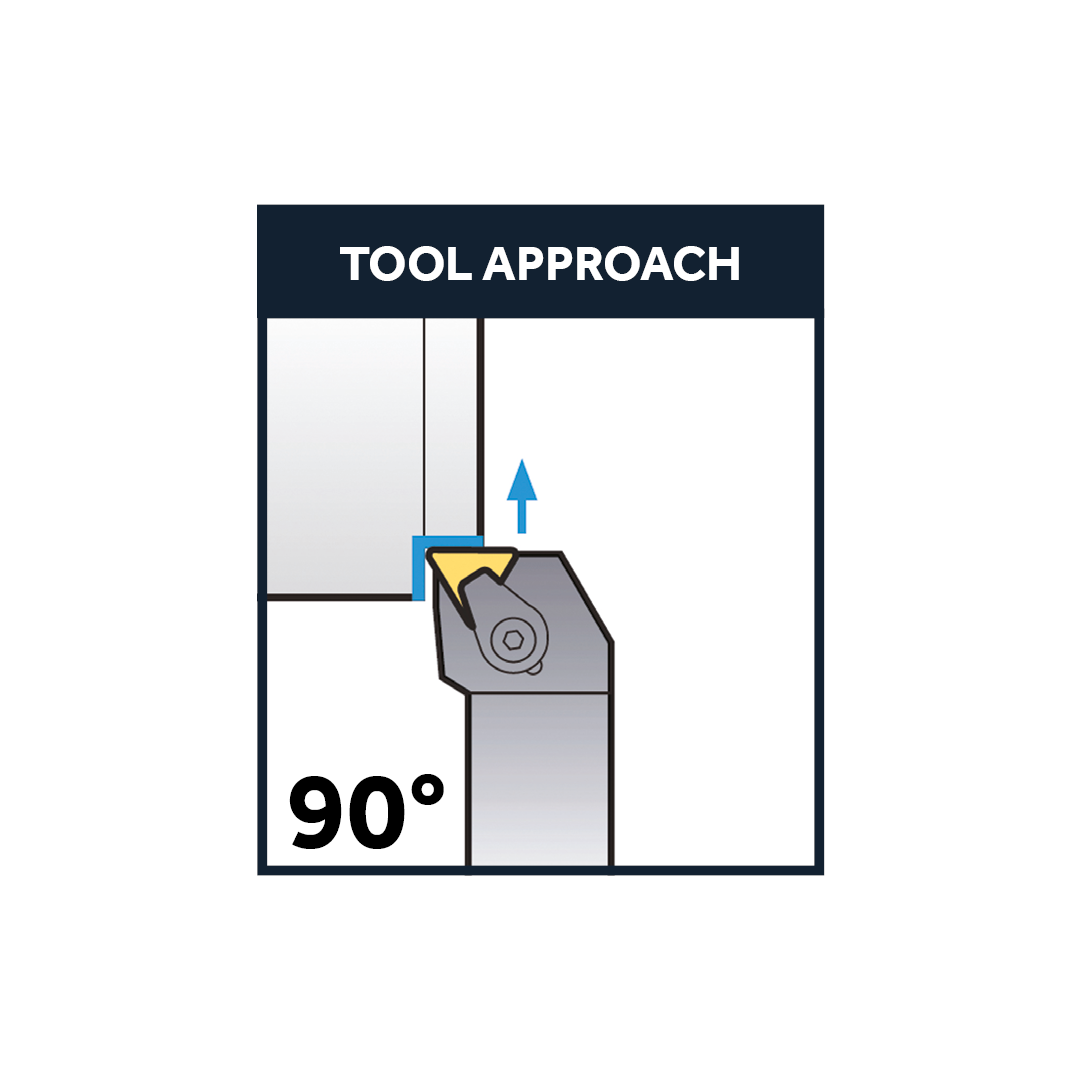

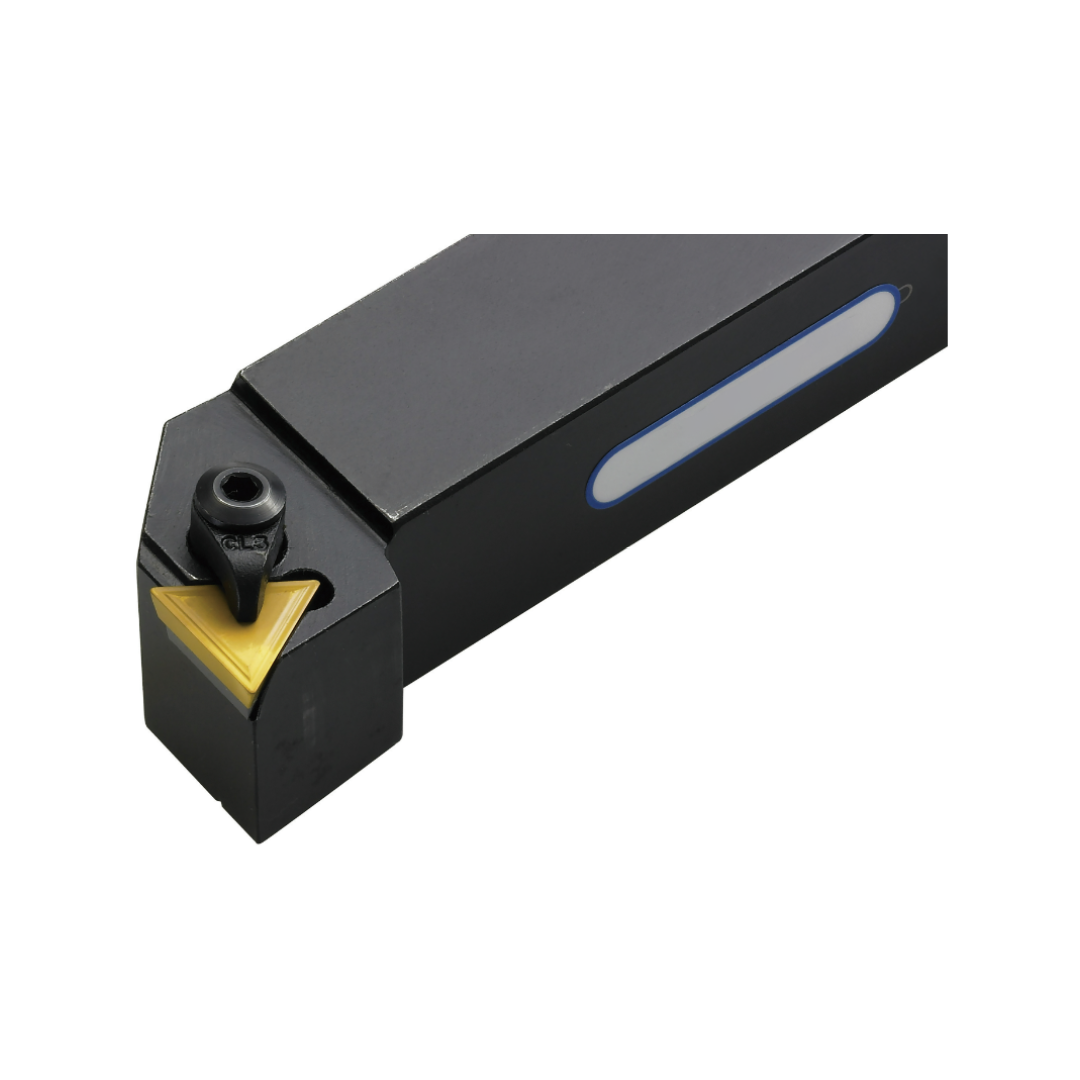

High quality solid steel shank turning tool holder suitable for use with TPUN style turning inserts. The CTFPR/L series have a Top clamp style clamping system with a 90° degree approach angle. These turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

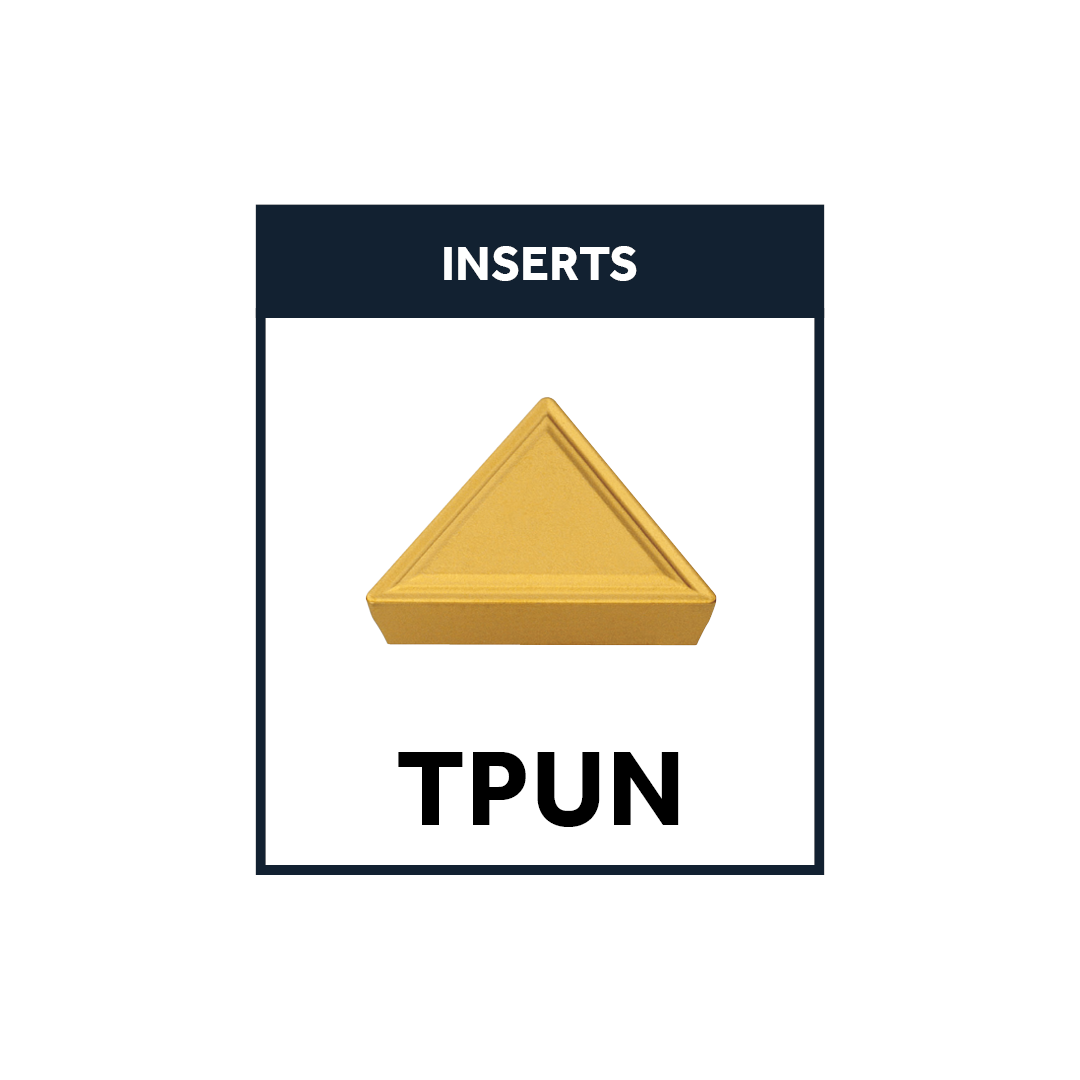

  • Suitable for use with TPUN style turning inserts
  • High quality solid steel shank turning tool holder with 90° degree approach angle
  • Top clamp style clamping system
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Insert Series TPUN
Through Coolant No
Angle 90°
Holder Style CTFPR/L
Clamp Type Top Clamp
Brand Korloy
