CTFPR2020-K16 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 90 Degree Approach, Top Clamp, for TPUN16 inserts - CTFPR/L Series (Korloy)

Cutwel Sku
1-06-005529

CTFPR2020-K16 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 90 Degree Approach, Top Clamp, for TPUN16 inserts - CTFPR/L Series (Korloy)

Cutwel Sku
1-06-005529
High quality solid steel shank turning tool holder suitable for use with TPUN style turning inserts. The CTFPR/L...
Read more
Overall Length (mm)125
Shank (mm)20
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

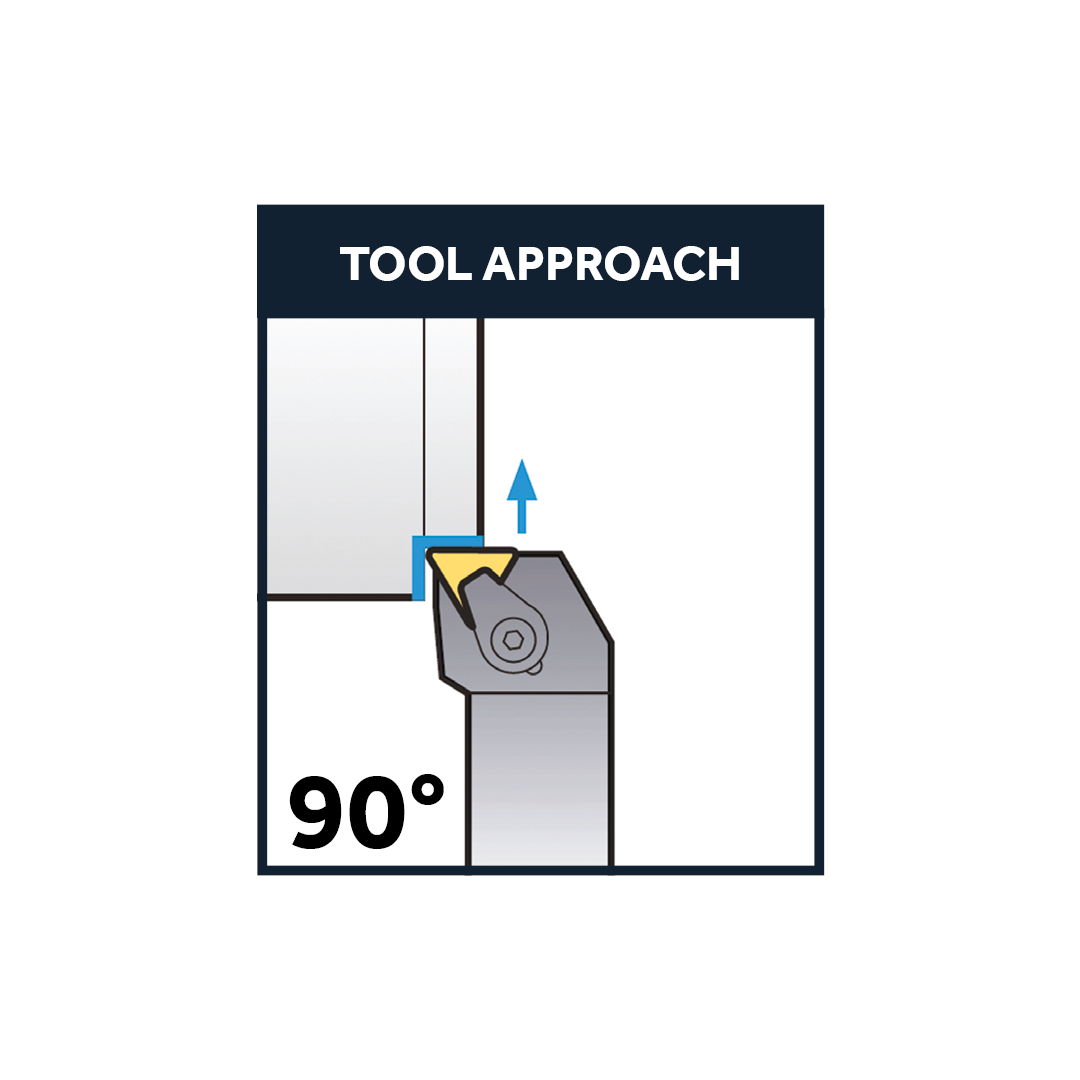

High quality solid steel shank turning tool holder suitable for use with TPUN style turning inserts. The CTFPR/L series have a Top clamp style clamping system with a 90° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

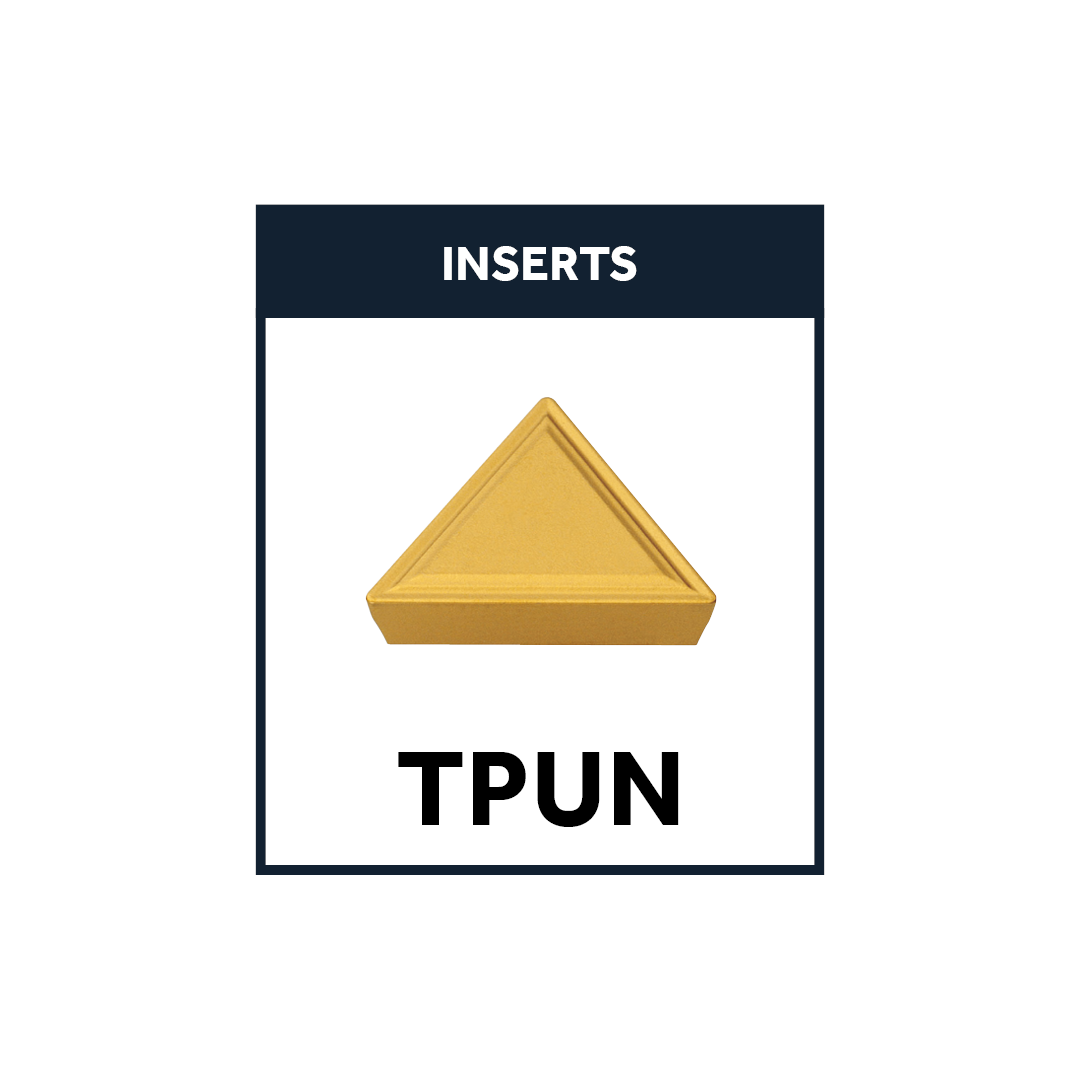

  • Suitable for use with TPUN style turning inserts
  • High quality solid steel shank turning tool holder with 90° degree approach angle
  • Top clamp style clamping system
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

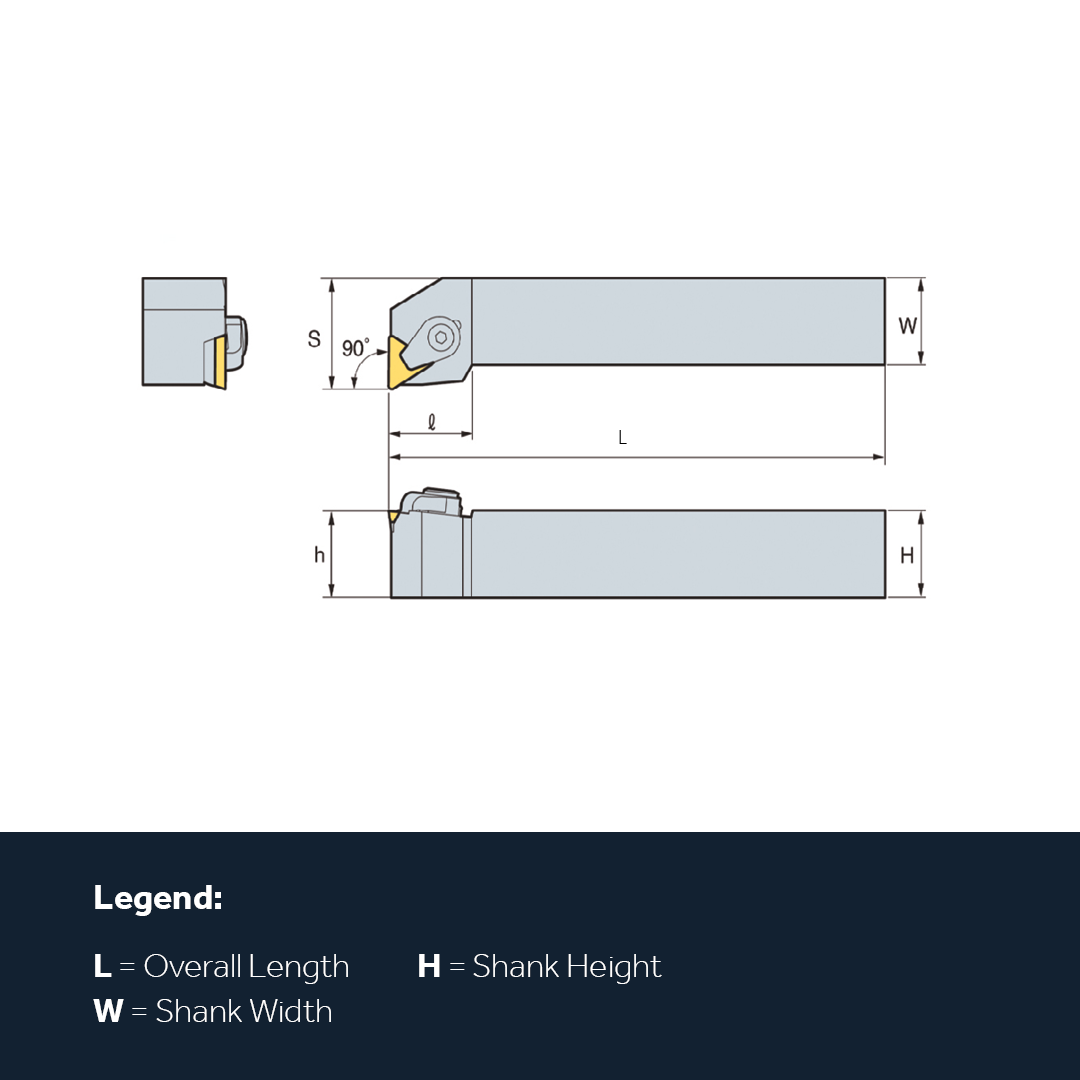

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 20
Overall Length (mm) 125
ISO Code CTFPR2020-K16
Shank 20mm x 20mm
Hand Right
Insert Size TP**1603
Alternative Part Number CTFPR2020-K16
Screw VHX0821
Shim ST32C
Clamp Screw CHX0622C
Clamp CH6R5
Insert Series TPUN
Through Coolant No
Angle 90°
Holder Style CTFPR/L
Clamp Type Top Clamp
Brand Korloy
