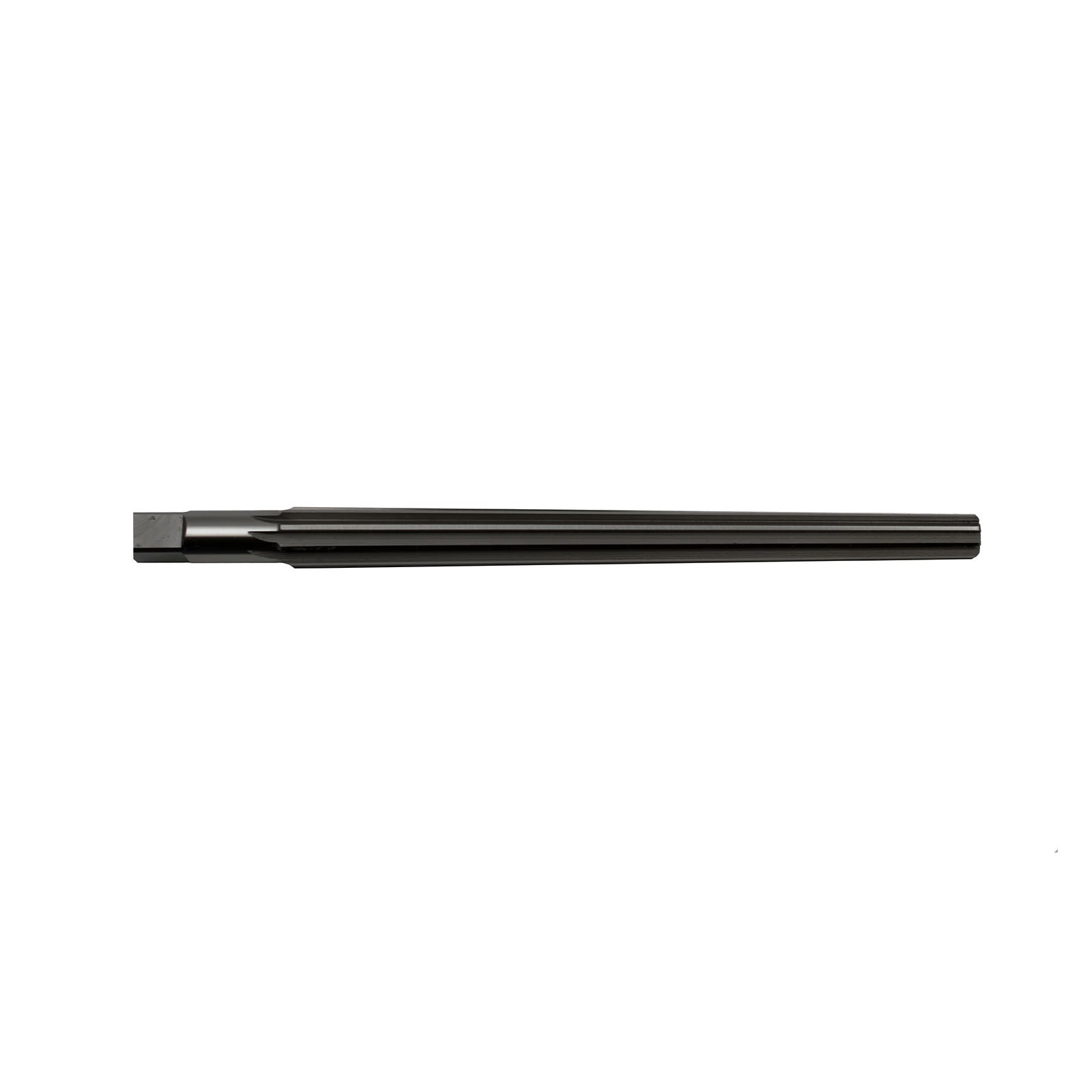

HSS DIN9 Straight Shank 1:50 Taper Pin Reamer - 75040 Series (Presto)
Scroll back
Scroll back
HSS DIN9 Straight Shank 1:50 Taper Pin Reamer - 75040 Series (Presto)
Reamers designed for machining all ferrous and non-ferrous metals as well as for hard and soft plastics. Used for...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Reach (mm)
|
Chamfer Angle
|
Square Across Flat
|
Square Length
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 37 | Overall Length (mm): 57 | Reach (mm): | Chamfer Angle: | Square Across Flat: 1.8 | Square Length: 4 |
4 days*
|
£41.89
£34.91
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 48 | Overall Length (mm): 68 | Reach (mm): | Chamfer Angle: | Square Across Flat: 2.24 | Square Length: 5 |
4 days*
|
£26.20
£21.83
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 48 | Overall Length (mm): 68 | Reach (mm): | Chamfer Angle: | Square Across Flat: 2.8 | Square Length: 5 |
4 days*
|
£29.94
£24.95
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 58 | Overall Length (mm): 80 | Reach (mm): | Chamfer Angle: | Square Across Flat: 3.15 | Square Length: 6 |
4 days*
|
£25.00
£20.83
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 68 | Overall Length (mm): 93 | Reach (mm): | Chamfer Angle: | Square Across Flat: 4 | Square Length: 7 |
4 days*
|
£28.14
£23.45
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 73 | Overall Length (mm): 100 | Reach (mm): | Chamfer Angle: | Square Across Flat: 5 | Square Length: 8 |
In stock
|
£30.12
£25.10
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 105 | Overall Length (mm): 135 | Reach (mm): | Chamfer Angle: | Square Across Flat: 6.3 | Square Length: 9 |
4 days*
|
£35.09
£29.24
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 141 | Overall Length (mm): 177 | Reach (mm): | Chamfer Angle: | Square Across Flat: 6.3 | Square Length: 9 |
In stock
|
£36.67
£30.56
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 145 | Overall Length (mm): 180 | Reach (mm): | Chamfer Angle: | Square Across Flat: 8 | Square Length: 11 |
4 days*
|
£44.54
£37.12
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 175 | Overall Length (mm): 215 | Reach (mm): | Chamfer Angle: | Square Across Flat: 10 | Square Length: 13 |
4 days*
|
£62.72
£52.27
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 210 | Overall Length (mm): 255 | Reach (mm): | Chamfer Angle: | Square Across Flat: 11.2 | Square Length: 14 |
4 days*
|
£72.36
£60.30
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 194 | Overall Length (mm): 240 | Reach (mm): | Chamfer Angle: | Square Across Flat: 12.5 | Square Length: 16 |
In stock
|
£95.04
£79.20
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 194 | Overall Length (mm): 240 | Reach (mm): | Chamfer Angle: | Square Across Flat: 12.5 | Square Length: 16 |
4 days*
|
£131.02
£109.18
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 230 | Overall Length (mm): 280 | Reach (mm): | Chamfer Angle: | Square Across Flat: 14 | Square Length: 18 |
4 days*
|
£143.05
£119.21
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 250 | Overall Length (mm): 310 | Reach (mm): | Chamfer Angle: | Square Across Flat: 18 | Square Length: 22 |
4 days*
|
£218.83
£182.36
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 300 | Overall Length (mm): 370 | Reach (mm): | Chamfer Angle: | Square Across Flat: 22.4 | Square Length: 26 |
4 days*
|
£222.52
£185.43
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 320 | Overall Length (mm): 400 | Reach (mm): | Chamfer Angle: | Square Across Flat: 25 | Square Length: 28 |
4 days*
|
£274.40
£228.67
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 340 | Overall Length (mm): 430 | Reach (mm): | Chamfer Angle: | Square Across Flat: 31.5 | Square Length: 34 |
4 days*
|
£455.15
£379.29
|
|
|
| Diameter (mm): | Shank (mm): | Flute Length (mm): 360 | Overall Length (mm): 460 | Reach (mm): | Chamfer Angle: | Square Across Flat: 40 | Square Length: 42 |
4 days*
|
£702.65
£585.54
|
|
|
| Diameter (mm): 17 | Shank (mm): 20 | Flute Length (mm): 54 | Overall Length (mm): 175 | Reach (mm): 121 | Chamfer Angle: 45° | Square Across Flat: 40 | Square Length: |
5 days*
|
£180.66
£150.55
|
|
Product Information
Features & Benefits
Reamers designed for machining all ferrous and non-ferrous metals as well as for hard and soft plastics. Used for reaming of taper bores to suit taper pins.
- HSS DIN9 Straight Shank 1:50 Taper Pin Reamer
- Bright Straight Shank
- Reamers designed for machining all ferrous and non-ferrous metals as well as for hard and soft plastics.
- Used for reaming of taper bores to suit taper pins.
- Straight Flute
- Presto tools are a household name in the cutting tool industry
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Reamers |
| Sub Category 2 | Solid Reamers |
| Substrate | HSS |
| Flute Type | Straight Flute |
| Shank Type | Plain |
| Applicable Materials | Steel, Non-Ferrous |
| Performance | 3 |
| Substrate Description | HSS |
| Type | Taper Pin Reamer |
| Brand | Presto |
