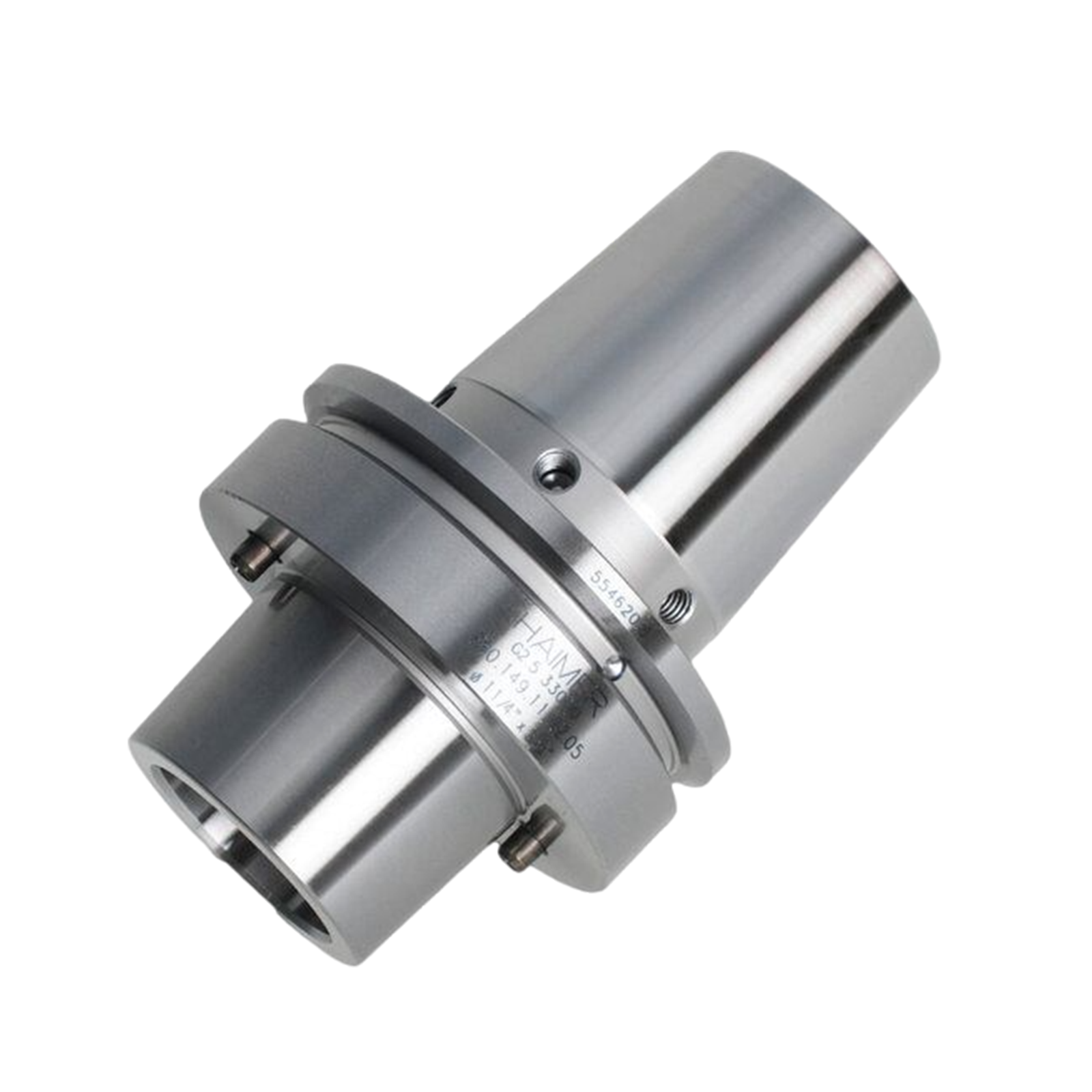

25mm HSK63F Standard Shrink Fit Chuck (70mm Long) Balanced to 33,000RPM G2.5 (Haimer)
25mm HSK63F Standard Shrink Fit Chuck (70mm Long) Balanced to 33,000RPM G2.5 (Haimer)
| Diameter (mm) | 25 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Chuck body fine balanced G2.5 at 33.000RPM
- Increased machining capacity due to higher spindle speed, higher feed and larger cutting depths
- Quieter running, therefore better surface quality and protection of cutting tools, machine spindles and machines
- Shorter processing times and higher machining accuracy
- With threaded holes in order to balance with balancing screws
- High rigidity and high clamping force
- High runout accuracy (< 0.003mm)
- Extreme clamping torque by high pressing in the clamping bore
- Heat resistant hot-working steel, hardened 54-2 HRC
- More accurate than DIN
- Suited to high-speed manufacturing and heavy milling
- For HSS and solid carbide tools with h6 shank tolerance
- Made in Germany by leading supplier Haimer
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Spindle Tooling |
| Sub Category 2 | Shrink Fit Chucks |
| Diameter (mm) | 25 |
| Gauge Length | 70 |
| Taper Description | HSK |
| Brand | Haimer |
