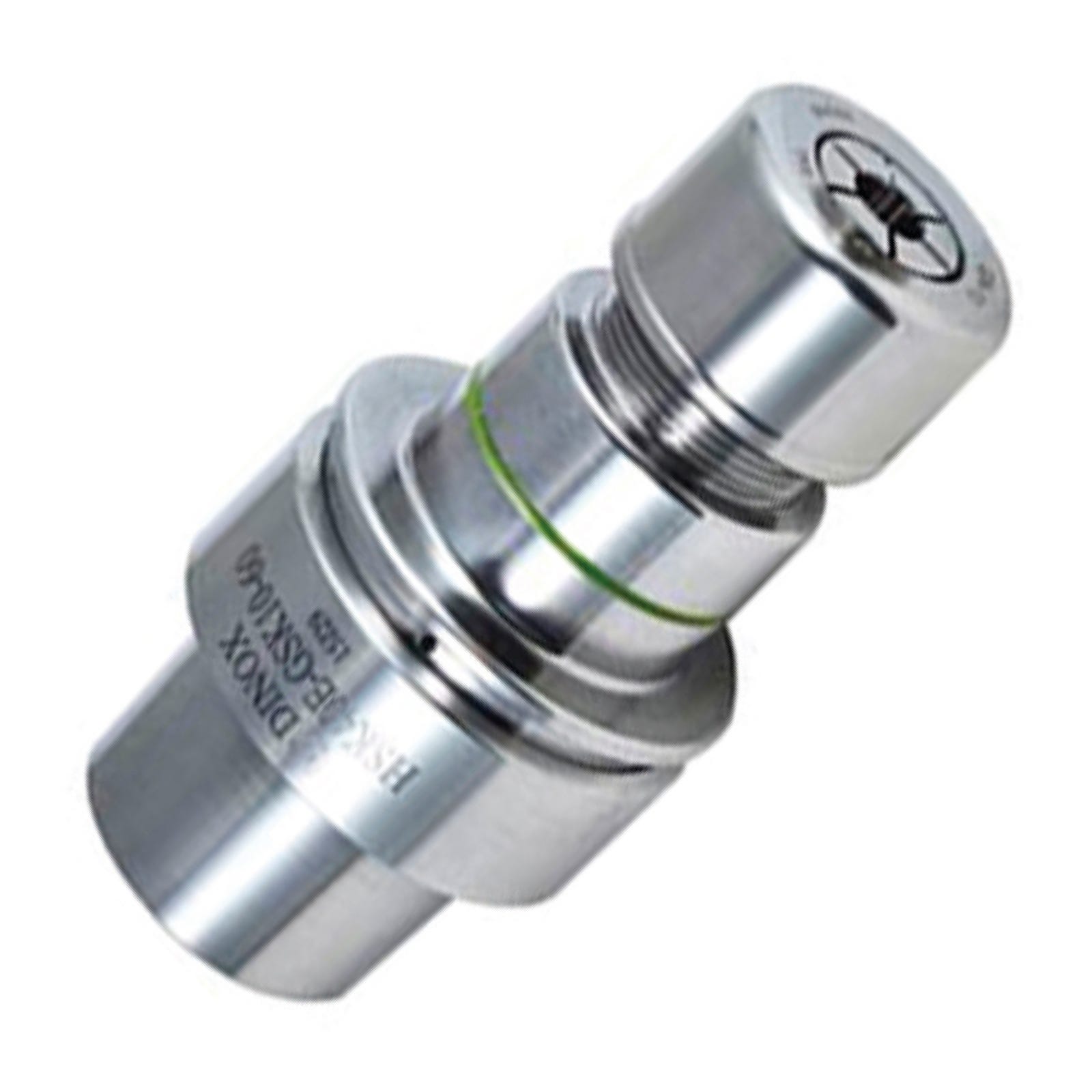

HSK63A GSK Slim Collet Chuck 20,000RPM G2.5 (Dine)

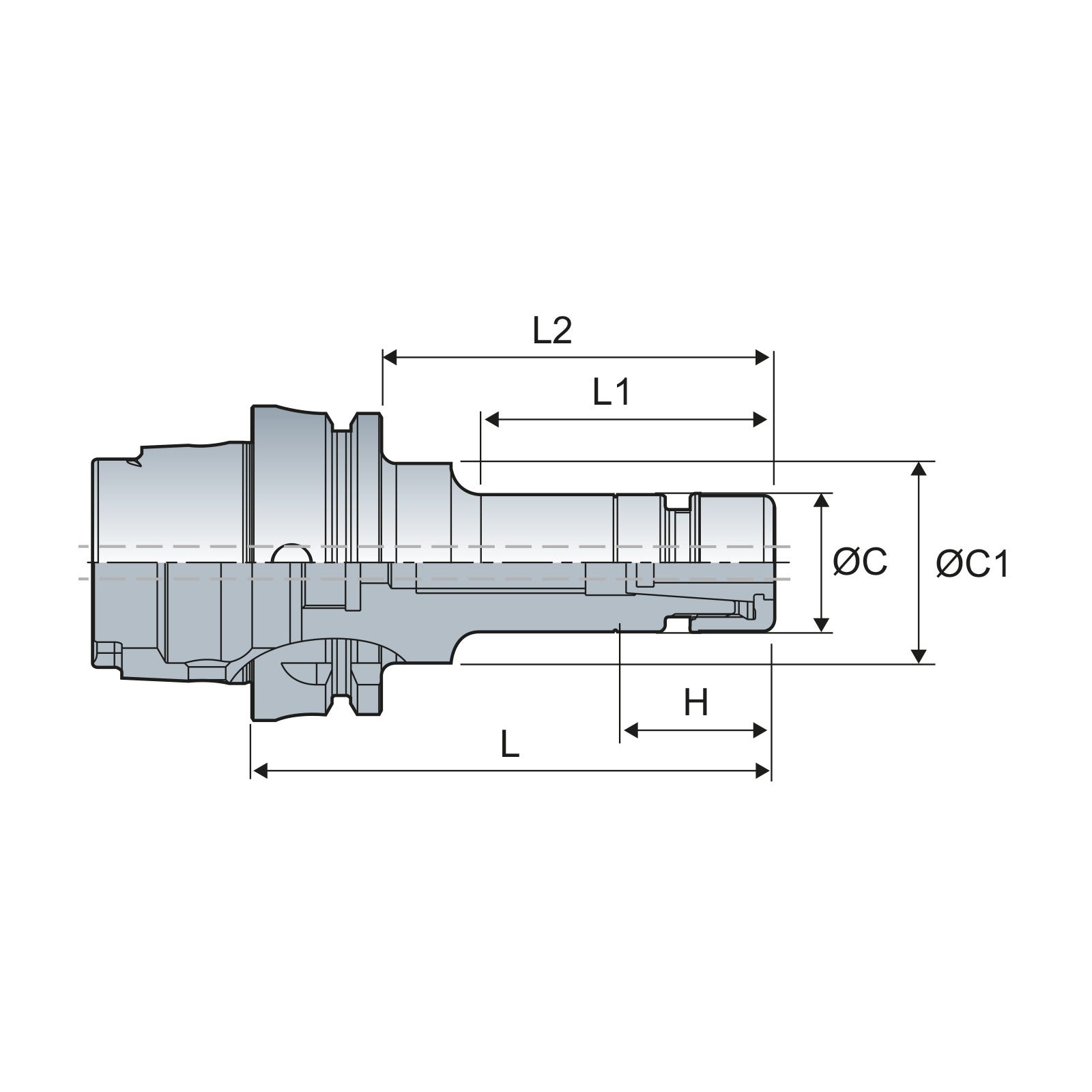

L2
|
Gauge Length
|
L1
|
Clamping Range
|
H
|
C
|
C1
|
Collet Size
|
||||
---|---|---|---|---|---|---|---|---|---|---|---|
L2: 61 | Gauge Length: 100 | L1: 51 | Clamping Range: 1-6 | H: 35 | C: 19.5 | C1: 32 | Collet Size: HC6 |
In stock
|
£282.22
£235.18
|
|
|
L2: 118 | Gauge Length: 105 | L1: 73 | Clamping Range: 2-6 | H: 50 | C: 27.5 | C1: 34.5 | Collet Size: HC10 |
31 days*
|
£282.22
£235.18
|
|
|
L2: 58 | Gauge Length: 120 | L1: 58 | Clamping Range: 3-16 | H: 60 | C: 40 | C1: 40 | Collet Size: HC16 |
31 days*
|
£295.07
£245.89
|
|
|
L2: 60 | Gauge Length: 120 | L1: 60 | Clamping Range: 4-20 | H: 70 | C: 48 | C1: 48 | Collet Size: HC20 |
31 days*
|
£307.87
£256.56
|
|
Product Information
Features & Benefits
- HSK63A GSK Slim Collet Chucks
- Balanced to 20,000RPM G2.5
- Less than 5 Micron run out with standard collets or less than 3 Micron run out collets available on request
- 8° slim collets for minimised & reduced vibration
- High Precision, High Speed and Increased Rigidity over ER Collet Chucks
- Versatility of an ER Collet chuck without the deflection
- Improved workpiece access due to the slimmer design
- Specially Designed Wrench Sold Separately
- Compatible with Nikken SK collets
Specification
Category | Toolholding |
---|---|
Sub Category | Shrink Fit Machines |
Sub Category 2 | Slim Collets |
Balance | 20,000RPM G2.5 |
Run Out | 5 Micron Run-Out |
Taper | HSK63A |
Brand | Dine |
