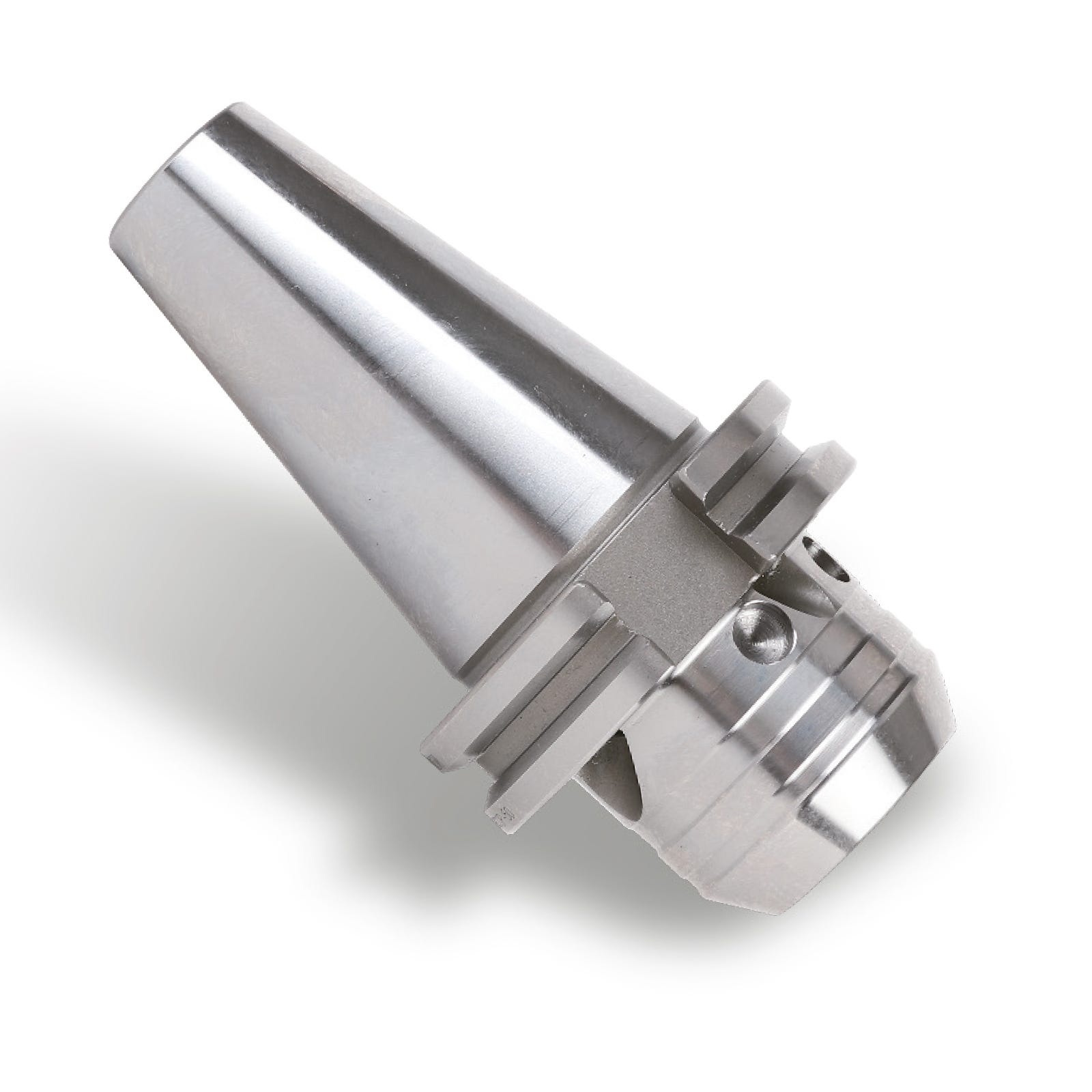

20mm SK40 Power E-Hydro Hydraulic Chuck (64.5mm Long) (YG-1)
20mm SK40 Power E-Hydro Hydraulic Chuck (64.5mm Long) (YG-1)
| Diameter (mm) | 20 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- SK40 back end type.
- AD/B through coolant type.
- 3 micron run-out accuracy, balanced to 25,000RPM.
- Either 50mm or 64.5mm gauge length.
- The Ultimate Hydraulic Toolholder For Milling, Drilling and Reaming.
- Up to 300% more tool life than ER Collet Chucks.
- Up to 900Nm clamping force.
- High torque transmission is guaranteed using hydraulic clamping technology.
- Optimal radial rigidity from a compact and robust toolholder body, avoids lateral deflection during metal cutting.
- Can be used with reduction sleeves or the tool can be clamped directly in the holder.
- HSS and carbide shanks in plain, weldon or whistle notch can be clamped.
- Perfect surface finish – no chatter marks.
- Push feed rates up to 30% higher.
- Change cutting tool in seconds with 3 micron repeatability.
- Compact design.
- Suitable for through coolant tools.
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Spindle Tooling |
| Sub Category 2 | Hydraulic Chucks |
| Diameter (mm) | 20 |
| Gauge Length | 64.5 |
| Tolerance | h6 |
| Nose Diameter | 49.25 |
| Through Coolant | Yes |
| Type | Short & Rigid |
| Balance | 25,000RPM G2.5 |
| Run Out | 3 Micron Run-Out |
| Taper | SK40 |
| Brand | YG-1 |
