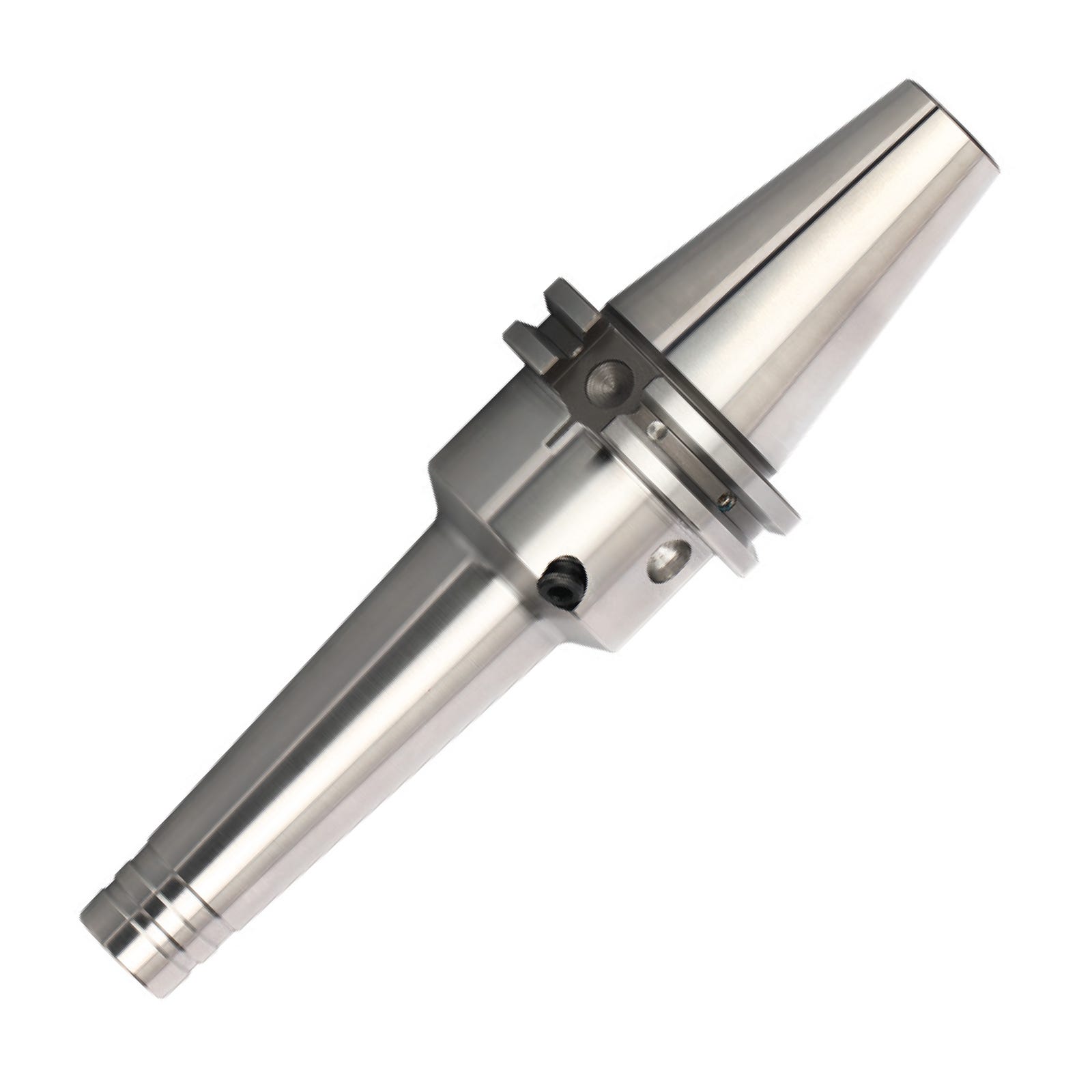

22mm SK40 Long, Slim & Tapered Hydraulic Chuck (150mm Long) 25,000RPM G2.5 (YG-1)
22mm SK40 Long, Slim & Tapered Hydraulic Chuck (150mm Long) 25,000RPM G2.5 (YG-1)
| Diameter (mm) | 22 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Balanced to 25,000RPM G2.5
- High run-out accuracy 0.003mm
- 600Kn clamping force
- Vibration damping effect
- Increased tool life
- 3°taper (per side), ideal for moulds
- Exceptional performance in drilling, reaming and high-speed machining
- Flexible clamping range using reduction sleeves or direct clamping of the tool in the chuck
- Quick setup times
- Through coolant
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Spindle Tooling |
| Sub Category 2 | Hydraulic Chucks |
| Diameter (mm) | 22 |
| Gauge Length | 150 |
| Tolerance | h6 |
| Nose Diameter | 100 |
| Through Coolant | Yes |
| Type | Long, Slim & Tapered |
| Balance | 25,000RPM G2.5 |
| Run Out | 3 Micron Run-Out |
| Taper | SK40 |
| Taper Description | DIN 69871 |
| Brand | YG-1 |
