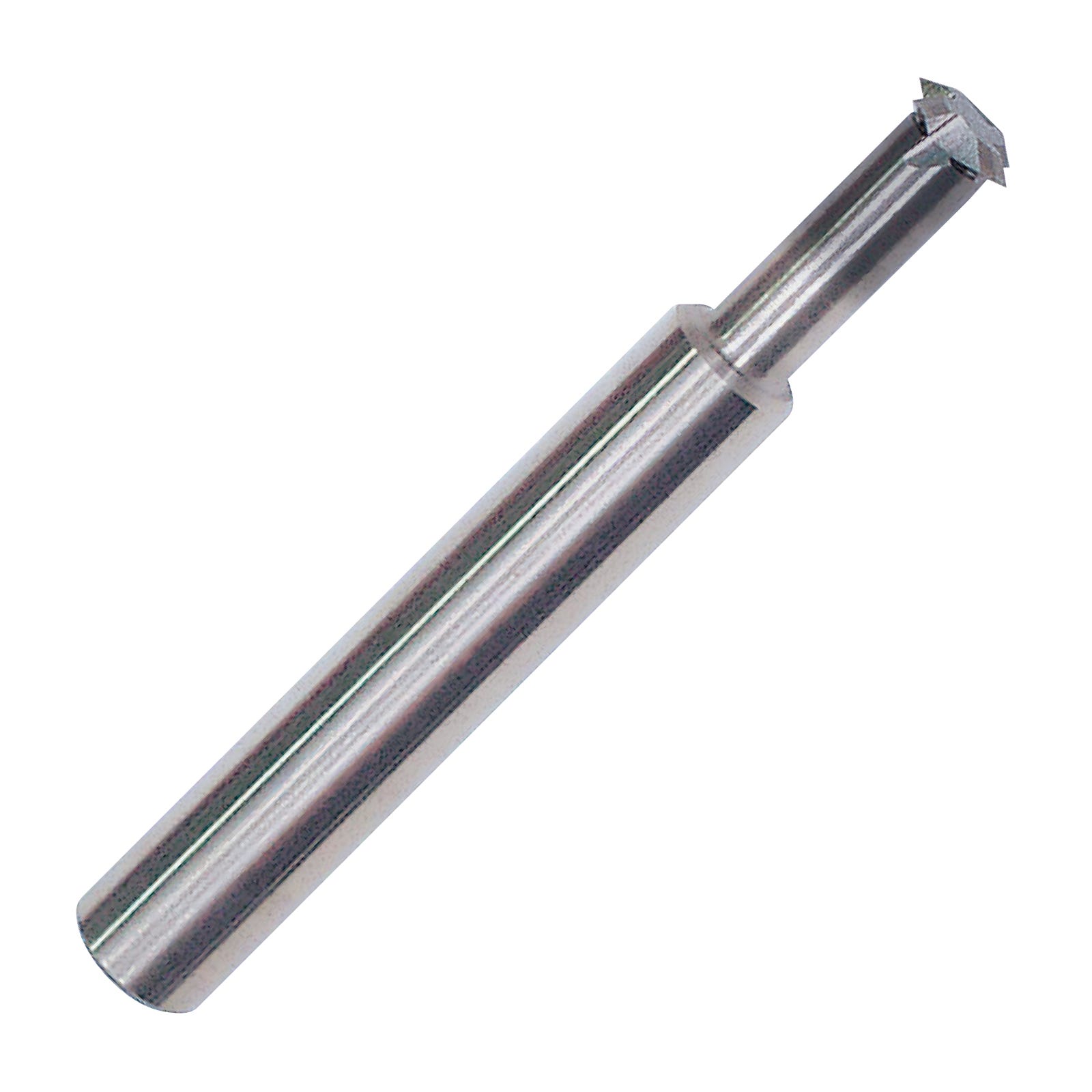

M16x2 Metric Single Tooth Long Reach Internal 3xD Solid Carbide Thread Mill (Cutwel Pro)
M16x2 Metric Single Tooth Long Reach Internal 3xD Solid Carbide Thread Mill (Cutwel Pro)

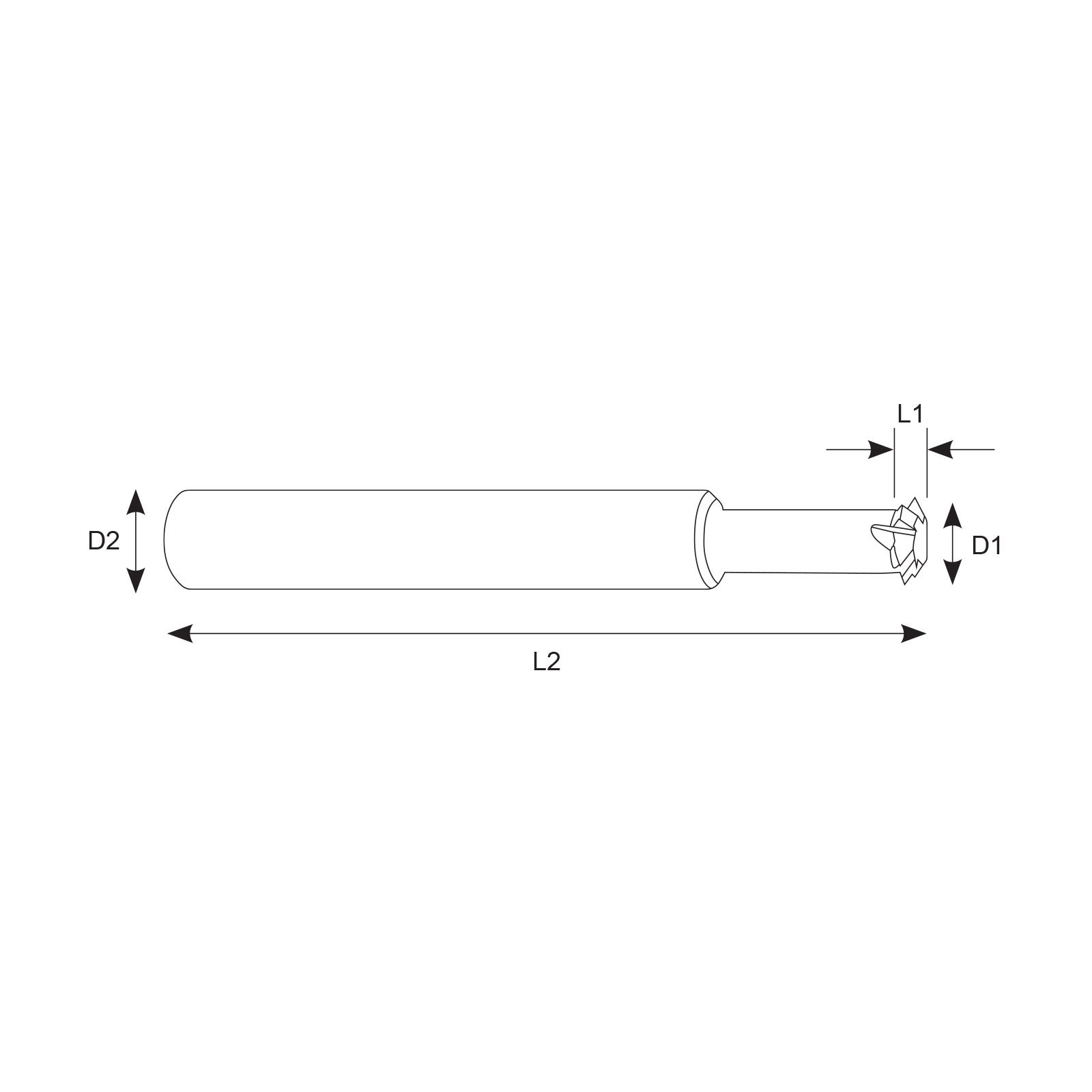

| Diameter (mm) | 12.2 |
|---|---|
| Overall Length (mm) | 100 |
| Flute Length (mm) | 50 |
| Shank (mm) | 16 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- 3xD Max Thread Depth
- For Internal Machining
- For Metric Coarse & Metric Fine threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Long reach design for deep hole threading
- Made from Micrograin Solid Carbide
- TNF coating prevents built up edge & improves thread quality
- Suitable for left hand & right hand threads
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Mills |
| Thread | M16 x 2 |
| Sub Category 2 | Solid Carbide Thread Mills |
| Shank (mm) | 16 |
| Diameter (mm) | 12.2 |
| Pitch | 2 |
| Flute Length (mm) | 50 |
| Overall Length (mm) | 100 |
| Flutes | 4 |
| Standard | DIN 13 |
| Thread Angle | 60° |
| Helix Profile | Right Helix |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 3xD |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Coating Description | TNF Coated |
| Type | Long Reach/Deep Threads |
| Thread Form | Metric ISO |
| Brand | Cutwel Pro |
