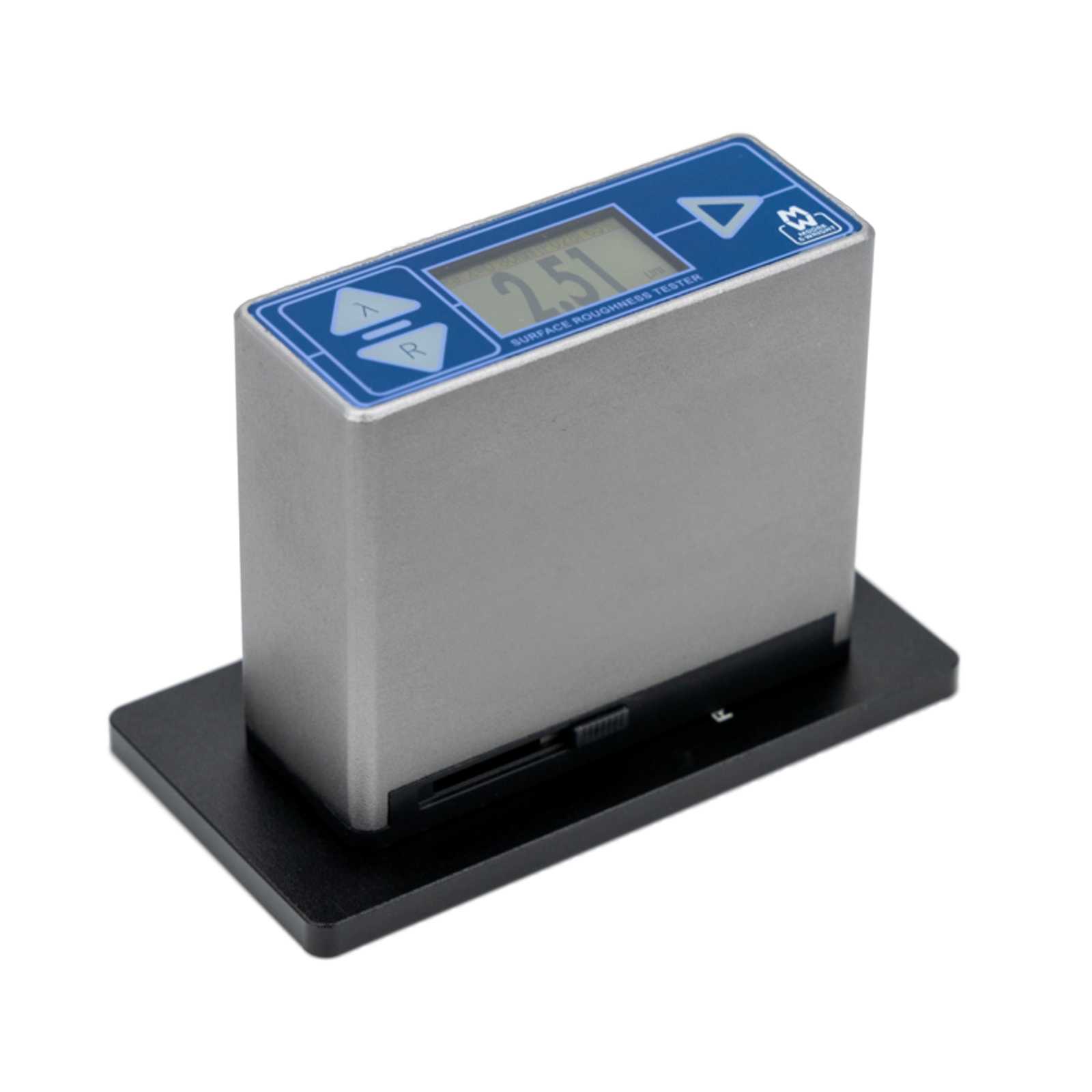

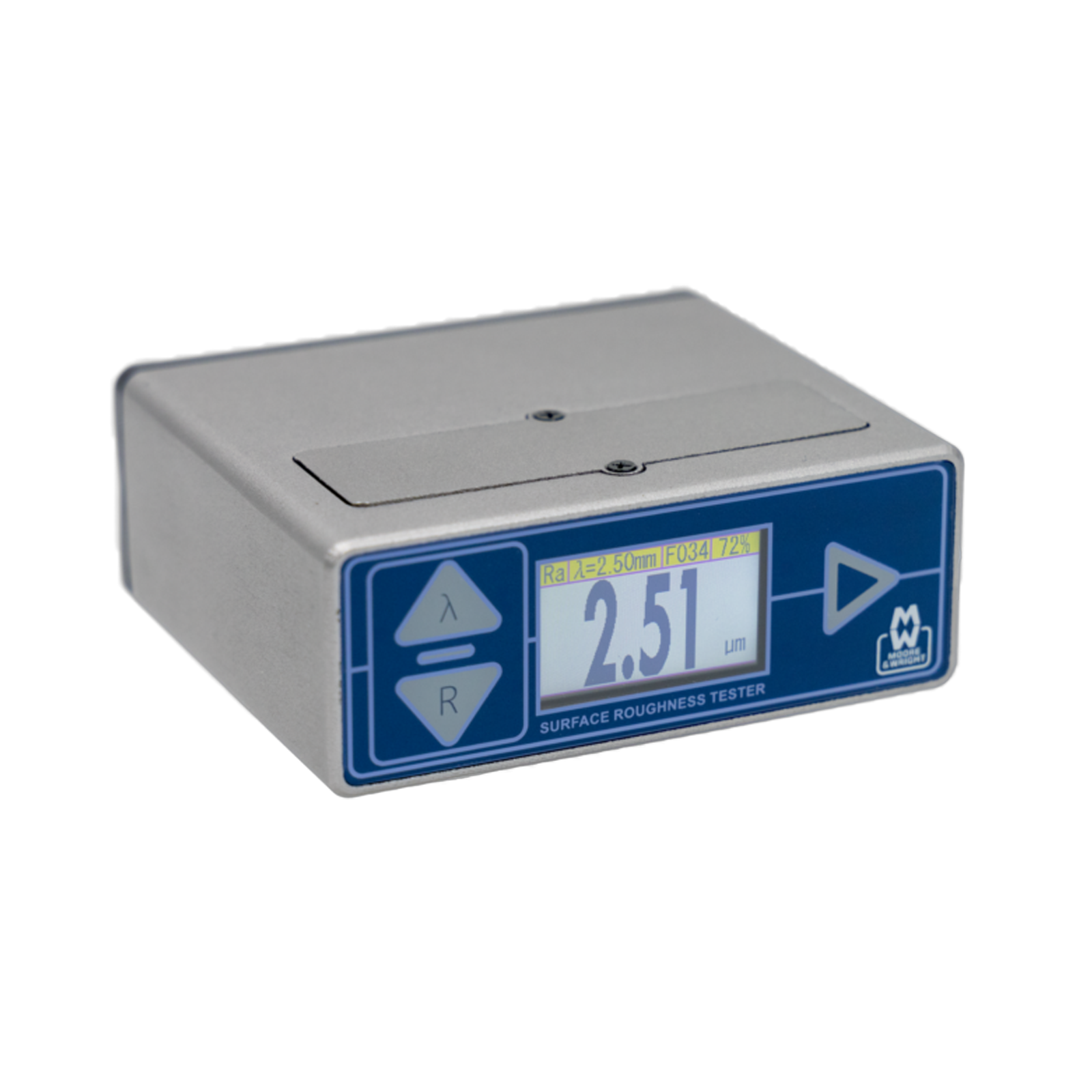

Portable Surface Roughness Tester (Moore & Wright)

Portable Surface Roughness Tester (Moore & Wright)

Key Features

available Bright LCD display for wide angle viewing Digital signal processing for high accuracy measurement
available Selectable measuring parameters, sample distance and units
available Internal storage of 500 data points
Read More
View Products

Related Products

cross
Image Code Stock Price
(Ex VATInc. VAT)

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday
Filter Items arrow
Code Power Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Power
carrat-down
MWT-1100
Power: 1.5V AA Battery
green Available for Delivery within 2-3 Days *
Special Price £1,122.00 £935.00 Was £1,320.00 £1,100.00
minus plus

*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.

Specification

Category Measuring
Sub Category Roughness Testers & Accessories
Sub Category 2 Roughness Testers
Brand Moore & Wright

Description

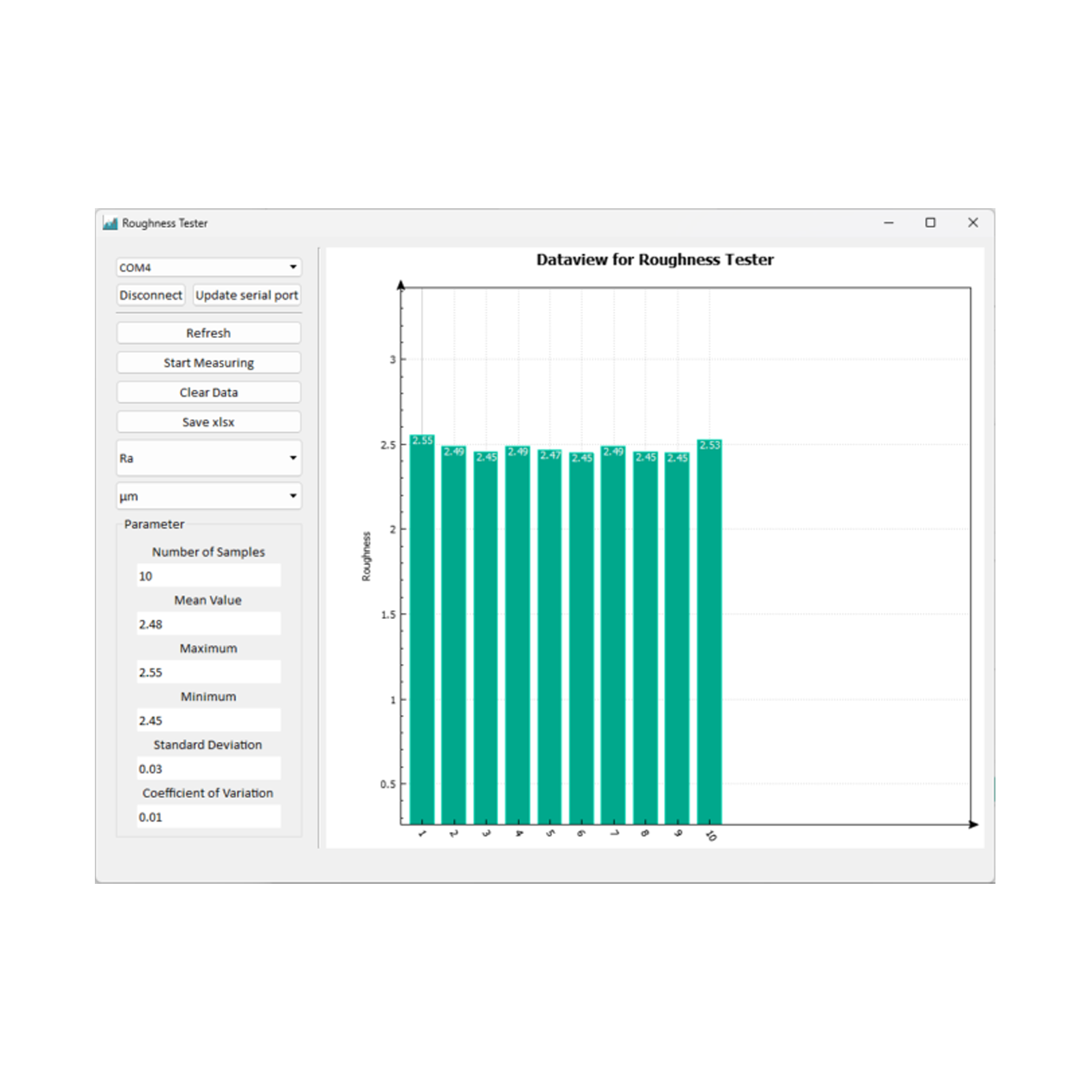

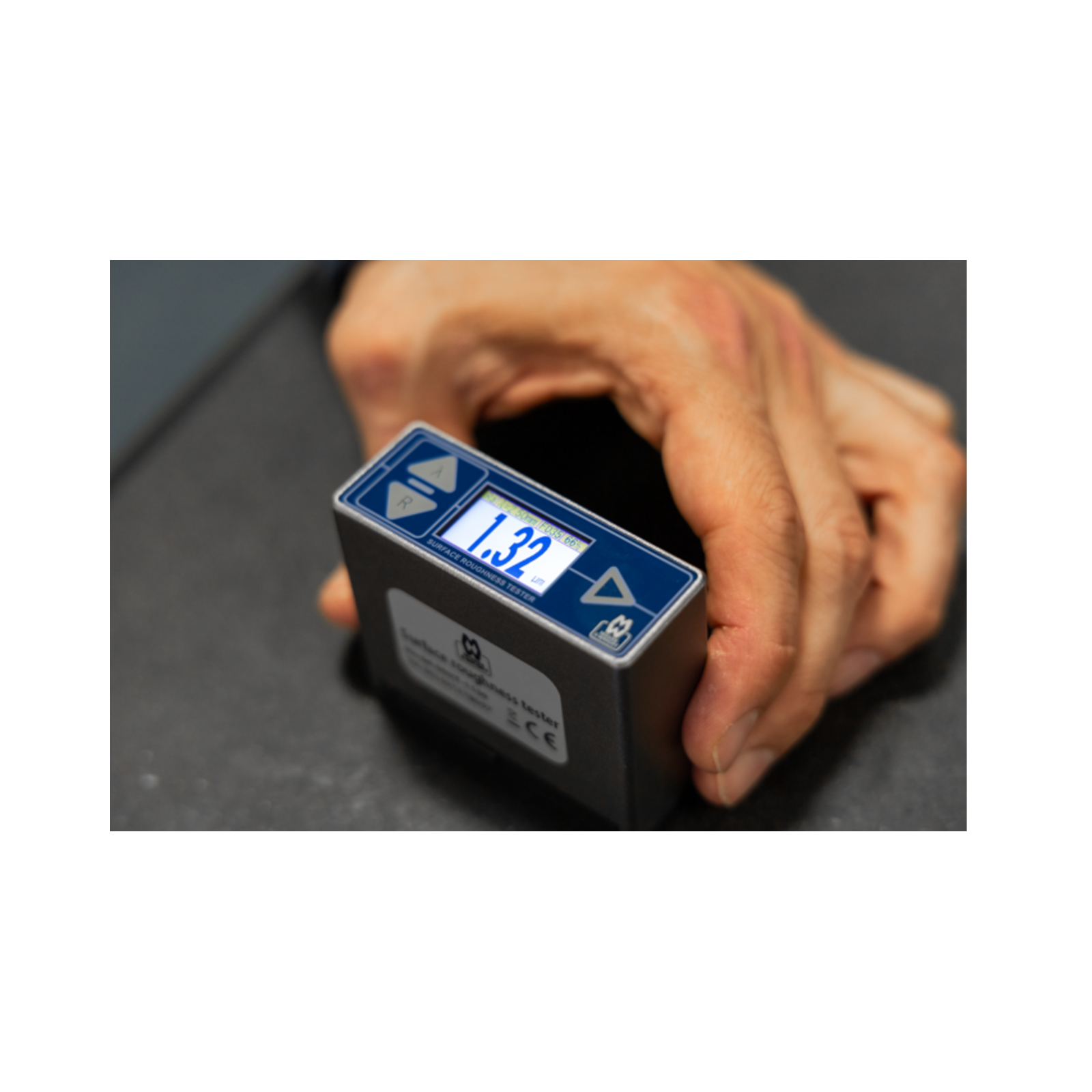

The MWT-1100 roughness tester can be used for a multitude of metallic or non-metallic surfaces. A bright LCD display allows simple configuration and gives readings in multiple units. When measuring, the tester is held against the surface to be measured. A stylus is automatically driven across the measured surface over a pre-configured distance. Any roughness in the surface causes the stylus to be displaced vertically, the physical displacement is transferred into an electrical signal. This signal is amplified and converted into a digital signal and processed into a value for display and saving to memory. The software and dongle provided allow interface with a PC in order to collect data from the tester. The data can then be displayed in a graph, and results can be exported to Excel including measurement statistics. Can also remotely initiate a test from the PC.

Features & Benefits

  • Bright LCD display for wide angle viewing Digital signal processing for high accuracy measurement
  • Selectable measuring parameters, sample distance and units
  • Internal storage of 500 data points
  • Data export to PC, analysis and reporting by dedicated software
  • Aluminium housing for high durability and protection from electromagnetic interference
  • Stroke length = 5.6mm
  • Sampling length = 0.25mm, 0.80mm, 2.50mm
  • Evaluation length = 1.25mm, 4.0mm, 5.6mm
  • Measuring range (µm) = Ra: Rq: 0.05 - 10.0, Rz: Rt: 0.1 - 50
  • Indication variability = <6%
  • Indication error = +-10%
  • Arc radius and angle of sensor stylus tip = Tip arc radius: µm +- 1 µm, Angle: 90 degrees
  • Parameter (µm): Ra, Rz, Rq, Rt
  • Static force of sensor stylus (N) = <0.016
  • Suitable for working environment conditions of 0°C - 40°C and relative humidity of <90%
  • Supplied with a reference standard block for test and calibration
