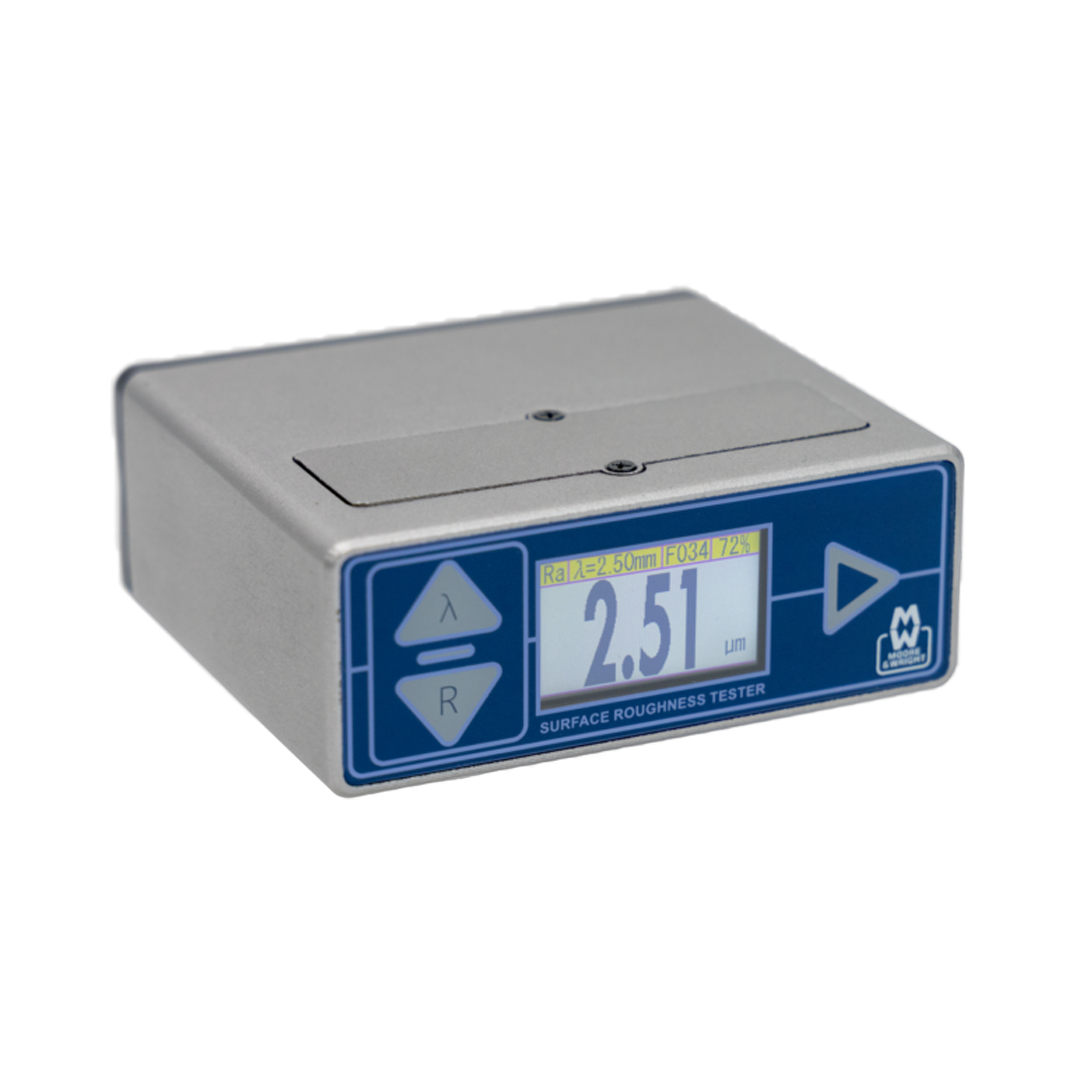

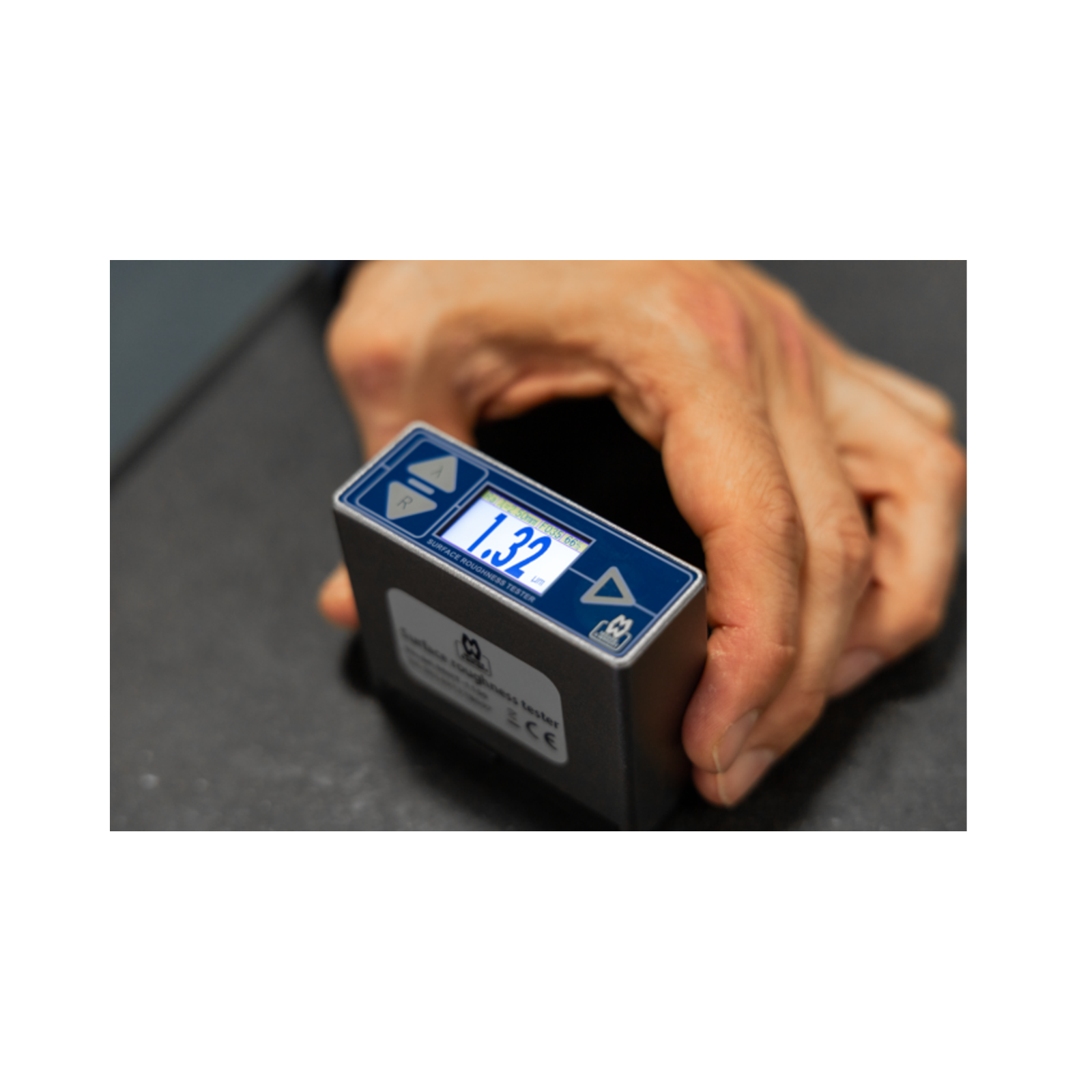

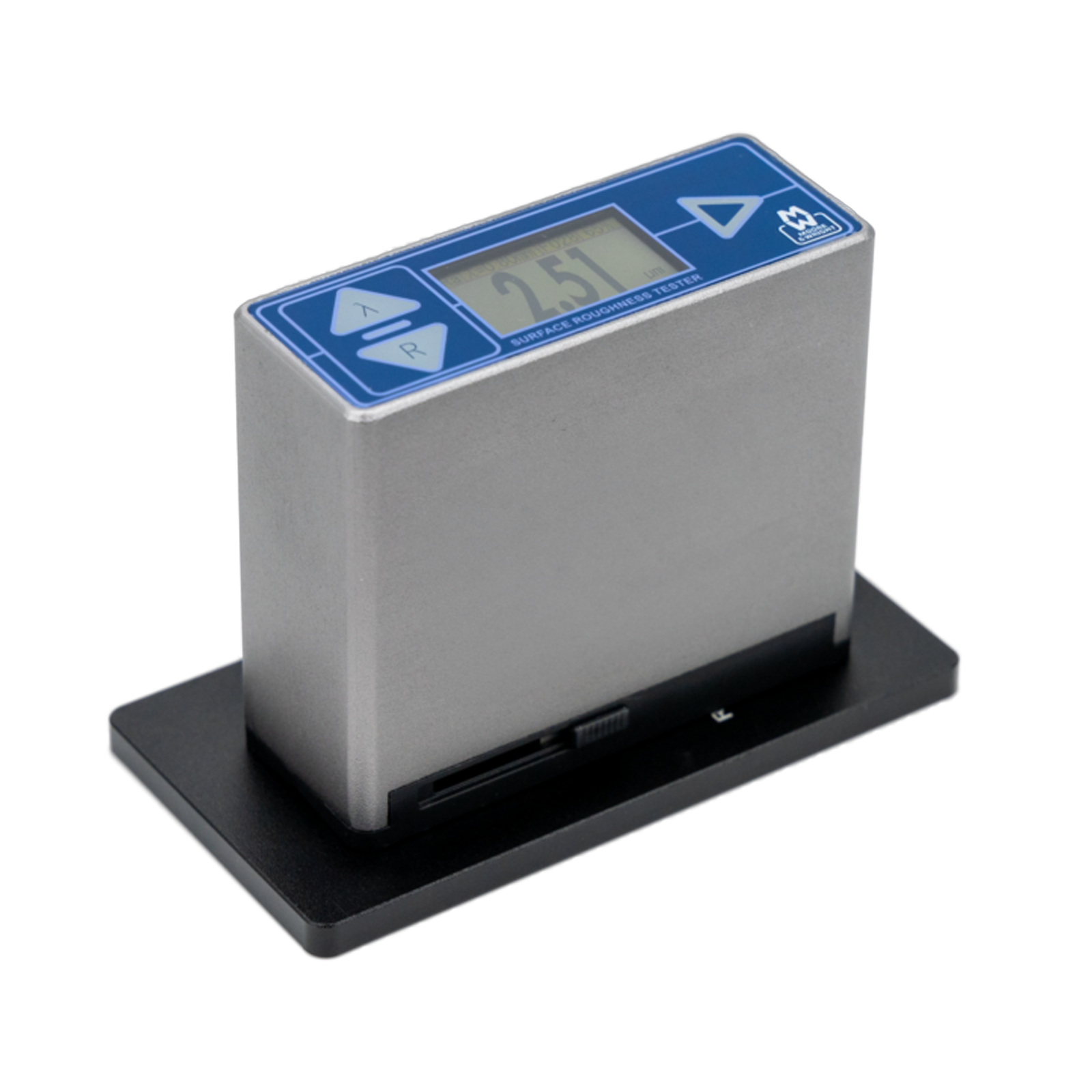

Surface Roughness Tester (Moore & Wright)
Surface Roughness Tester (Moore & Wright)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Bright LCD display for wide angle viewing Digital signal processing for high accuracy measurement
- Selectable measuring parameters, sample distance and units
- Internal storage of 500 data points

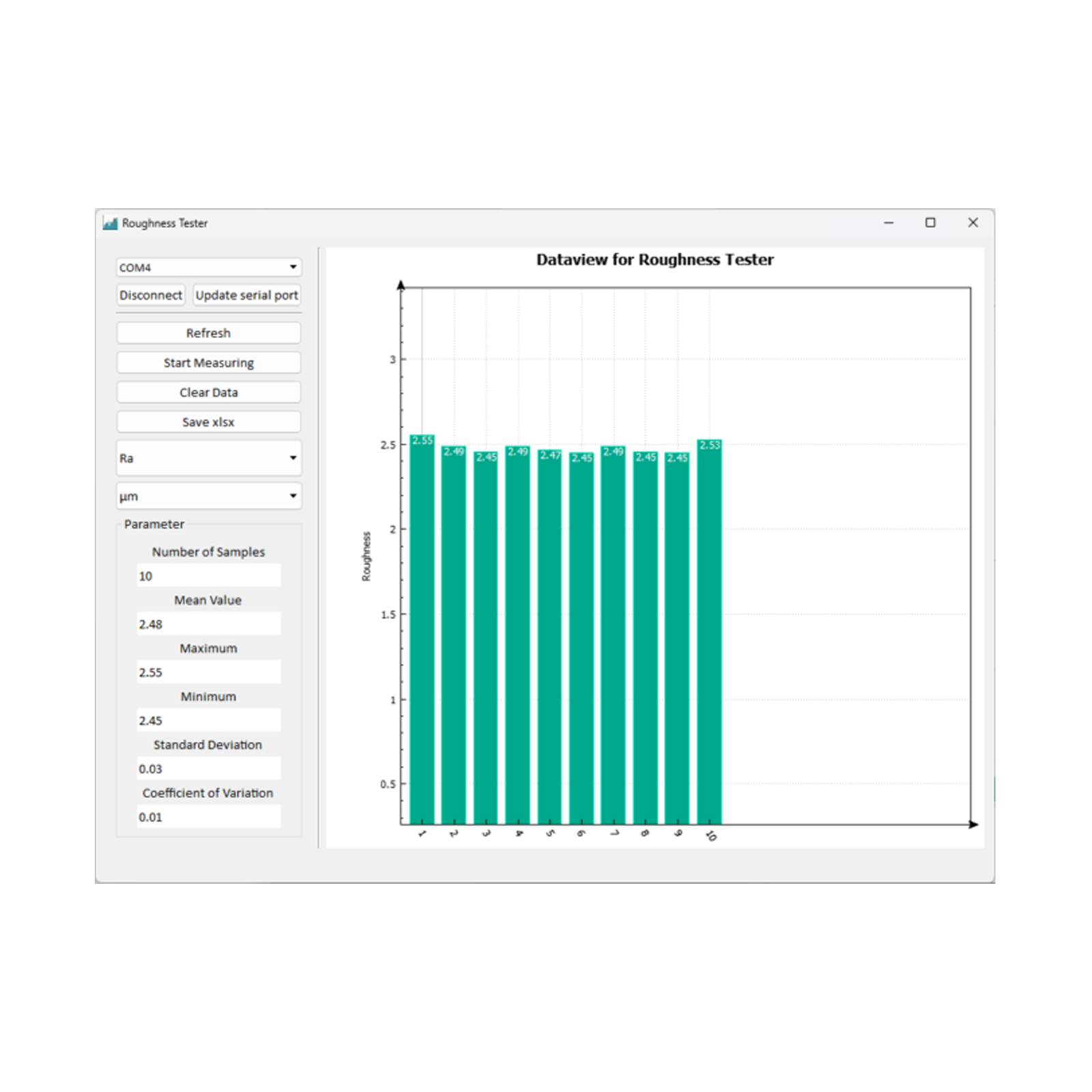

- Data export to PC, analysis and reporting by dedicated software
- Aluminium housing for high durability and protection from electromagnetic interference
- Stroke length = 5.6mm
- Sampling length = 0.25mm, 0.80mm, 2.50mm
- Evaluation length = 1.25mm, 4.0mm, 5.6mm
- Measuring range (µm) = Ra: Rq: 0.05 - 10.0, Rz: Rt: 0.1 - 50
- Indication variability = <6%
- Indication error = +-10%
- Arc radius and angle of sensor stylus tip = Tip arc radius: µm +- 1 µm, Angle: 90 degrees
- Parameter (µm): Ra, Rz, Rq, Rt
- Static force of sensor stylus (N) = <0.016
- Suitable for working environment conditions of 0°C - 40°C and relative humidity of <90%
- Supplied with a reference standard block for test and calibration
Specification
| Category | Measuring |
|---|---|
| Sub Category | Roughness Testers & Accessories |
| Sub Category 2 | Roughness Testers |
| Weight | 165g |
| Power | 1.5V AA Battery |
| Brand | Moore & Wright |
