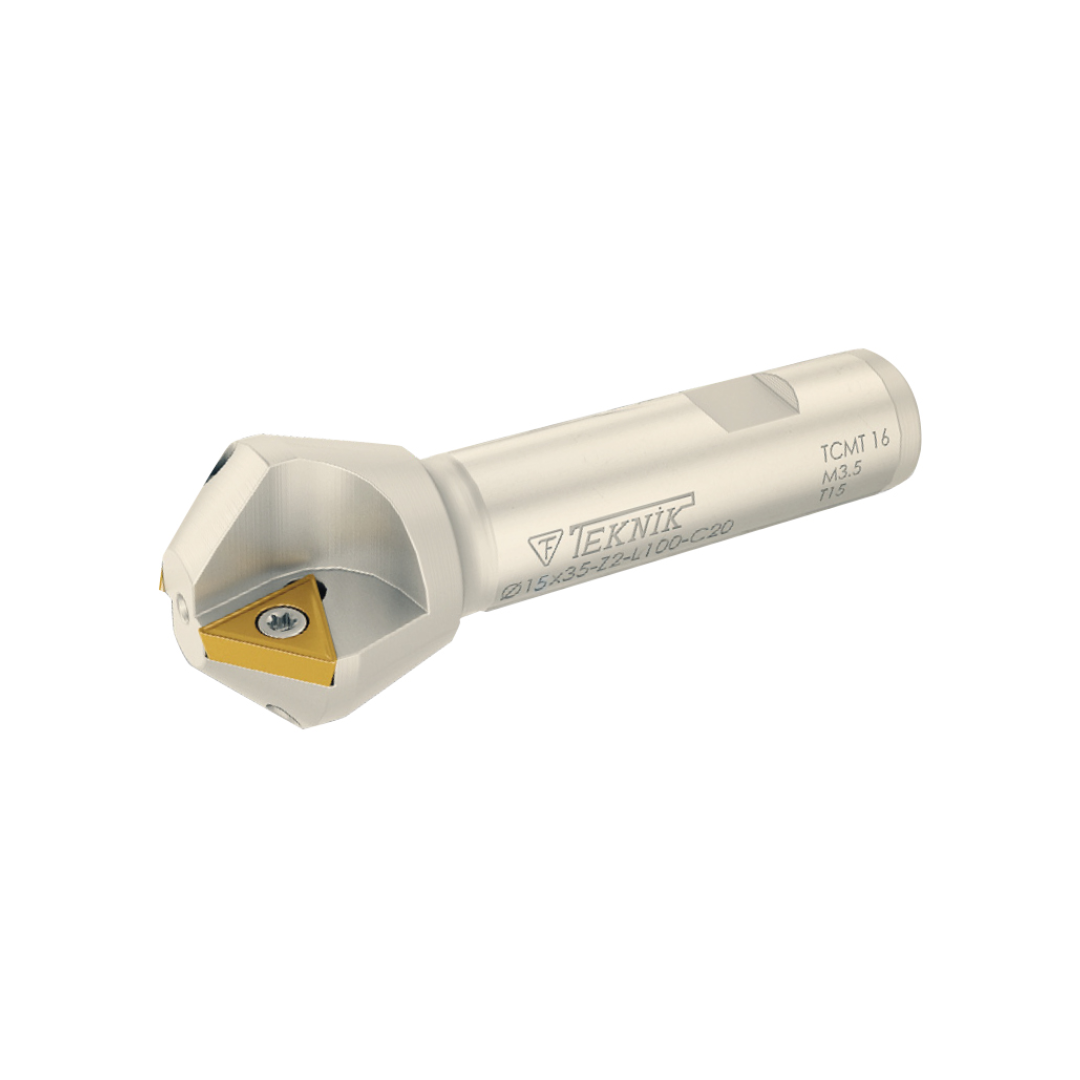

30-60 Degree Indexable Chamfer Mill, 60-120 Degree Inclusive Angle, 1-3 Flutes, for TCMT Inserts (Teknik)
30-60 Degree Indexable Chamfer Mill, 60-120 Degree Inclusive Angle, 1-3 Flutes, for TCMT Inserts (Teknik)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

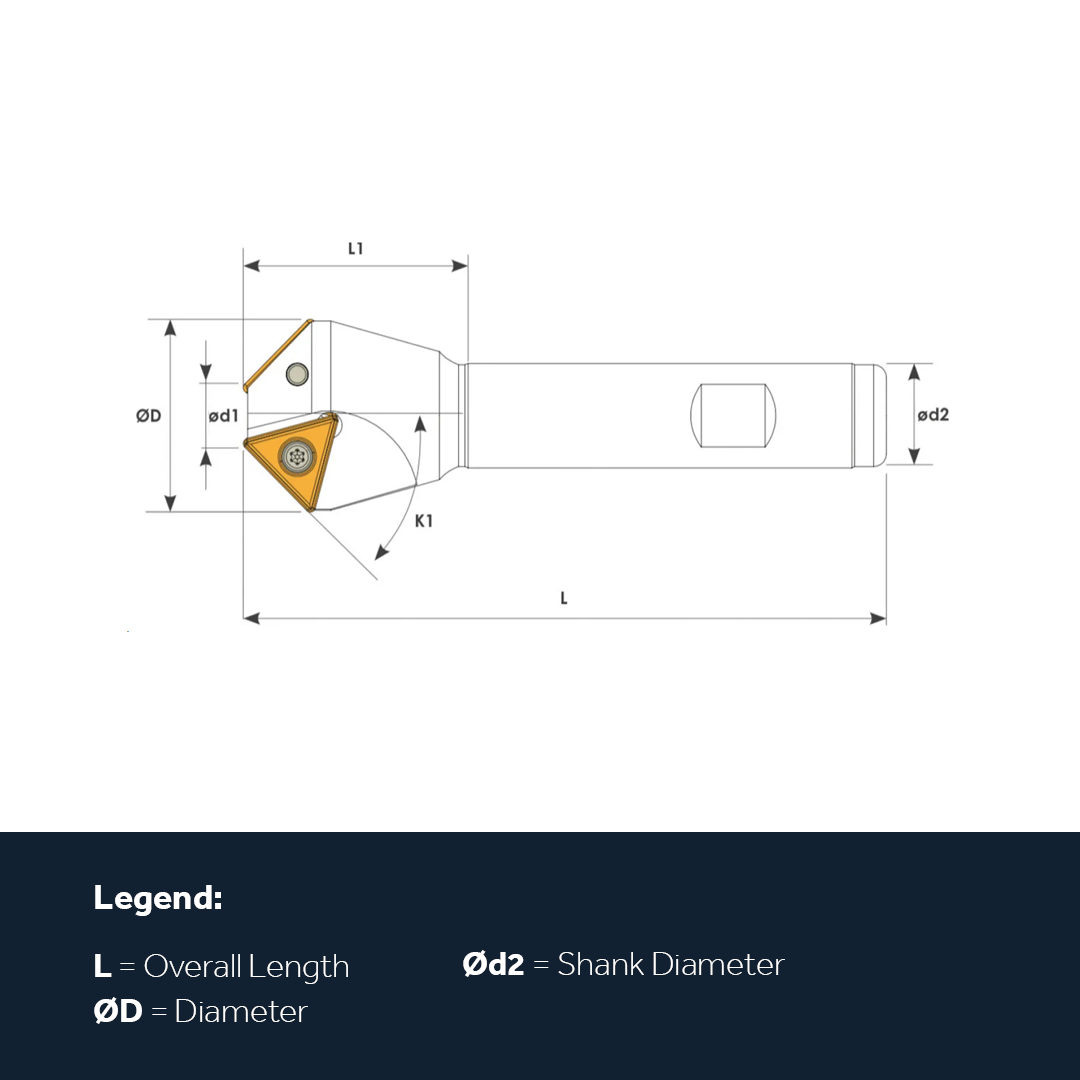

Diameter (mm)
|
Shank (mm)
|
Overall Length (mm)
|
Teeth
|
D
|
D1
|
L
|
Inserts
|
Chamfer Angle
|
L1
|
Diameter (mm)
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 16 | Shank (mm): 16 | Overall Length (mm): 100 | Teeth: 1 | D: 18 | D1: 2 | L: 100 | Inserts: TCMT1102 | Chamfer Angle: 60° | L1: 35 | Diameter (mm): 16 |
In stock
|
£94.38
£78.65
|
|
|
| Diameter (mm): 18 | Shank (mm): 16 | Overall Length (mm): 100 | Teeth: 1 | D: 16 | D1: 4 | L: 100 | Inserts: TCMT1102 | Chamfer Angle: 45° | L1: 35 | Diameter (mm): 18 |
In stock
|
£94.38
£78.65
|
|
|
| Diameter (mm): 35 | Shank (mm): 20 | Overall Length (mm): 100 | Teeth: 2 | D: 31 | D1: 10 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 60° | L1: 35 | Diameter (mm): 35 |
In stock
|
£94.38
£78.65
|
|
|
| Diameter (mm): 20 | Shank (mm): 16 | Overall Length (mm): 100 | Teeth: 1 | D: 20 | D1: 6 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 60° | L1: 30 | Diameter (mm): 20 |
In stock
|
£94.38
£78.65
|
|
|
| Diameter (mm): 31 | Shank (mm): 16 | Overall Length (mm): 100 | Teeth: 2 | D: 31 | D1: 10 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 45° | L1: 35 | Diameter (mm): 31 |
In stock
|
£94.38
£78.65
|
|
|
| Diameter (mm): 31 | Shank (mm): 16 | Overall Length (mm): 100 | Teeth: 2 | D: 35 | D1: 14 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 45° | L1: 35 | Diameter (mm): 31 |
15 days*
|
£94.38
£78.65
|
|
|
| Diameter (mm): 43 | Shank (mm): 25 | Overall Length (mm): 100 | Teeth: 3 | D: 43 | D1: 22 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 45° | L1: 35 | Diameter (mm): 43 |
21 days*
|
£94.38
£78.65
|
|
|
| Diameter (mm): 24 | Shank (mm): 20 | Overall Length (mm): 100 | Teeth: 1 | D: 24 | D1: 6 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 45° | L1: 30 | Diameter (mm): 24 |
In stock
|
£94.38
£78.65
|
|
|
| Diameter (mm): 53 | Shank (mm): 25 | Overall Length (mm): 100 | Teeth: 3 | D: 53 | D1: 32 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 45° | L1: 32.5 | Diameter (mm): 53 |
22 days*
|
£94.38
£78.65
|
|
|
| Diameter (mm): 39 | Shank (mm): 20 | Overall Length (mm): 100 | Teeth: 2 | D: 39 | D1: 24 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 30° | L1: 29.5 | Diameter (mm): 39 |
22 days*
|
£94.38
£78.65
|
|
|
| Diameter (mm): 34 | Shank (mm): 20 | Overall Length (mm): 100 | Teeth: 2 | D: 34 | D1: 10 | L: 100 | Inserts: TCMT16T3 | Chamfer Angle: 30° | L1: 34 | Diameter (mm): 34 |
In stock
|
£94.38
£78.65
|
|
Product Information
Features & Benefits
- 30-60 degree chamfer angle (60-120 degree inclusive angle)

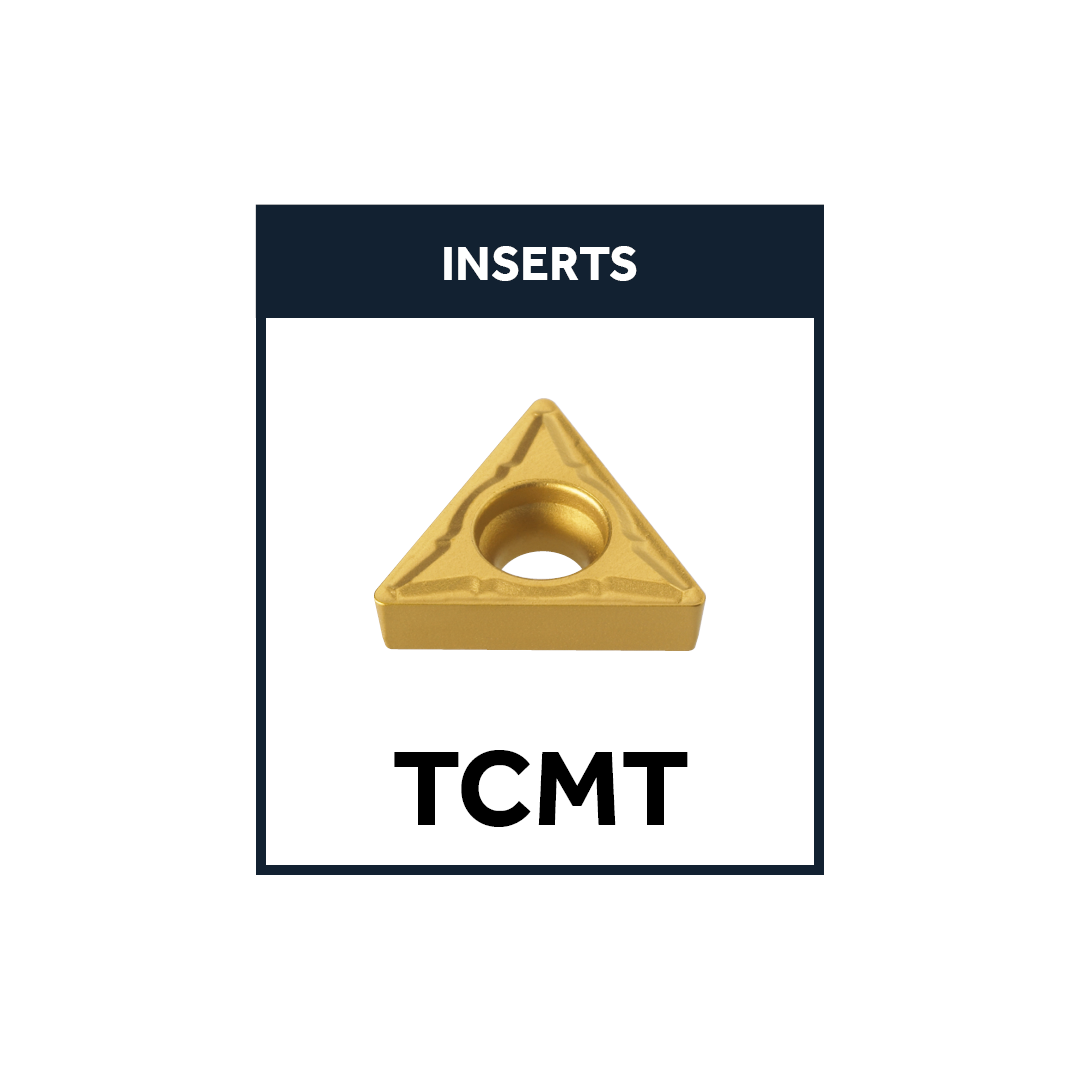

- Compatible with the TCMT inserts
- Suitable for indexable chamfer milling
Specification
| Category | Milling |
|---|---|
| Sub Category | Form Milling |
| Sub Category 2 | Chamfer Milling Tools |
| Brand | Teknik |
