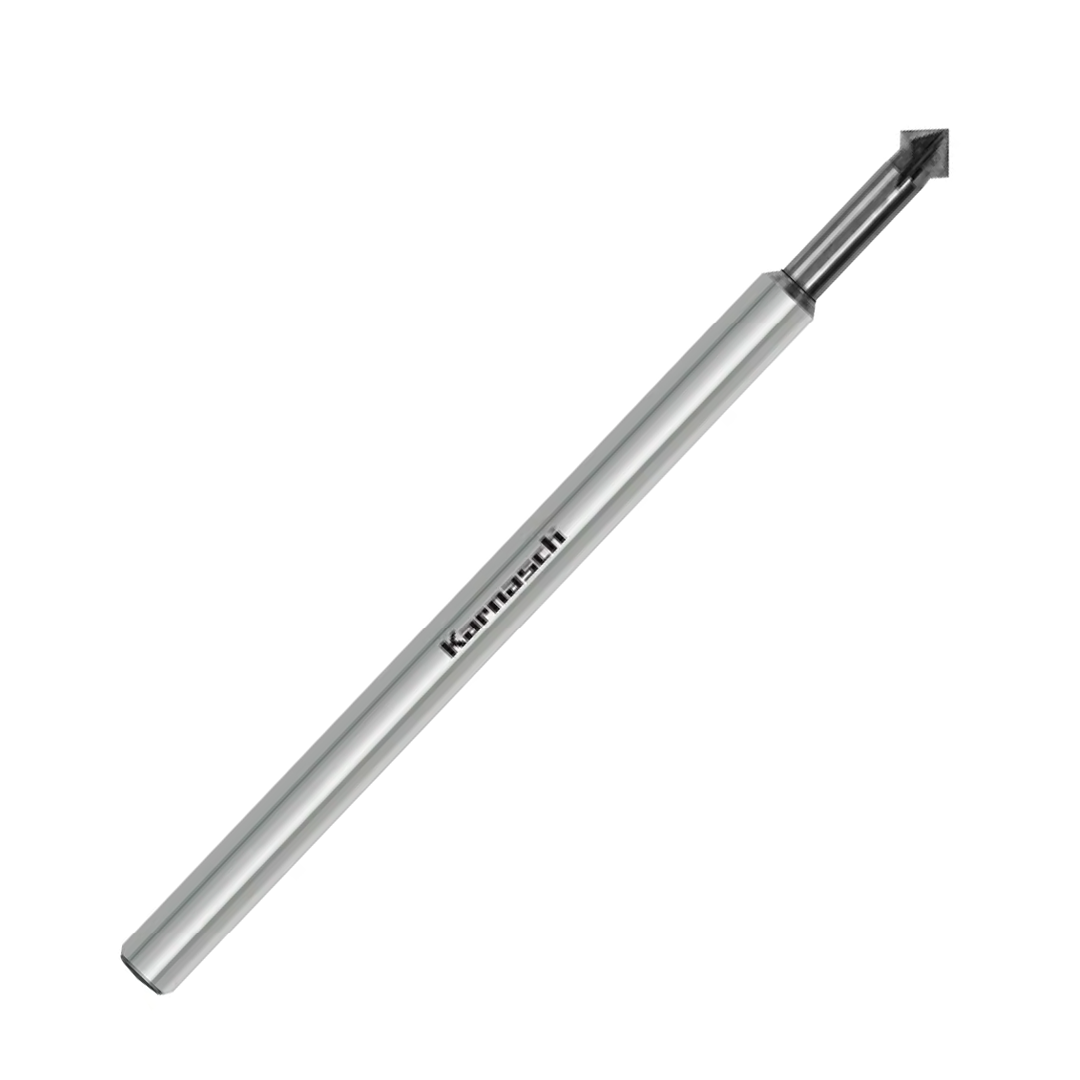

45 Degree UFX Coated Carbide Front & Back Chamfer Mill, 90 Degree Inclusive Angle, Universal Type, 4-6 Flute, Plain Shank - 30.6491 Series (Karnasch)
45 Degree UFX Coated Carbide Front & Back Chamfer Mill, 90 Degree Inclusive Angle, Universal Type, 4-6 Flute, Plain Shank - 30.6491 Series (Karnasch)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

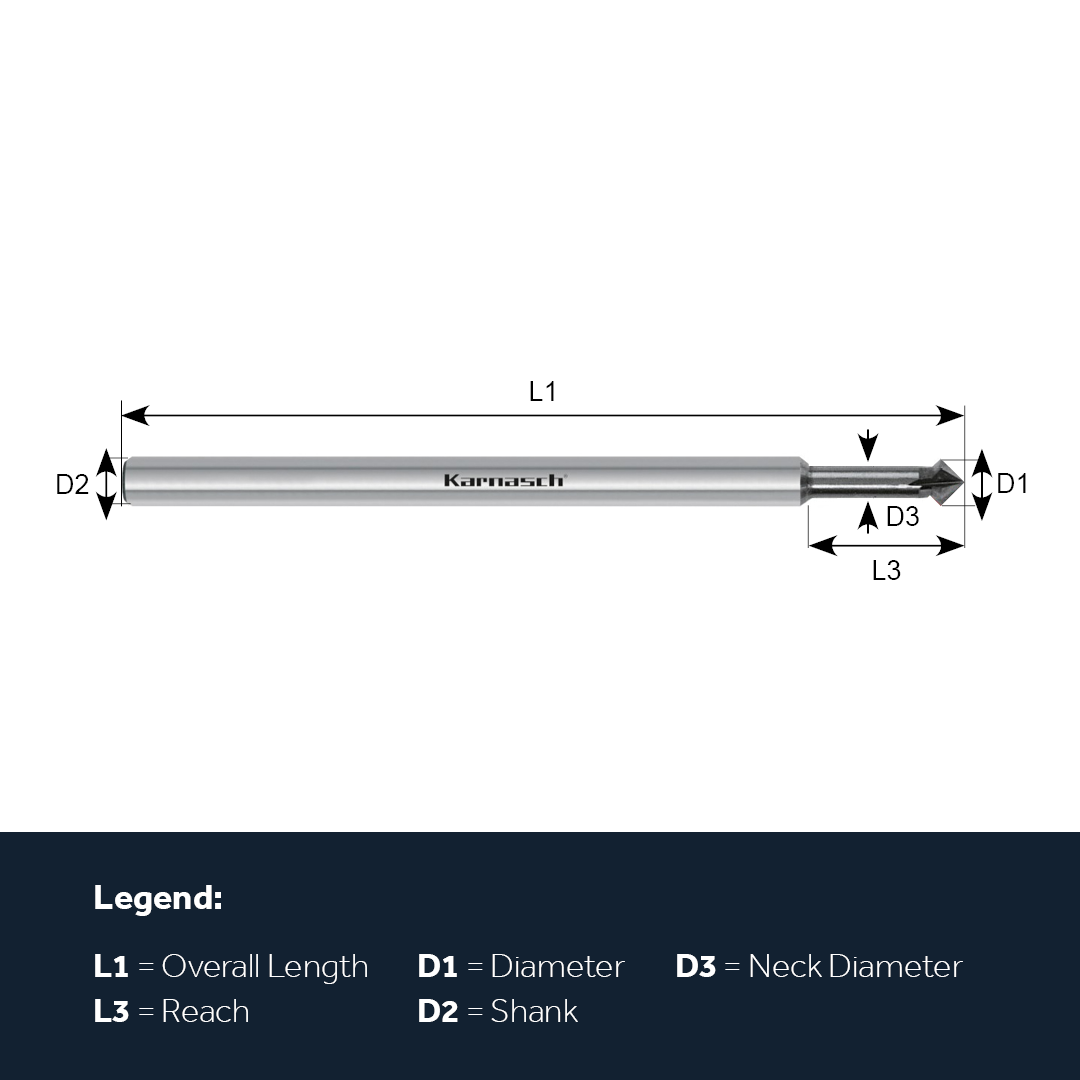

Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Flutes
|
Chamfer Angle
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 1.8 | Shank (mm): 6 | Flute Length (mm): 1.4 | Overall Length (mm): 80 | Flutes: 4 | Chamfer Angle: 45° |
In stock
|
£96.35
£80.29
|
|
|
| Diameter (mm): 2.8 | Shank (mm): 6 | Flute Length (mm): 2 | Overall Length (mm): 100 | Flutes: 4 | Chamfer Angle: 45° |
In stock
|
£100.66
£83.88
|
|
|
| Diameter (mm): 3.8 | Shank (mm): 6 | Flute Length (mm): 2.7 | Overall Length (mm): 100 | Flutes: 4 | Chamfer Angle: 45° |
In stock
|
£103.51
£86.26
|
|
|
| Diameter (mm): 4.8 | Shank (mm): 6 | Flute Length (mm): 3 | Overall Length (mm): 100 | Flutes: 4 | Chamfer Angle: 45° |
4 days*
|
£100.66
£83.88
|
|
|
| Diameter (mm): 5.8 | Shank (mm): 6 | Flute Length (mm): 4 | Overall Length (mm): 100 | Flutes: 4 | Chamfer Angle: 45° |
In stock
|
£97.75
£81.46
|
|
|
| Diameter (mm): 7.8 | Shank (mm): 6 | Flute Length (mm): 2 | Overall Length (mm): 100 | Flutes: 4 | Chamfer Angle: 45° |
In stock
|
£153.84
£128.20
|
|
|
| Diameter (mm): 9.8 | Shank (mm): 6 | Flute Length (mm): 4 | Overall Length (mm): 100 | Flutes: 6 | Chamfer Angle: 45° |
4 days*
|
£176.83
£147.36
|
|
|
| Diameter (mm): 11.8 | Shank (mm): 6 | Flute Length (mm): 6 | Overall Length (mm): 100 | Flutes: 6 | Chamfer Angle: 45° |
4 days*
|
£212.77
£177.31
|
|
Product Information
Features & Benefits

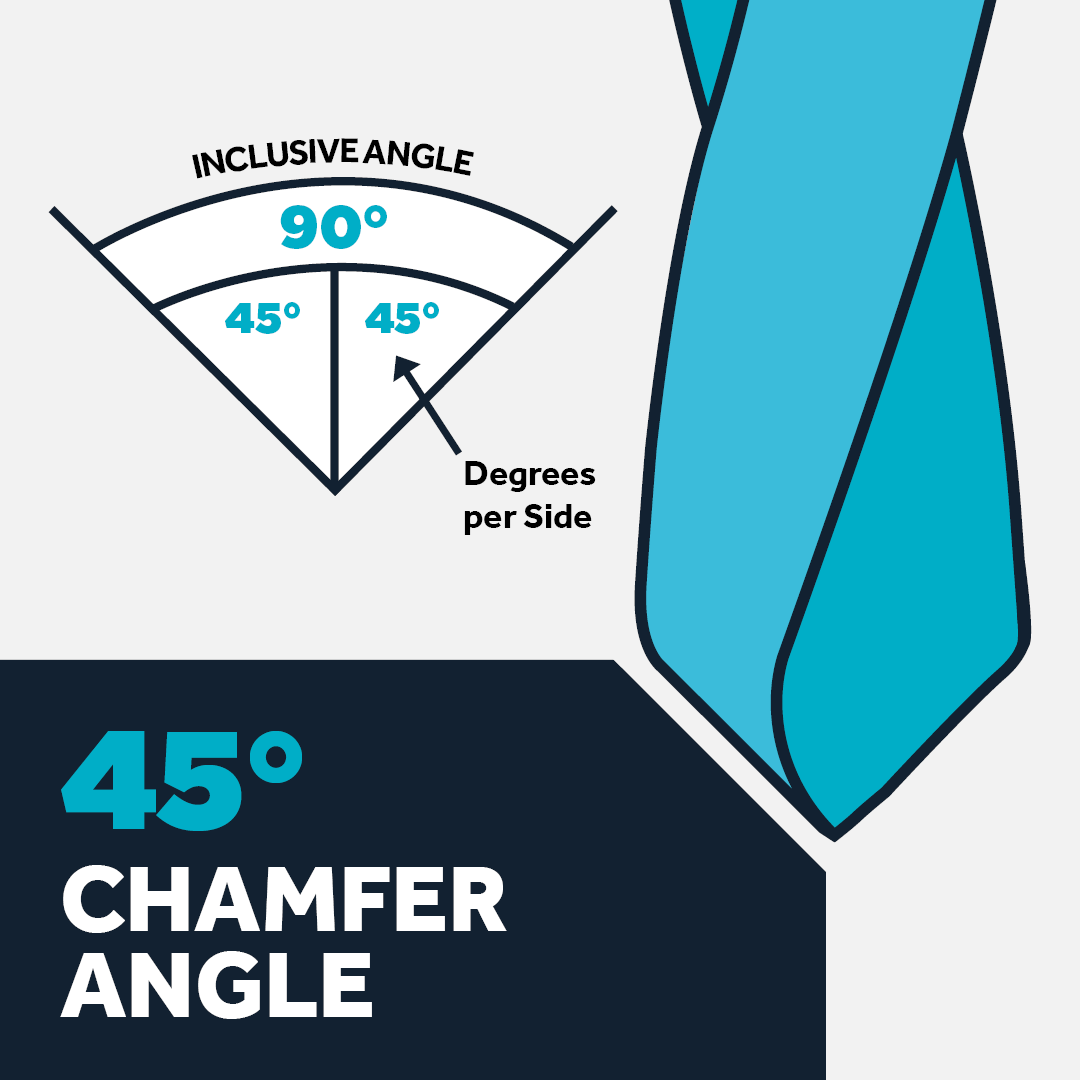

- For front and back chamfering - 45 degree chamfer angle (90 degree inclusive angle)
- Made by Karnasch from high quality micrograin carbide substrate for longer tool life and better performance compared to HSS
- UFX-3 coating suited for universal machining of most steels due to its smooth and droplet-free coating
Specification
| Category | Milling |
|---|---|
| Sub Category | Form Milling |
| Sub Category 2 | Chamfer Milling Tools |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |

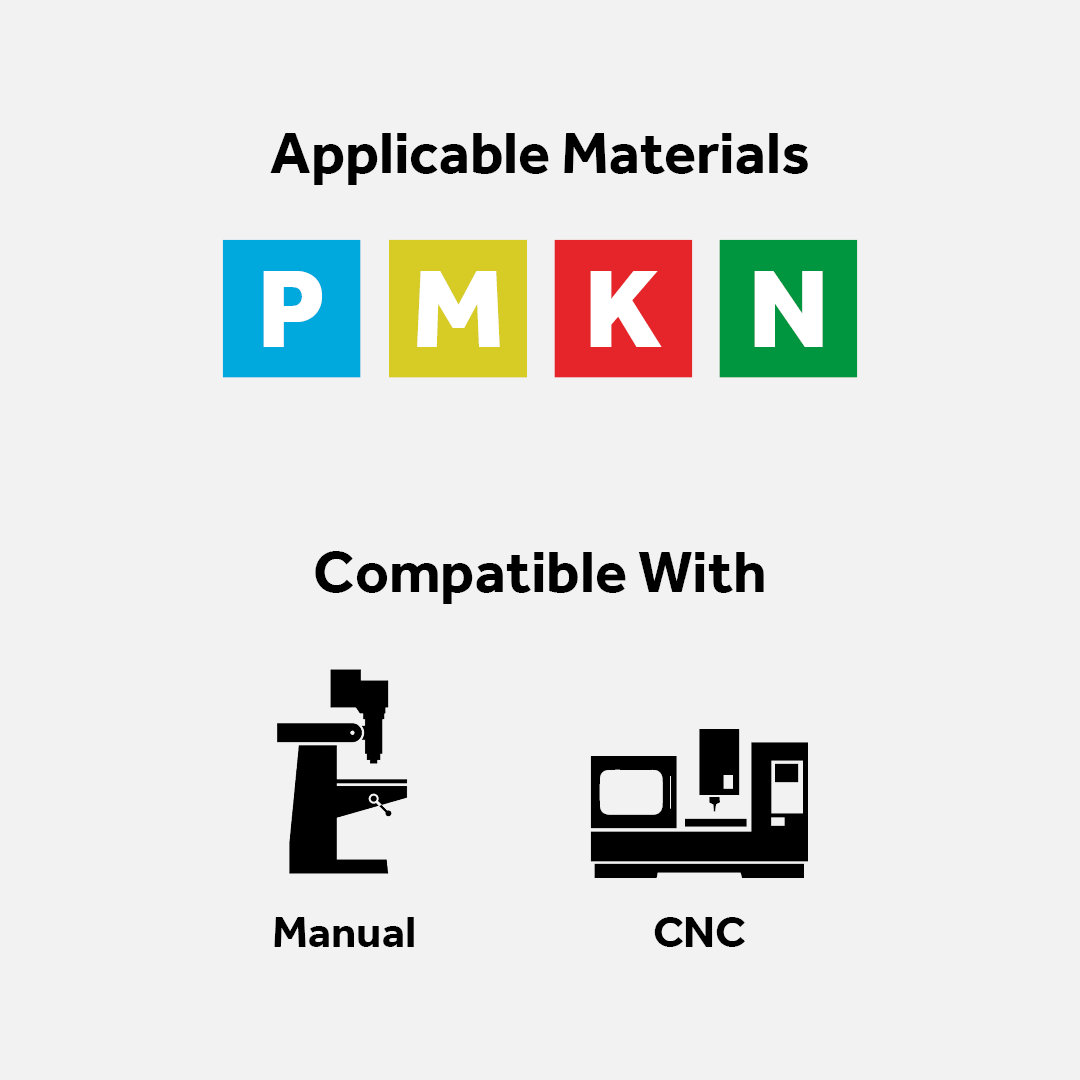

| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Performance | 5 |
| Coating Description | UFX Coated |
| Brand | Karnasch |
