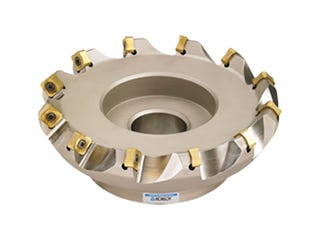

Rich Mill RM8
45° face milling system with double sided inserts & 8 cutting edges
Exceptional performance in 45° face milling from roughing to fine finishing with ultra strong inserts.
P
M
S
K
N
Browse the Range
Alpha Mill
90° End Mill
| Application |
|
| Diameters | 10-63mm |
Double core geometry for slotting and profiling, long tool life and best all-round performance
Rich Mill RM8
45° Face Mill
| Application |
|
| Diameters | 50-400mm |
Best for profiling offering high feed rates and tool stability
Alpha Mill
90° Modular End Mill
| Application |
|
| Diameters | 12-40mm |
With 45° chamfer preparation for
added corner protection
Advantages
Low Cost Per Edge
Double sided inserts with 8 usable cutting edges overall for economical face milling
High Performance
Dedicated system for 45 degree face milling from roughing to fine finishing
Reduced Machine Stress
Low cutting resistance even at high feeds/large depths of cut reduces stress on the machine
Excellent Chip Control
High rake inserts offer excellent chip flow even in non-ferrous or long chipping applications
Features
Ultra Thick Inserts
The double sided inserts are over 6.35mm thick making them ultra strong for facing off
Direct Coolant
Through coolant is directed straight to the cutting edge for optimum effectiveness
Range of Chipbreakers
5 chipbreakers for a wide range of applications including wiper geometry for fine finishing
Edge Preparation
Inserts feature a chamfered edge to protect the cutting edge from chipping

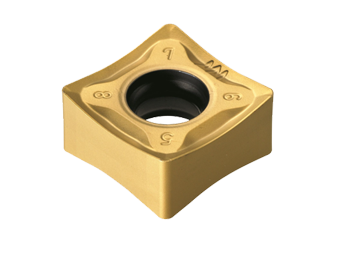

Rich Mill RM8 Inserts
Insert Designation:
SNMX - Standard Tolerance
SNEX - Ground Tolerance, Non-Ferrous & Finishing
Rich Mill RM8 inserts are double sided and have 8 usable cutting edges in total.
The high rake angle provides a low cutting ressitant and smooth chip flow, even in high feed/large depth of cut applications.
Chipbreaker Guide
| Chipbreaker | Cutting Edge | Application | Description |
|---|---|---|---|
| MA |  |
Aluminium | Optimal cutting edge, high positive rake and buffed surface prevents built up edge and smooth chip flow in aluminium machining |
| ML |  |
Stainless Steel / HRSA's | Chip breaker with low cutting load is ideal for machining hard‑to‑cut materials such as stainless steel, titanium, inconel and hastelloy |
| MF |  |
Light Cutting / Finishing / Soft Steel | Chip breaker with low cutting load and sharper cutting edge. Excellent for finishing operations, general milling of soft steels and also ideal for low power machines due to low cutting resistance |
| MM |  |
General Machining | Optimal for milling in general machining conditions |
| W (Wiper)* |  |
Finishing | Special geometry provide excellent surface roughness |
*Wiper geometry to be used in conjunction with alternative chip breakers e.g. a 5 tooth holder would take 4x SNMX12/SNEX12 (MF) inserts and 1x Wiper, a 10 tooth holder could take 8x SNMX12/ SNEX12 (MF) inserts and 2x Wipers. For more information please contact technical.
Grade Guide
| Grade | Chipbreaker | Materials | Features & Benefits | PC3700 | MM MF W |
Steels <40 HRC
| Dedicated steel grade for continuous-light interrupted cutting at medium-high surface speeds. Provides advanced performance & maximum efficiency. |
|---|---|---|---|
| PC5300 | MM MF ML W |
Steels <40 HRC
Stainless Steel
HRSA's
Cast Iron
|
General PVD coated grade with high toughness for longer tool life. Suitable for light-heavy interrupted cutting at medium-high surface speeds. |
| PC5400 | MM MF ML |
Steels <35 HRC
Stainless Steel
HRSA's
Cast Iron
|
General purpose grade for excellent wear resistance and surface roughness when low speed machining. Ideal for continuous-heavy interrupted cutting. |
| PC6510 | MM MF W |
Cast Iron
|
Specialised grade for multi-purpose milling applications of cast iron. Suitable for continuous-light interrupted cutting at medium-high surface speeds. |
| PC9530 | MM MF |
Stainless Steel |
Ultra fine substrate for medium and roughing in stainless steel milling. Ideal for high feed continuous-light interrupted cutting. |
| PC9540 | MM MF |
Stainless Steel |
Dedicated milling grade for hard to cut stainless steel, PVD oxide film prevents wear caused by high temperature machining. Suitable for medium-heavy interrupted cutting at medium-low surface speeds. |
| H01 (Uncoated) | MA W |
Non-Ferrous (Aluminium) |
Dedicated non ferrous grade for high speed, high feed milling and mirror surface finish. Uncoated polished grade for maximum swarf control in medium-high speed cutting. |
| UNC840 (CVD) | MM | HRSA's |
Premium grade for machining of HRSA including Inconel, Hastelloy, Titanium alloy etc. Ideal for continuous- light interrupted cutting at high speed low feed machining. |
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
Possible Machining Methods
Face Milling
Trochoidal Milling
Side Cutting
Slotting
Circular Interpolation
