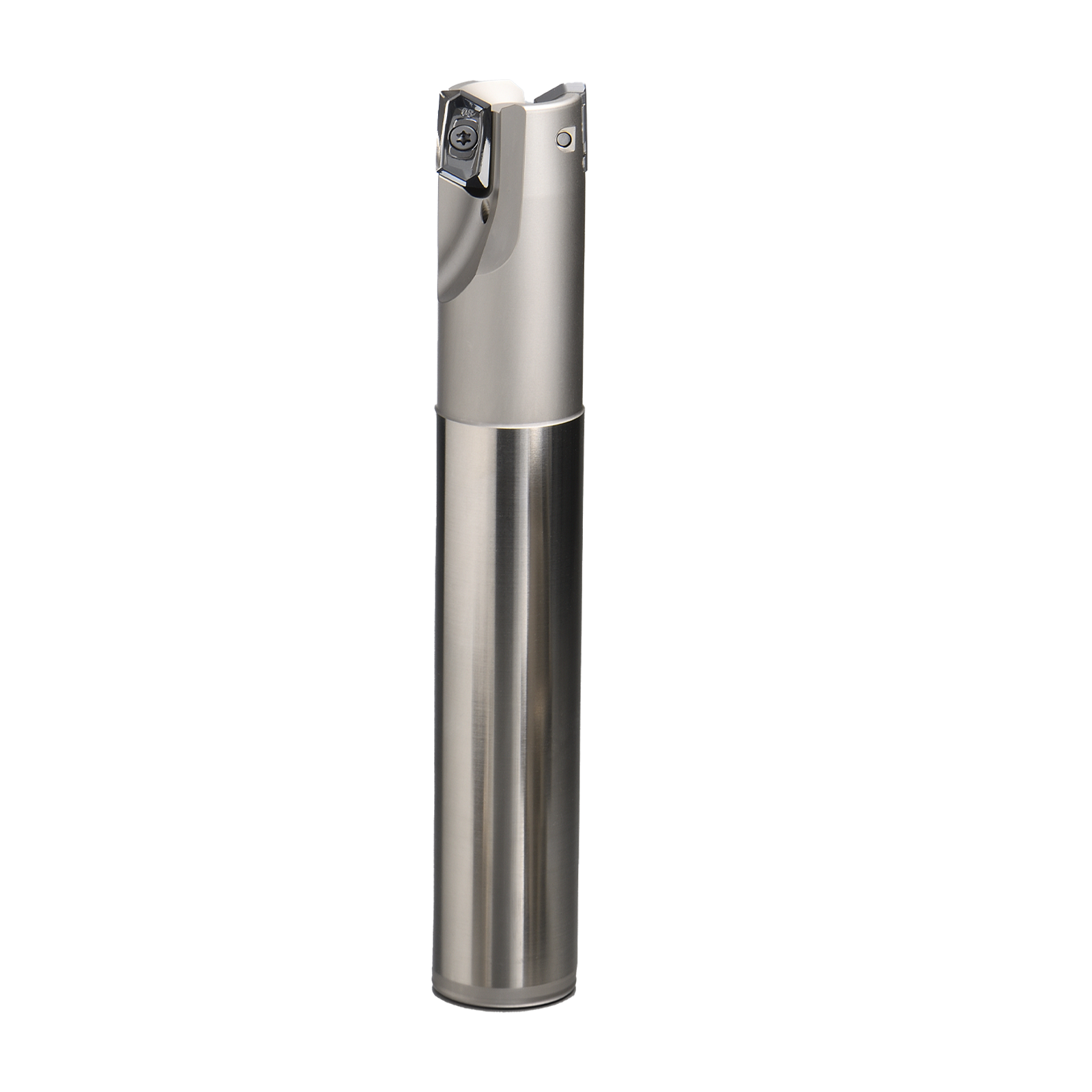

140mm Pro -V 90 degree End Mill for XDET Inserts - PAVS Series (Korloy)
140mm Pro -V 90 degree End Mill for XDET Inserts - PAVS Series (Korloy)
| Diameter (mm) | 25 |
|---|---|
| Overall Length (mm) | 140 |
| Shank (mm) | 25 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Extreme Stability: Ultra-strong clamping means stable machining at very high cutting speeds
- Mirror Surface Finish: Insert design with mirror like finish avoids built up edge issues and improves chip flow
- High Speed Machining: Aluminium machining possible up to 3000m/min vs Pro-X Mill <2000m/min
- Perpendicular: Enhanced surface roughness and perpendicularity thanks to high speed capacity
- Key Slot Design: Special clamping method via two insert slots give ultra-high clamping
- Special Screw Design: Improved screw geometry for stable insert clamping eliminates vibration and improves surface finish
- High Rake Chipbreaker: High rake insert design reduces cutting loads and improves chip flow
- Through Coolant: Internal coolant directed to the cutting edge improves chip evacuation and surface roughness
- Perfect for non ferrous materials
Specification
| Category | Milling |
|---|---|
| Sub Category | Indexable Milling |
| Sub Category 2 | Pro-V Mill Indexable Milling System |
| Diameter (mm) | 25 |
| Shank (mm) | 25 |
| Overall Length (mm) | 140 |
| Depth of Cut | 17 |
| Inserts | XDET |
| Weight | 0.4kg |
| Applicable Materials | Cast Iron, Non-Ferrous |
| Insert Series | XDET |
| Holder Type | End Mill |
| Application | Face Milling, Slotting, Shoulder Milling, Ramping, Helical Cutting, Copying |
| Insert Angle | 90° |
| Holder Material | Steel |
| Brand | Korloy |
