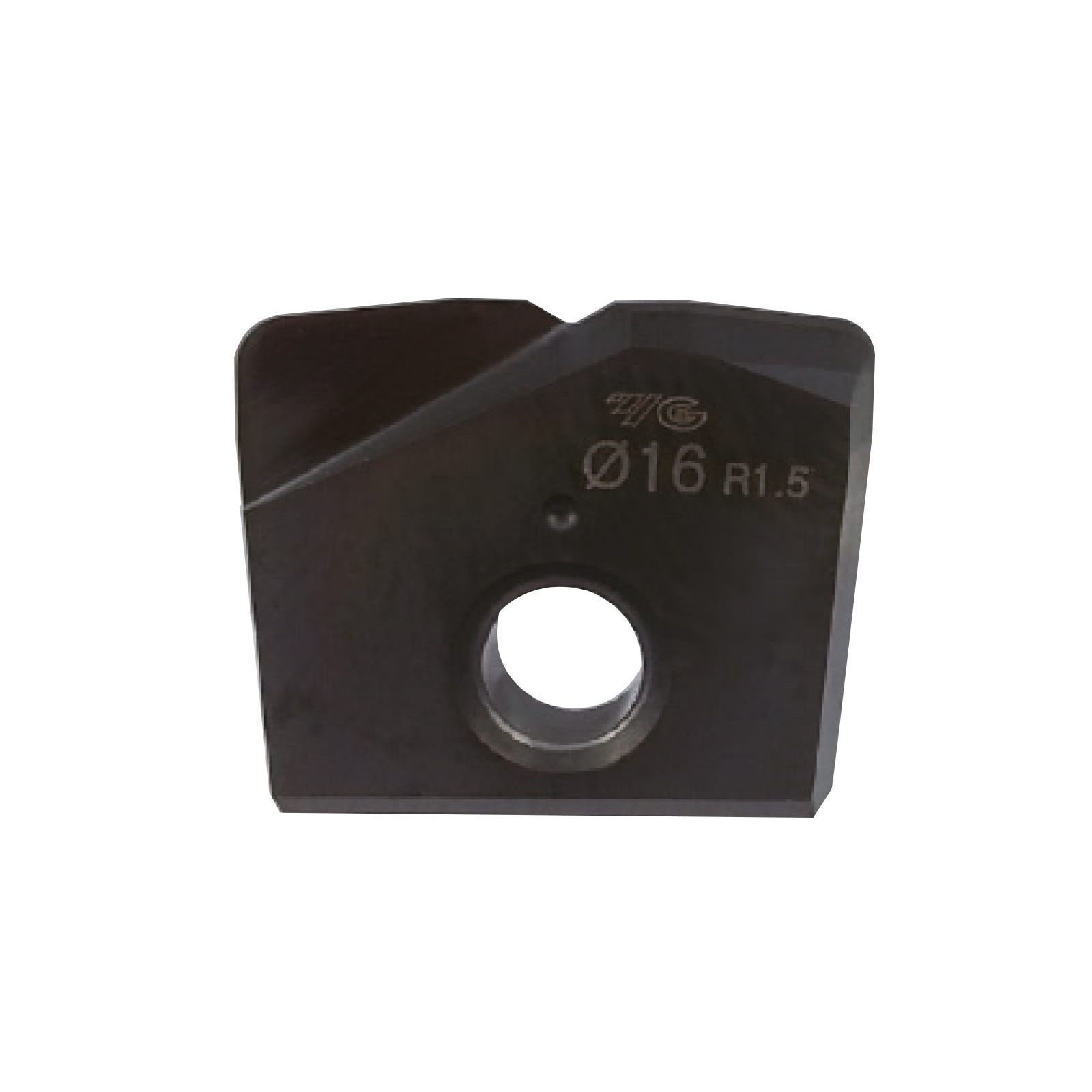

i-X Mill Corner Radius High Feed General Purpose Indexable Milling Insert - XMF11 Series (YG-1)

i-X Mill Corner Radius High Feed General Purpose Indexable Milling Insert - XMF11 Series (YG-1)

The YG-1 XMF11 series i-X Mill corner radius copy milling insert has a high feed geometry that can achieve up to...
Read more
View Products

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm
Filter Items arrow
Code Diameter (mm) Radius Inserts Width Insert Type Length Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Diameter (mm)
carrat-down
Radius
carrat-down
Inserts
carrat-down
Width
carrat-down
Insert Type
carrat-down
Length
carrat-down
Diameter (mm): 8 Radius: 0.8 Inserts: XMF11 Width: 2.4 Insert Type: Corner Radius Length: 8
unavailable 4 days*
£28.04 £23.37
minus plus
Diameter (mm): 12 Radius: 1 Inserts: XMF11 Width: 3.2 Insert Type: Corner Radius Length: 11
unavailable 4 days*
£29.77 £24.81
minus plus
Diameter (mm): 16 Radius: 1.5 Inserts: XMF11 Width: 4.2 Insert Type: Corner Radius Length: 13
available In stock
£32.62 £27.18
minus plus
Diameter (mm): 20 Radius: 2 Inserts: XMF11 Width: 5.2 Insert Type: Corner Radius Length: 16
unavailable 4 days*
£42.60 £35.50
minus plus
Diameter (mm): 25 Radius: 2.5 Inserts: XMF11 Width: 6.2 Insert Type: Corner Radius Length: 19.5
unavailable 4 days*
£54.94 £45.78
minus plus
Diameter (mm): 32 Radius: 3 Inserts: Width: 7.2 Insert Type: Length:
unavailable 4 days*
£77.76 £64.80
minus plus

*Estimated lead time, subject to availability

Product Information

Features & Benefits

The YG-1 XMF11 series i-X Mill corner radius copy milling insert has a high feed geometry that can achieve up to feed rates of 7 meters/minutes on carbon steels, alloy steels and tool steels. The i-Xmill Indexable Milling system is a high precision system for finishing applications. It provides an economical solution due to its indexable replaceable inserts and these inserts are available in 5 different types for various materials.
  • Corner radius geometry.
  • General purpose grade for use on carbon steels, alloy steels, tool steels, high hardened steels
  • Insert diameters available from 8mm to 32mm.
  • Feed rates over 7 metres/minute can be achieved.
  • When combined with dedicated high feed holders, better results are possible.
  • Ideal for high performance roughing and finishing.
  • Optimum geometry for better reliability with less vibration and cutting load.
  • Inserts for roughing and finishing a wide range of materials.
  • Can be used with the ball holder, but for higher precision machining use the corner radius holder.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Specification

Applicable Materials Steel
