i-X Mill Inserts

i-X Mill Inserts

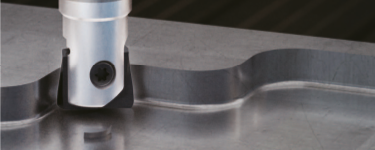

Replaceable solid carbide insert copy milling system available with steel or carbide shanks. The YG-1 i-X Mill system offers exceptional performance, accuracy, tool life and surface finish across a wide range of metals including steels, hardened steels <HRc65, stainless steel, cast iron, graphite and aluminium.

Filter By arrow
carrat-down

11 Items

Sort By
carrat-down
sort-descending
i-X Mill Modular Steel Head for Ball Nose Inserts - MIXB Series (YG-1)
i-X Mill Modular Steel Head for Ball Nose Inserts - MIXB Series (YG-1)

The YG-1 MIXB series i-X Mill modular steel head is for ball nose inserts. With diameters ranging from 10-33mm, this indexable milling system offers long tool life and an incredible surface finish. It...

  • Diameters ranging from 10-30mm
  • Ideal for slotting, ramping, helical cutting and copy milling applications
  • High precision cutting and wear resistance
  • Thread: M6-16
  • For maximum flexibility as well as internal coolant for improved chip evacuation and increased tool life
  • Available for steel, hardened steel, stainless steel, cast iron and non-ferrous

Size

Diameter (mm)10 - 30
Overall Length (mm)33 - 66
Shank (mm)9.5 - 29

From £144.56 £120.47

View Products
i-X Mill Modular Steel Head for Corner Radius Inserts - MIXR Series (YG-1)
i-X Mill Modular Steel Head for Corner Radius Inserts - MIXR Series (YG-1)

The YG-1 MIXR series i-X Mill modular steel head is for corner radius inserts. With diameters ranging from 10-33mm, this indexable milling system offers long tool life and an incredible surface finish...

  • Diameters ranging from 10-30mm
  • Ideal for slotting, ramping, helical cutting and copy milling applications
  • High precision cutting and wear resistance
  • Thread: M6-16
  • For maximum flexibility as well as internal coolant for improved chip evacuation and increased tool life
  • Available for steel, hardened steel, stainless steel, cast iron and non-ferrous

Size

Diameter (mm)10 - 30
Overall Length (mm)33 - 66
Shank (mm)9.5 - 29

From £144.56 £120.47

View Products
i-X Mill Corner Radius High Feed General Purpose Indexable Milling Insert - XMF11 Series (YG-1)
i-X Mill Corner Radius High Feed General Purpose Indexable Milling Insert - XMF11 Series (YG-1)

The YG-1 XMF11 series i-X Mill corner radius copy milling insert has a high feed geometry that can achieve up to feed rates of 7 meters/minutes on carbon steels, alloy steels and tool steels. The i-Xm...

  • Corner radius geometry.
  • General purpose grade for use on carbon steels, alloy steels, tool steels, high hardened steels
  • Insert diameters available from 8mm to 32mm.
  • Feed rates over 7 metres/minute can be achieved.
  • When combined with dedicated high feed holders, better results are possible.
  • Ideal for high performance roughing and finishing.
  • Optimum geometry for better reliability with less vibration and cutting load.
  • Inserts for roughing and finishing a wide range of materials.
  • Can be used with the ball holder, but for higher precision machining use the corner radius holder.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 32

From £32.40 £27.00

View Products
i-X Mill Corner Radius High Hardness Steel Indexable Milling Insert - XMR26 Series (YG-1)
i-X Mill Corner Radius High Hardness Steel Indexable Milling Insert - XMR26 Series (YG-1)

The YG-1 XMR26 series i-X Mill corner radius copy milling insert has a special geometry and coating ideal for use on carbon steels, alloy steels, tool steels, high hardened steels ...

  • Corner radius geometry.
  • General purpose grade for use on carbon steels, alloy steels, tool steels, high hardened steels
  • Insert diameters available from 8mm to 32mm.
  • Special coating for longer lasting cutting of high hardened steels.
  • Wide range of corner radius' available from 0.3mm to 3.2mm.
  • Optimum geometry for better reliability with less vibration and cutting load.
  • Inserts for roughing and finishing a wide range of materials.
  • Can be used with the ball holder, but for higher precision machining use the corner radius holder.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 32

From £32.40 £27.00

View Products
i-X Mill Corner Radius General Purpose Indexable Milling Insert - XMR12 Series (YG-1)
i-X Mill Corner Radius General Purpose Indexable Milling Insert - XMR12 Series (YG-1)

The YG-1 XMR12 series i-X Mill corner radius copy milling insert has a special geometry and coating ideal for use on carbon steels, alloy steels, tool steels, high hardened steels ...

  • Corner radius geometry.
  • General purpose grade for use on carbon steels, alloy steels, tool steels, high hardened steels
  • Insert diameters available from 8mm to 32mm.
  • Wide range of corner radius' available from 0.3mm to 3.2mm.
  • Optimum geometry for better reliability with less vibration and cutting load.
  • Inserts for roughing and finishing a wide range of materials.
  • Can be used with the ball holder, but for higher precision machining use the corner radius holder.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 32

From £32.40 £27.00

View Products
i-X Mill Ball Nose 220 degree Full Radius General Purpose Indexable Milling Insert - XMM11 Series (YG-1)
i-X Mill Ball Nose 220 degree Full Radius General Purpose Indexable Milling Insert - XMM11 Series (YG-1)

The YG-1 XMM11 series i-X Mill ball nose copy milling insert has a special 220° full radius geometry for 5 axis machining of carbon steels, alloy steels, tool steels and stainless steels. The i-Xmill...

  • Ball nose geometry.
  • 220 degree full radius inserts ideal for machining carbon steels, alloy steels, tool steels and stainless steels.
  • Insert diameters available from 8mm to 33mm.
  • Full radius insert for complex 5 axis machining or creating an undercut in mould and die machining.
  • Excellent tool life and chip control.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 33

From £29.18 £24.32

View Products
i-X Mill Ball Nose Stainless Steel Indexable Milling Insert - XMB13 Series (YG-1)
i-X Mill Ball Nose Stainless Steel Indexable Milling Insert - XMB13 Series (YG-1)

The YG-1 XMB26 series i-X Mill ball nose copy milling insert has a special geometry with web thinning designed specifically for stainless steel materials. The i-Xmill Indexable Milling system is a hig...

  • Ball nose geometry.
  • Inserts are designed with web thinning specifically for stainless steel machining.
  • Insert diameters available from 8mm to 33mm.
  • Specifically designed cutting edge with web-thinning is ideal for machining stainless steel even at extra small cut depths without causing work hardening.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 33

From £29.18 £24.32

View Products
i-X Mill DLC Coated Ball Nose Non-Ferrous Indexable Milling Insert - XMB11D Series (YG-1)
i-X Mill DLC Coated Ball Nose Non-Ferrous Indexable Milling Insert - XMB11D Series (YG-1)

The YG-1 XMB11D series i-X Mill ball nose copy milling insert has a special geometry and DLC coating specifically for use on aluminium and graphite. The i-Xmill Indexable Milling system is a high prec...

  • Ball nose geometry.
  • Special DLC coating specifically designed for graphite, aluminium, plastic and abrasive non-ferrous materials.
  • Insert diameters available from 8mm to 33mm.
  • DLC coating (Diamond-like carbon) has exceptional wear resistance in abrasive materials such as graphite, high-silicon aluminium and plastics.
  • Long tool life and high quality surface finish can be achieved.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 33

From £65.94 £54.95

View Products
i-X Mill Ball Nose High Hardened Steel Indexable Milling Insert - XMB26 Series (YG-1)
i-X Mill Ball Nose High Hardened Steel Indexable Milling Insert - XMB26 Series (YG-1)

The YG-1 XMB26 series i-X Mill ball nose copy milling insert has a special geometry and coating ideal for use on carbon steels, alloy steels, tool steels, high hardened steels ...

  • Ball nose geometry.
  • High hardened steel grade for use on or use on carbon steels, alloy steels, tool steels, high hardened steels
  • Insert diameters available from 8mm to 33mm.
  • Strongest cutting edge and ultrafine micrograin carbide substrate for machining high hardened steels.
  • Excellent toool life, surface finish and chip control.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 33

From £29.18 £24.32

View Products
i-X Mill Ball Nose Pre-Hardened Steel Indexable Milling Insert - XMB12 Series (YG-1)
i-X Mill Ball Nose Pre-Hardened Steel Indexable Milling Insert - XMB12 Series (YG-1)

The YG-1 XMB12 series i-X Mill ball nose copy milling insert has a special geometry and coating ideal for use on carbon steels, alloy steels, tool steels, hardened steels and cast iron. The i-Xmill In...

  • Ball nose geometry.
  • Pre-hardened steel grade for use on or use on carbon steels, alloy steels, tool steels, hardened steels and cast iron.
  • Insert diameters available from 8mm to 33mm.
  • Stronger cutting edge, ideal for machining tool and die steels.
  • Excellent toool life, surface finish and chip control.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 33

From £29.18 £24.32

View Products
i-X Mill Ball Nose General Purpose Indexable Milling Insert - XMB11A Series (YG-1)
i-X Mill Ball Nose General Purpose Indexable Milling Insert - XMB11A Series (YG-1)

The YG-1 XMB11A series i-X Mill ball nose copy milling insert has a special geometry and coating ideal for use on carbon steels, alloy steels, tool steels and hardened steels ...

  • Ball nose geometry.
  • General purpose grade for use on carbon steels, alloy steels, tool steels and hardened steels
  • Insert diameters available from 8mm to 33mm.
  • Medium sharp cutting edge, ideal for softer and longer chip steels.
  • Excellent chip control.
  • Solid carbide substrate for great wear resistance.
  • Each insert geometry is specially designed for machining different materials.

Size

Diameter (mm)8 - 33

From £29.18 £24.32

View Products
