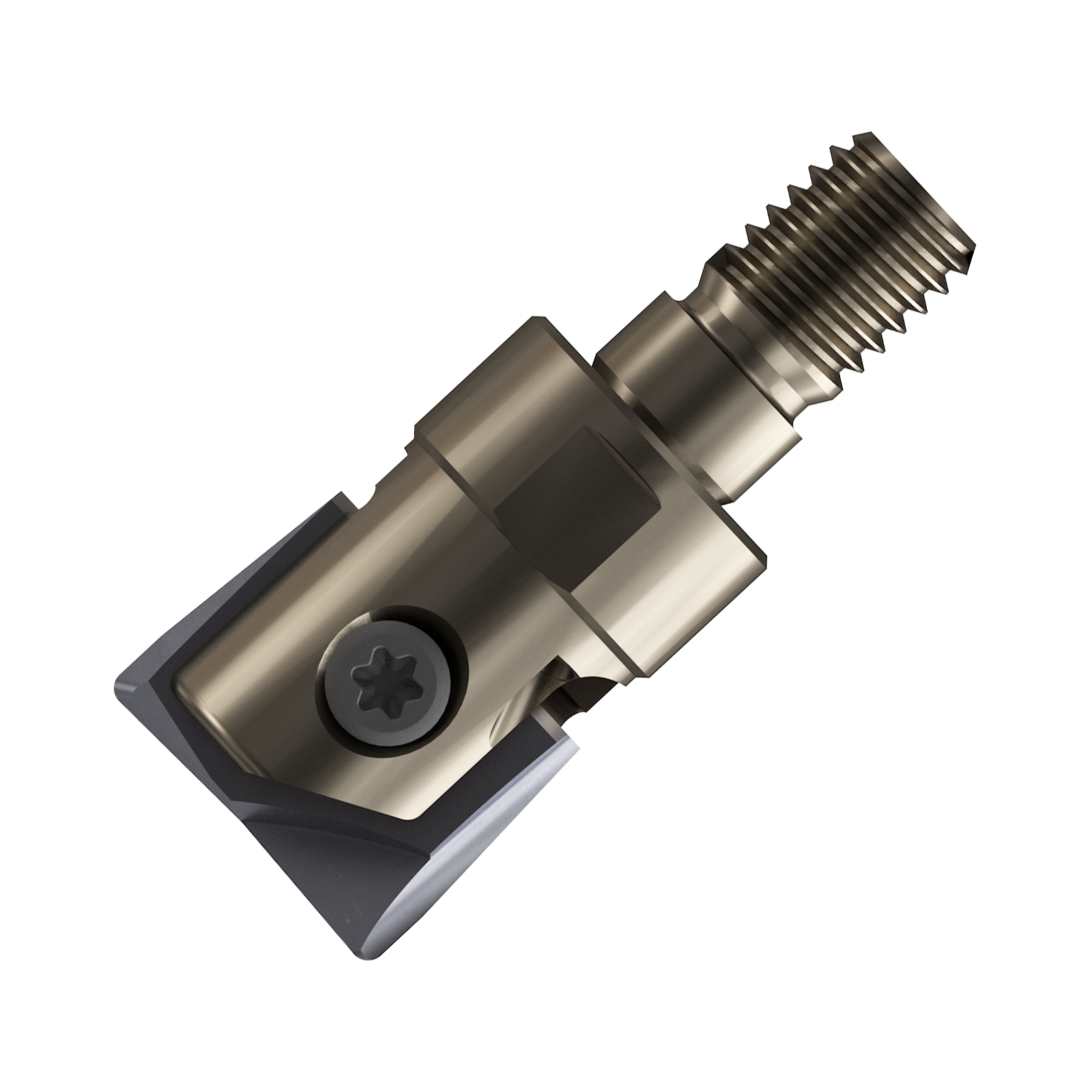

i-X Mill Modular Steel Head for Corner Radius Inserts - MIXR Series (YG-1)
i-X Mill Modular Steel Head for Corner Radius Inserts - MIXR Series (YG-1)
Related Products

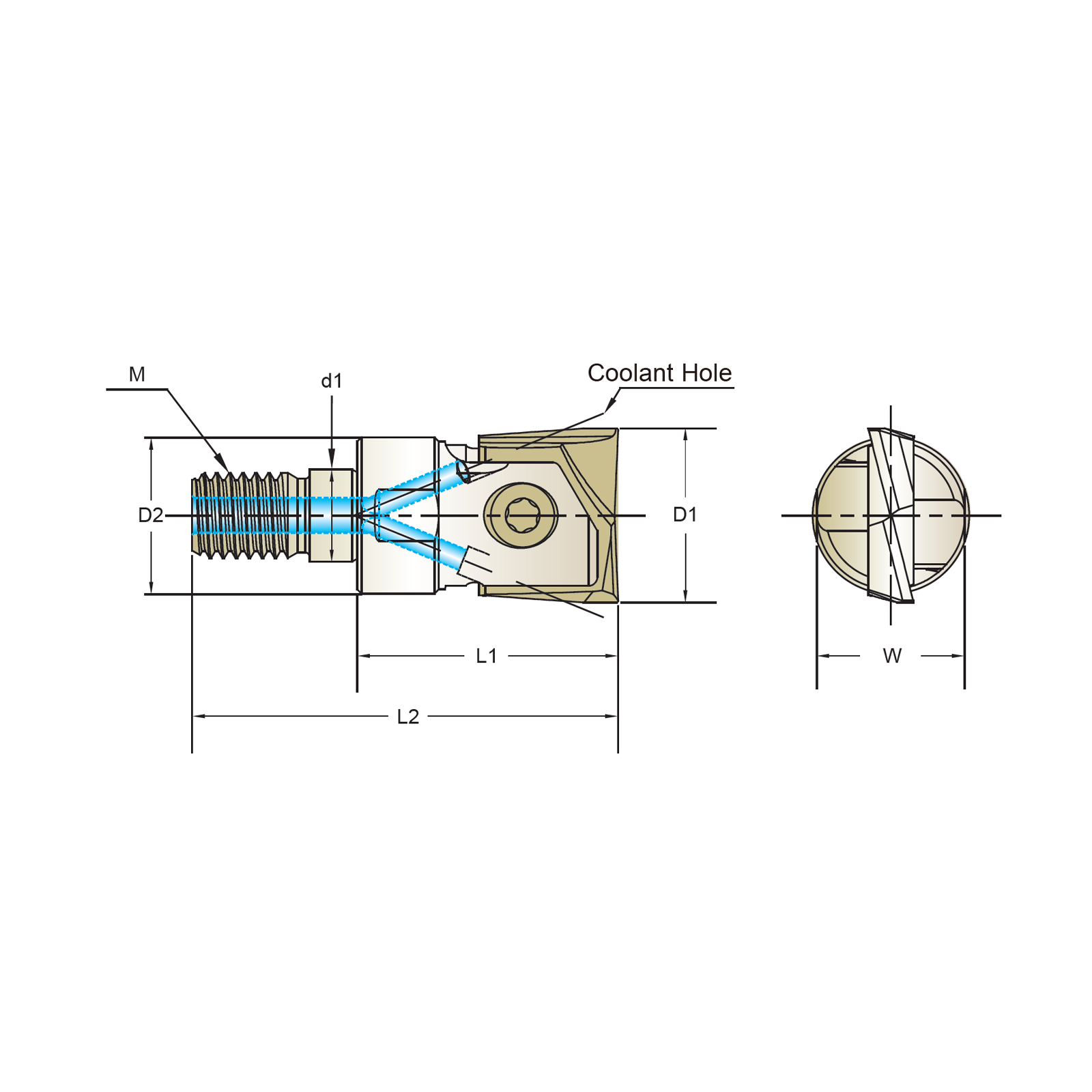

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Thread
|
Diameter (mm)
|
Shank (mm)
|
Overall Length (mm)
|
L1
|
d1
|
Insert Type
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
| Thread: M6 | Diameter (mm): 10 | Shank (mm): 9.5 | Overall Length (mm): 33 | L1: 18.5 | d1: 6.5 | Insert Type: Corner Radius |
5 days*
|
£144.56
£120.47
|
|
|
| Thread: M6 | Diameter (mm): 12 | Shank (mm): 11.4 | Overall Length (mm): 36 | L1: 21.5 | d1: 6.5 | Insert Type: Corner Radius |
5 days*
|
£157.15
£130.96
|
|
|
| Thread: M8 | Diameter (mm): 16 | Shank (mm): 15 | Overall Length (mm): 42.5 | L1: 25.5 | d1: 8.5 | Insert Type: Corner Radius |
5 days*
|
£167.14
£139.28
|
|
|
| Thread: M10 | Diameter (mm): 20 | Shank (mm): 19 | Overall Length (mm): 49 | L1: 30 | d1: 10.5 | Insert Type: Corner Radius |
5 days*
|
£181.68
£151.40
|
|
|
| Thread: M12 | Diameter (mm): 25 | Shank (mm): 24 | Overall Length (mm): 59 | L1: 37 | d1: 12.5 | Insert Type: Corner Radius |
5 days*
|
£202.45
£168.71
|
|
|
| Thread: M16 | Diameter (mm): 30 | Shank (mm): 29 | Overall Length (mm): 66 | L1: 43 | d1: 17 | Insert Type: Corner Radius |
5 days*
|
£220.07
£183.39
|
|
Product Information
Features & Benefits
- Diameters ranging from 10-30mm
- Ideal for slotting, ramping, helical cutting and copy milling applications
- High precision cutting and wear resistance
- Thread: M6-16
- For maximum flexibility as well as internal coolant for improved chip evacuation and increased tool life
- Available for steel, hardened steel, stainless steel, cast iron and non-ferrous
Specification
| Category | Milling |
|---|---|
| Sub Category | Indexable Milling |
| Sub Category 2 | i-X Mill Indexable Milling System |
| Brand | YG-1 |
