HFM High Feed Mill

High performance and high accuracy high feed milling from Ø8mm

Increase productivity in small diameter machining with high feed per tooth and reinforced cutting edges.

★★★★★

Diameter
Range (mm)

Insert
Sizes (mm)

Metal Removal
Rates

Material Versatility

Surface
Finish

High Accuracy Machining

Square Shoulder Milling

Chip
Control

8-33 4 ★★★★★ ★★★★★ ★★★★☆ ★★★★☆ ★★★★☆ ★★★★★

Browse the Range

Alpha Mill
90° End Mill

Application
Diameters 10-63mm

Double core geometry for slotting and profiling, long tool life and best all-round performance

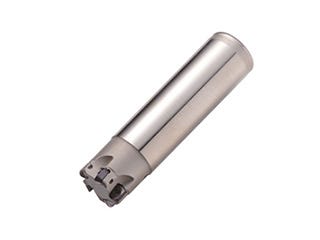

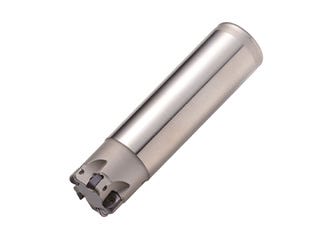

HFM High Feed
90° End Mill

Application
Diameters 8-21mm

Best for profiling offering high feed rates and tool stability

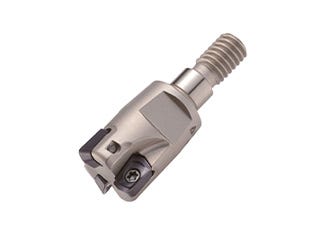

HFM High Feed
90° Screwed Shank End Mill

Application
Diameters 8-33mm

With 45° chamfer preparation for
added corner protection

Alpha Mill
90° Plunge Mill

Application
Diameters 14-32mm

Special profile with corner protection for roughing stainless steel and titanium

Advantages

High Feed Per Tooth

Up to 8 teeth for longer tool life and increased productivity

High Metal Removal

Ultra-high metal removal rates possible due to special insert geometry

Ideal for Mould Making

Close pitch holders offer exceptional surface finish and diameters from 8mm

High Versatility

Suitable for slotting, ramping, helical cutting & copy milling

Features

High Hardened Steels

Ultrafine micrograin carbide grades capable of machining hardened steels

Through Coolant

Reduces heat build up, improves chip flow and tool life

Material Suitability

Insert grades for steel, hardened steel, HRSA, cast iron & stainless steel

Double Relief Angle

Increases rigidity and prevents interference with the workpiece

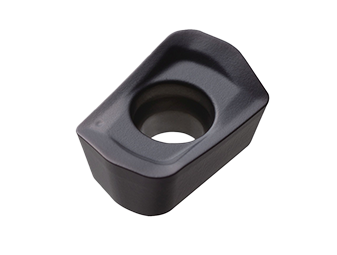

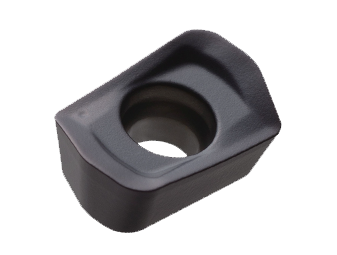

HFM High Feed Mill Inserts

Insert Designation:

LPMT - Fine Finishing
LPMW & LPEW
- High Hardness Materials

HFM Mill inserts are designed for high feed milling in smaller diameters.

The ultrafine micrograin carbide substrate and specialised coating drastically reduce the risk of chipping & wear.

The high helix angle of the insert also reduces cutting resistance.

Chipbreaker Guide

Chipbreaker Cutting Edge Application Description
MF Steel <50HRC / Stainless Steel /Titanium & Inconel Low cutting resistance chip breaker with sharp cutting edge for excellent chip control and surface finish.
Plain Strong cutting edge for hardened materials <60HRC High toughness geometry, suitable for hardened steel cutting.

Grade Guide

Grade Chipbreaker Materials Features & Benefits
PC2505 Plain
Hardened Steel 45-60HRC
Ideal for continuous-light interrupted cutting at medium-low surface speeds on heat treated steel & high hardened steel with excellent wear resistance.
PC2510 Plain
Hardened Steel / Pre-Hardened Steel 35-50HRC
Ideal for continuous-light interrupted cutting at medium-low surface speeds on high hardened steel & pre-hardened steel with excellent impact resistance.
PC3700 MF
Steel <40 HRC
Dedicated steel grade for continuous-light interrupted cutting at medium-high surface speeds. Provides advanced performance & maximum efficiency.
PC5300 MF
Plain
Steel <40 HRC
Stainless Steel
HRSA's
Cast Iron
General PVD coated grade with high toughness for longer tool life. Suitable for light-heavy interrupted cutting at medium-high surface speeds.
PC5400 MF
Steel <35 HRC
Stainless Steel
HRSA's
Cast Iron
General purpose grade with excellent wear resistance & surface roughness when low speed machining. Ideal for continuous-heavy interrupted cutting.
UNC840 (CVD) MF
HRSA's
Premium grade for machining of HRSA including Inconel, Hastelloy, Titanium alloy etc. Ideal for continuous-light interrupted cutting at high speeds.

Application

Material Suitability

Material Excellent Good
P
Steel
H
Hardened Steel
M
Stainless Steel
S
HRSA's
K
Cast Iron
N
Aluminium & Non-Ferrous

Possible Machining Methods

Face Milling

Trochoidal Milling

Side Cutting

Slotting

Circular Interpolation

Downloads

Cutting Data

Full Product PDF
