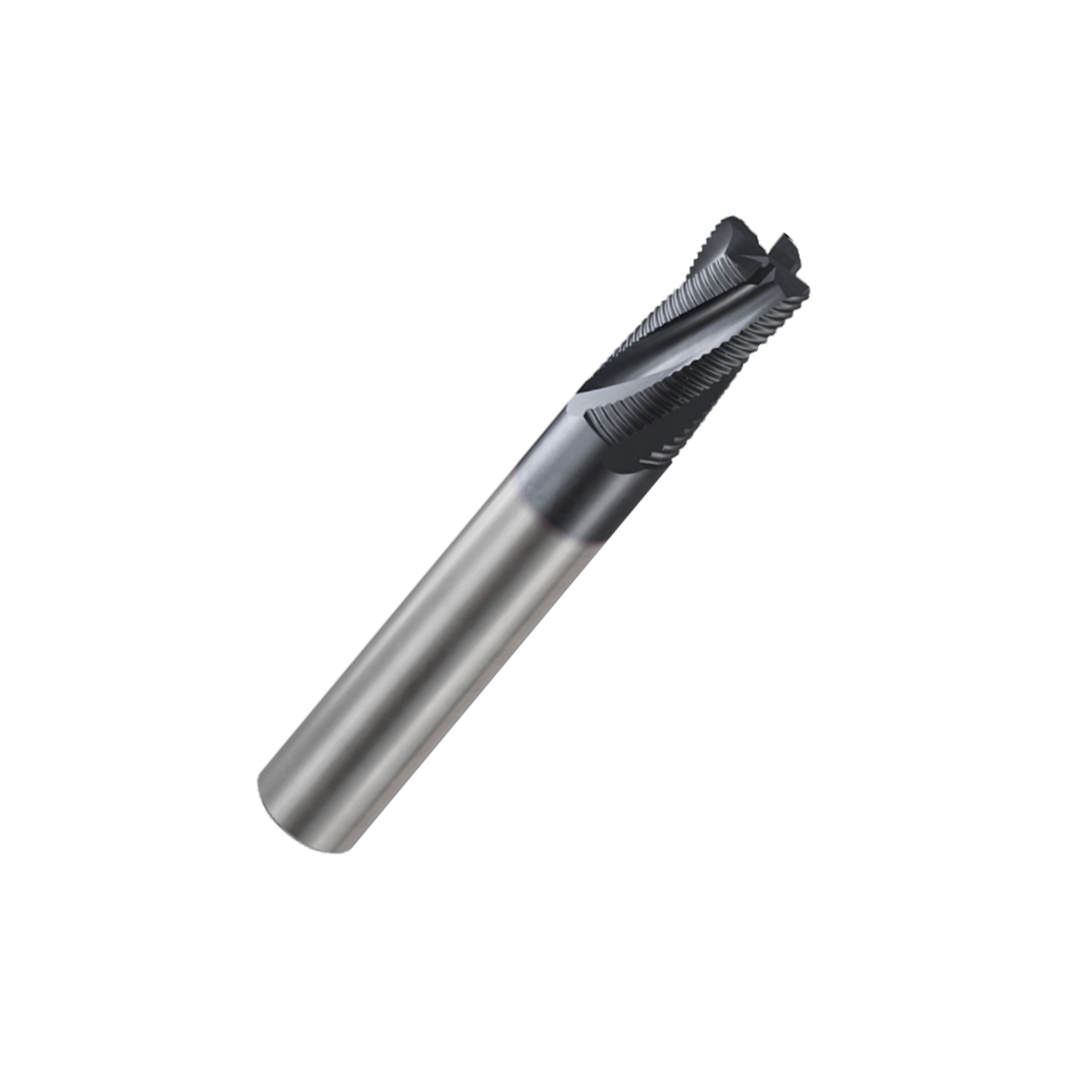

10mm 4 Flute Fine Pitch Ripper NC Mill Multi-Purpose Milling Cutter, X-Coated Carbide, up to 50HRC, Weldon Shank, 10x10x22x72 - G9J60 Series (YG-1) - G9J60100NC
10mm 4 Flute Fine Pitch Ripper NC Mill Multi-Purpose Milling Cutter, X-Coated Carbide, up to 50HRC, Weldon Shank, 10x10x22x72 - G9J60 Series (YG-1) - G9J60100NC
| Diameter (mm) | 10 |
|---|---|
| Overall Length (mm) | 72 |
| Flute Length (mm) | 22 |
| Shank (mm) | 10 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Ripper geometry for rough milling and heavy metal removal
- Ideal for multi-purpose milling on steel <50HRC, stainless steel & cast iron
- Next generation X-coating provides longer tool life compared to TiAlN coated multi-purpose alternatives
- 4 flute design ideal for finishing and side cutting
- Suitable in wet and dry cutting conditions, dry cutting can increase tool life up to 40%
- Premium quality micrograin carbide substrate for improved tool life and reliable performance in general CNC machining
- Manufactured by global market leader of solid milling tools, YG-1
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | NC Mills Milling Cutters |
| Diameter (mm) | 10 |
| Shank (mm) | 10 |
| Flute Length (mm) | 22 |
| Overall Length (mm) | 72 |
| Flutes | 4 |
| Alternative Part Number | G9F87100NC |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Ripper |
| Flute Type | Standard |
| Shank Type | Weldon |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron |
| Helix Profile | Standard |
| Performance | 3 |
| Coating Description | X-Coated |
| Substrate Description | Micrograin Carbide |
| Helix Angle | 30° |
| Brand | YG-1 |
