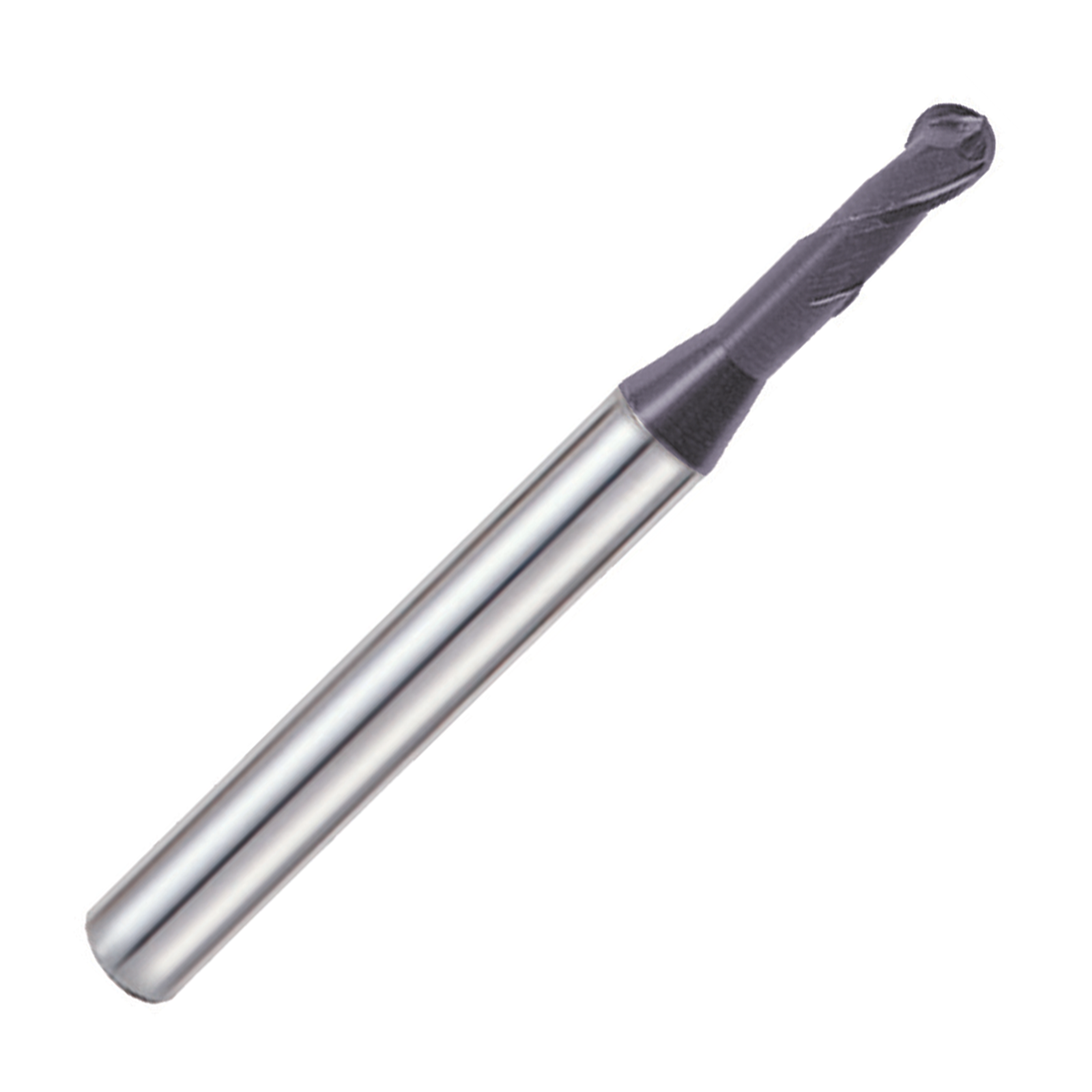

2mm 2 Flute Rib Processing, Ball Nose NC Mill Multi-Purpose Milling Cutter, Long Reach X-Coated Carbide Slot Drill, up to 50HRC, Plain Shank, 2x4x3(10)x50 - G9J62 Series (YG-1) - G9J6202010NC
2mm 2 Flute Rib Processing, Ball Nose NC Mill Multi-Purpose Milling Cutter, Long Reach X-Coated Carbide Slot Drill, up to 50HRC, Plain Shank, 2x4x3(10)x50 - G9J62 Series (YG-1) - G9J6202010NC

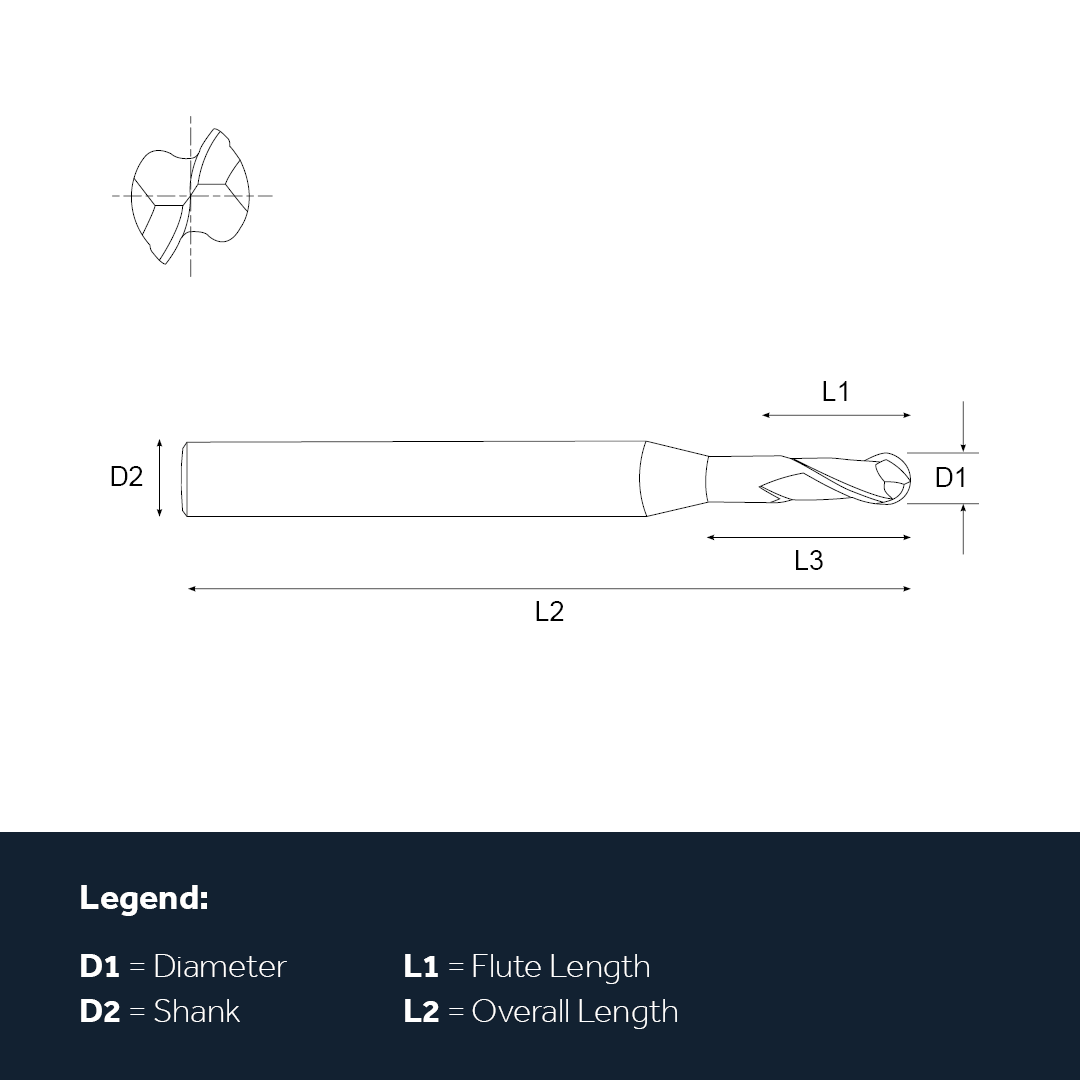

| Diameter (mm) | 2 |
|---|---|
| Overall Length (mm) | 50 |
| Flute Length (mm) | 3 |
| Shank (mm) | 4 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

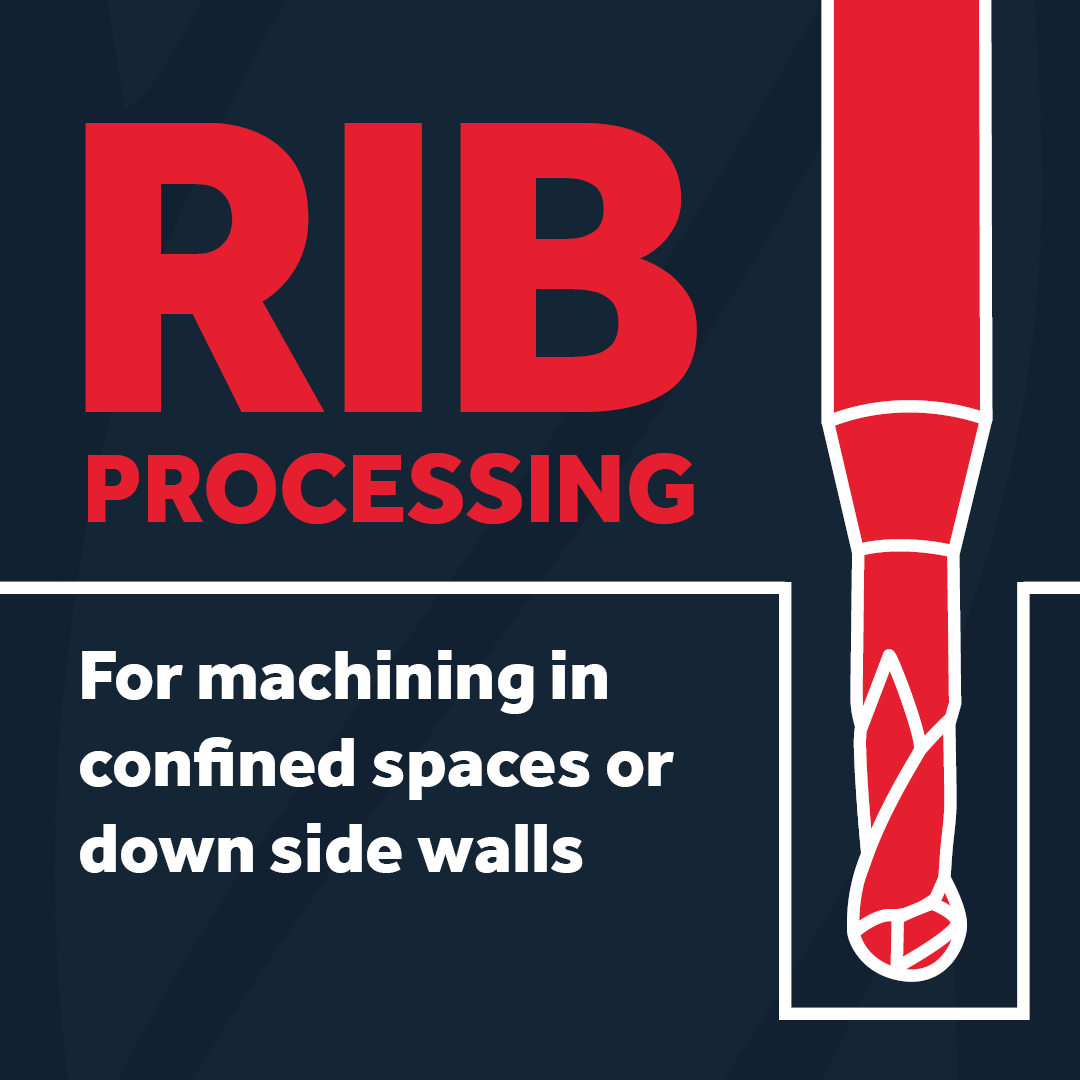

- Rib processing design (also known as reduced neck) for improved clearance on long reach applications, when machining in confined spaces or down side walls
- Ball nose design ideal for radiused applications and profiling
- Ideal for multi-purpose milling on steel <50HRC, stainless steel & cast iron
- Next generation X-coating provides longer tool life compared to TiAlN coated multi-purpose alternatives
- 2 flute design ideal for slotting and a ripper geometry for rough milling and heavy metal removal
- Suitable in wet and dry cutting conditions, dry cutting can increase tool life up to 40%
- Premium quality micrograin carbide substrate for improved tool life and reliable performance in general CNC machining
- Manufactured by global market leader of solid milling tools, YG-1
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | NC Mills Milling Cutters |
| Diameter (mm) | 2 |
| Shank (mm) | 4 |
| Flute Length (mm) | 3 |
| Overall Length (mm) | 50 |
| Reach (mm) | 10 |
| Flutes | 2 |
| Alternative Part Number | G9F8902010NC |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Rib Processing |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron |
| Helix Profile | Standard |
| Performance | 3 |
| Coating Description | X-Coated |
| Substrate Description | Micrograin Carbide |
| Helix Angle | 30° |
| Brand | YG-1 |
