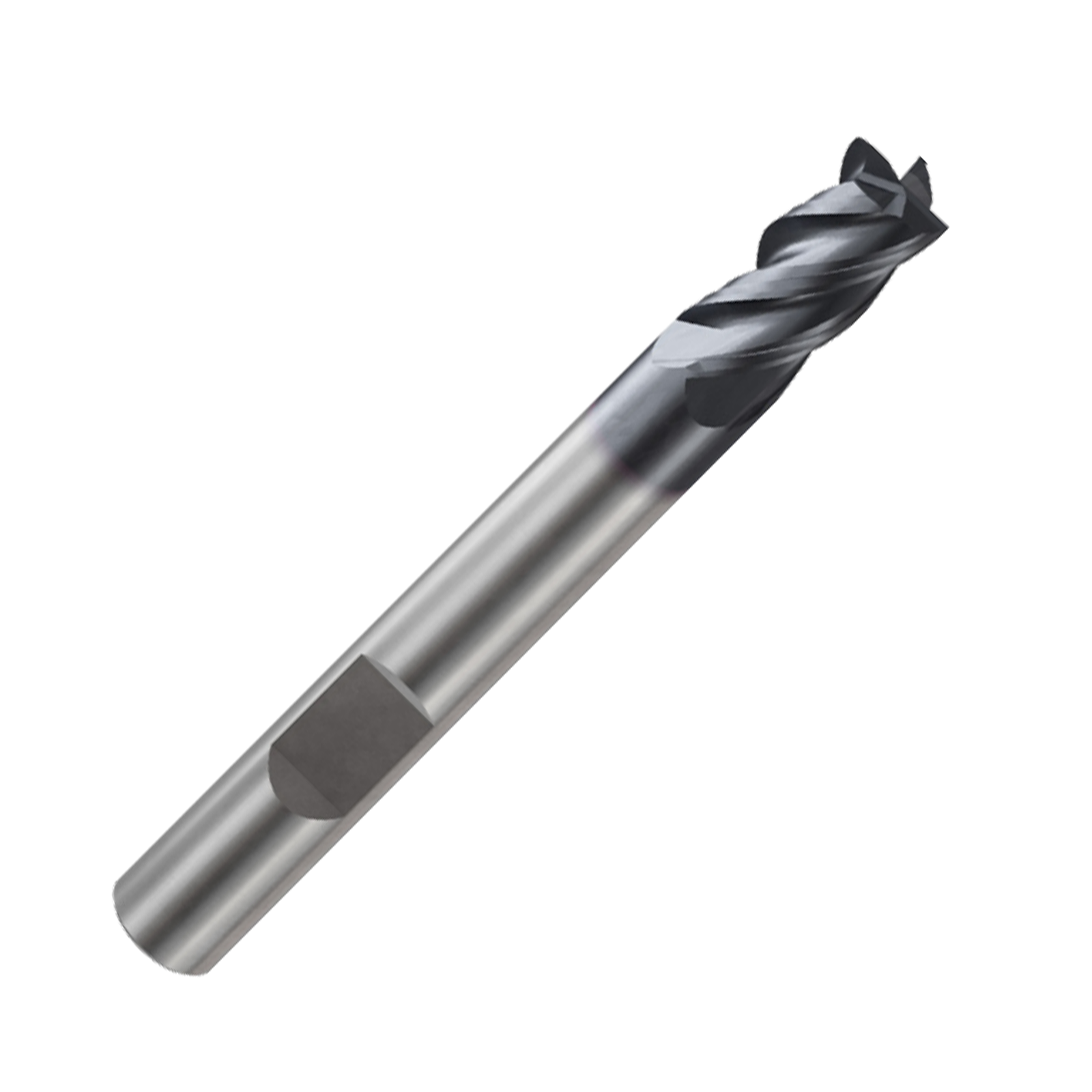

The G9J66 series NC Mill X-coated carbide milling cutters feature a 4 flute design ideal for finishing and side cutting. They are supplied with a weldon shank, most suitable for being clamped in a hydraulic chuck. NC Mill are a next generation milling cutter suitable for multi-purpose milling steel <50HRc, stainless steel and cast iron. The unique X-coating provides longer tool life than traditional TiAlN coated multi-purpose alternatives. The special multiple helix design eliminates vibration when employing large cuts and high feed rates. The results are exceptional tool life, excellent surface finish and the shortest cycle times.
Ideal for multi-purpose milling on steel <50HRC, stainless steel & cast iron
Next generation X-coating provides longer tool life compared to TiAlN coated multi-purpose alternatives
4 flute design ideal for finishing and side cutting
Suitable in wet and dry cutting conditions, dry cutting can increase tool life up to 40%
Premium quality micrograin carbide substrate for improved tool life and reliable performance in general CNC machining
Manufactured by global market leader of solid milling tools, YG-1
Specification
Category
Milling
Sub Category
Milling Cutters
Sub Category 2
NC Mills Milling Cutters
Diameter (mm)
6
Shank (mm)
6
Flute Length (mm)
10
Overall Length (mm)
54
Flutes
4
Substrate
Carbide
Surface Treatment
Coated (PVD/CVD)
End Profile
End Mill
Shank Type
Weldon
Applicable Materials
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Coating Description
X-Coated
Substrate Description
Micrograin Carbide
Brand
YG-1
Application
