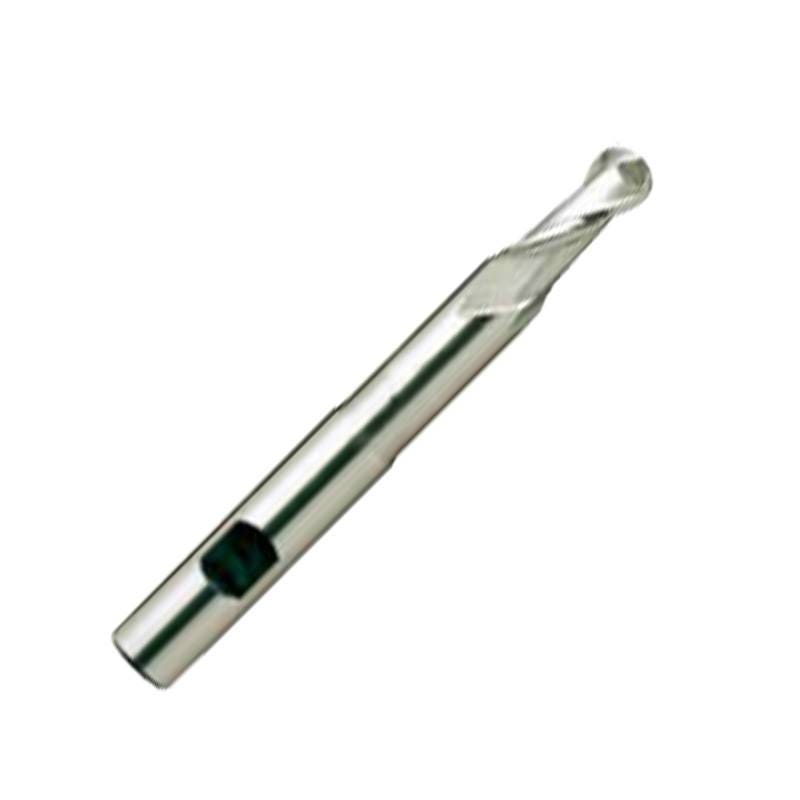

16mm 2 Flute Ball Nose Uncoated HSS 8 Percent Cobalt HSS Long Length Slot Drill - E2492 (YG-1)
16mm 2 Flute Ball Nose Uncoated HSS 8 Percent Cobalt HSS Long Length Slot Drill - E2492 (YG-1)

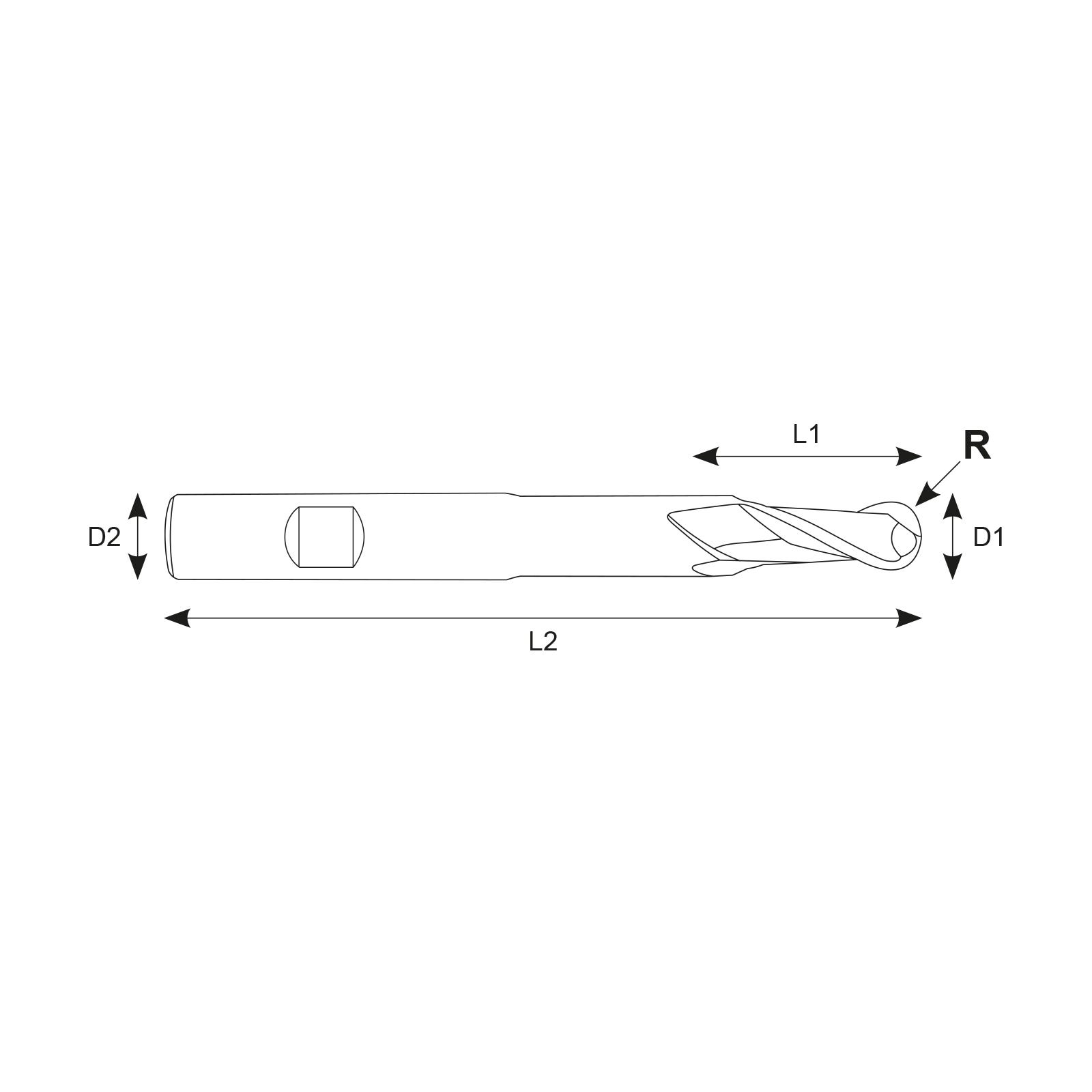

| Diameter (mm) | 16 |
|---|---|
| Overall Length (mm) | 123 |
| Flute Length (mm) | 32 |
| Shank (mm) | 16 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Exceptional value and tool life.
- Available with a weldon shank.
- Ball Nose end profile to produce radii on components.
- Wide range of geomotries and sizes available for a variety of milling applications.
- HSS 8% cobalt content ideal for tougher steels or where longer tool life is required.
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | HSS Milling Cutters |
| Diameter (mm) | 16 |
| Shank (mm) | 16 |
| Radius | 8 |
| Flute Length (mm) | 32 |
| Overall Length (mm) | 123 |
| Flutes | 2 |
| Substrate | HSS |
| Surface Treatment | Uncoated |
| End Profile | Ball Nose |
| Flute Type | Standard |
| Shank Type | Weldon |
| Applicable Materials | Steel, Non-Ferrous |
| Helix Profile | Standard |
| Performance | 2 |
| Substrate Description | High Speed Steel 8% Cobalt |
| Helix Angle | 30° |
| Brand | YG-1 |
