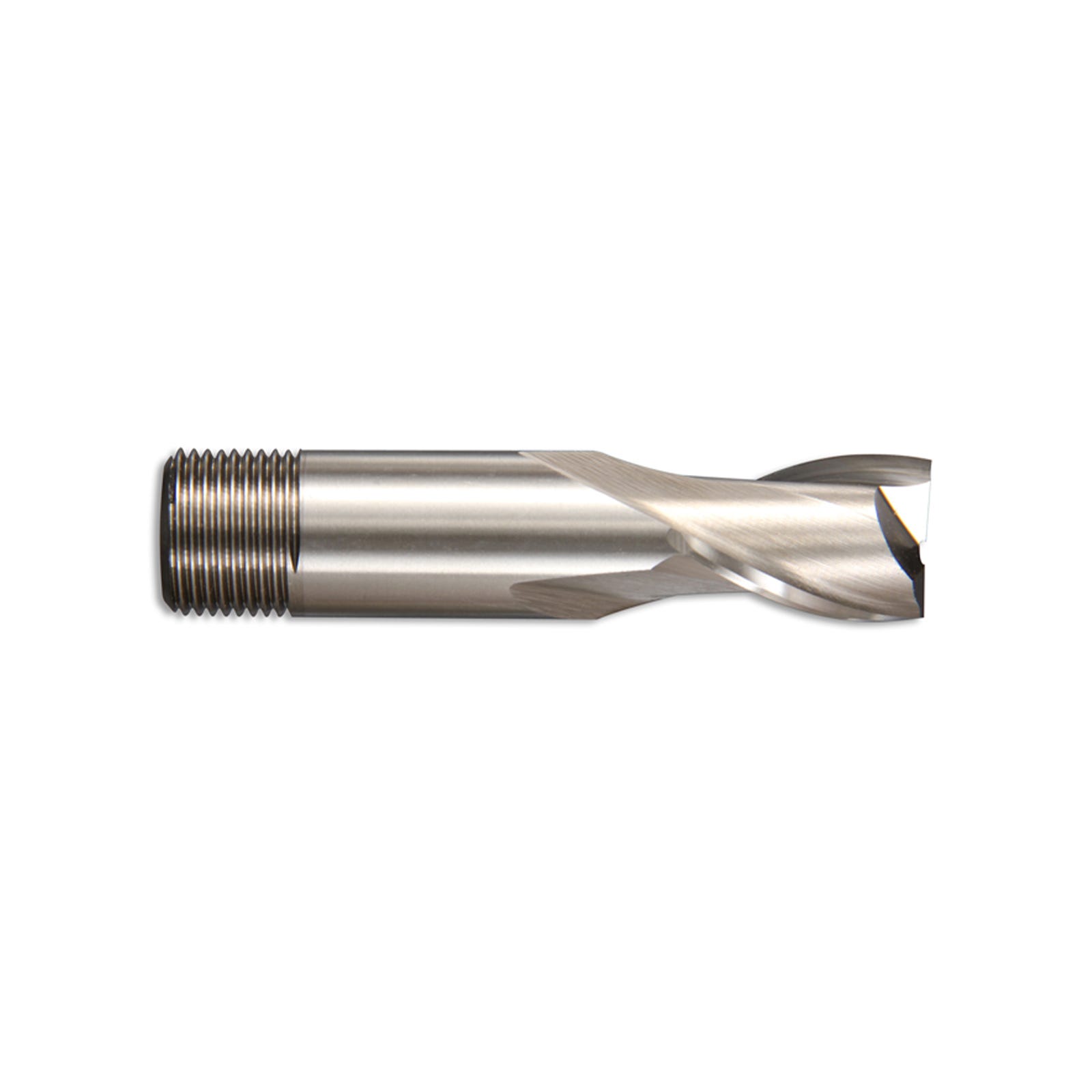

HSCO BS122/4 Screw Shank Normal Series Slot Drill - 30221 (Presto)
Scroll back
Scroll back
HSCO BS122/4 Screw Shank Normal Series Slot Drill - 30221 (Presto)
The Presto 30221 series, 2-fluted Slot Drill is for the machining of slots in materials with a tensile strength up...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Shank (mm)
|
Diameter (Inch)
|
Shank (inch)
|
Flute Length (mm)
|
Overall Length (mm)
|
Flutes
|
Neck Diameter (mm)
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 2 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 3 | Overall Length (mm): 49 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£16.22
£13.52
|
|
|
| Diameter (mm): 3 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 7 | Overall Length (mm): 51 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£16.22
£13.52
|
|
|
| Diameter (mm): 4 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 9.5 | Overall Length (mm): 52.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£16.07
£13.39
|
|
|
| Diameter (mm): 5 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 9.5 | Overall Length (mm): 52.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£16.07
£13.39
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 11 | Overall Length (mm): 56.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£16.07
£13.39
|
|
|
| Diameter (mm): 8 | Shank (mm): 10 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 12.5 | Overall Length (mm): 59.5 | Flutes: 2 | Neck Diameter (mm): |
In stock
|
£22.85
£19.04
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 14.5 | Overall Length (mm): 60.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£22.86
£19.05
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 19 | Overall Length (mm): 66.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£26.94
£22.45
|
|
|
| Diameter (mm): 14 | Shank (mm): 12 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 22 | Overall Length (mm): 68.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£35.06
£29.22
|
|
|
| Diameter (mm): 16 | Shank (mm): 16 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 22 | Overall Length (mm): 72 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£36.23
£30.19
|
|
|
| Diameter (mm): 18 | Shank (mm): 16 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 24 | Overall Length (mm): 74 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£50.35
£41.96
|
|
|
| Diameter (mm): 20 | Shank (mm): 16 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 25.5 | Overall Length (mm): 77 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£48.28
£40.23
|
|
|
| Diameter (mm): 22 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 25.5 | Overall Length (mm): 100 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£118.91
£99.09
|
|
|
| Diameter (mm): 24 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 25.5 | Overall Length (mm): 103 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£127.30
£106.08
|
|
|
| Diameter (mm): 25 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 27 | Overall Length (mm): 95 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£114.79
£95.66
|
|
|
| Diameter (mm): 26 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 27 | Overall Length (mm): 95 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£146.56
£122.13
|
|
|
| Diameter (mm): 28 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 30 | Overall Length (mm): 95 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£150.10
£125.08
|
|
|
| Diameter (mm): 30 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 30 | Overall Length (mm): 93.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£170.69
£142.24
|
|
|
| Diameter (mm): 32 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 38 | Overall Length (mm): 101.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£242.82
£202.35
|
|
|
| Diameter (mm): 35 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 39.5 | Overall Length (mm): 103 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£291.35
£242.79
|
|
|
| Diameter (mm): 36 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 39.5 | Overall Length (mm): 103 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£297.96
£248.30
|
|
|
| Diameter (mm): 38 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 43 | Overall Length (mm): 106.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£313.43
£261.19
|
|
|
| Diameter (mm): 40 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 46 | Overall Length (mm): 111 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£322.99
£269.16
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 1/16" | Shank (inch): 1/4" | Flute Length (mm): 2.4 | Overall Length (mm): 48.4 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£19.00
£15.83
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 1/8" | Shank (inch): 1/4" | Flute Length (mm): 7.1 | Overall Length (mm): 50.8 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£17.69
£14.74
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 3/16" | Shank (inch): 1/4" | Flute Length (mm): 9.5 | Overall Length (mm): 52.4 | Flutes: 2 | Neck Diameter (mm): |
In stock
|
£17.68
£14.73
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 1/4" | Shank (inch): 1/4" | Flute Length (mm): 11.1 | Overall Length (mm): 56.4 | Flutes: 2 | Neck Diameter (mm): |
In stock
|
£17.68
£14.73
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 5/16" | Shank (inch): 3/8" | Flute Length (mm): 12.7 | Overall Length (mm): 59.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£27.83
£23.19
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 3/8" | Shank (inch): 3/8" | Flute Length (mm): 14.3 | Overall Length (mm): 60.3 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£22.67
£18.89
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 7/16" | Shank (inch): 1/2" | Flute Length (mm): 17.5 | Overall Length (mm): 65.1 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£40.04
£33.37
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 1/2" | Shank (inch): 1/2" | Flute Length (mm): 19.1 | Overall Length (mm): 66.7 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£26.94
£22.45
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 9/16" | Shank (inch): 1/2" | Flute Length (mm): | Overall Length (mm): 69.1 | Flutes: 2 | Neck Diameter (mm): |
In stock
|
£50.95
£42.46
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 5/8" | Shank (inch): 5/8" | Flute Length (mm): 22.2 | Overall Length (mm): 72.2 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£44.89
£37.41
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 3/4" | Shank (inch): 5/8" | Flute Length (mm): 25.4 | Overall Length (mm): 77 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£60.65
£50.54
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 7/8" | Shank (inch): 1" | Flute Length (mm): 25.4 | Overall Length (mm): 100 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£126.55
£105.46
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 1" | Shank (inch): 1" | Flute Length (mm): 27 | Overall Length (mm): 95.3 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£114.79
£95.66
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): | Shank (inch): 1" | Flute Length (mm): | Overall Length (mm): 95.3 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£161.16
£134.30
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): | Shank (inch): 1" | Flute Length (mm): 38.1 | Overall Length (mm): 101.6 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£271.49
£226.24
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): | Shank (inch): 1" | Flute Length (mm): | Overall Length (mm): 103.2 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£333.29
£277.74
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): | Shank (inch): 1" | Flute Length (mm): | Overall Length (mm): 106.4 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£346.52
£288.77
|
|
Product Information
Features & Benefits
The Presto 30221 series, 2-fluted Slot Drill is for the machining of slots in materials with a tensile strength up to 1000 N/mm². The HSS cutter has a screwed shank and e8 tolerance.
- HSCo Screw Shank Normal Series Slot Drill BS122/4
- e8 Tolerance
- 2-fluted Slot Drill for the machining of slots in materials with a tensile strength up to 800 N/mm²
- Presto tools are a household name in the cutting tool industry
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Substrate | HSS |
| Surface Treatment | Uncoated |
| Applicable Materials | Steel, Stainless Steel, Cast Iron |
| Performance | 3 |
| Coating Description | HSS with Cobalt |
| Substrate Description | HSS |
| Brand | Presto |
