Combining the performance of carbide with the toughness of HSS, ideal for unstable conditions.
OnlyOne milling cutters can match the speed and performance of general purpose carbide alternatives
The extremely tough powder metal substrate eliminates the risk of chipping
Unique substrate and Y-coating ensure excellent wear resistance and tool life

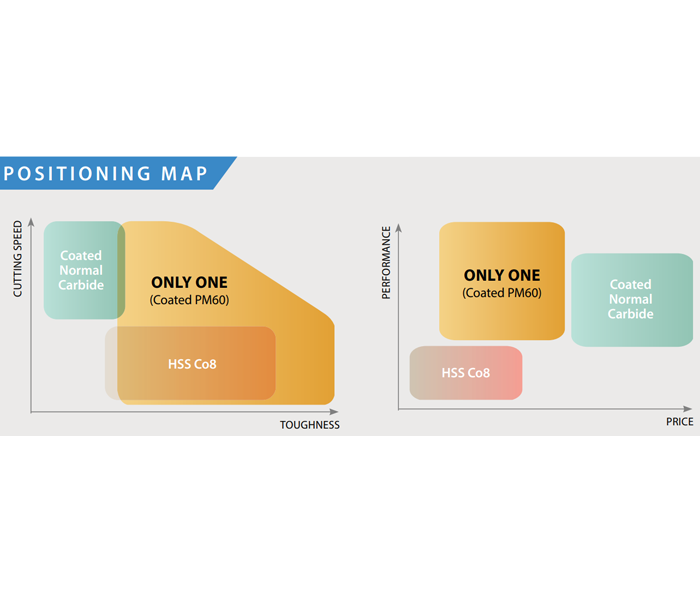

Tough and long lasting milling cutters with similar performance to carbide at HSS prices
Similar cutting performance and wear resistance to general carbide
Can be used on CNC and manual machines, even in unstable cutting conditions
Special Y1200 high heat reistance coating up to 1,200°C

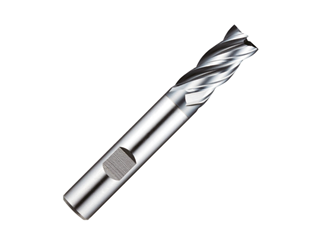

Reduces vibration, harmonics and improves chip flow
Increased performance in a variety of cutting conditions with reduced vibration
Highly effective in vertical ramping up to 20 degrees and step-over plunging applications
Effective chip evacuation at high feed rates with lower cutting forces
High cost efficiency from multi-corners
Improved chip evacuation in deep shouldering and slotting
Improved chip flow and tool life thanks to insert cooling
Stable tool life
Enable rigid clamping
High cost efficiency from multi-corners
Improved chip evacuation in deep shouldering and slotting
Improved chip flow and tool life thanks to insert cooling
Stable tool life
Enable rigid clamping
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
Side Cutting
Profiling
Slotting
Face Milling
Circular Interpolation
| Ø8mm, 4 Flute Multiple Helix Slotting - Low Carbon Steel HRc20 |
Ø8mm, 4 Flute Multiple Helix Slotting - Stainless Steel 316 |
Ø12mm, 4 Flute Endmill Side Cutting - Low Carbon Steel HRc20 |
Ø12mm, 4 Flute Endmill Side Cutting - Stainless Steel 316 |
|
|---|---|---|---|---|
| Tool | GYG52080 | GYG52080 | GYF96120 | GYF96120 |
| RPM | 2788 | 1912 | 2148 | 981 |
| Feed (mm/min) | 312 | 221 | 575 | 247 |
| Vc (m/min) | 70 | 48 | 81 | 37 |
| Fz (mm/tooth) | 0.028 | 0.029 | 0.067 | 0.063 |
| Depth of Cut (AP) | 4mm | 4mm | 18mm | 18mm |
| Depth of Cut (AE) | 8mm | 8mm | 1.2mm | 1.2mm |
