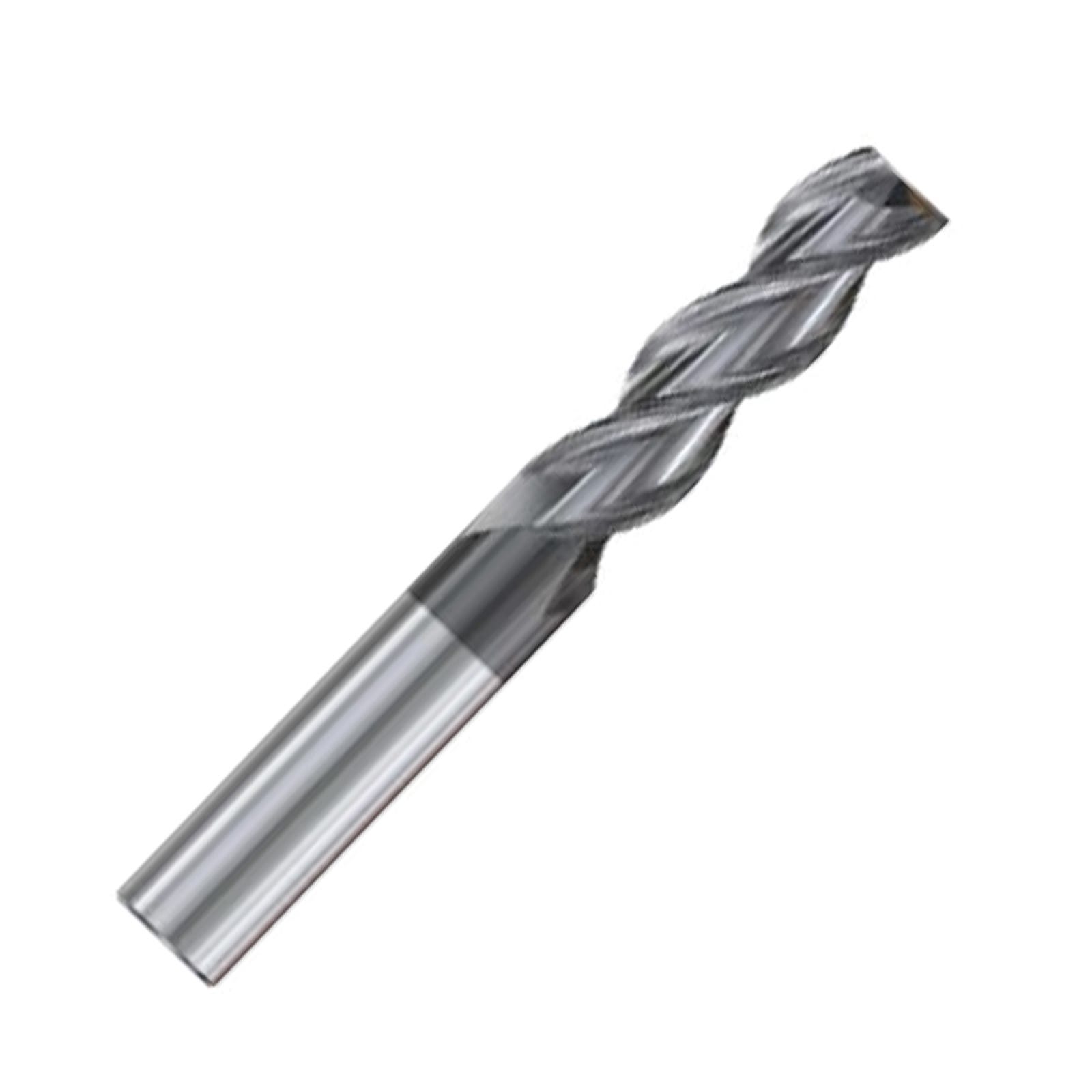

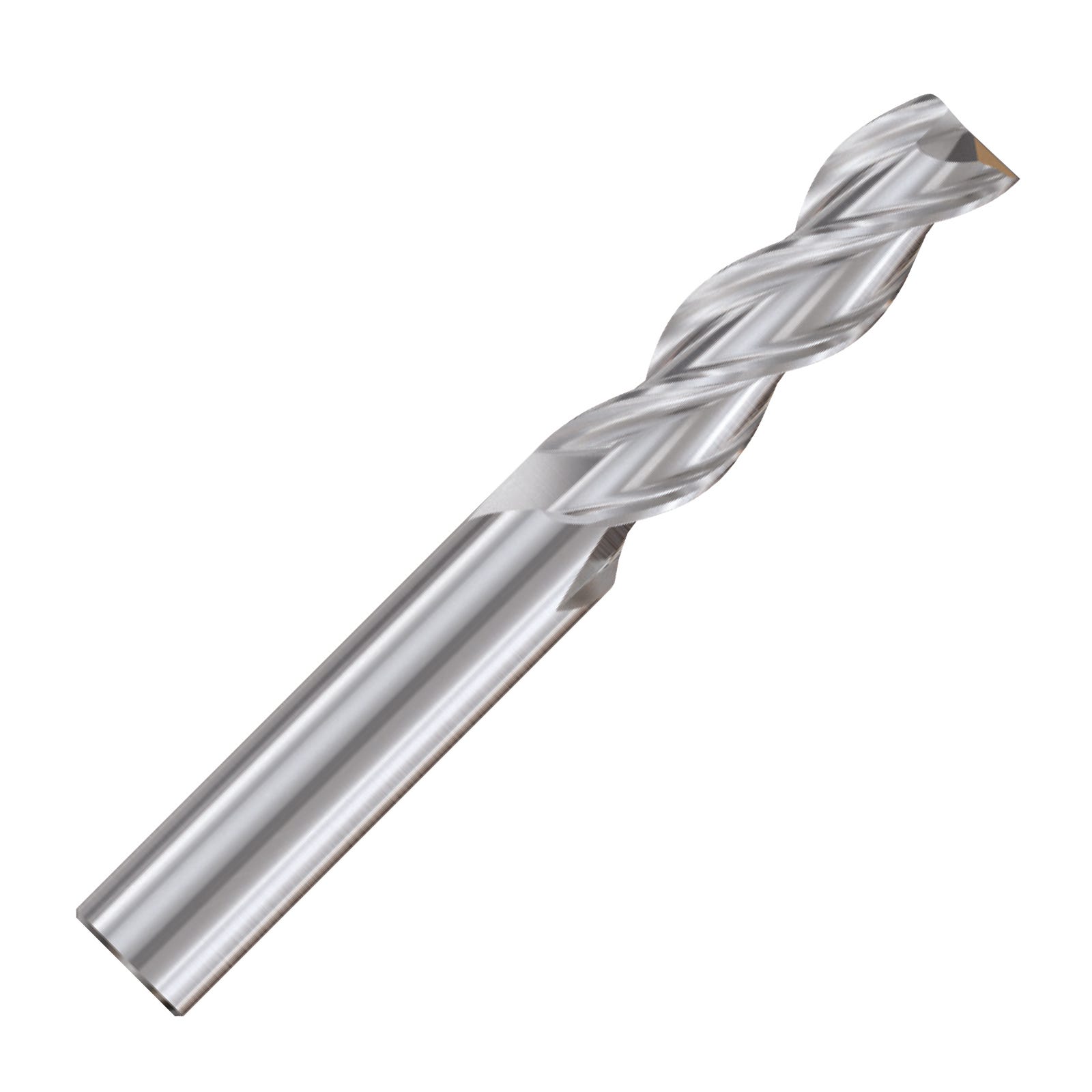

3 Flute Alu-Power HPC DLC Coated Carbide Slot Drill - JAH22 (YG-1)
3 Flute Alu-Power HPC DLC Coated Carbide Slot Drill - JAH22 (YG-1)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

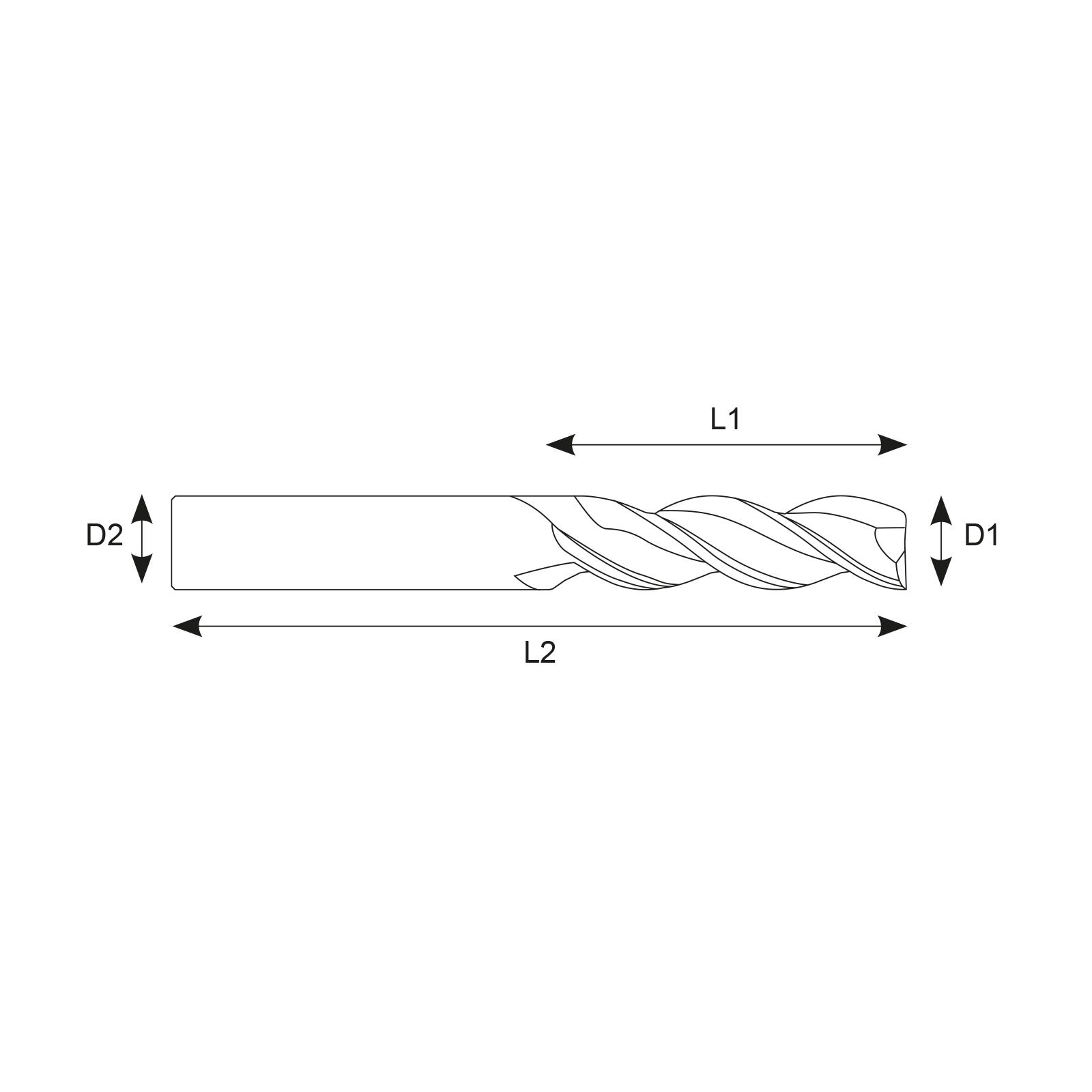

Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Flutes
|
||||
|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 3 | Shank (mm): 6 | Flute Length (mm): 8 | Overall Length (mm): 52 | Flutes: 3 |
In stock
|
£32.95
£27.46
|
|
|
| Diameter (mm): 4 | Shank (mm): 6 | Flute Length (mm): 11 | Overall Length (mm): 55 | Flutes: 3 |
In stock
|
£37.13
£30.94
|
|
|
| Diameter (mm): 5 | Shank (mm): 6 | Flute Length (mm): 13 | Overall Length (mm): 57 | Flutes: 3 |
In stock
|
£40.84
£34.03
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 13 | Overall Length (mm): 57 | Flutes: 3 |
In stock
|
£40.84
£34.03
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 13 | Overall Length (mm): 72 | Flutes: 3 |
In stock
|
£45.00
£37.50
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 24 | Overall Length (mm): 75 | Flutes: 3 |
In stock
|
£52.20
£43.50
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 19 | Overall Length (mm): 63 | Flutes: 3 |
In stock
|
£55.34
£46.12
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 32 | Overall Length (mm): 75 | Flutes: 3 |
In stock
|
£61.66
£51.38
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 22 | Overall Length (mm): 72 | Flutes: 3 |
In stock
|
£67.62
£56.35
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 40 | Overall Length (mm): 100 | Flutes: 3 |
5 days*
|
£83.88
£69.90
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 26 | Overall Length (mm): 83 | Flutes: 3 |
In stock
|
£93.95
£78.29
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 48 | Overall Length (mm): 100 | Flutes: 3 |
In stock
|
£134.84
£112.37
|
|
|
| Diameter (mm): 14 | Shank (mm): 14 | Flute Length (mm): 30 | Overall Length (mm): 89 | Flutes: 3 |
In stock
|
£171.53
£142.94
|
|
|
| Diameter (mm): 16 | Shank (mm): 16 | Flute Length (mm): 32 | Overall Length (mm): 92 | Flutes: 3 |
In stock
|
£166.20
£138.50
|
|
|
| Diameter (mm): 16 | Shank (mm): 16 | Flute Length (mm): 64 | Overall Length (mm): 125 | Flutes: 3 |
5 days*
|
£206.88
£172.40
|
|
|
| Diameter (mm): 20 | Shank (mm): 20 | Flute Length (mm): 38 | Overall Length (mm): 104 | Flutes: 3 |
In stock
|
£290.99
£242.49
|
|
|
| Diameter (mm): 20 | Shank (mm): 20 | Flute Length (mm): 80 | Overall Length (mm): 150 | Flutes: 3 |
5 days*
|
£377.45
£314.54
|
|
|
| Diameter (mm): 25 | Shank (mm): 25 | Flute Length (mm): 50 | Overall Length (mm): 125 | Flutes: 3 |
5 days*
|
£511.07
£425.89
|
|
Product Information
Features & Benefits
- Micrograin carbide substrate
- Deep flute pockets
- Extreme metal removal rates
- Polished flutes for excellent chip flow
- Effective chip evacuation at high feed rates with lower cutting forces
- Highly effective in vertical ramping up to 20 degrees and��step-over plunging applications
- 3 flute ���centre match��� HPC geometry for high feed rates & large depth of cut
- DLC coating excels in hard aluminum and high speeds
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck)
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | Alu-Power HPC Milling Cutters |
| Substrate | Carbide |
| Surface Treatment | Coated (DLC) |
| End Profile | Square |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Non-Ferrous |
| Helix Profile | Standard |
| Performance | 5 |
| Coating Description | Diamond-Like Carbon (DLC) Coated |
| Substrate Description | Micrograin Carbide |
| Helix Angle | 37° |
| Brand | YG-1 |
