Extreme sharpness due to laser-cut cutting edges and high-precision cutting tolerance of up to 1μm
No other cutter offers the same level of hardness, performance and precision
Ultra-high cutting tolerances up to 1 micron guarantees a smooth cutting action
Includes Carbon Fibre, Glass Reinforced Plastics, Kevlar, Aramid & Abrasive Engineered Plastics

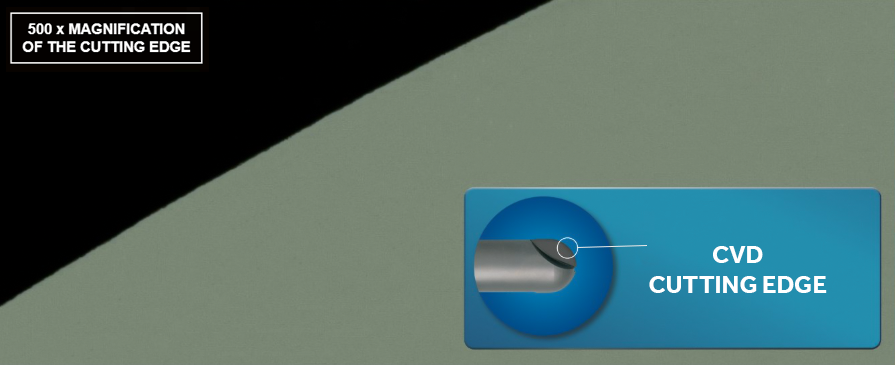

Laser-cut diamond with ultra-sharp cutting edge for ultra-high hardness
3-4 times the hardness of PCD with 4-5 times longer tool life. Push further for longer
Suitable for the most abrasive composite materials such as Aramid
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
Face Milling
Slotting
Shoulder Milling
Profiling
From side cuts to rough cuts to aggressive ramping, nothing withstands extreme radial forces better or longer
| Ø4mm Cutter Side Cutting (Profiling) - PEEK CF30 |
Ø6mm Cutter Side Cutting (Profiling) - Acrylic |
Ø8mm Cutter Side Cutting (Profiling) |
Ø10mm Cutter Side Cutting (Profiling) - PEEK GF30 |
|
|---|---|---|---|---|
| Tool Series | 296524 | 296525 | 296526 | 296523 |
| RPM | 71610 | 58349 | 23870 | 35010 |
| Feed (mm/min) | 1074 | 1750 | 1194 | 1750 |
| Vc (m/min) | 900 | 1100 | 600 | 1100 |
| Fz (mm/tooth) | 0.015 | 0.03 | 0.05 | 0.05 |
| Depth of Cut (AP) | 2mm | 3mm | 4mm | 5mm |
| Depth of Cut (AE) | 0.8mm | 1.8mm | 2.4mm | 2mm |
