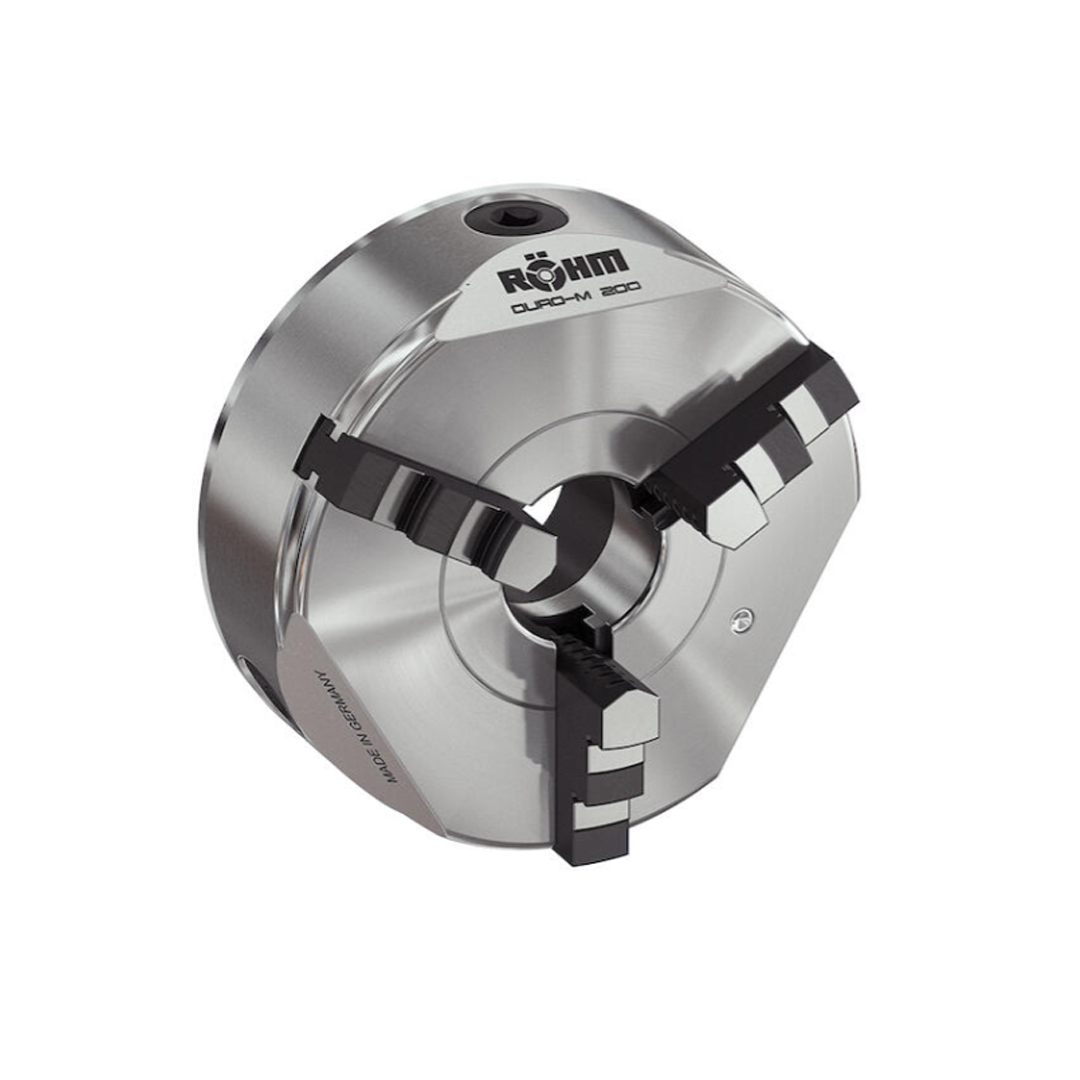

3 Jaw Self Centering DURO-M Geared Scroll Chuck, Steel Body, 1 Piece Jaw, Front Mount (DIN 6350) - RHM-185 Series (Rohm)
3 Jaw Self Centering DURO-M Geared Scroll Chuck, Steel Body, 1 Piece Jaw, Front Mount (DIN 6350) - RHM-185 Series (Rohm)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Diameter (Inch)
|
Bore Diameter (mm)
|
Max RPM
|
||||
|---|---|---|---|---|---|---|---|
| Diameter (mm): 125 | Diameter (Inch): 5" | Bore Diameter (mm): 32 | Max RPM: 5500 |
5 days*
|
£887.12
£739.27
|
|
|
| Diameter (mm): 160 | Diameter (Inch): 6" | Bore Diameter (mm): 42 | Max RPM: 4600 |
5 days*
|
£1,011.95
£843.29
|
|
|
| Diameter (mm): 200 | Diameter (Inch): 8" | Bore Diameter (mm): 55 | Max RPM: 4000 |
5 days*
|
£1,144.20
£953.50
|
|
|
| Diameter (mm): 250 | Diameter (Inch): 10" | Bore Diameter (mm): 76 | Max RPM: 3000 |
5 days*
|
£1,612.28
£1,343.57
|
|
|
| Diameter (mm): 315 | Diameter (Inch): 12" | Bore Diameter (mm): 103 | Max RPM: 2300 |
5 days*
|
£2,545.49
£2,121.24
|
|
|
| Diameter (mm): 400 | Diameter (Inch): 16" | Bore Diameter (mm): 136 | Max RPM: 1800 |
5 days*
|
£4,648.15
£3,873.46
|
|
|
| Diameter (mm): 500 | Diameter (Inch): 20" | Bore Diameter (mm): 190 | Max RPM: 1300 |
5 days*
|
£11,602.56
£9,668.80
|
|
|
| Diameter (mm): 630 | Diameter (Inch): 25" | Bore Diameter (mm): 240 | Max RPM: 850 |
5 days*
|
£16,935.76
£14,113.13
|
|
Product Information
Features & Benefits
- High quality, accuracy & durability German made scroll chucks
- 3 Jaw type with 1 piece self centring jaws
- Chuck body (and all other components) made of steel
- Geared clamping for highest forces
- High clamping force
- The Duro-M is also available with double jaw guide as an option.
- Front Mount
Specification
| Category | Workholding |
|---|---|
| Sub Category | Manual Chucks & Jaws |
| Sub Category 2 | Scroll Chucks |
| Type | Super Precision |
| Chuck Material | Steel |
| Jaw Type | 1 Piece |
| No. of Jaws | 3 |
| Brand | Rohm |
