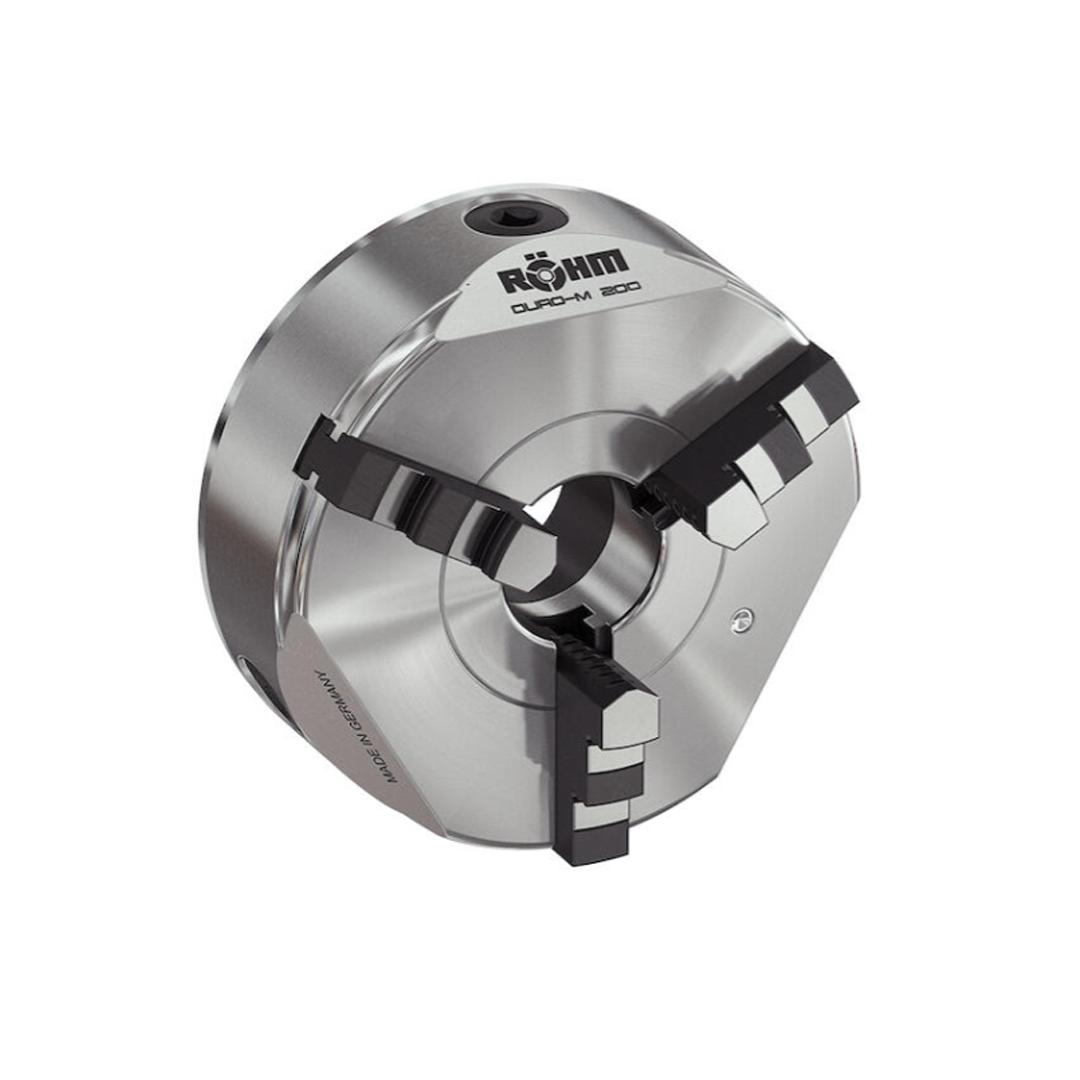

315mm / 12 Inch 3 Jaw Self Centering DURO-M Geared Scroll Chuck, Steel Body, 1 Piece Jaw, Front Mount (DIN 6350), 103mm Bore Diameter - RHM-185 Series (Rohm)
315mm / 12 Inch 3 Jaw Self Centering DURO-M Geared Scroll Chuck, Steel Body, 1 Piece Jaw, Front Mount (DIN 6350), 103mm Bore Diameter - RHM-185 Series (Rohm)
| Diameter (mm) | 315 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- High quality, accuracy & durability German made scroll chucks
- 3 Jaw type with 1 piece self centring jaws
- Chuck body (and all other components) made of steel
- Geared clamping for highest forces
- High clamping force
- The Duro-M is also available with double jaw guide as an option.
- Front Mount
Specification
| Category | Workholding |
|---|---|
| Sub Category | Manual Chucks & Jaws |
| Sub Category 2 | Scroll Chucks |
| Diameter (mm) | 315 |
| Diameter (Inch) | 12" |
| Bore Diameter (mm) | 103 |
| Max RPM | 2300 |
| Type | Super Precision |
| Chuck Material | Steel |
| Jaw Type | 1 Piece |
| No. of Jaws | 3 |
| Brand | Rohm |
