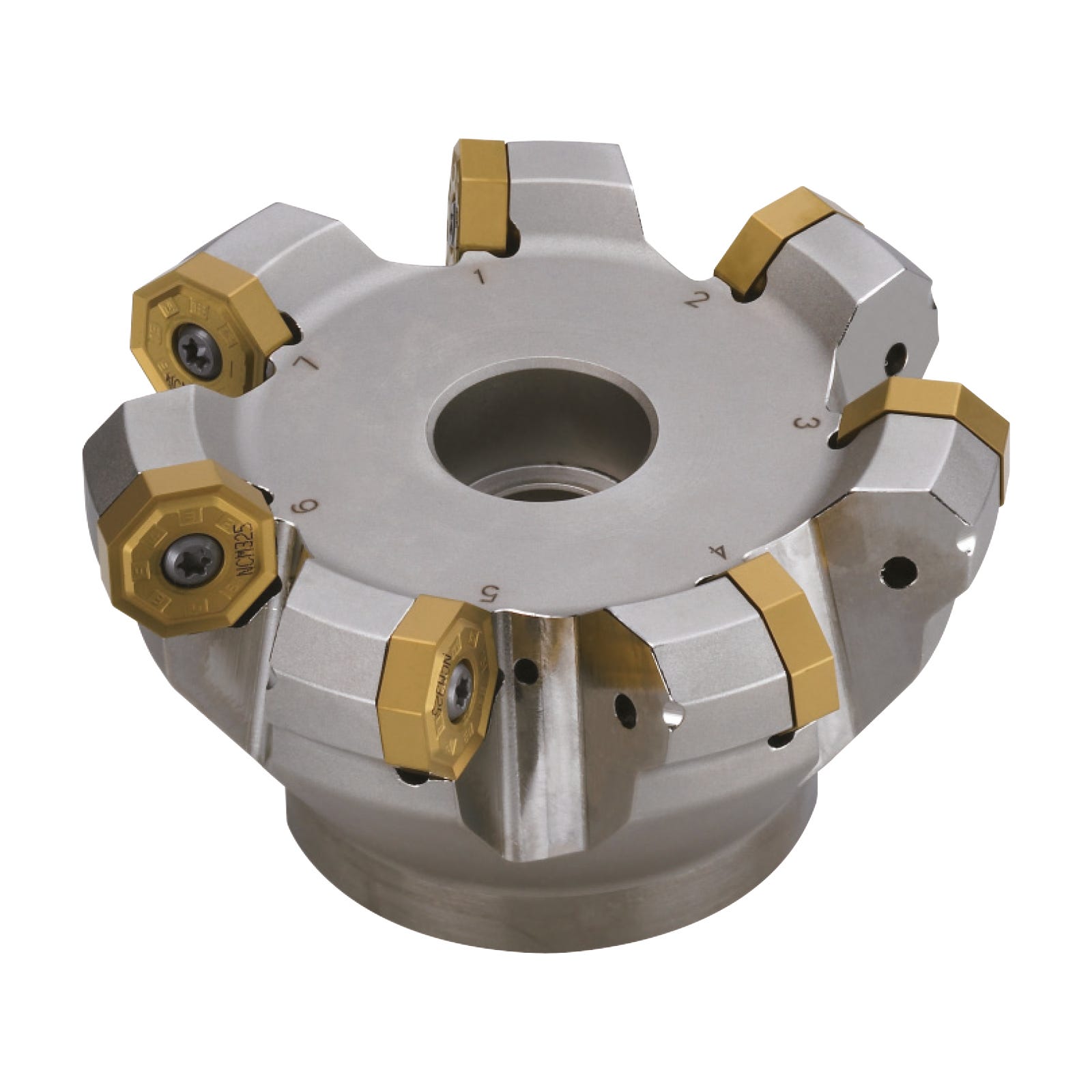

ONMX/ONHX RM16 Style 45° Face Mill (Teknik)
ONMX/ONHX RM16 Style 45° Face Mill (Teknik)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Spigot (mm)
|
Overall Length (mm)
|
Depth of Cut
|
Inserts
|
Figure
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 63 | Spigot (mm): 22 | Overall Length (mm): 40 | Depth of Cut: 4 | Inserts: ONHX06, ONMX06 | Figure: 1 |
In stock
|
£68.42
£57.02
|
|
|
| Diameter (mm): 80 | Spigot (mm): 27 | Overall Length (mm): 50 | Depth of Cut: 4 | Inserts: ONHX06, ONMX06 | Figure: 1 |
In stock
|
£79.12
£65.93
|
|
|
| Diameter (mm): 100 | Spigot (mm): 32 | Overall Length (mm): 50 | Depth of Cut: 4 | Inserts: ONHX06, ONMX06 | Figure: 1 |
In stock
|
£91.96
£76.63
|
|
|
| Diameter (mm): 63 | Spigot (mm): 22 | Overall Length (mm): 40 | Depth of Cut: 5.5 | Inserts: ONHX08, ONMX08 | Figure: 1 |
In stock
|
£68.42
£57.02
|
|
|
| Diameter (mm): 80 | Spigot (mm): 27 | Overall Length (mm): 50 | Depth of Cut: 5.5 | Inserts: ONHX08, ONMX08 | Figure: 1 |
In stock
|
£79.12
£65.93
|
|
|
| Diameter (mm): 100 | Spigot (mm): 32 | Overall Length (mm): 50 | Depth of Cut: 5.5 | Inserts: ONHX08, ONMX08 | Figure: 1 |
In stock
|
£91.96
£76.63
|
|
|
| Diameter (mm): 125 | Spigot (mm): 40 | Overall Length (mm): 63 | Depth of Cut: 5.5 | Inserts: ONHX08, ONMX08 | Figure: 1 |
In stock
|
£139.00
£115.83
|
|
Product Information
Features & Benefits
- Face Mill style.
- Double sided octagonal insert gives 16 usable cutting edges.
- Strong and thick negative geometry insert, ideal for medium to heavy machining.
- Suitable for roughing to finishing.
- The most economical milling system.
- Lowest cost per cutting edge.
- High feed rates & <0.4mm/tooth.
- Extremely strong insert with long tool life.
- Suitable for both conventional and CNC machining,
- Inserts can be used with 8 edges for increased depth of cut.
Specification
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
|---|---|
| Performance | 2 |
| Insert Series | ONMX, ONHX |
| Holder Type | Face Mill |
| Application | Face Milling |
| Insert Angle | 45° |
| Holder Material | Steel |
| Brand | Teknik |
