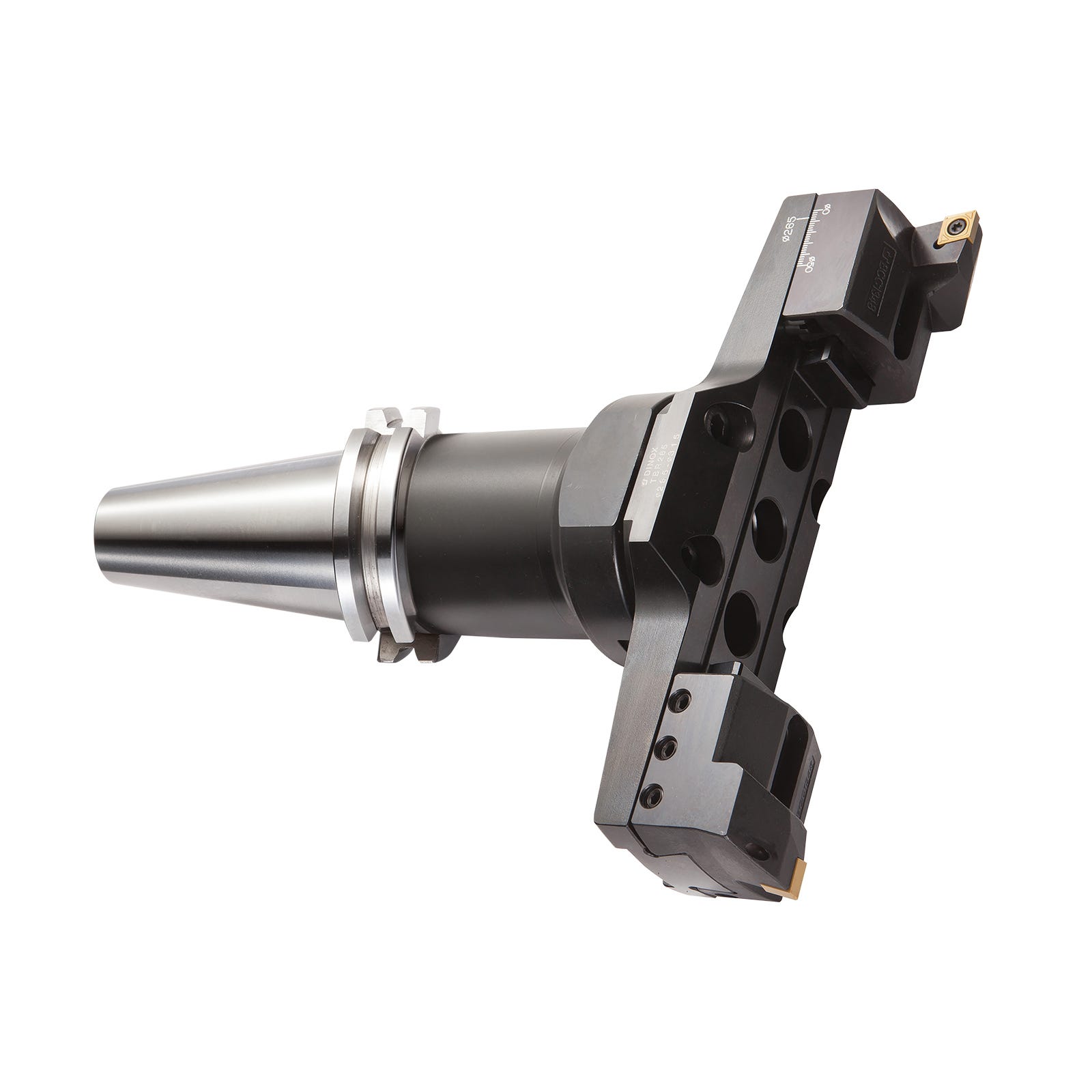

Rough Boring Headset For Dinox TBC Modular Boring System (Dine) - TBC Series

Rough Boring Headset For Dinox TBC Modular Boring System (Dine) - TBC Series

Key Features

available Rough Boring System from 130mm up to 540mm Diameter
available Headset comprises of a rail and cartridge
available Cartridges use standard ISO CCMT1204 inserts
Read More
View Products

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday
Filter Items arrow
Code Inserts Bore Range Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Inserts
carrat-down
Bore Range
carrat-down
Inserts: CCMT1204 Bore Range: 220-270
green Available for Delivery within 4-5 Days *
£1,821.31 £1,517.76
minus plus
Inserts: CCMT1204 Bore Range: 265-315
green Available for Delivery within 4-5 Days *
£1,974.49 £1,645.41
minus plus
Inserts: CCMT1204 Bore Range: 310-390
green Available for Delivery within 4-5 Days *
£2,106.14 £1,755.12
minus plus
Inserts: CCMT1204 Bore Range: 460-540
green Available for Delivery within 4-5 Days *
£2,546.46 £2,122.05
minus plus

*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.

Specification

Category Hole Making
Sub Category Modular Boring Systems
Brand Dine

Description

The TBC Rough Boring Headset is part of the High Performance Dinox Modular Boring System. This system is ideal for rough boring from 130mm up to 540mm. This headset comprises of a rail and a cartridge. The cartridges are suitable for use with standard ISO CCMT1204 inserts. You can adjust the cartridge tip angle to either 15° or 45°. These are suitable for use with either the BT50 or SK50 Dinox Tool Holders (FMD50 Series).

Features & Benefits

  • Rough Boring System from 130mm up to 540mm Diameter
  • Headset comprises of a rail and cartridge
  • Cartridges use standard ISO CCMT1204 inserts
  • Cartridge tip angle is adjustable to either 15 degree or 45 degree
  • Suitable for use with FMD50 series BT50/SK50 Dinox Tool Holders
