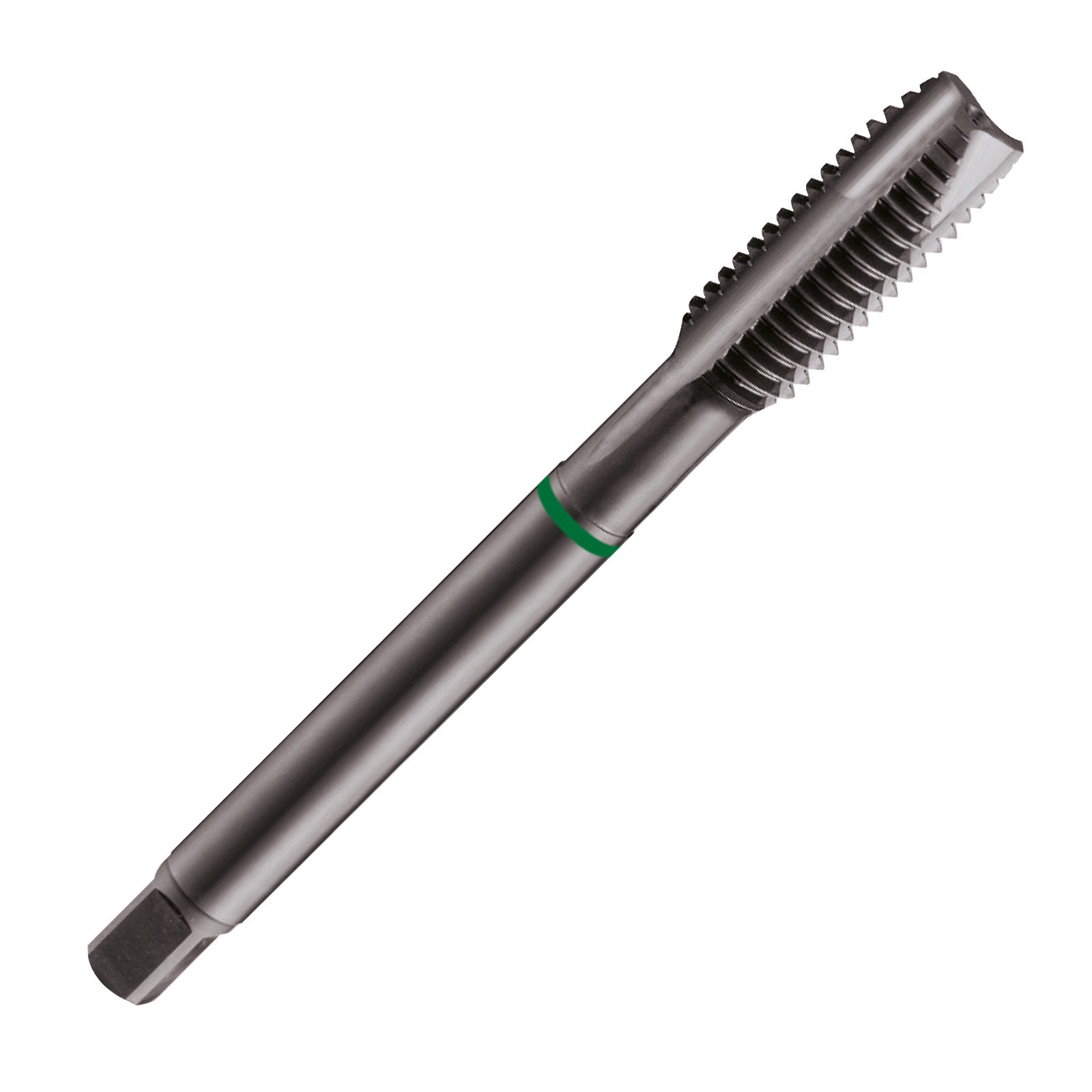

Metric Fine Powder Metal Spiral Point INOX Machine Tap for Stainless Steel - TQ438 Series (YG-1)
Metric Fine Powder Metal Spiral Point INOX Machine Tap for Stainless Steel - TQ438 Series (YG-1)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

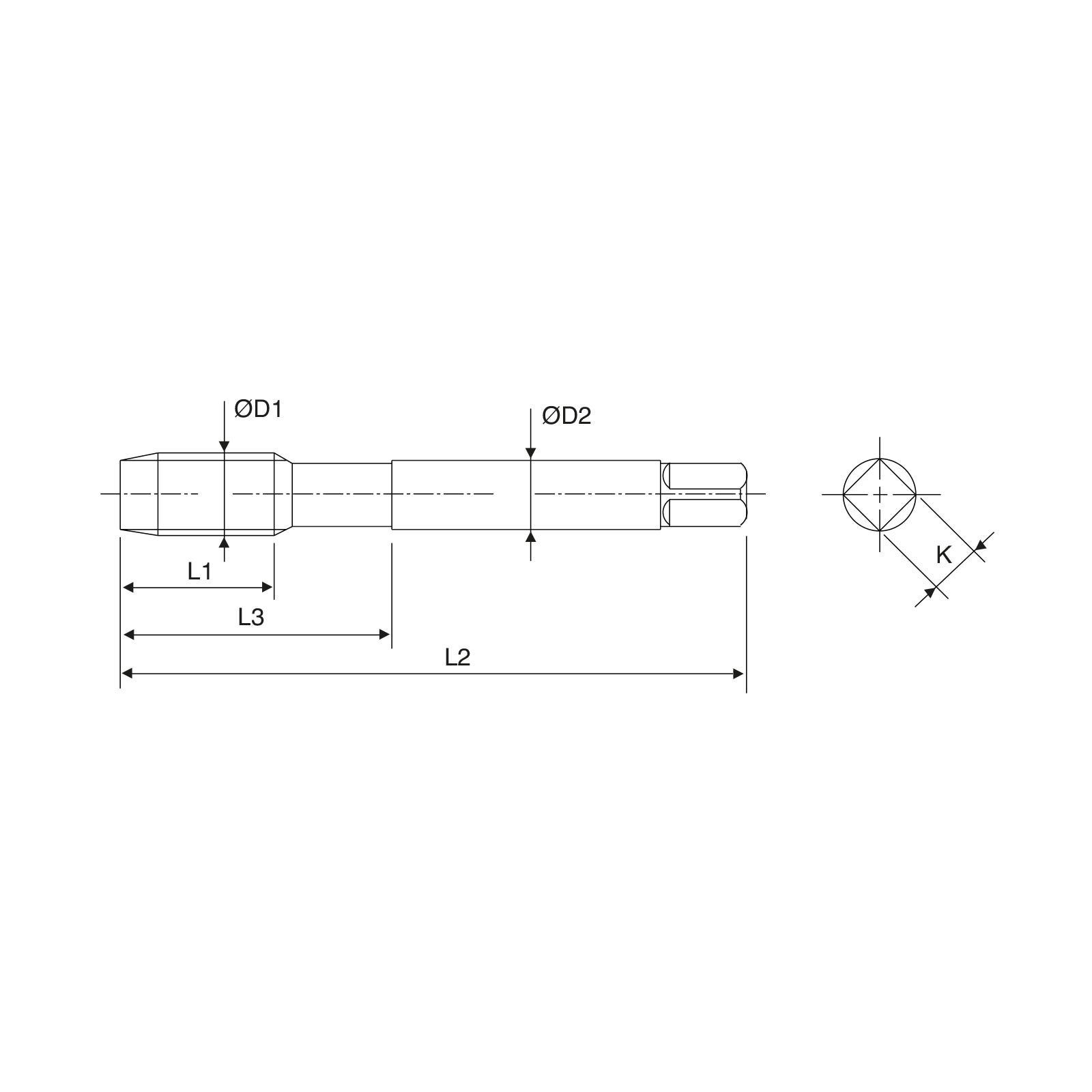

Shank (mm)
|
Pitch
|
Flute Length (mm)
|
Overall Length (mm)
|
Flutes
|
Thread
|
L3
|
Drill Diameter
|
Square
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shank (mm): 21 | Pitch: 0.5 | Flute Length (mm): 10 | Overall Length (mm): 63 | Flutes: 3 | Thread: | L3: | Drill Diameter: 2.1 | Square: 2.8 |
In stock
|
£31.10
£25.92
|
|
|
| Shank (mm): 25 | Pitch: 0.5 | Flute Length (mm): 11 | Overall Length (mm): 70 | Flutes: 3 | Thread: | L3: | Drill Diameter: 2.7 | Square: 3.5 |
6 days*
|
£31.73
£26.44
|
|
|
| Shank (mm): 30 | Pitch: 0.75 | Flute Length (mm): 13 | Overall Length (mm): 80 | Flutes: 3 | Thread: M6 | L3: | Drill Diameter: 3.4 | Square: 4.5 |
5 days*
|
£31.51
£26.26
|
|
|
| Shank (mm): 30 | Pitch: 0.5 | Flute Length (mm): 13 | Overall Length (mm): 80 | Flutes: 3 | Thread: M6 | L3: | Drill Diameter: 3.4 | Square: 4.5 |
In stock
|
£35.71
£29.76
|
|
|
| Shank (mm): 30 | Pitch: 0.75 | Flute Length (mm): 14 | Overall Length (mm): 80 | Flutes: 3 | Thread: M8 | L3: | Drill Diameter: 4.9 | Square: 6 |
5 days*
|
£39.86
£33.22
|
|
|
| Shank (mm): 36 | Pitch: 0.75 | Flute Length (mm): 18 | Overall Length (mm): 90 | Flutes: 3 | Thread: M10 | L3: | Drill Diameter: 5.5 | Square: 7 |
5 days*
|
£56.48
£47.07
|
|
|
| Shank (mm): 40 | Pitch: 1.5 | Flute Length (mm): 22 | Overall Length (mm): 100 | Flutes: 3 | Thread: M12 | L3: | Drill Diameter: 7 | Square: 9 |
In stock
|
£50.03
£41.69
|
|
|
| Shank (mm): 40 | Pitch: 1 | Flute Length (mm): 18 | Overall Length (mm): 100 | Flutes: 3 | Thread: M12 | L3: | Drill Diameter: 7 | Square: 9 |
5 days*
|
£51.98
£43.32
|
|
|
| Shank (mm): 3.5 | Pitch: 0.5 | Flute Length (mm): 6 | Overall Length (mm): 56 | Flutes: 3 | Thread: | L3: 18 | Drill Diameter: 2.5 | Square: 2.7 |
In stock
|
£12.85
£10.71
|
|
|
| Shank (mm): 4.5 | Pitch: 0.7 | Flute Length (mm): 7 | Overall Length (mm): 63 | Flutes: 3 | Thread: | L3: 21 | Drill Diameter: 3.3 | Square: 3.4 |
In stock
|
£12.85
£10.71
|
|
|
| Shank (mm): 6 | Pitch: 0.8 | Flute Length (mm): 8 | Overall Length (mm): 70 | Flutes: 3 | Thread: | L3: 25 | Drill Diameter: 4.2 | Square: 4.9 |
In stock
|
£14.42
£12.02
|
|
|
| Shank (mm): 6 | Pitch: 1 | Flute Length (mm): 10 | Overall Length (mm): 80 | Flutes: 3 | Thread: M6 | L3: 30 | Drill Diameter: 5 | Square: 4.9 |
In stock
|
£14.42
£12.02
|
|
|
| Shank (mm): 8 | Pitch: 1.25 | Flute Length (mm): 13 | Overall Length (mm): 90 | Flutes: 3 | Thread: M8 | L3: 35 | Drill Diameter: 6.8 | Square: 6.2 |
6 days*
|
£20.28
£16.90
|
|
|
| Shank (mm): 10 | Pitch: 1.5 | Flute Length (mm): 15 | Overall Length (mm): 100 | Flutes: 3 | Thread: M10 | L3: 39 | Drill Diameter: 8.5 | Square: 8 |
In stock
|
£24.25
£20.21
|
|
|
| Shank (mm): 9 | Pitch: 1.75 | Flute Length (mm): 18 | Overall Length (mm): 110 | Flutes: 3 | Thread: M12 | L3: 44 | Drill Diameter: 10.2 | Square: 7 |
In stock
|
£33.36
£27.80
|
|
|
| Shank (mm): 5.5 | Pitch: 0.75 | Flute Length (mm): 14 | Overall Length (mm): 80 | Flutes: 3 | Thread: M7 | L3: | Drill Diameter: 6.2 | Square: 4.3 |
5 days*
|
£51.96
£43.30
|
|
Product Information
Features & Benefits
- Metric Fine Machine Tap for Stainless Steel
- Powder Metal Substrate
- Spiral Point for Through Holes
- VAP surface treatment reduces friction
- For High Performance Tapping of Stainless Steel (also suitable for Soft Steel, Structural Steel & Copper)
- Excellent for stickier materials such as 316 stainless or soft steels
Specification
| Category | Threading |
|---|---|
| Substrate | HSS-PM |
| Surface Treatment | Uncoated |
| Depth | 3xD |
| Helix Angle | 60° |
| Coating Description | VAP finish |
| Substrate Description | Powder Metal |
| Performance | 5 |
| Brand Range | Combo Tap |
| Applicable Materials | Steel, Stainless Steel, Non-Ferrous |
| Brand | YG-1 |
| Thread Form | Metric ISO |
| Oil Grooves | No |
| Flute Geometry | Spiral Point |
