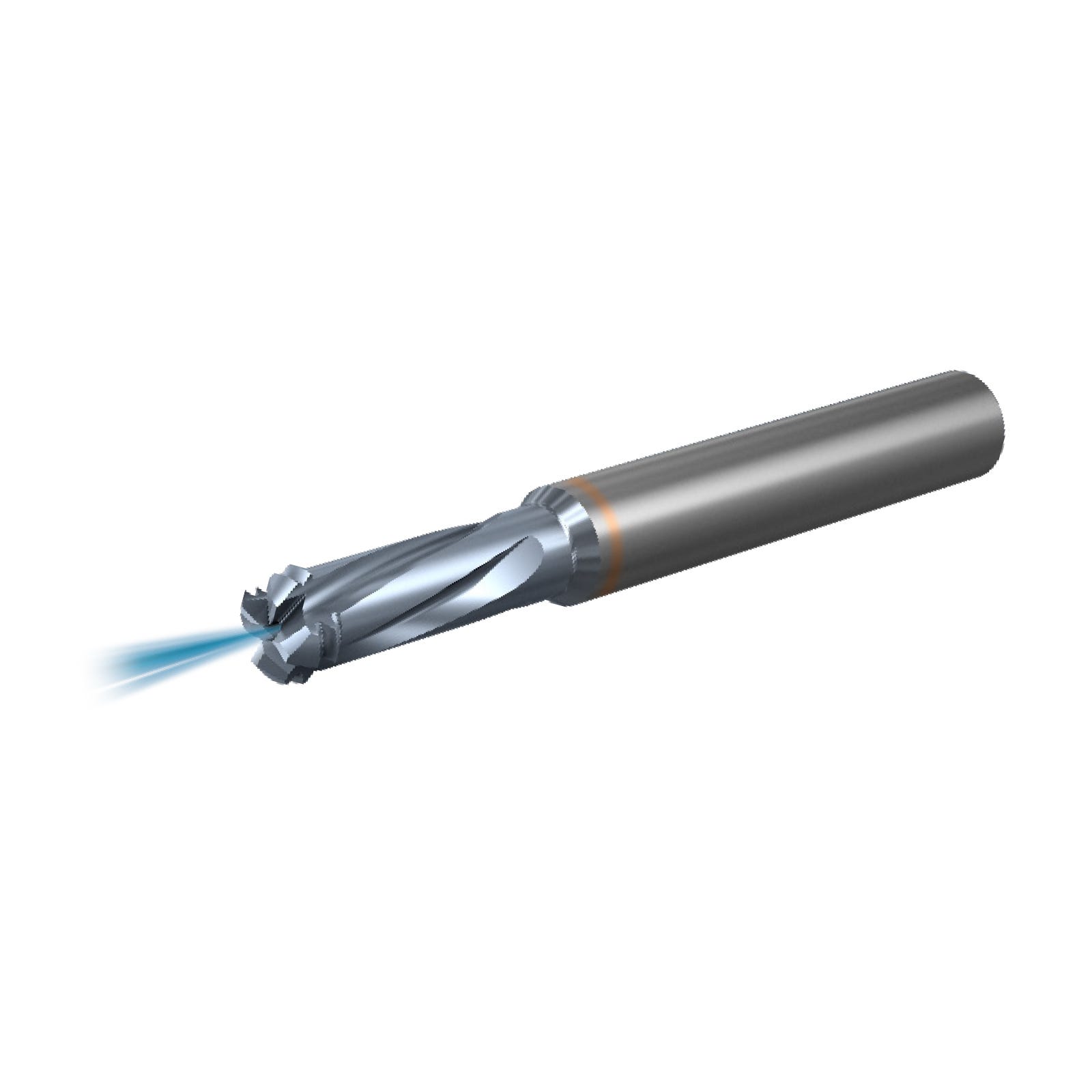

1/4"x28 UN Drill, Thread Mill & Chamfer Internal Carbide Thread Mill with Axial Coolant - TMDR Series (Vardex) - TDC2L08050L144-I28UNFVTS
1/4"x28 UN Drill, Thread Mill & Chamfer Internal Carbide Thread Mill with Axial Coolant - TMDR Series (Vardex) - TDC2L08050L144-I28UNFVTS

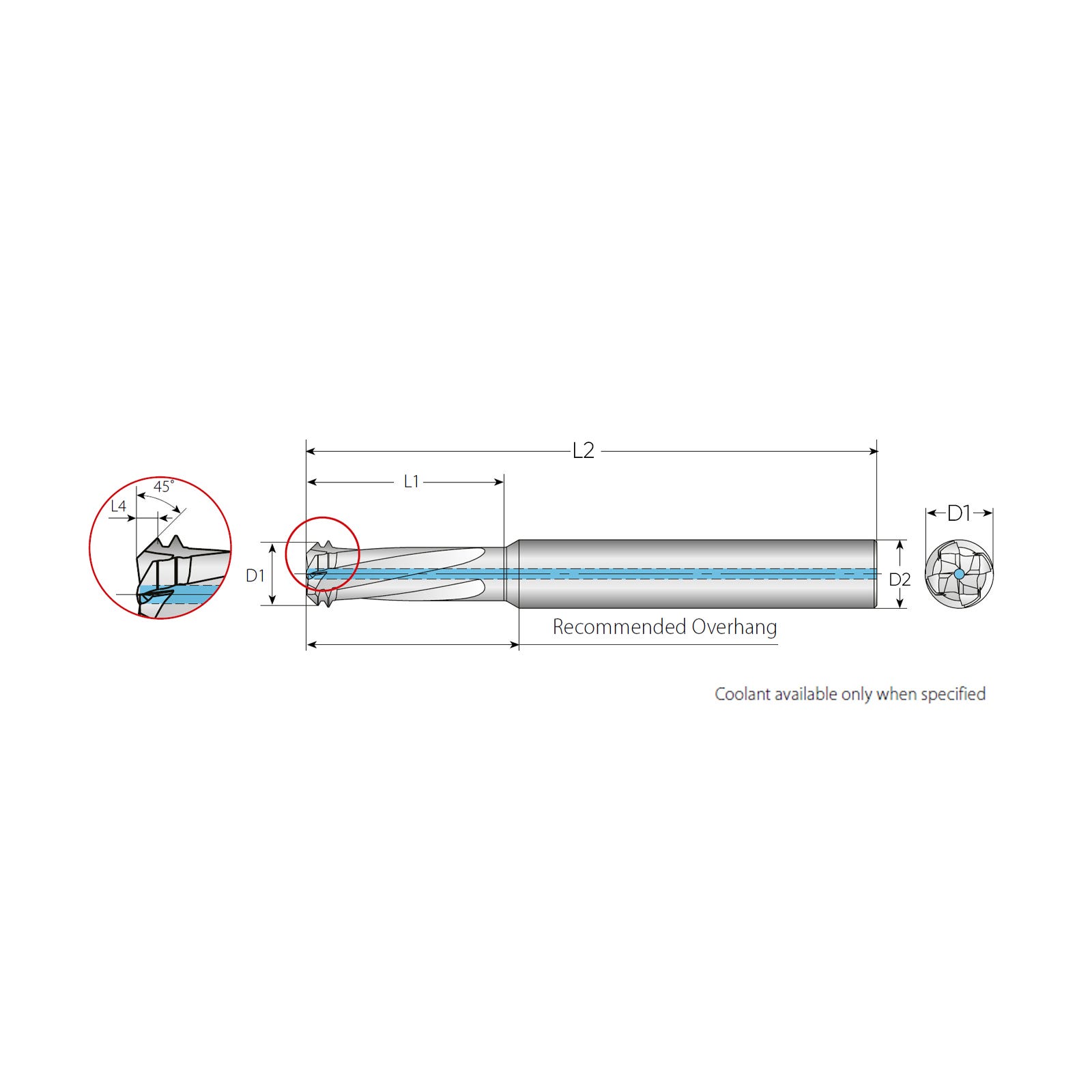

| Diameter (mm) | 5 |
|---|---|
| Overall Length (mm) | 64 |
| Flute Length (mm) | 14.4 |
| Shank (mm) | 8 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micrograin Solid Carbide
- TiAlN coating for longer tool life

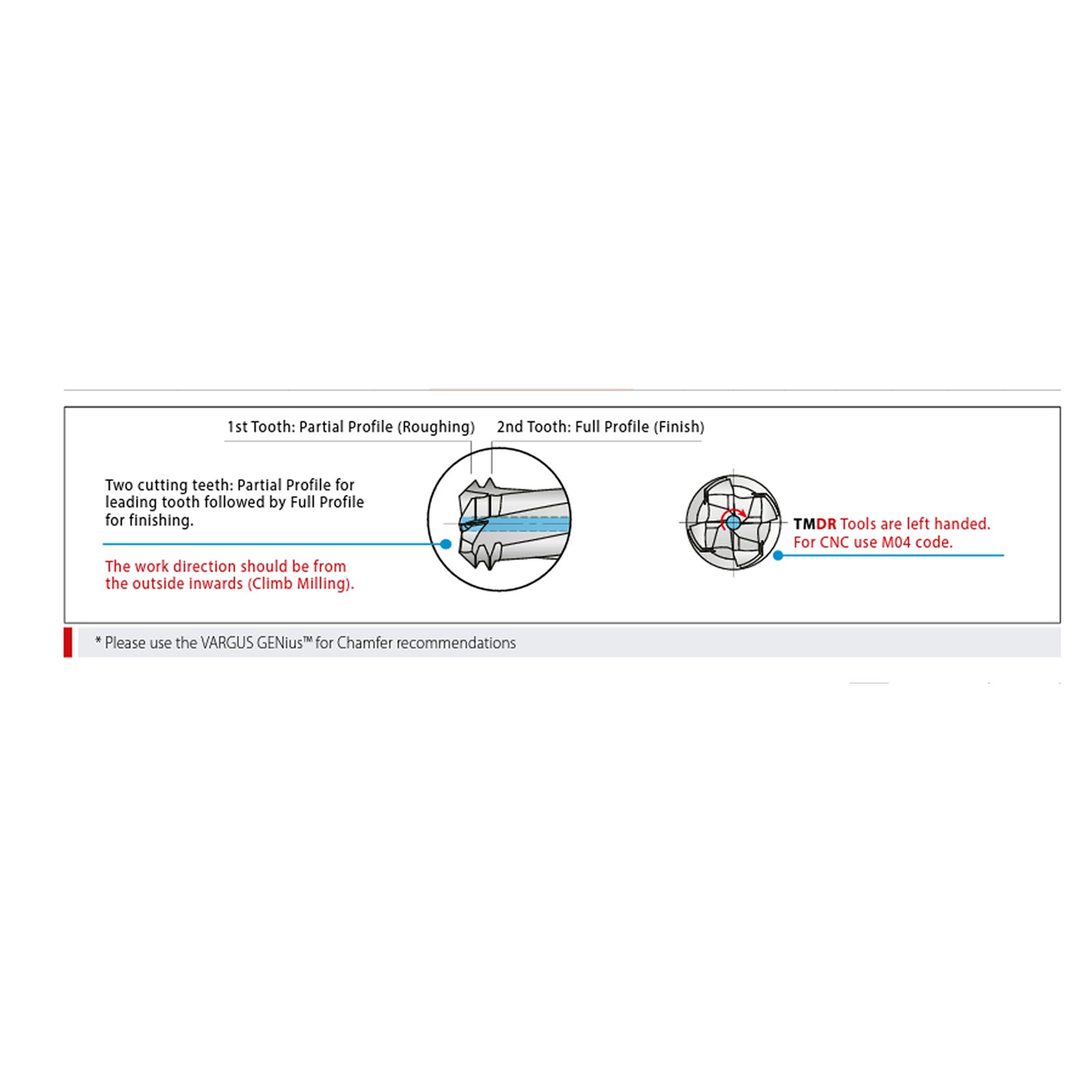

- TMDR tools are left handed please use M04 code for CNC programming
- Axial coolant for blind holes

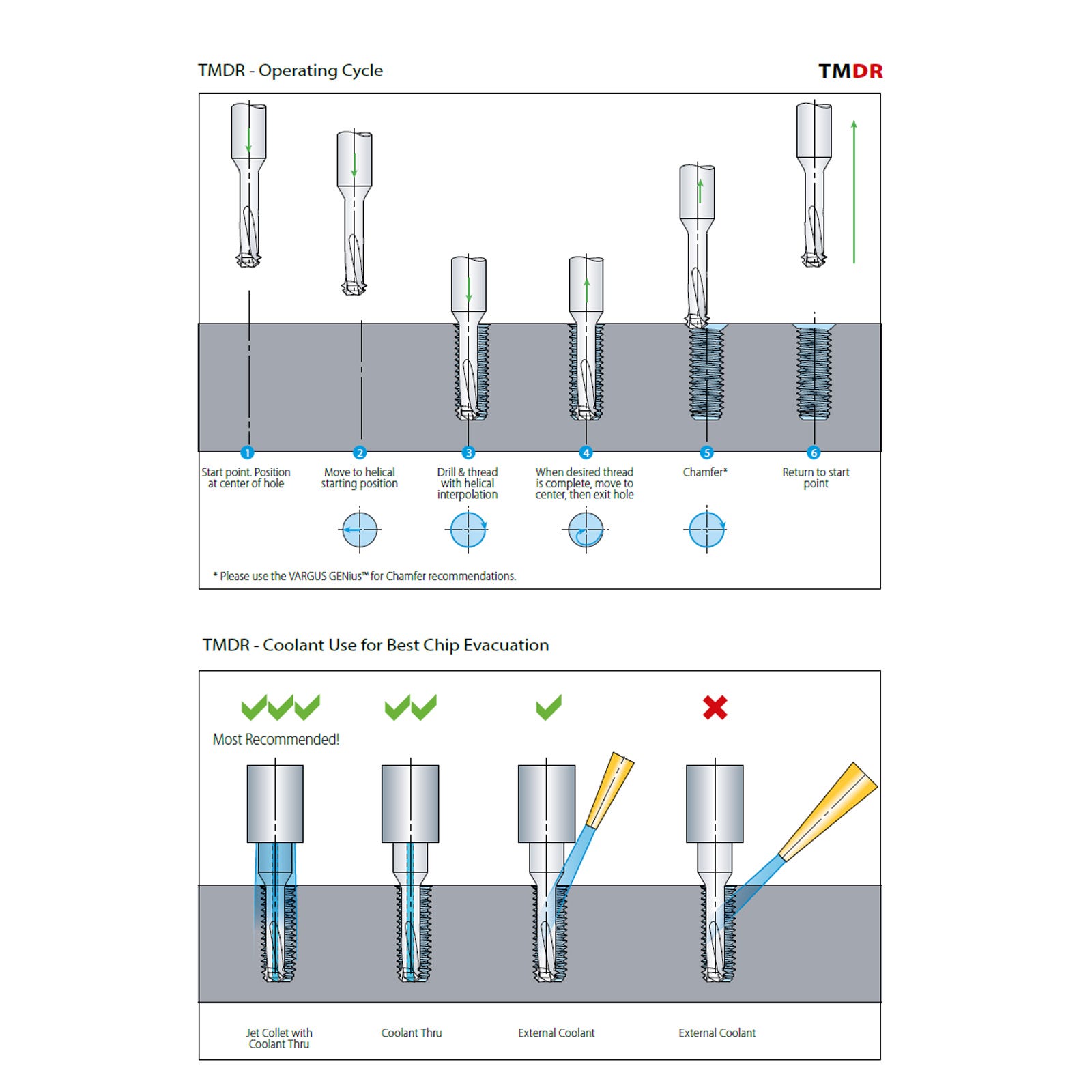

- TMDR series can Drill, Chamfer and Thread Mill with one tool
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Mills |
| Sub Category 2 | Solid Carbide Thread Mills |
| Shank (mm) | 8 |
| Diameter (mm) | 5 |
| Flute Length (mm) | 14.4 |
| Overall Length (mm) | 64 |
| TPI | 28 |
| Flutes | 3 |
| Teeth | 2 |
| L4 | 0.69 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 2xD |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Thread Form | UN (Unified) |
| Brand | Vargus |
