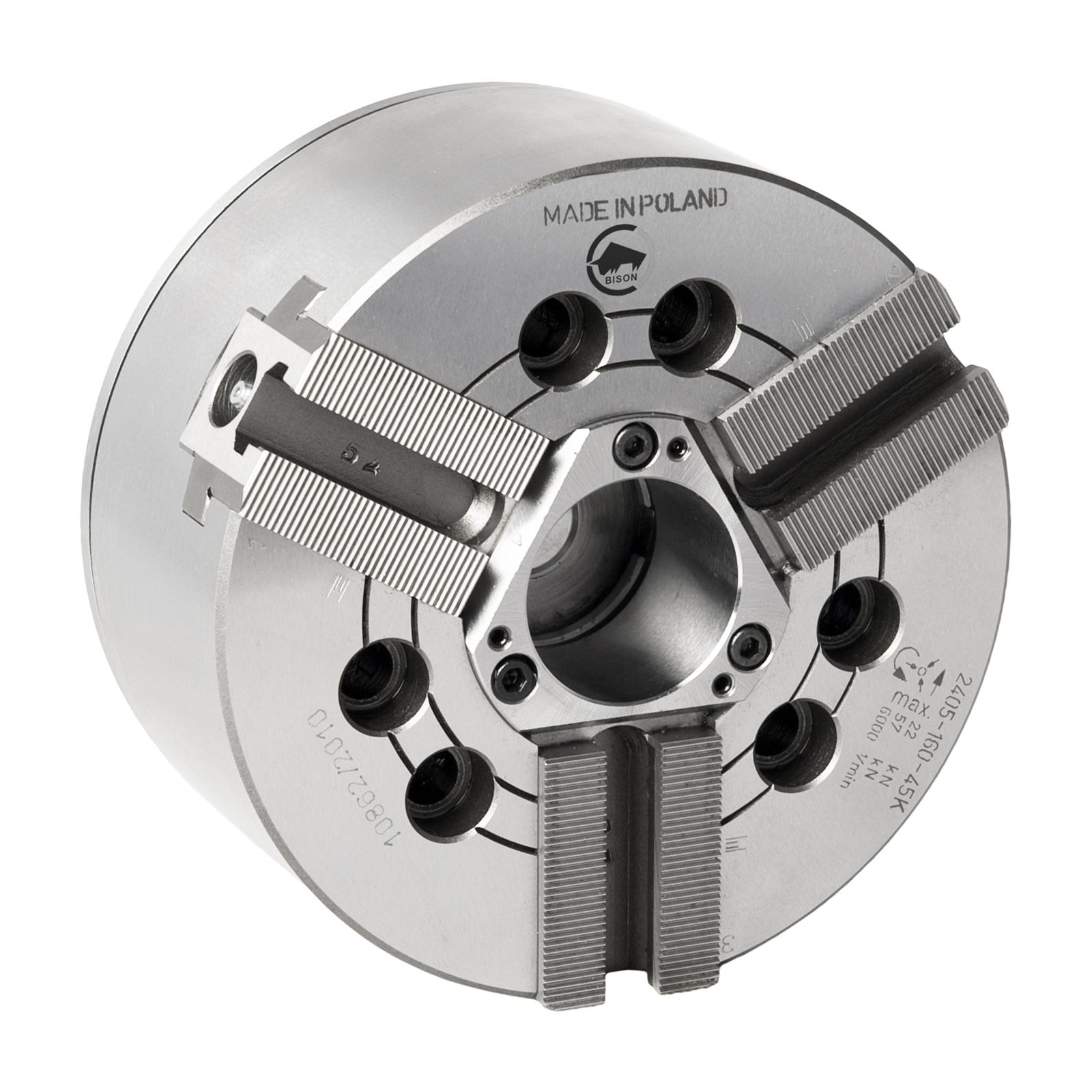

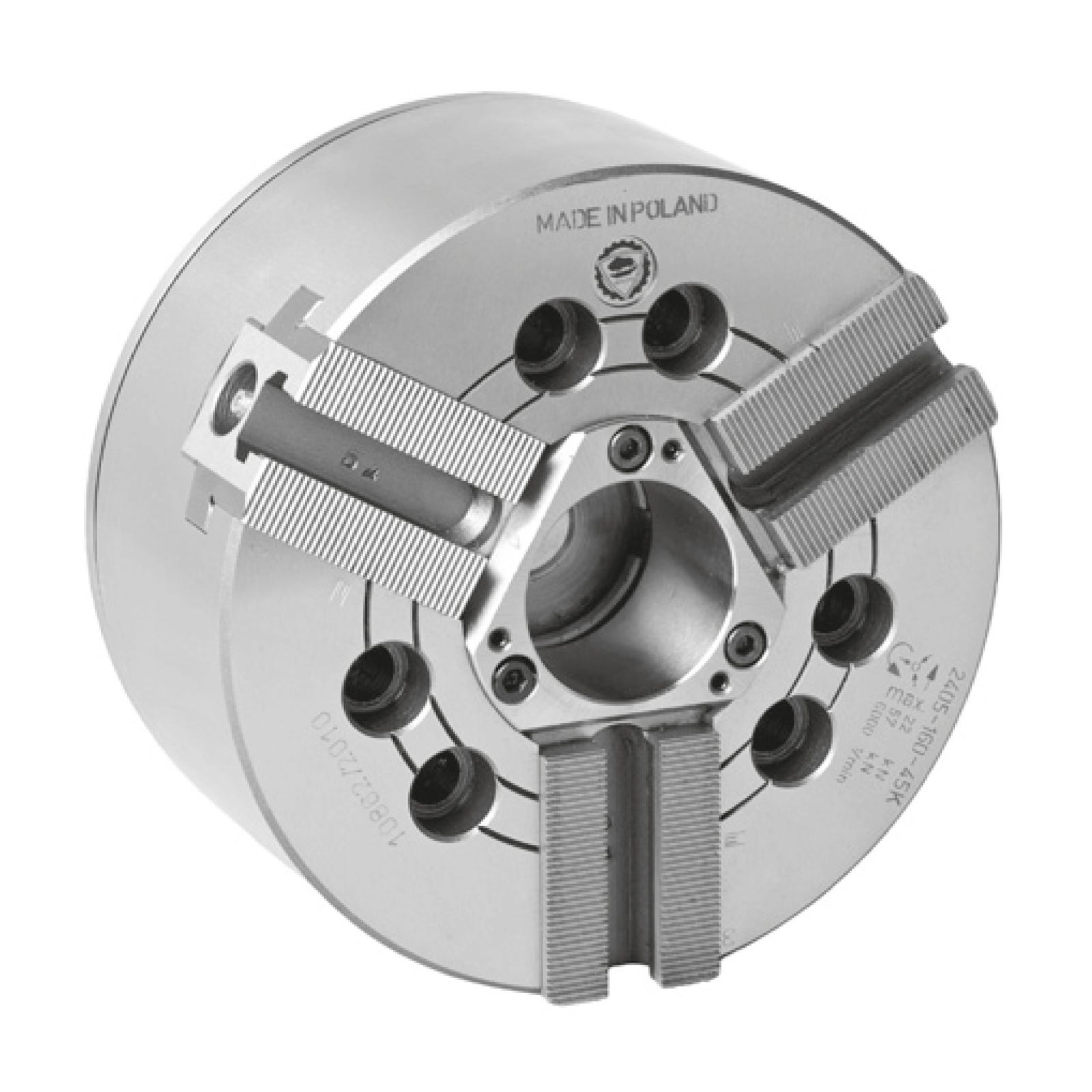

3 Jaw Hollow Power Chuck - 2405-K-SGM Series (Bison)
3 Jaw Hollow Power Chuck - 2405-K-SGM Series (Bison)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

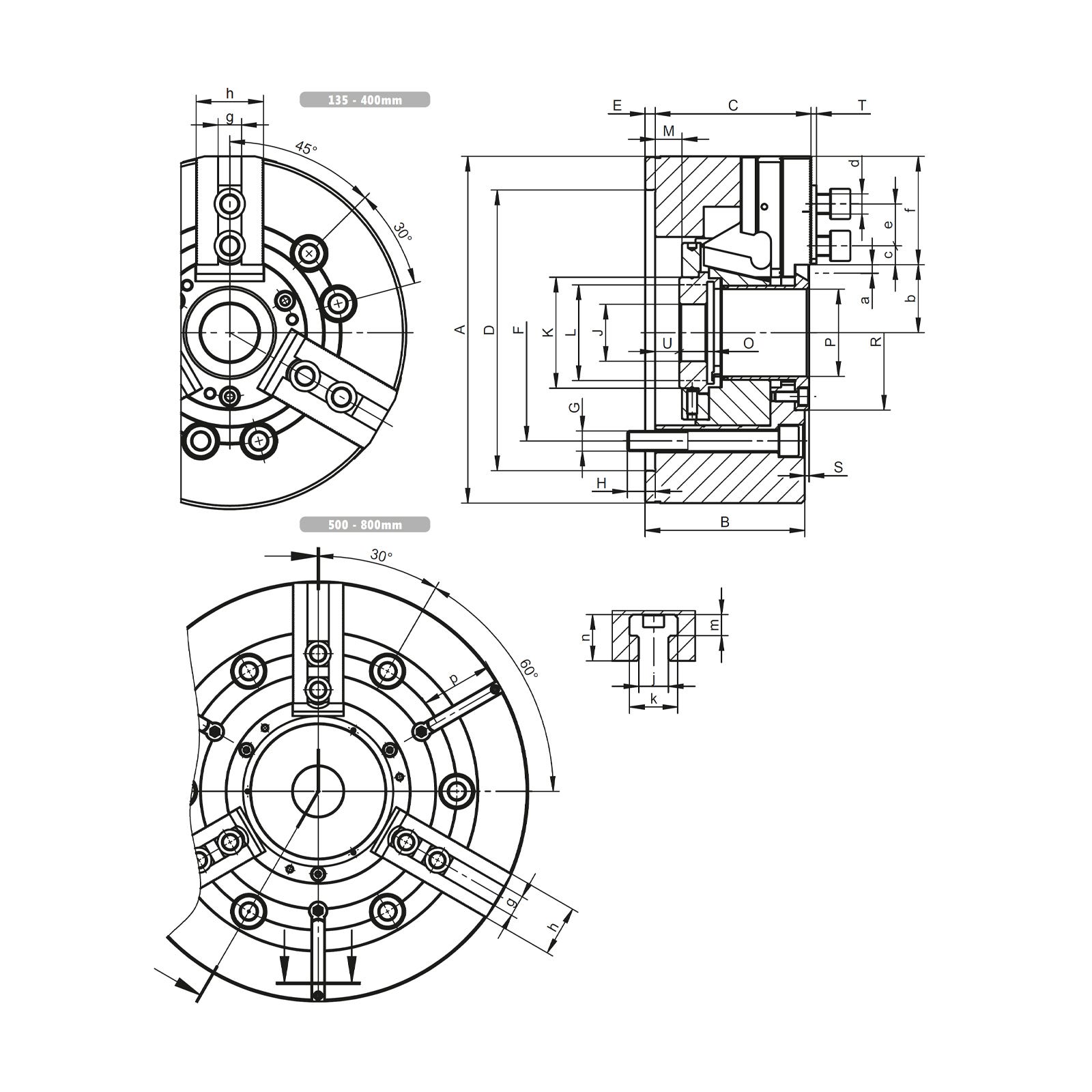

Diameter (mm)
|
Diameter (Inch)
|
D
|
H
|
Max RPM
|
B
|
C
|
E
|
F
|
G
|
T
|
J
|
K
|
M
|
O
|
P
|
R
|
S
|
U
|
Jaw Stroke
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 135 | Diameter (Inch): 5" | D: 110 | H: 14.5 | Max RPM: 7000 | B: 60 | C: | E: 4 | F: 82.6 | G: 3xM10 | T: 2 | J: 12 | K: 45 | M: 10 (10/0) | O: 20 | P: 34 | R: 56 | S: 1.5 | U: -9.5 (min) / 0.5 (max) | Jaw Stroke: 2.7 |
3 days*
|
Special Price
£1,097.28
£914.40
Was
£1,371.60
£1,143.00
|
|
|
| Diameter (mm): 160 | Diameter (Inch): 6" | D: 140 | H: 13.5 | Max RPM: 6000 | B: | C: 79 | E: 6 | F: 104.8 | G: 6xM10 | T: 3 | J: 20 | K: 60 | M: 16 (13/-3) | O: 19 | P: 45 | R: 70 | S: 2.6 | U: -5 (min) / 11 (max) | Jaw Stroke: 3.5 |
3 days*
|
Special Price
£1,152.96
£960.80
Was
£1,441.20
£1,201.00
|
|
|
| Diameter (mm): 200 | Diameter (Inch): 8" | D: | H: 16.5 | Max RPM: 5000 | B: 95 | C: | E: 6 | F: 133.4 | G: 6xM12 | T: 3 | J: 20 | K: 66 | M: 22.5 (16/-6.5) | O: 20.5 | P: 52 | R: 92 | S: 2.6 | U: -8 (min) / 14.5 (max) | Jaw Stroke: 5 |
3 days*
|
£1,696.80
£1,414.00
|
|
|
| Diameter (mm): 315 | Diameter (Inch): 12" | D: 220 | H: 27 | Max RPM: 3300 | B: | C: | E: 6 | F: 171.4 | G: 6xM16 | T: 2.5 | J: 25 | K: 108 | M: 27 (23/-4) | O: 28 | P: 91 | R: 134 | S: 0.6 | U: -19 (min) / 8 (max) | Jaw Stroke: 6 |
3 days*
|
Special Price
£2,442.24
£2,035.20
Was
£3,052.80
£2,544.00
|
|
|
| Diameter (mm): 400 | Diameter (Inch): 16" | D: 300 | H: 28 | Max RPM: 2500 | B: 130 | C: | E: 6 | F: 235 | G: 6xM20 | T: 5 | J: 60 | K: 140 | M: 34 (23/-11) | O: 39 | P: 120 | R: 164 | S: 0.5 | U: -23 (min) / 11 (max) | Jaw Stroke: 7.8 |
3 days*
|
Special Price
£4,305.60
£3,588.00
Was
£5,382.00
£4,485.00
|
|
Product Information
Features & Benefits
- Hollow (Open Centre) Power Chuck With Through Hole
- 3 Jaw Chuck
- Front Mount
- Supplied with 1 Set of Soft Top Jaws
- Interchangeable with Kitagawa B-200 Jaws
- 60° Serration
- Hydraulic clamping system
- For quicker and more consistent clamping of the workpiece compared to manual/scroll chucks
- Manufactured from high grade alloy steel for higher rigidity and wear resistance
- Hardened and ground working surfaces for maintained accuracy and repeatability
- Made by Bison Bial
- All Adaptor plates and draw tube connectors can also be supplied depending on machine specification.
Specification
| Type | Standard |
|---|---|
| Category | Workholding |
| Sub Category | Chucks & Jaws |
| Jaw Type | 2 Piece |
| No. of Jaws | 3 |
| Body Type | Hollow (Open Centre) |
