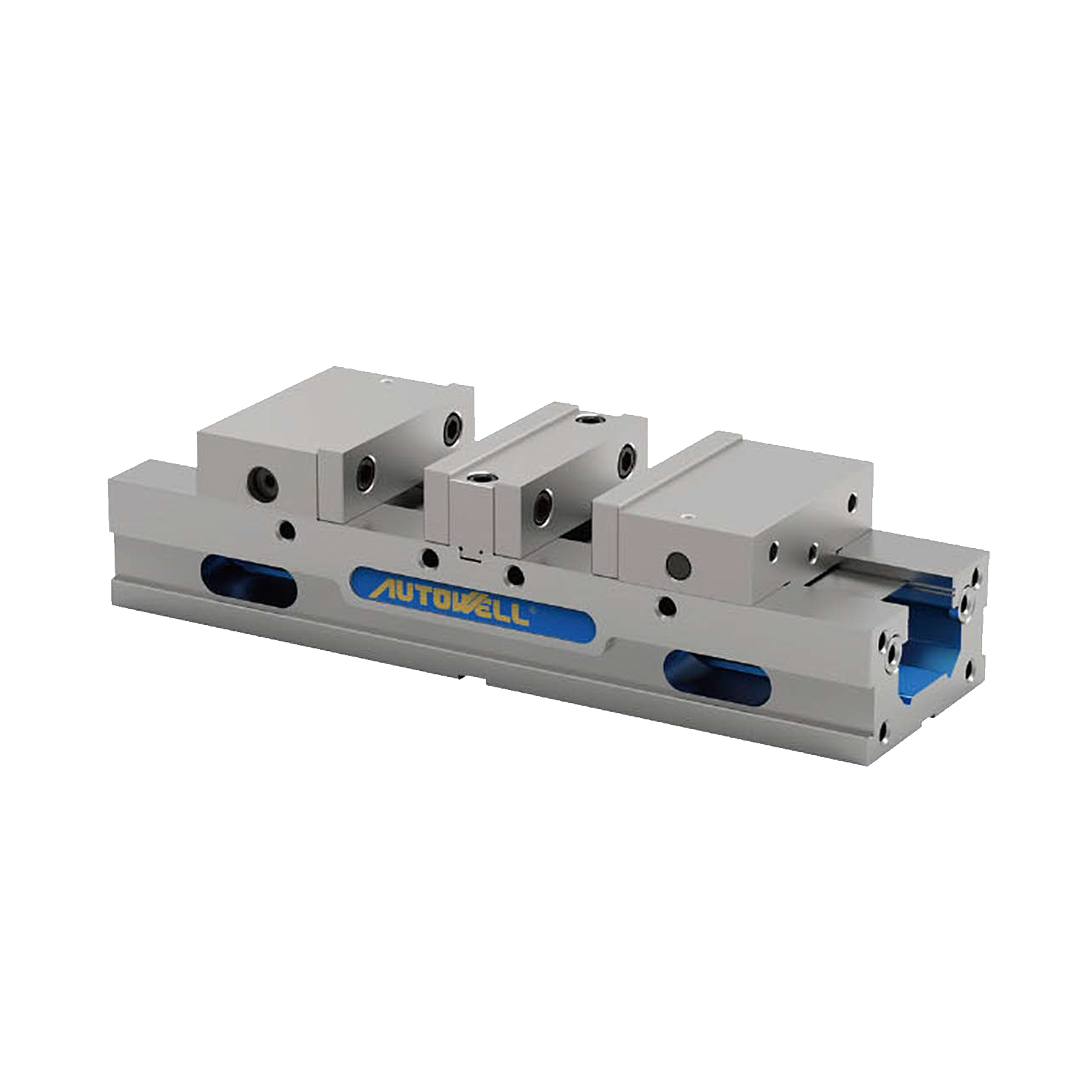

150mm/6 inch Double Station Lockwell Machine Vice - TLD Series (Autowell)
150mm/6 inch Double Station Lockwell Machine Vice - TLD Series (Autowell)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Clamping force equalisation: The patented system ensures equal clamping force on two different-sized or shaped workpieces, minimising deflection and lift during machining
- Anti-lift mechanism: Prevents workpiece deflection and lifting, maintaining machining accuracy
- Automatic return mechanism: The patented feature facilitates quicker workpiece changes, improving productivity
- Durable construction: Body made from rigid and tensile ductile iron FCD-60 (80,000 PSI), with slide surfaces flame-hardened to HS65° for enhanced durability. The S50C jaw plates are carburized and heat-treated to a hardness of HRC54 degree
- Chip evacuation design: Unique design provides efficient chip removal during machining

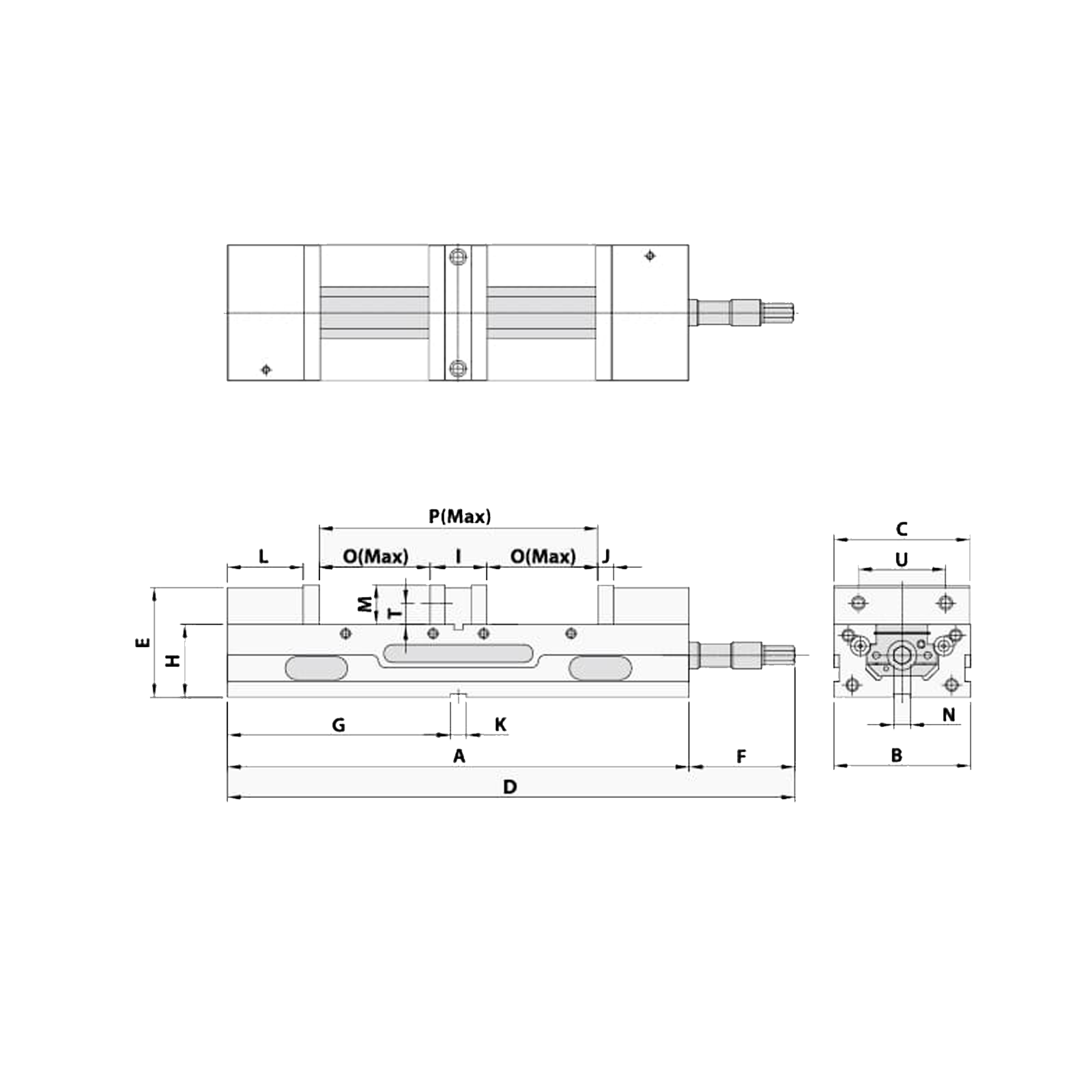

Specification
| Category | Workholding |
|---|---|
| Sub Category | Machine Vices |
| Sub Category 2 | General Machine Vices |
| Weight | 52 |
| f | 16 |
| Base Height | 82.5 |
| Base Length | 520 |
| e | 124.05 |
| Jaw Width (mm) | 150 |
| Jaw Width (inch) | 6" |
| d | 536 |
| g | 33 |
