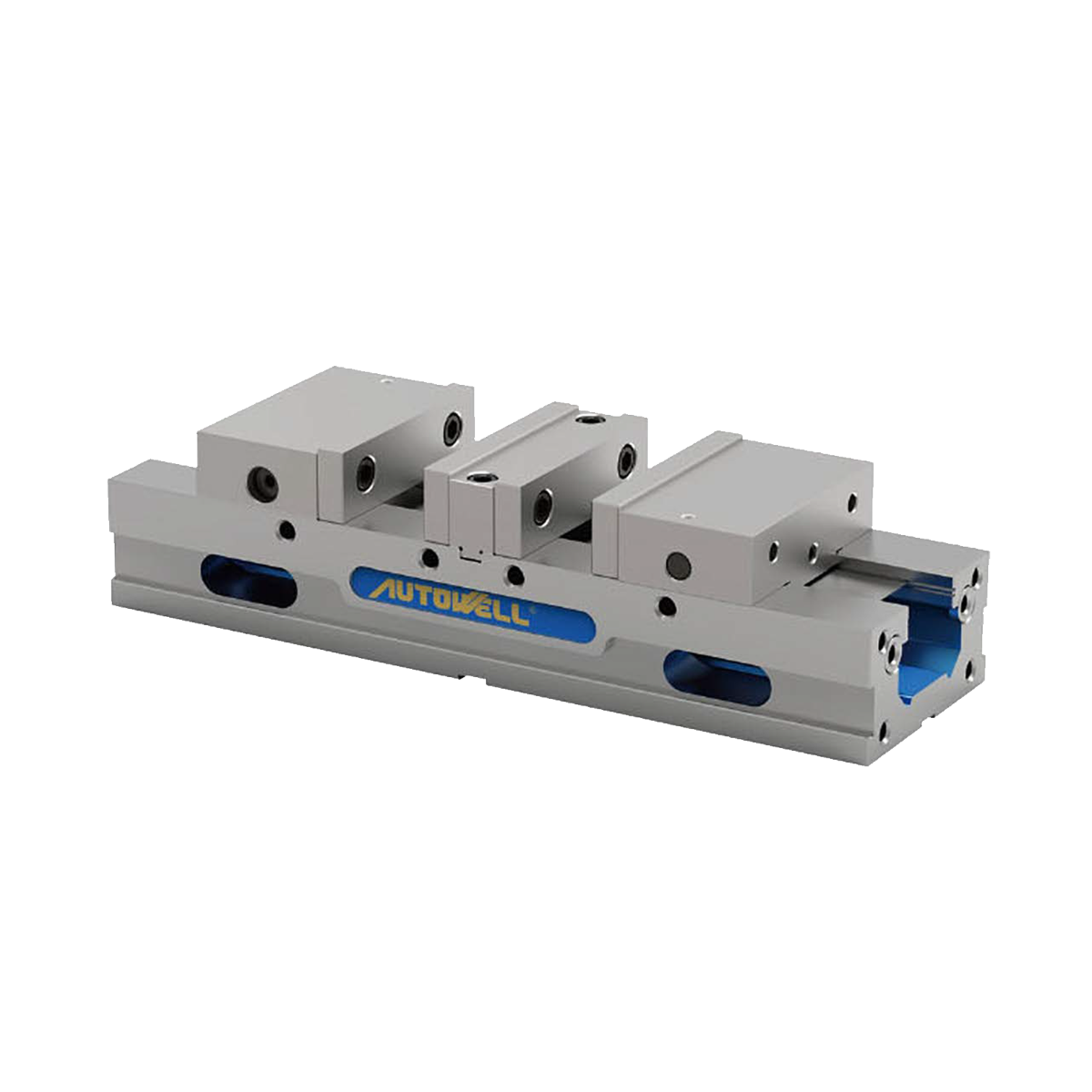

Double Station Lockwell Machine Vice - TLD Series (Autowell)
Double Station Lockwell Machine Vice - TLD Series (Autowell)
Key Features
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Base Height
|
Base Length
|
Base Width
|
Jaw Width (mm)
|
Jaw Width (inch)
|
||||
|---|---|---|---|---|---|---|---|---|
| Base Height: 63.5 | Base Length: 405 | Base Width: 104 | Jaw Width (mm): 100 | Jaw Width (inch): 4" |
green
In Stock for
Next Day Delivery *
|
£1,122.00
£935.00
|
|
|
| Base Height: 82.5 | Base Length: 520 | Base Width: 154 | Jaw Width (mm): 150 | Jaw Width (inch): 6" |
green
In Stock for
Next Day Delivery *
|
£1,197.00
£997.50
|
|
*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.
Specification
| Category | Workholding |
|---|---|
| Sub Category | Machine Vices |
| Sub Category 2 | General Machine Vices |
| Brand | Autowell |
Description
Features & Benefits
- Clamping force equalisation: The patented system ensures equal clamping force on two different-sized or shaped workpieces, minimising deflection and lift during machining
- Anti-lift mechanism: Prevents workpiece deflection and lifting, maintaining machining accuracy
- Automatic return mechanism: The patented feature facilitates quicker workpiece changes, improving productivity
- Durable construction: Body made from rigid and tensile ductile iron FCD-60 (80,000 PSI), with slide surfaces flame-hardened to HS65° for enhanced durability. The S50C jaw plates are carburized and heat-treated to a hardness of HRC54 degree
- Chip evacuation design: Unique design provides efficient chip removal during machining
Product PDFs
