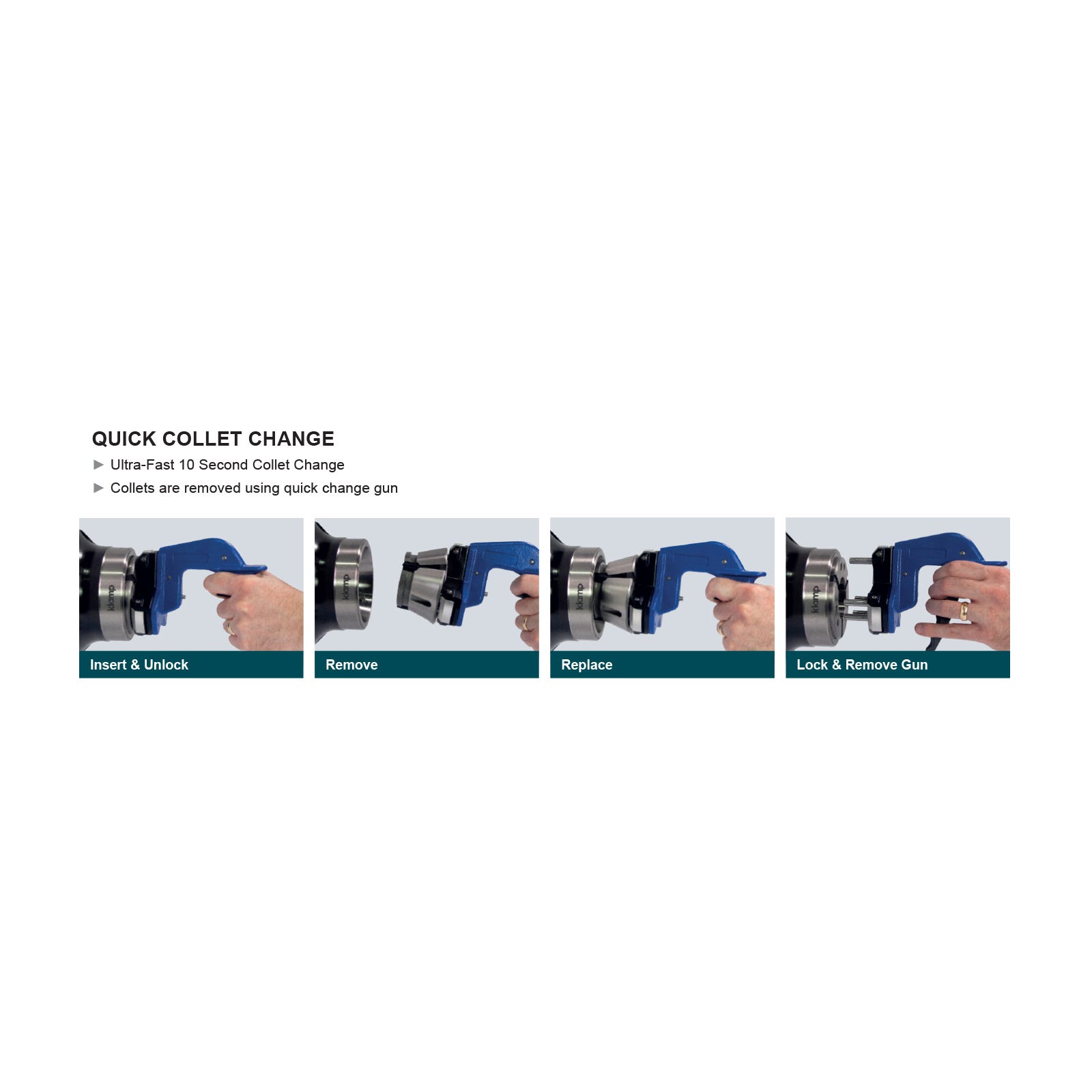

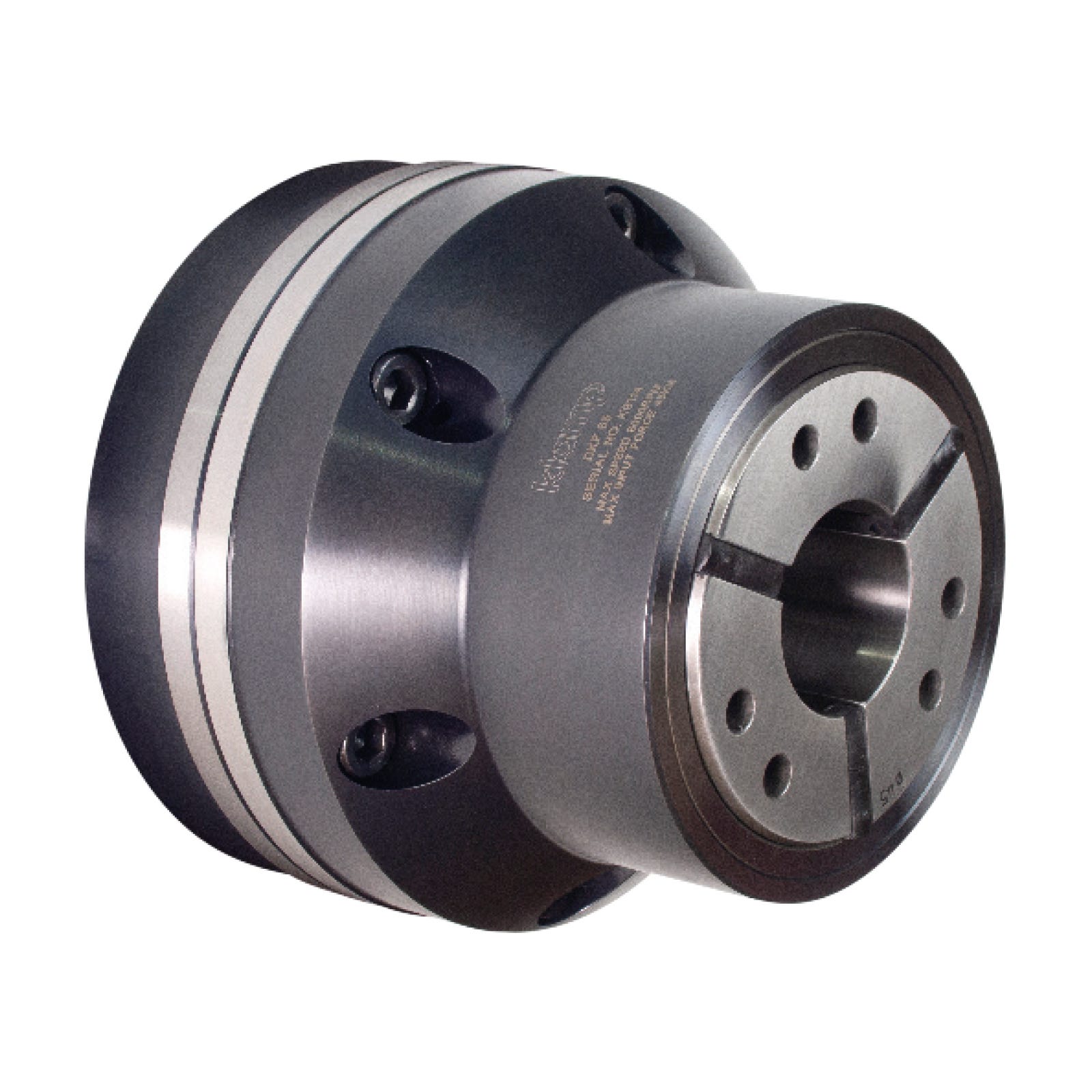

DKF80 / A8 Quick Gun Change Direct Mount Fixed Length Lathe Collet Chuck - DKF Series (Klamp)
DKF80 / A8 Quick Gun Change Direct Mount Fixed Length Lathe Collet Chuck - DKF Series (Klamp)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Direct mount: This system mounts directly to the spindle to ensure a consistent mounting without the need for correction.
- First & second operation collet chuck: Designed with a fixed length actuation system that ensures the collet is held stationary. Allowing the collet chuck to be used in bar feeding operations and highly accurate second operations.
- Klamp DKF collet chucks are suitable for collets which have a +/-0.5mm gripping range.
- Fixed length: Workpiece remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet & gripping the workpiece.
- Case hardened: Optimising the rigidity, strength and durability.
- Short body, wide range: DT collets allow for a compact body design maximising the lathe work envelope. Gripping capacities of the series range from 3mm to 80mm.
- Made in the United Kingdom
Specification
| Category | Workholding |
|---|---|
| Sub Category | Workholding Collets & Chucks |
| D | 51.5 |
| H | 207 |
| Max RPM | 5000 |
| A | 138 |
| B | 142 |
| C | 45.75 |
| Weight | 21 |
| E | M80x2 |
| F | 97 |
| G | 4.75 (max) / 0.25 (min) |
| Clamping Force | 114kN |
| Mount | A8 |
| Max Input Force | 50kN |
| Sleeve Stroke | 4.5 |
| Collet Size | 80L/80R/80D/80E (4-80mm) |
| Brand | Klamp |
