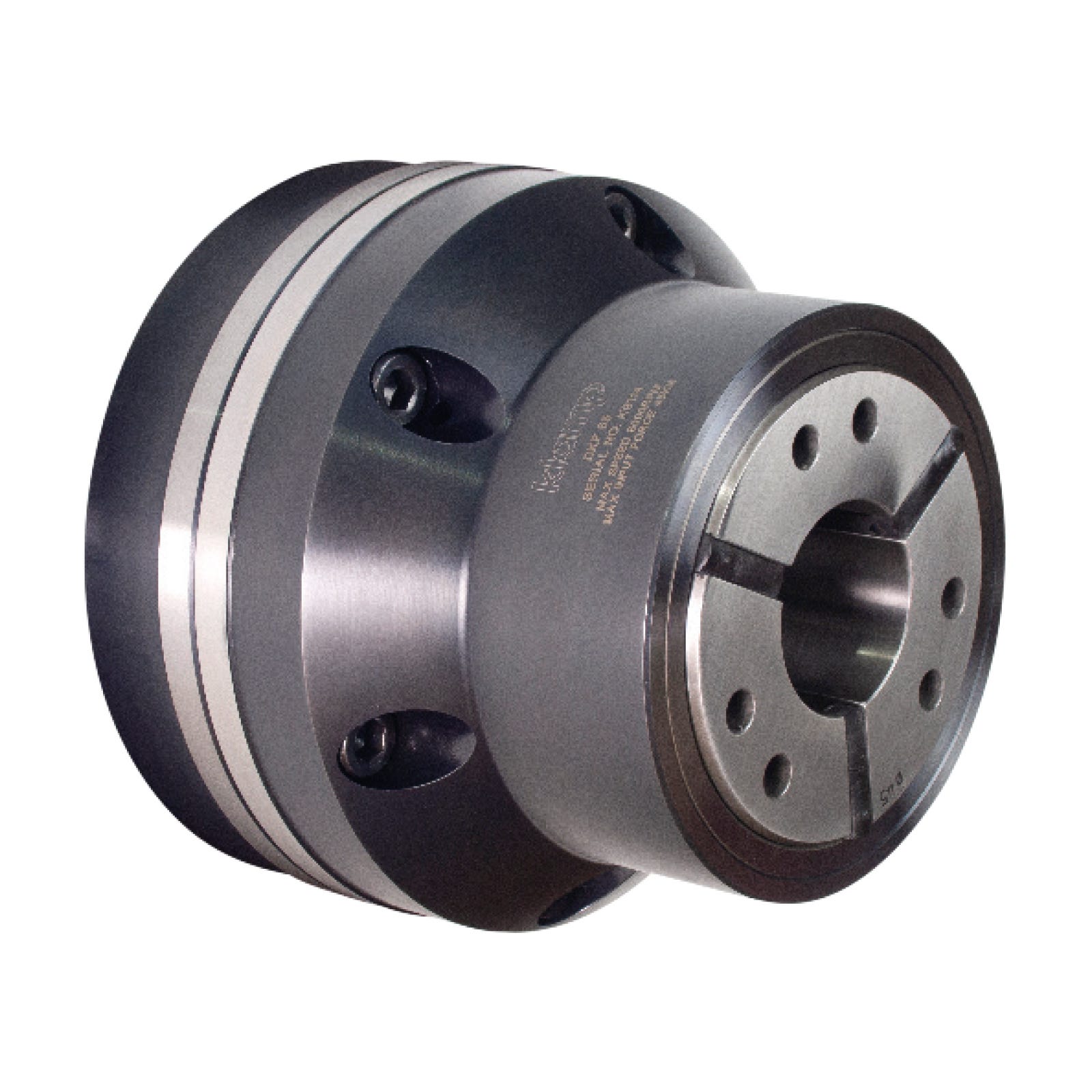

Quick Gun Change Direct Mount Fixed Length Lathe Collet Chuck - DKF Series (Klamp)
Scroll back
Scroll back
Quick Gun Change Direct Mount Fixed Length Lathe Collet Chuck - DKF Series (Klamp)

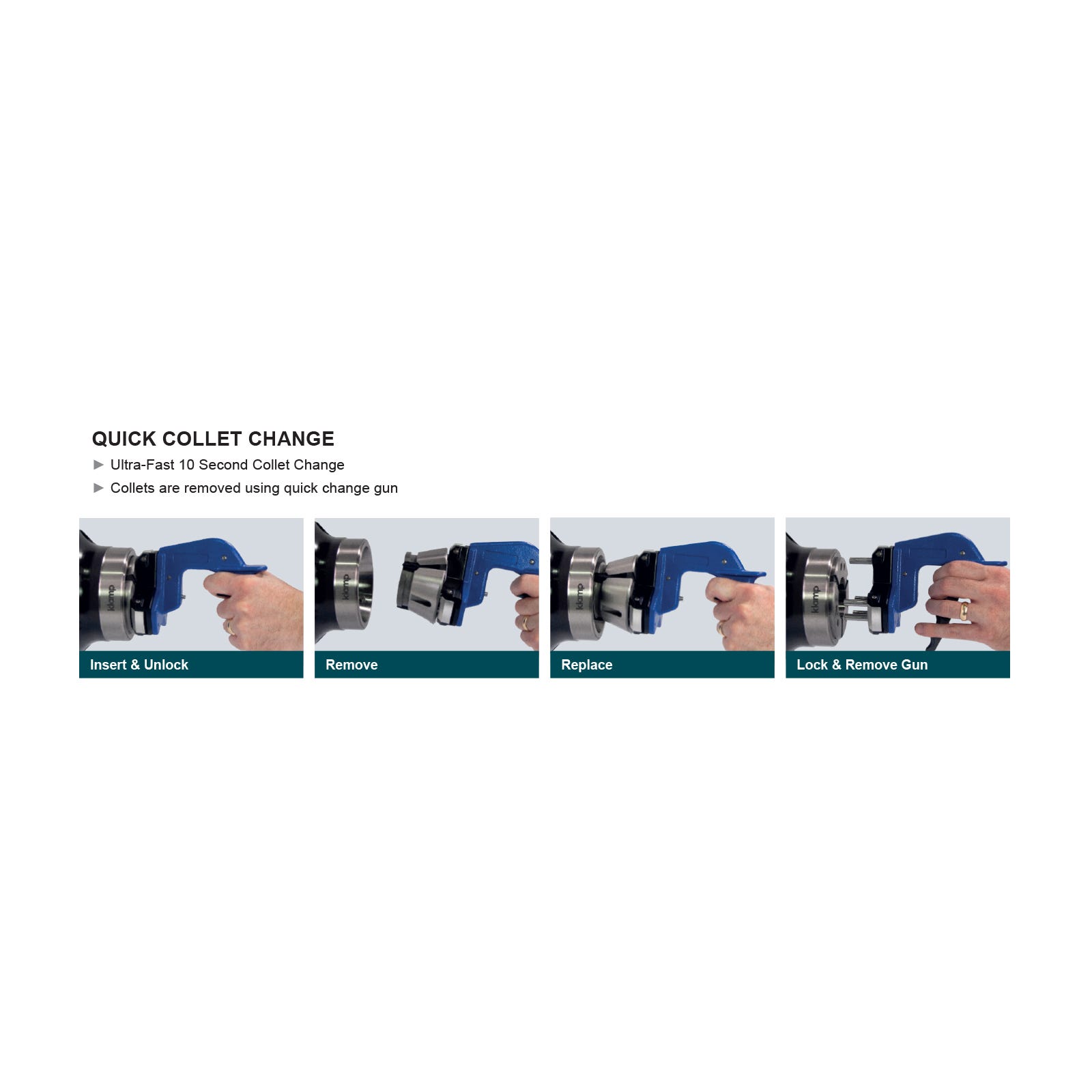

Fully compatible with DT collects (quick gun change style). Fixed length type with direct mount system that mounts...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
D
|
H
|
Max RPM
|
A
|
B
|
C
|
E
|
F
|
G
|
Clamping Force
|
Mount
|
Max Input Force
|
Sleeve Stroke
|
Collet Size
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D: 30.5 | H: 152 | Max RPM: 6500 | A: 103 | B: 121 | C: 42.5 | E: M50x2 | F: 66 | G: 12 (max) / 7.5 (min) | Clamping Force: 94kN | Mount: Z140 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 42L/42R/42D/42E (3-42mm) |
3 days*
|
£2,495.80
£2,079.83
|
|
|
| D: 30.5 | H: 157 | Max RPM: 6500 | A: 103 | B: 121 | C: 42.5 | E: M50x2 | F: 66 | G: 17 (max) / 12.5 (min) | Clamping Force: 94kN | Mount: A5 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 42L/42R/42D/42E (3-42mm) |
3 days*
|
£2,407.28
£2,006.07
|
|
|
| D: 30.5 | H: 157 | Max RPM: 6500 | A: 103 | B: 121 | C: 42.5 | E: M50x2 | F: 66 | G: 17 (max) / 12.5 (min) | Clamping Force: 94kN | Mount: A6 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 42L/42R/42D/42E (3-42mm) |
3 days*
|
£2,393.78
£1,994.82
|
|
|
| D: 31 | H: 162 | Max RPM: 6500 | A: 106 | B: 132 | C: 44.5 | E: M60x2 | F: 68 | G: 14 (max) / 9.5 (min) | Clamping Force: 94kN | Mount: Z140 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 52L/52R/52D/52E (4-52mm) |
3 days*
|
£2,495.80
£2,079.83
|
|
|
| D: 31 | H: 162 | Max RPM: 6500 | A: 106 | B: 137 | C: 49.5 | E: M60x2 | F: 68 | G: 24 (max) / 19.5 (min) | Clamping Force: 94kN | Mount: A5 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 52L/52R/52D/52E (4-52mm) |
3 days*
|
£2,407.28
£2,006.07
|
|
|
| D: 31 | H: 162 | Max RPM: 6500 | A: 106 | B: 137 | C: 49.5 | E: M60x2 | F: 68 | G: 24 (max) / 19.5 (min) | Clamping Force: 94kN | Mount: A6 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 52L/52R/52D/52E (4-52mm) |
3 days*
|
£2,393.78
£1,994.82
|
|
|
| D: 37 | H: 167 | Max RPM: 6000 | A: 123 | B: 137.5 | C: 43 | E: M75x2 | F: 81 | G: 10.5 (max) / 6 (min) | Clamping Force: 105kN | Mount: Z140 | Max Input Force: 45kN | Sleeve Stroke: 4.5 | Collet Size: 65L/65R/65D/65E (4-65mm) |
3 days*
|
£2,707.26
£2,256.05
|
|
|
| D: 37 | H: 167 | Max RPM: 6000 | A: 123 | B: 137.5 | C: 43 | E: M74x2 | F: 79.5 | G: 15.5 (max) / 11 (min) | Clamping Force: 105kN | Mount: A5 | Max Input Force: 45kN | Sleeve Stroke: 4.5 | Collet Size: 65L/65R/65D/65E (4-65mm) |
3 days*
|
£2,611.27
£2,176.06
|
|
|
| D: 37 | H: 167 | Max RPM: 6000 | A: 123 | B: 137.5 | C: 43 | E: M75x2 | F: 81 | G: 15.5 (max) / 11 (min) | Clamping Force: 105kN | Mount: A6 | Max Input Force: 45kN | Sleeve Stroke: 4.5 | Collet Size: 65L/65R/65D/65E (4-65mm) |
3 days*
|
£2,660.78
£2,217.32
|
|
|
| D: 37 | H: 201.5 | Max RPM: 6000 | A: 123 | B: 161.5 | C: 67 | E: M75x2 | F: 81 | G: 39.5 (max) / 35 (min) | Clamping Force: 105kN | Mount: A8 | Max Input Force: 45kN | Sleeve Stroke: 4.5 | Collet Size: 65L/65R/65D/65E (4-65mm) |
3 days*
|
£2,714.77
£2,262.31
|
|
|
| D: 51.5 | H: 232 | Max RPM: 5000 | A: 138 | B: 146.2 | C: 50 | E: M80x2 | F: 97 | G: 2 (max) / 2.5 (min) | Clamping Force: 114kN | Mount: Z220 | Max Input Force: 50kN | Sleeve Stroke: 4.5 | Collet Size: 80L/80R/80D/80E (4-80mm) |
3 days*
|
£3,845.68
£3,204.73
|
|
|
| D: 51.5 | H: 207 | Max RPM: 5000 | A: 138 | B: 142 | C: 45.75 | E: M80x2 | F: 97 | G: 4.75 (max) / 0.25 (min) | Clamping Force: 114kN | Mount: A8 | Max Input Force: 50kN | Sleeve Stroke: 4.5 | Collet Size: 80L/80R/80D/80E (4-80mm) |
3 days*
|
£3,764.68
£3,137.23
|
|
|
| D: 51.5 | H: 280 | Max RPM: 5000 | A: 138 | B: 186.25 | C: 47 | E: M80x2 | F: 97 | G: 49 (max) / 44.5 (min) | Clamping Force: 114kN | Mount: A11 | Max Input Force: 50kN | Sleeve Stroke: 4.5 | Collet Size: 80L/80R/80D/80E (4-80mm) |
3 days*
|
£4,378.13
£3,648.44
|
|
Product Information
Features & Benefits
Fully compatible with DT collects (quick gun change style). Fixed length type with direct mount system that mounts directly to the spindle to ensure a consistent mounting without the need for correction. Workpiece remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet & gripping the workpiece.
- Direct mount: This system mounts directly to the spindle to ensure a consistent mounting without the need for correction.
- First & second operation collet chuck: Designed with a fixed length actuation system that ensures the collet is held stationary. Allowing the collet chuck to be used in bar feeding operations and highly accurate second operations.
- Klamp DKF collet chucks are suitable for collets which have a +/-0.5mm gripping range.
- Fixed length: Workpiece remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet & gripping the workpiece.
- Case hardened: Optimising the rigidity, strength and durability.
- Short body, wide range: DT collets allow for a compact body design maximising the lathe work envelope. Gripping capacities of the series range from 3mm to 80mm.
- Made in the United Kingdom
Specification
| Category | Workholding |
|---|---|
| Sub Category | Workholding Collets & Chucks |
