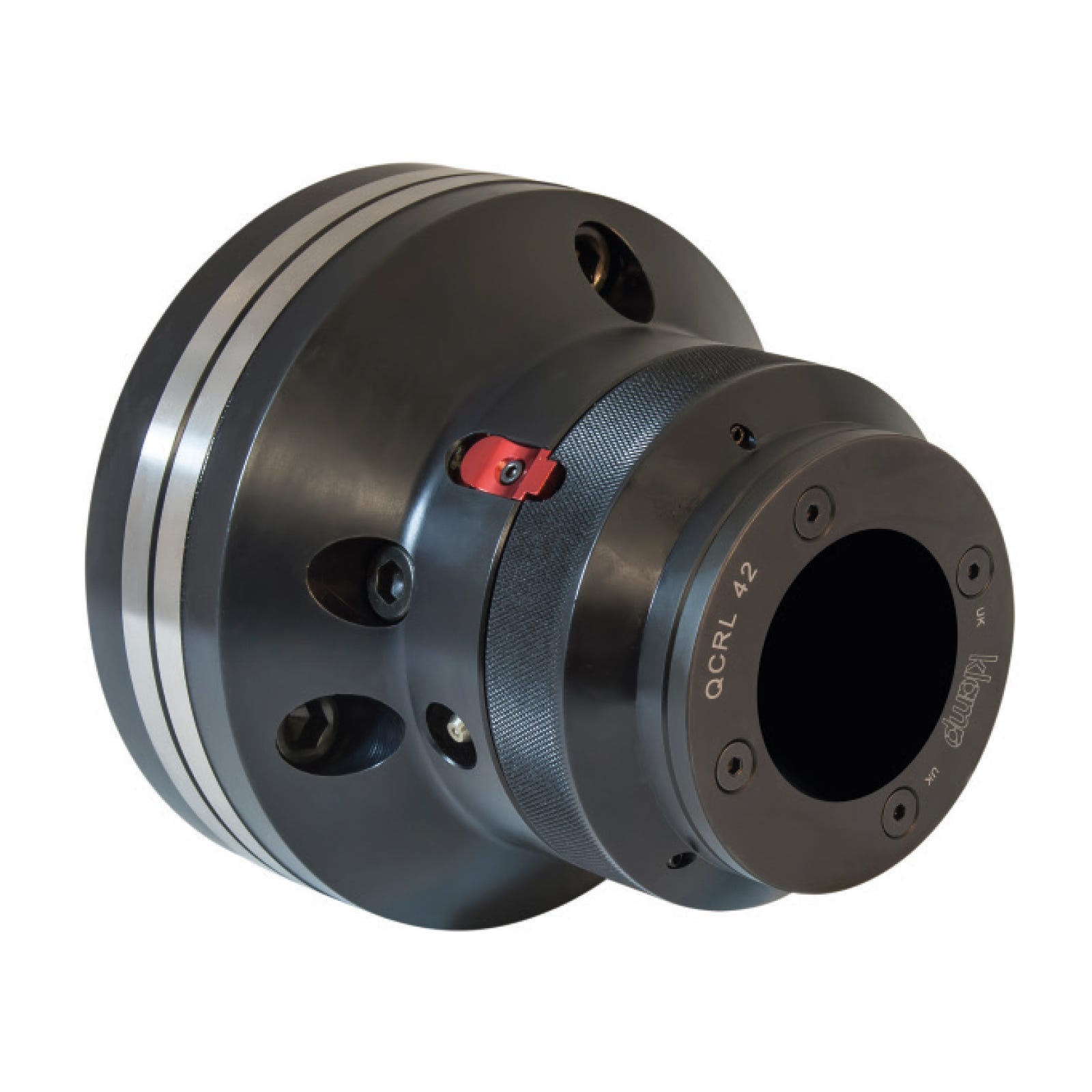

Quick Change Modular Lathe Collet Chuck - Q-CRL Series (Klamp)
Quick Change Modular Lathe Collet Chuck - Q-CRL Series (Klamp)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
D
|
L
|
Max RPM
|
A
|
B
|
A1
|
E
|
F
|
G
|
Clamping Force
|
Mount
|
Max Input Force
|
Sleeve Stroke
|
Collet Size
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D: 60 | L: 165 | Max RPM: 7100 | A: 93 | B: 25 | A1: 137 | E: M58x1.5 | F: 65 | G: 17 (max) / 10 (min) | Clamping Force: 55kN | Mount: Z140 | Max Input Force: 25kN | Sleeve Stroke: 7 | Collet Size: D173E 2-42mm (0.5mm inc.) / D673 / M673 4-42mm (2mm inc.) / DRFC673 7-45mm (2mm inc.) |
3 days*
|
£1,579.36
£1,316.13
|
|
|
| D: 60 | L: 165 | Max RPM: 7100 | A: 93 | B: 25 | A1: 137 | E: M58x1.5 | F: 65 | G: 23 (max) / 16 (min) | Clamping Force: 55kN | Mount: A5 | Max Input Force: 25kN | Sleeve Stroke: 7 | Collet Size: D173E 2-42mm (0.5mm inc.) / D673 / M673 4-42mm (2mm inc.) / DRFC673 7-45mm (2mm inc.) |
3 days*
|
£1,642.37
£1,368.64
|
|
|
| D: 60 | L: 165 | Max RPM: 7100 | A: 93 | B: 25 | A1: 137 | E: M58x1.5 | F: 65 | G: 23 (max) / 16 (min) | Clamping Force: 55kN | Mount: A6 | Max Input Force: 25kN | Sleeve Stroke: 7 | Collet Size: D173E 2-42mm (0.5mm inc.) / D673 / M673 4-42mm (2mm inc.) / DRFC673 7-45mm (2mm inc.) |
3 days*
|
£1,642.37
£1,368.64
|
|
|
| D: 60 | L: 220 | Max RPM: 6300 | A: 118 | B: 31.5 | A1: 171 | E: M75x1.5 | F: 82 | G: 14 (max) / 7 (min) | Clamping Force: 60kN | Mount: Z170 | Max Input Force: 30kN | Sleeve Stroke: 7 | Collet Size: D185E 3-60mm (0.5mm inc.) / D677 / M677 4-60mm (2mm inc.) / DRFC677 19-65mm (2mm inc.) |
3 days*
|
£1,975.33
£1,646.11
|
|
|
| D: 60 | L: 220 | Max RPM: 6300 | A: 118 | B: 46.5 | A1: 180 | E: M75x1.5 | F: 82 | G: -22 (max) / -15 (min) | Clamping Force: 60kN | Mount: A5 | Max Input Force: 30kN | Sleeve Stroke: 7 | Collet Size: D185E 3-60mm (0.5mm inc.) / D677 / M677 4-60mm (2mm inc.) / DRFC677 19-65mm (2mm inc.) |
3 days*
|
£2,243.81
£1,869.84
|
|
|
| D: 60 | L: 220 | Max RPM: 6300 | A: 118 | B: 31.5 | A1: 165 | E: M75x1.5 | F: 82 | G: 21 (max) / 14 (min) | Clamping Force: 60kN | Mount: A6 | Max Input Force: 30kN | Sleeve Stroke: 7 | Collet Size: D185E 3-60mm (0.5mm inc.) / D677 / M677 4-60mm (2mm inc.) / DRFC677 19-65mm (2mm inc.) |
3 days*
|
£2,243.81
£1,869.84
|
|
|
| D: 60 | L: 220 | Max RPM: 6300 | A: 118 | B: 31.5 | A1: 165 | E: M75x1.5 | F: 82 | G: 21 (max) / 14 (min) | Clamping Force: 60kN | Mount: A8 | Max Input Force: 30kN | Sleeve Stroke: 7 | Collet Size: D185E 3-60mm (0.5mm inc.) / D677 / M677 4-60mm (2mm inc.) / DRFC677 19-65mm (2mm inc.) |
3 days*
|
£2,121.14
£1,767.62
|
|
Product Information
Features & Benefits
- As per the direct mount system except with interchangeable adaptors enables the collet chuck to be moved from one machine spindle nose to another.
- Cost-effective as only additional adaptors and connectors are required.
- The need for adjustment is minimal, meaning less machine downtime.
- Made in the United Kingdom.
Specification
| Category | Workholding |
|---|---|
| Sub Category | Workholding Collets & Chucks |
