80mm Rich Mill RM8 45 Degree Face Mill (Shim Type) for SNEX/SNMX12 Inserts - RMH8ACM (Korloy)
80mm Rich Mill RM8 45 Degree Face Mill (Shim Type) for SNEX/SNMX12 Inserts - RMH8ACM (Korloy)
| Diameter (mm) | 80 |
|---|---|
| Overall Length (mm) | 50 |
| Shank (mm) | 27 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Double sided insert gives 8 usable cutting edges
- High rake angle provides low cutting resistance and smooth chip flow, even in high feed/large depth of cut applications
- Coolant is directed straight to the cutting edge
- Suitable for roughing to finishing
- 5 chipbreakers, MM for general machining, MF chip breaker for low power machines, ML for Stainless Steel & HRSA���s, MA for aluminium & special wiper geometry
- Double sided inserts with 8 cutting edges
- Shim type (seat) to prevent cutter body from damage
Specification
| Category | Milling |
|---|---|
| Sub Category | Indexable Milling |
| Sub Category 2 | Rich Mill RM8 Indexable Milling System |
| Diameter (mm) | 80 |
| Shank (mm) | 27 |
| Overall Length (mm) | 50 |
| Depth of Cut | 6 |
| Teeth | 7 |
| Inserts | SNEX12, SNMX12 |

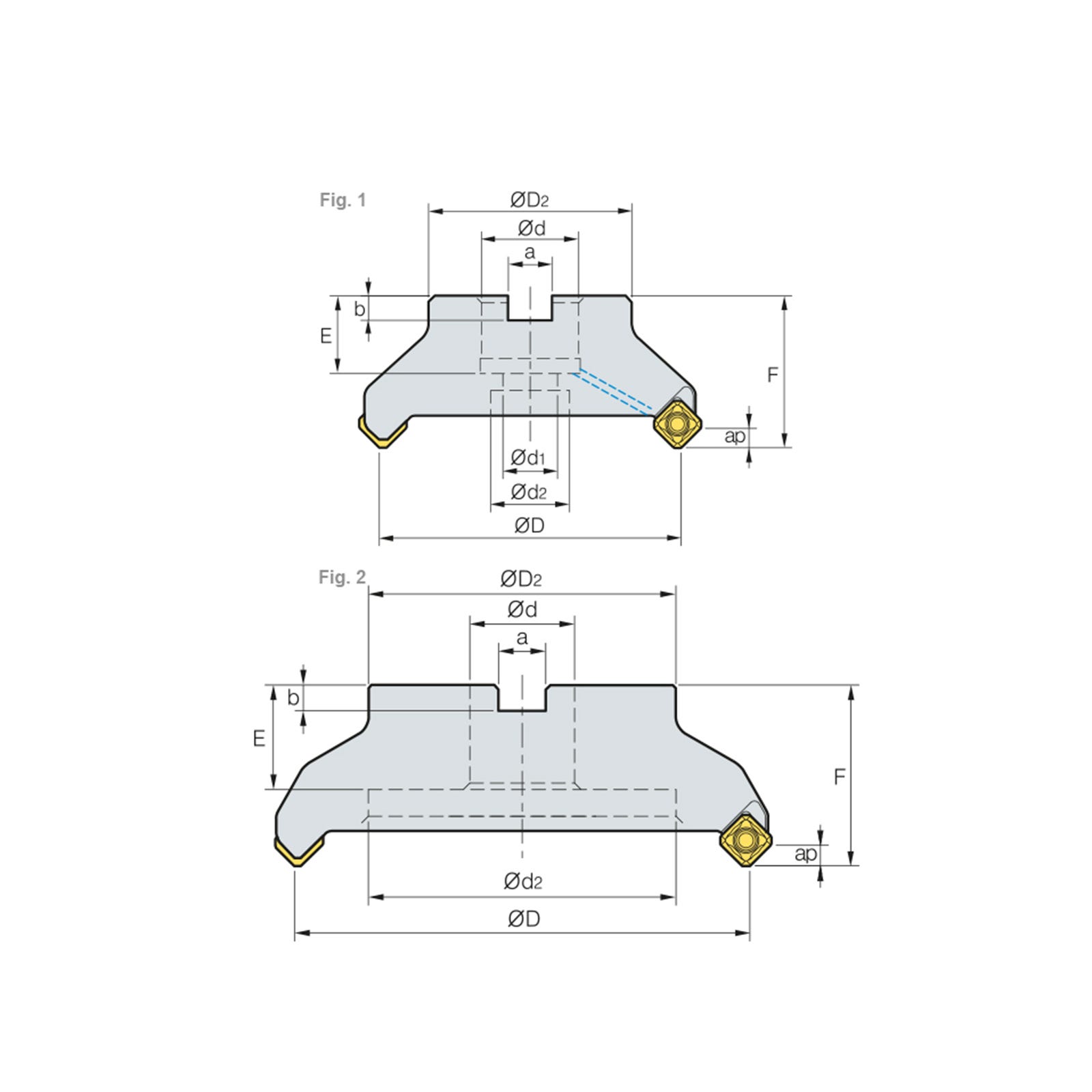

| Figure | 1 |
| Weight | 1.2kg |
| Ød1 | 14 |
| Ød2 | 20 |
| ØD2 | 57 |
| a | 12.4 |
| E | 23 |
| Screw | FTKA0412B |
| Wrench | TW15S |
| Shim | SS42RM8 |
| Shank Type | Spigot |
| Shim Screw | SHXN0609F |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Performance | 4 |
| Insert Series | SNMX, SNEX |
| Holder Type | Face Mill |
| Application | Face Milling |
| Insert Angle | 45° |
| Holder Material | Steel |
| Brand | Korloy |
