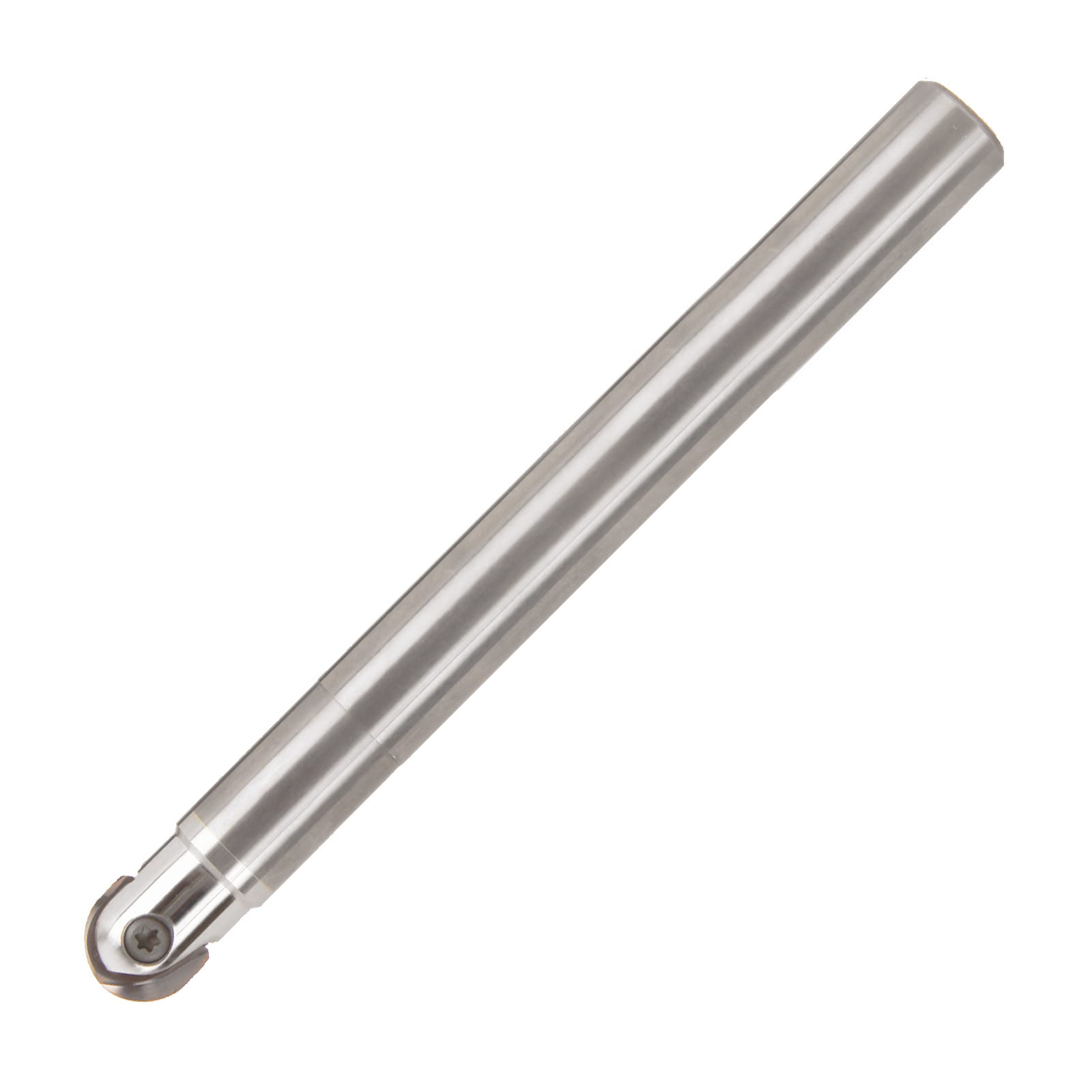

    main product photo

    16 / 17mm i-X Mill Carbide Shank Holder for Ball Nose Inserts (50mm Neck Length) - ZBC Series (YG-1)

    (ZBC1601160) Performance
    £212.86 £177.38
    The YG-1 ZBC series i-X Mill copy milling holder has a carbide shank and takes both ball nose and corner radius inserts from 8mm to 33mm. This carbide holder give more rigidity, better surface finish even in longer length applications and a longer tool life. The i-Xmill Indexable Milling system is a high precision system for finishing applications. It provides an economical solution due to its indexable replaceable inserts and these inserts are available in 5 different types for various materials.
    • P
    • H
    • M
    • K
    • N
    Approx. 4 days. Subject to availability
    View all variants
    Features & Benefits
    • Premium Carbide shank (more rigidity, better surface finish even in longer length applications, longer tool life and can also be used in shrink fit chucks).
    • Ideal for Slotting, Ramping, Helical Cutting and Copy Milling applications.
    • 5 insert geometries available for general, pre-hardened steel, high hardened steel, graphite and aluminium milling.
    • Straight neck design.
    • As rigid as solid carbide end mills - for high finish machining with less vibration.
    • For insert widths between 12mm and 33mm.
    • Exceptional surface finish, even in long reach applications with carbide shank holders.
    • Suitable for use with both ball nose (XMB/XMM series) and corner radius (XMR/XMF series) inserts.
    • High feed inserts for high metal removal rates.
    • Holders for high feed/corner radius milling ensures highest accuracy & performance.
    • High accuracy strong clamping screw & high precision insert location.
    • Ball radius tolerance of 0.01mm, set up accuracy of 0.02mm.
    • 220° full ball nose insert for 5 axis machining.
    Specification
    Specification
    L2 (Overall Length) 200
    Product Range i-X Mill Copy Milling System
    Brand YG-1
    Application Copy Milling, Helical Cutting, Ramping, Slotting
    Insert Type Ball Nose, Corner Radius
    Performance 5
    Tool Holder Material Carbide
    L3 (Neck Length) 50
    D2 (Shank Diameter) 16
    L1 (Insert Height) 20
    D3 (Neck Diameter) 15.7
    D1 (Insert Diameter) 16, 17
    Applicable Materials Cast Iron, Hardened Steel, Non-Ferrous, Stainless Steel, Steel
    Cutwel Sku ZBC1601160
    Product Group INIX
