i-X Mill Carbide Shank Holder for Ball Nose Inserts - ZBC Series (YG-1)
Scroll back
Scroll back

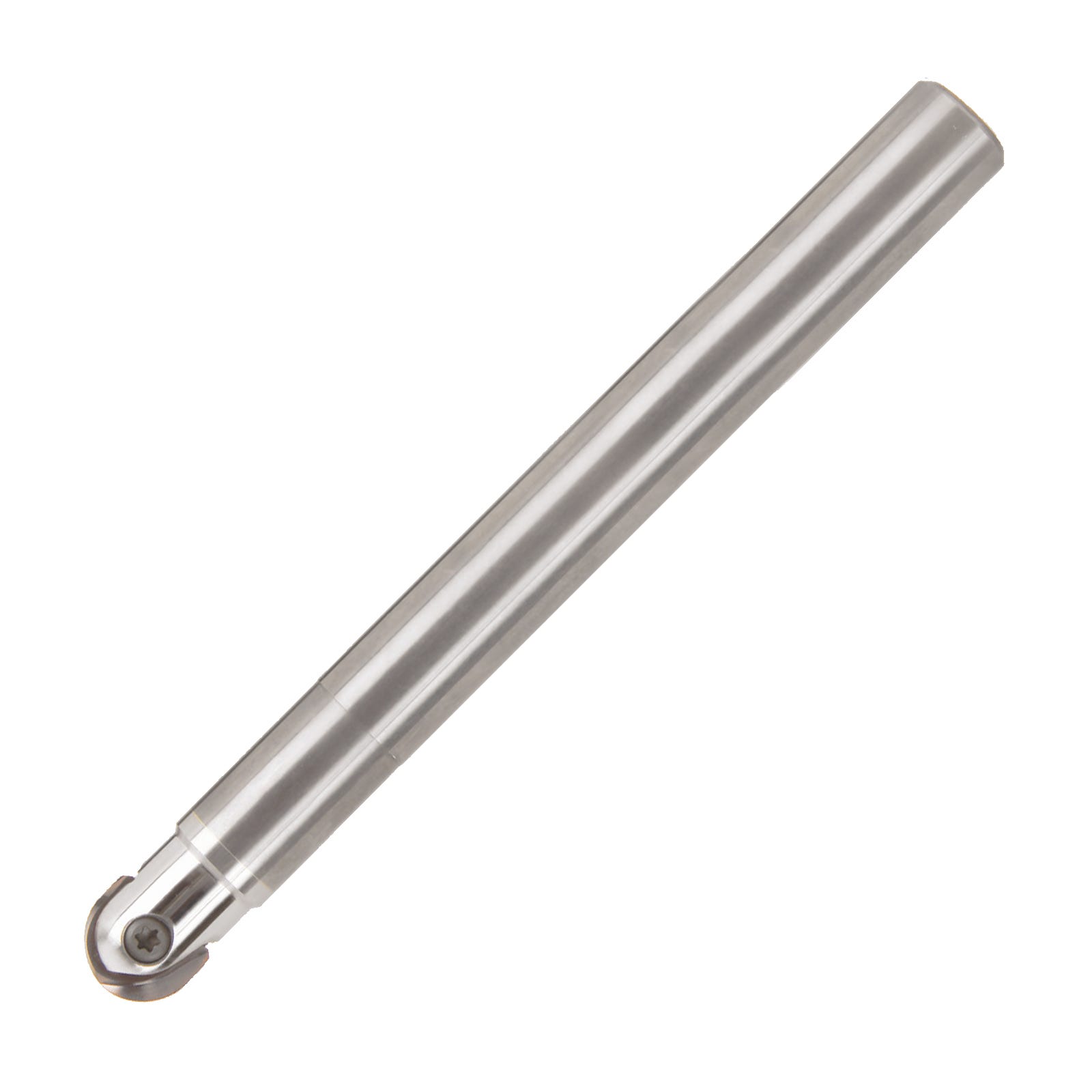

i-X Mill Carbide Shank Holder for Ball Nose Inserts - ZBC Series (YG-1)
The YG-1 ZBC series i-X Mill copy milling holder has a carbide shank and takes both ball nose and corner radius...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Shank (mm)
|
Overall Length (mm)
|
Neck Diameter (mm)
|
L1
|
Diameter (mm)
|
Insert Type
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Shank (mm): 8 | Overall Length (mm): 130 | Neck Diameter (mm): 7.6 | L1: 12 | Diameter (mm): 8 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£144.04
£120.03
|
|
|
| Shank (mm): 8 | Overall Length (mm): 130 | Neck Diameter (mm): 7.6 | L1: 12 | Diameter (mm): 8 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£144.04
£120.03
|
|
|
| Shank (mm): 8 | Overall Length (mm): 130 | Neck Diameter (mm): 7.6 | L1: 12 | Diameter (mm): 8 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£144.04
£120.03
|
|
|
| Shank (mm): 8 | Overall Length (mm): 150 | Neck Diameter (mm): 7.6 | L1: 12 | Diameter (mm): 8 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£158.58
£132.15
|
|
|
| Shank (mm): 8 | Overall Length (mm): 200 | Neck Diameter (mm): 7.6 | L1: 12 | Diameter (mm): 8 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£198.25
£165.21
|
|
|
| Shank (mm): 8 | Overall Length (mm): 80 | Neck Diameter (mm): 7.6 | L1: 12 | Diameter (mm): 8 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£120.02
£100.02
|
|
|
| Shank (mm): 10 | Overall Length (mm): 140 | Neck Diameter (mm): 9.7 | L1: 15 | Diameter (mm): 10, 11 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£144.04
£120.03
|
|
|
| Shank (mm): 10 | Overall Length (mm): 140 | Neck Diameter (mm): 9.7 | L1: 15 | Diameter (mm): 10, 11 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£144.04
£120.03
|
|
|
| Shank (mm): 10 | Overall Length (mm): 140 | Neck Diameter (mm): 9.7 | L1: 15 | Diameter (mm): 10, 11 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£144.04
£120.03
|
|
|
| Shank (mm): 10 | Overall Length (mm): 180 | Neck Diameter (mm): 9.7 | L1: 15 | Diameter (mm): 10, 11 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£174.08
£145.07
|
|
|
| Shank (mm): 10 | Overall Length (mm): 200 | Neck Diameter (mm): 9.7 | L1: 15 | Diameter (mm): 10, 11 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£198.25
£165.21
|
|
|
| Shank (mm): 10 | Overall Length (mm): 80 | Neck Diameter (mm): 9.7 | L1: 15 | Diameter (mm): 10, 11 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£120.02
£100.02
|
|
|
| Shank (mm): 12 | Overall Length (mm): 200 | Neck Diameter (mm): 11.7 | L1: 17 | Diameter (mm): 12, 13 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£215.14
£179.28
|
|
|
| Shank (mm): 12 | Overall Length (mm): 150 | Neck Diameter (mm): 11.7 | L1: 17 | Diameter (mm): 12, 13 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£164.46
£137.05
|
|
|
| Shank (mm): 12 | Overall Length (mm): 150 | Neck Diameter (mm): 11.7 | L1: 17 | Diameter (mm): 12, 13 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£164.46
£137.05
|
|
|
| Shank (mm): 12 | Overall Length (mm): 150 | Neck Diameter (mm): 11.7 | L1: 17 | Diameter (mm): 12, 13 | Insert Type: Ball Nose, Corner Radius |
In stock
|
£164.46
£137.05
|
|
|
| Shank (mm): 12 | Overall Length (mm): 250 | Neck Diameter (mm): 11.7 | L1: 17 | Diameter (mm): 12, 13 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£252.66
£210.55
|
|
|
| Shank (mm): 12 | Overall Length (mm): 100 | Neck Diameter (mm): 11.7 | L1: 17 | Diameter (mm): 12, 13 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£132.77
£110.64
|
|
|
| Shank (mm): 16 | Overall Length (mm): 150 | Neck Diameter (mm): 15.7 | L1: 20 | Diameter (mm): 16, 17 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£214.12
£178.43
|
|
|
| Shank (mm): 16 | Overall Length (mm): 200 | Neck Diameter (mm): 15.7 | L1: 20 | Diameter (mm): 16, 17 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£258.48
£215.40
|
|
|
| Shank (mm): 16 | Overall Length (mm): 200 | Neck Diameter (mm): 15.7 | L1: 20 | Diameter (mm): 16, 17 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£258.48
£215.40
|
|
|
| Shank (mm): 16 | Overall Length (mm): 200 | Neck Diameter (mm): 15.7 | L1: 20 | Diameter (mm): 16, 17 | Insert Type: Ball Nose, Corner Radius |
In stock
|
£258.48
£215.40
|
|
|
| Shank (mm): 16 | Overall Length (mm): 250 | Neck Diameter (mm): 15.7 | L1: 20 | Diameter (mm): 16, 17 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£285.26
£237.72
|
|
|
| Shank (mm): 16 | Overall Length (mm): 120 | Neck Diameter (mm): 15.7 | L1: 20 | Diameter (mm): 16, 17 | Insert Type: Ball Nose, Corner Radius |
In stock
|
£198.76
£165.63
|
|
|
| Shank (mm): 20 | Overall Length (mm): 150 | Neck Diameter (mm): 19.7 | L1: 25 | Diameter (mm): 20, 21 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£291.47
£242.89
|
|
|
| Shank (mm): 20 | Overall Length (mm): 200 | Neck Diameter (mm): 19.7 | L1: 25 | Diameter (mm): 20, 21 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£379.19
£315.99
|
|
|
| Shank (mm): 20 | Overall Length (mm): 250 | Neck Diameter (mm): 19.7 | L1: 25 | Diameter (mm): 20, 21 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£417.37
£347.81
|
|
|
| Shank (mm): 20 | Overall Length (mm): 250 | Neck Diameter (mm): 19.7 | L1: 25 | Diameter (mm): 20, 21 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£417.37
£347.81
|
|
|
| Shank (mm): 20 | Overall Length (mm): 300 | Neck Diameter (mm): 19.7 | L1: 25 | Diameter (mm): 20, 21 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£458.78
£382.32
|
|
|
| Shank (mm): 25 | Overall Length (mm): 150 | Neck Diameter (mm): 24.7 | L1: 30 | Diameter (mm): 25, 26 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£430.13
£358.44
|
|
|
| Shank (mm): 25 | Overall Length (mm): 200 | Neck Diameter (mm): 24.7 | L1: 30 | Diameter (mm): 25, 26 | Insert Type: Ball Nose, Corner Radius |
In stock
|
£569.04
£474.20
|
|
|
| Shank (mm): 25 | Overall Length (mm): 250 | Neck Diameter (mm): 24.7 | L1: 30 | Diameter (mm): 25, 26 | Insert Type: Ball Nose, Corner Radius |
5 days*
|
£626.30
£521.92
|
|
|
| Shank (mm): 25 | Overall Length (mm): 300 | Neck Diameter (mm): 24.7 | L1: 30 | Diameter (mm): 25, 26 | Insert Type: Ball Nose, Corner Radius |
In stock
|
£657.32
£547.77
|
|
Product Information
Features & Benefits
The YG-1 ZBC series i-X Mill copy milling holder has a carbide shank and takes both ball nose and corner radius inserts from 8mm to 33mm. This carbide holder give more rigidity, better surface finish even in longer length applications and a longer tool life. The i-Xmill Indexable Milling system is a high precision system for finishing applications. It provides an economical solution due to its indexable replaceable inserts and these inserts are available in 5 different types for various materials.
- Premium Carbide shank (more rigidity, better surface finish even in longer length applications, longer tool life and can also be used in shrink fit chucks).
- Ideal for Slotting, Ramping, Helical Cutting and Copy Milling applications.
- 5 insert geometries available for general, pre-hardened steel, high hardened steel, graphite and aluminium milling.
- Straight neck design.
- As rigid as solid carbide end mills - for high finish machining with less vibration.
- For insert widths between 12mm and 33mm.
- Exceptional surface finish, even in long reach applications with carbide shank holders.
- Suitable for use with both ball nose (XMB/XMM series) and corner radius (XMR/XMF series) inserts.
- High feed inserts for high metal removal rates.
- Holders for high feed/corner radius milling ensures highest accuracy & performance.
- High accuracy strong clamping screw & high precision insert location.
- Ball radius tolerance of 0.01mm, set up accuracy of 0.02mm.
- 220° full ball nose insert for 5 axis machining.
Specification
| Category | Milling |
|---|---|
| Sub Category | Indexable Milling |
| Sub Category 2 | i-X Mill Indexable Milling System |
| Holder Material | Carbide |
| Brand | YG-1 |
