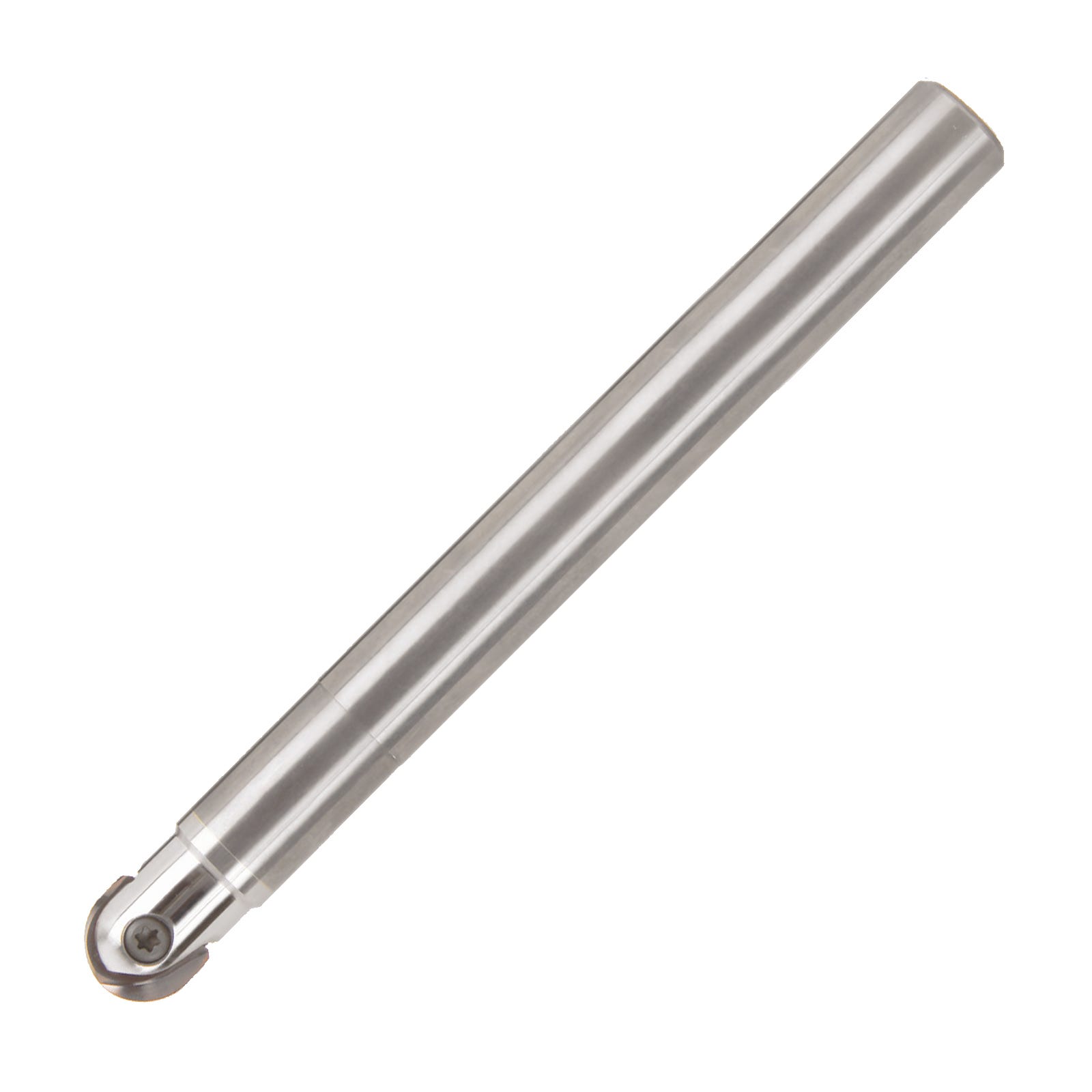

25 / 26mm i-X Mill Carbide Shank Holder for Ball Nose Inserts (75mm Neck Length) - ZBC Series (YG-1)

(ZBC2501250) Performance
£552.64 £460.53
The YG-1 ZBC series i-X Mill copy milling holder has a carbide shank and takes both ball nose and corner radius inserts from 8mm to 33mm. This carbide holder give more rigidity, better surface finish even in longer length applications and a longer tool life. The i-Xmill Indexable Milling system is a high precision system for finishing applications. It provides an economical solution due to its indexable replaceable inserts and these inserts are available in 5 different types for various materials.
  • P
  • H
  • M
  • K
  • N
In Stock
View all variants
Features & Benefits
  • Premium Carbide shank (more rigidity, better surface finish even in longer length applications, longer tool life and can also be used in shrink fit chucks).
  • Ideal for Slotting, Ramping, Helical Cutting and Copy Milling applications.
  • 5 insert geometries available for general, pre-hardened steel, high hardened steel, graphite and aluminium milling.
  • Straight neck design.
  • As rigid as solid carbide end mills - for high finish machining with less vibration.
  • For insert widths between 12mm and 33mm.
  • Exceptional surface finish, even in long reach applications with carbide shank holders.
  • Suitable for use with both ball nose (XMB/XMM series) and corner radius (XMR/XMF series) inserts.
  • High feed inserts for high metal removal rates.
  • Holders for high feed/corner radius milling ensures highest accuracy & performance.
  • High accuracy strong clamping screw & high precision insert location.
  • Ball radius tolerance of 0.01mm, set up accuracy of 0.02mm.
  • 220° full ball nose insert for 5 axis machining.
Specification
Specification
L1 (Insert Height) 30
Product Range HSS Woodruff & T-Slot Cutters
Brand YG-1
Performance 5
Applicable Materials Cast Iron, Hardened Steel, Non-Ferrous, Stainless Steel, Steel
Tool Holder Material Carbide
Insert Type Ball Nose, Corner Radius
L3 (Neck Length) 75
L2 (Overall Length) 200
Application Copy Milling, Helical Cutting, Ramping, Slotting
D3 (Neck Diameter) 24.7
D2 (Shank Diameter) 25
D1 (Insert Diameter) 25, 26
Cutwel Sku ZBC2501250
