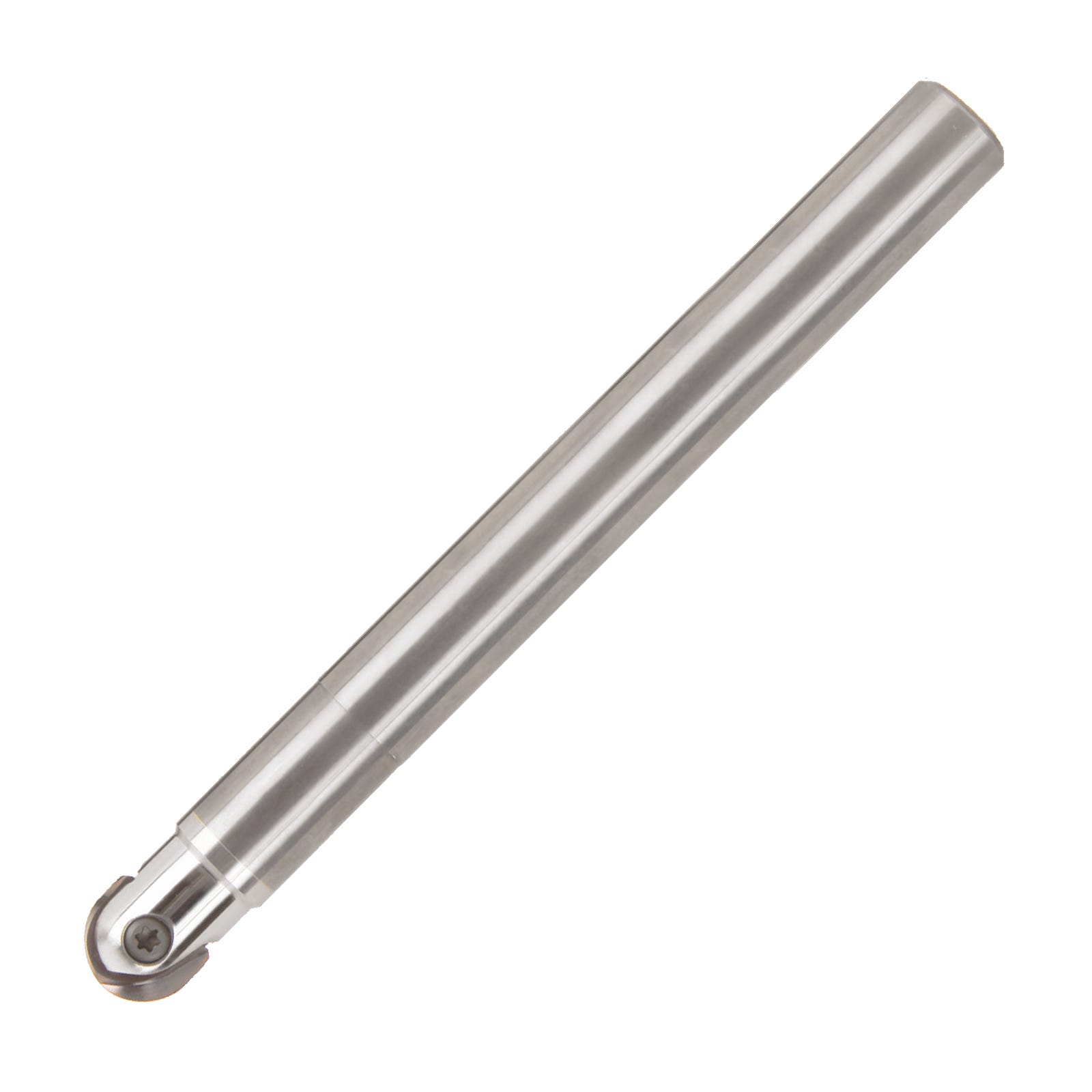

20 / 21mm i-X Mill Carbide Shank Holder for Ball Nose Inserts (60mm Neck Length) - ZBC Series (YG-1)

(ZBC200002P) Performance
£240.04 £200.03
The YG-1 ZBC series i-X Mill copy milling holder has a carbide shank and takes both ball nose and corner radius inserts from 8mm to 33mm. This carbide holder give more rigidity, better surface finish even in longer length applications and a longer tool life. The i-Xmill Indexable Milling system is a high precision system for finishing applications. It provides an economical solution due to its indexable replaceable inserts and these inserts are available in 5 different types for various materials.
  • P
  • H
  • M
  • K
  • N
Approx. 4 days. Subject to availability
View all variants
Features & Benefits
  • Premium Carbide shank (more rigidity, better surface finish even in longer length applications, longer tool life and can also be used in shrink fit chucks).
  • Ideal for Slotting, Ramping, Helical Cutting and Copy Milling applications.
  • 5 insert geometries available for general, pre-hardened steel, high hardened steel, graphite and aluminium milling.
  • Straight neck design.
  • As rigid as solid carbide end mills - for high finish machining with less vibration.
  • For insert widths between 12mm and 33mm.
  • Exceptional surface finish, even in long reach applications with carbide shank holders.
  • Suitable for use with both ball nose (XMB/XMM series) and corner radius (XMR/XMF series) inserts.
  • High feed inserts for high metal removal rates.
  • Holders for high feed/corner radius milling ensures highest accuracy & performance.
  • High accuracy strong clamping screw & high precision insert location.
  • Ball radius tolerance of 0.01mm, set up accuracy of 0.02mm.
  • 220° full ball nose insert for 5 axis machining.
L2 (Overall Length) 150
Brand YG-1
Applicable Materials Cast Iron, Hardened Steel, Non-Ferrous, Stainless Steel, Steel
Application Copy Milling, Helical Cutting, Ramping, Slotting
Insert Type Ball Nose, Corner Radius
Performance 5
Tool Holder Material Carbide
L3 (Neck Length) 60
D2 (Shank Diameter) 20
L1 (Insert Height) 25
D3 (Neck Diameter) 19.7
D1 (Insert Diameter) 20, 21
Product Range i-X Mill Copy Milling System
Cutwel Sku ZBC200002P
Product Group INIX
