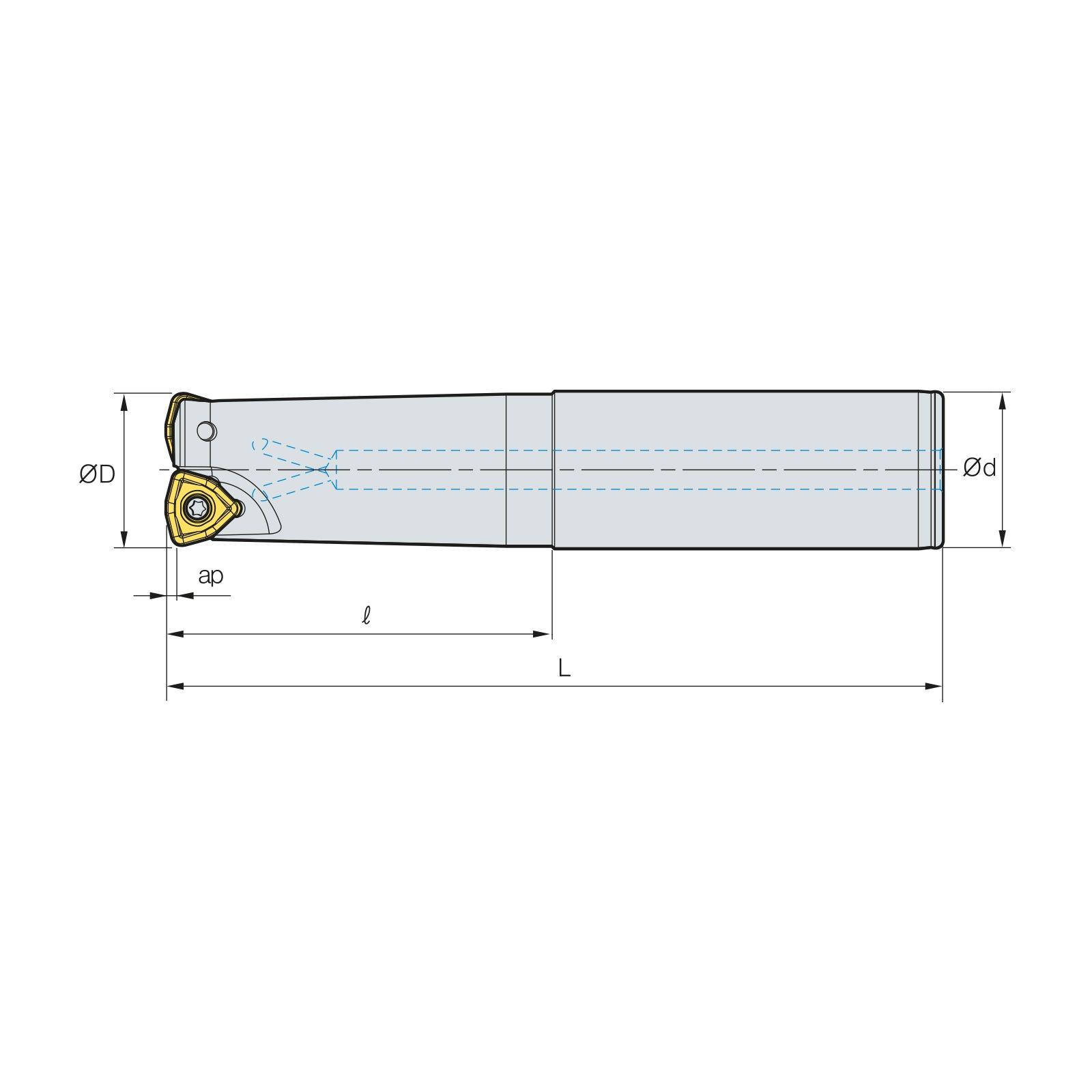

The Korloy HRMD-FM series HRM Double is a high feed end mill style milling body that takes WNMX inserts. Diameters range from 16-63mm and these are suitable for copy milling, ramping, slotting, shoulder milling, face milling and helical cutting. The HRM Double offers high feed machining of stainless steel, exotics, cast iron steels and hardened steels
Double sided inserts with 6 cutting edges
Ultra high metal removal rates
WNMX06, WNMX09 & WNMX13 insert sizes
For high performance machining of stainless steel, exotics, cast iron, steels and hardened steels
Double sided insert gives 6 usable cutting edges
High rake angle cutting edge and chip breaker reduces cutting load
Negative geometry designed for high rigidity of cutting edge
Simple screw on system & stable support gives strong clamping force
