Alu-Power Milling Cutters

For next level swarf evacuation compared to general purpose

Special geometries & lapped flutes ensure the best chip control & surface finish on aluminium

★★★★☆

Diameter
Range (mm)

Metal Removal
Rates

Material Versatility

Cutting
Resistance

Surface
Finish

High Accuracy Machining

Square Shoulder Milling

Chip
Control

0.5-25 ★★★★☆ ★★★☆☆ ★★★★☆ ★★★★☆ ★★★★☆ ★★★★★ ★★★★☆

 Browse the Range

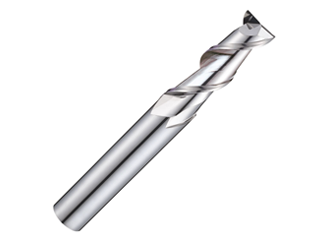

Alu-Power
Square End

Available in standard, long neck or reduced neck geometries

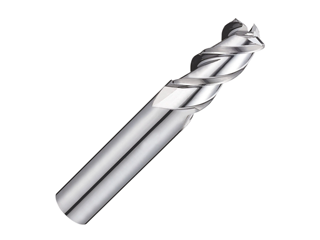

Alu-Power
Corner Radius

Available in standard or reduced neck geometries

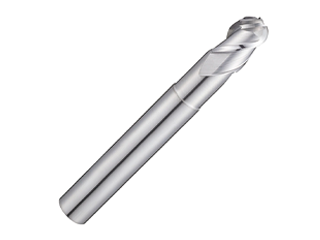

Alu-Power
Ball Nose

Available in standard, long neck or reduced neck geometries

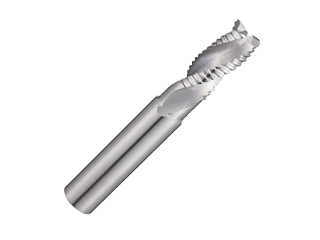

Alu-Power
Ripper

For high metal removal roughing on aluminium

 Browse the Range

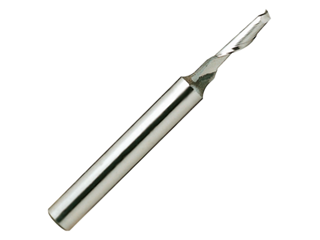

Aluminium
Single Flute

Router style milling cutters with just a single flute

Alu-Power
Square End

Available in standard, long neck or reduced neck geometries

Alu-Power
Corner Radius

Available in standard or reduced neck geometries

Alu-Power
Ball Nose

Available in standard, long neck or reduced neck geometries

Alu-Power
Ripper

For high metal removal roughing on aluminium

Advantages

Excellent Chip Flow

Unique ALU geometry for high speed machining & good chip flow

Mirror Finish

Lapped flutes & sharp cutting edges for excellent surface finish

Higher Tool Life

Deep flute pockets prevent swarf clogging and improve tool life

Wide Range

Square end, ball nose, corner radius & rippers all available

Features

Sharp Cutting Edge

For efficient swarf evacuation & to prevent built up edge

Lapped Flutes

Special lapped flute design for exceptional finish

Micrograin Carbide

High quality carbide for improved tool life & performance over HSS

Optional WAVE-CUT

Special wave-cut geometry for ultra-high metal removal rates

Built to Handle High Speed
Cutting Without Buildup

  • Excels in Ultra High-Speed, High HP Applications Up to 35,000 RPM

  • Rigid Design for Excellent Ramping

  • Rigid Design for Excellent Ramping

The Anatomy of Efficiency

1

Specialised Design of Corner Gash

Unique flute design and superior corner protection
Tool life protected against catastrophic failure in high feed application
Polished flutes for excellent chip flow


2

DLC Diamond-Like Carbon Coating

Excels in hard aluminium & high speeds
Provides edge strength and unsurpassed tool life

1

Specialised Design of Corner Gash

Unique flute design and superior corner protection

Tool life protected against catastrophic failure in high feed application

Polished flutes for excellent chip flow

2

DLC Diamond-Like Carbon Coating

Excels in hard aluminium & high speeds

Provides edge strength and unsurpassed tool life

Cylindrical Land

Increased performance in a variety of cutting conditions with reduced vibration

Symmetrical Shape

Highly effective in vertical ramping up to 20 degrees and step-over plunging applications

Unique Flute Design

Effective chip evacuation at high feed rates with lower cutting forces

Speed. Strength. Sharpness.

Alu-Power HPC keeps its edge under tough conditions.

No Cutter Withstands Extreme Radial Forces
Better or Longer

1

Wide Clamping Area

  • Extra stable clamping system
  • Anti-vibration during machining
  • Reliable tool life


  • 2

    6 Cornered Insert

    High cost efficiency from multi-corners

    1

    Streamlined Holder Design

    Improved chip evacuation in deep shouldering and slotting

    2

    Through Coolant System

    Improved chip flow and tool life thanks to insert cooling

    3

    3-Side Supporting System

    Stable tool life

    4

    Strong Clamping Screws

    Enable rigid clamping

    The Benefits of Balanced Cutting

    1

    Wide Clamping Area

  • Extra stable clamping system
  • Anti-vibration during machining
  • Reliable tool life


  • 2

    6 Cornered Insert

    High cost efficiency from multi-corners

    1

    Streamlined Holder Design

    Improved chip evacuation in deep shouldering and slotting

    2

    Through Coolant System

    Improved chip flow and tool life thanks to insert cooling

    3

    3-Side Supporting System

    Stable tool life

    4

    Strong Clamping Screws

    Enable rigid clamping

    Application

    Material Suitability

    Material Excellent Good
    P
    Steel
    H
    Hardened Steel
    M
    Stainless Steel
    S
    HRSA's
    K
    Cast Iron
    N
    Aluminium & Non-Ferrous

    Possible Machining Methods

    Side Cutting

    Slotting

    Face Milling

    Profiling

    Circular Interpolation

    Example Cutting Data

    Ø6mm, 2 Flute Uncoated
    Slotting - Aluminium
    Ø12mm, 3 Flute Uncoated
    Side Cutting (Profiling) - Aluminium
    Ø8mm, 3 Flute Ripper
    Slotting - Aluminium
    Ø6mm, 3 Flute Uncoated Ball Nose
    Profiling - Copper
    Tool E5E48060 E5E79120 E5742080 E5908060
    RPM 10,000 5,600 8,000 3,360
    Feed (mm/min) 1,200 2,740 4,000 400
    Vc (m/min) 190 210 201 85
    Fz (mm/tooth) 0.06 0.163 0.167 0.06
    Depth of Cut (AP) 3mm 24mm 8mm 1.6mm
    Depth of Cut (AE) 6mm 1.2mm 8mm 4mm
