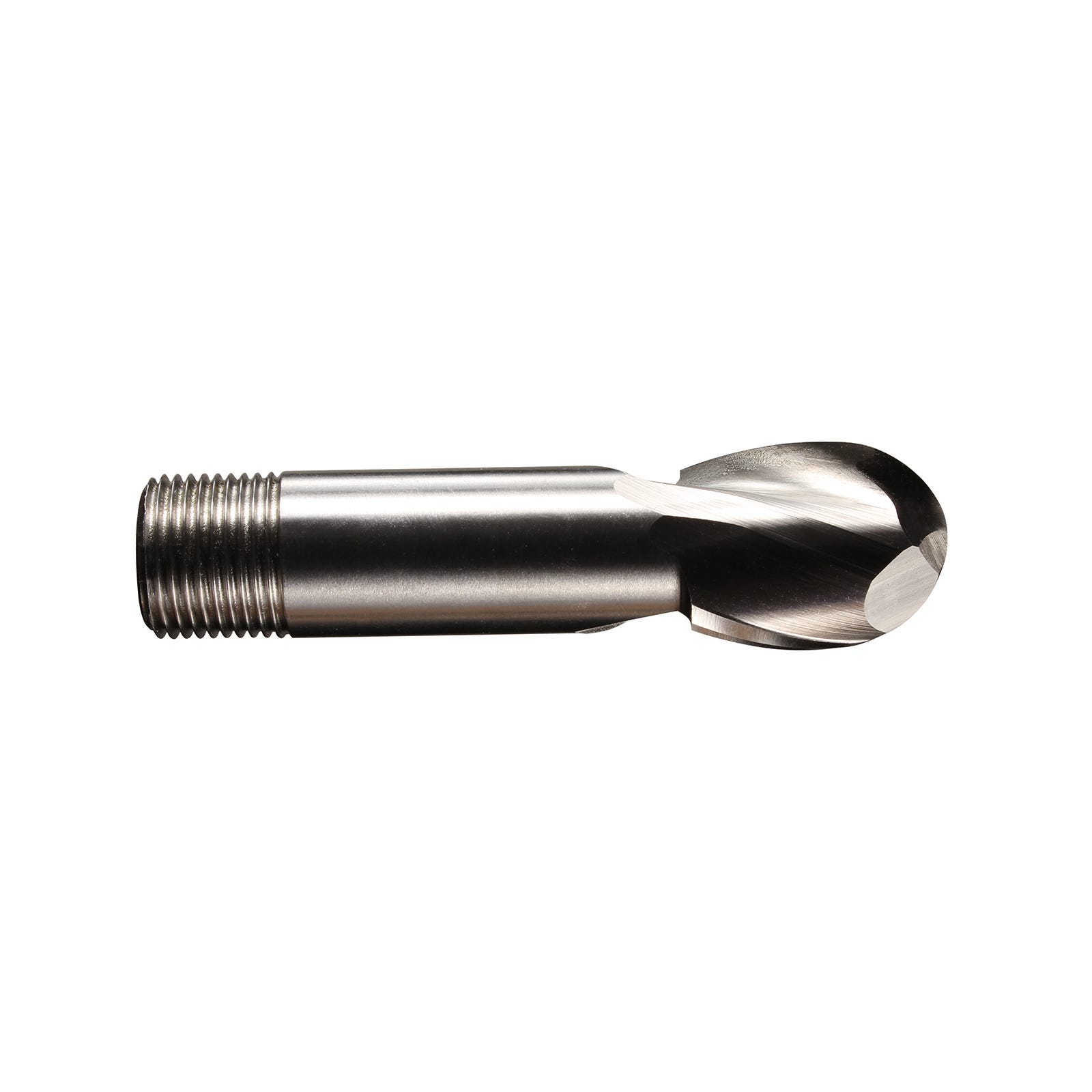

HSS BS122/4 Screw Shank Ball Nose Slot Drill - 48151 Series (Presto)
HSS BS122/4 Screw Shank Ball Nose Slot Drill - 48151 Series (Presto)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Shank (mm)
|
Diameter (Inch)
|
Shank (inch)
|
Flute Length (mm)
|
Overall Length (mm)
|
Flutes
|
Neck Diameter (mm)
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 3 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 7 | Overall Length (mm): 51.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£27.56
£22.97
|
|
|
| Diameter (mm): 4 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 9.5 | Overall Length (mm): 52.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£28.20
£23.50
|
|
|
| Diameter (mm): 5 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 9.5 | Overall Length (mm): 52.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£28.20
£23.50
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 11 | Overall Length (mm): 56.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£28.20
£23.50
|
|
|
| Diameter (mm): 8 | Shank (mm): 10 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 12.5 | Overall Length (mm): 59.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£26.21
£21.84
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 14.5 | Overall Length (mm): 60.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£30.04
£25.03
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 19 | Overall Length (mm): 66.5 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£35.06
£29.22
|
|
|
| Diameter (mm): 16 | Shank (mm): 16 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 22 | Overall Length (mm): 72 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£58.50
£48.75
|
|
|
| Diameter (mm): 20 | Shank (mm): 16 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 25.5 | Overall Length (mm): 77 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£63.68
£53.07
|
|
|
| Diameter (mm): 25 | Shank (mm): 25 | Diameter (Inch): | Shank (inch): | Flute Length (mm): 27 | Overall Length (mm): 95 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£117.89
£98.24
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 1/8" | Shank (inch): 1/4" | Flute Length (mm): 7.1 | Overall Length (mm): 50.8 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£28.20
£23.50
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 3/16" | Shank (inch): 1/4" | Flute Length (mm): 9.5 | Overall Length (mm): 52.4 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£28.20
£23.50
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 3/8" | Shank (inch): 3/8" | Flute Length (mm): 14.3 | Overall Length (mm): 60.3 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£29.75
£24.79
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 1/2" | Shank (inch): 1/2" | Flute Length (mm): 19.1 | Overall Length (mm): 66.7 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£33.97
£28.31
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 5/8" | Shank (inch): 5/8" | Flute Length (mm): 22.2 | Overall Length (mm): 72.2 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£57.61
£48.01
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 3/4" | Shank (inch): 5/8" | Flute Length (mm): 25.4 | Overall Length (mm): 77 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£68.87
£57.39
|
|
|
| Diameter (mm): | Shank (mm): | Diameter (Inch): 1" | Shank (inch): 1" | Flute Length (mm): 27 | Overall Length (mm): 95.3 | Flutes: 2 | Neck Diameter (mm): |
5 days*
|
£110.15
£91.79
|
|
Product Information
Features & Benefits
- HSS Screw Shank Ball Nose Slot Drill BS122/4
- Tolerance: e8
- 2-fluted Ball-Nose Slot Drill for the machining of slots in materials with a tensile strength up to 1000 N/mm².
- Presto tools are a household name in the cutting tool industry
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Substrate | HSS |
| Surface Treatment | Uncoated |
| Applicable Materials | Steel, Stainless Steel, Cast Iron |
| Performance | 3 |
| Substrate Description | HSS |
| Brand | Presto |
