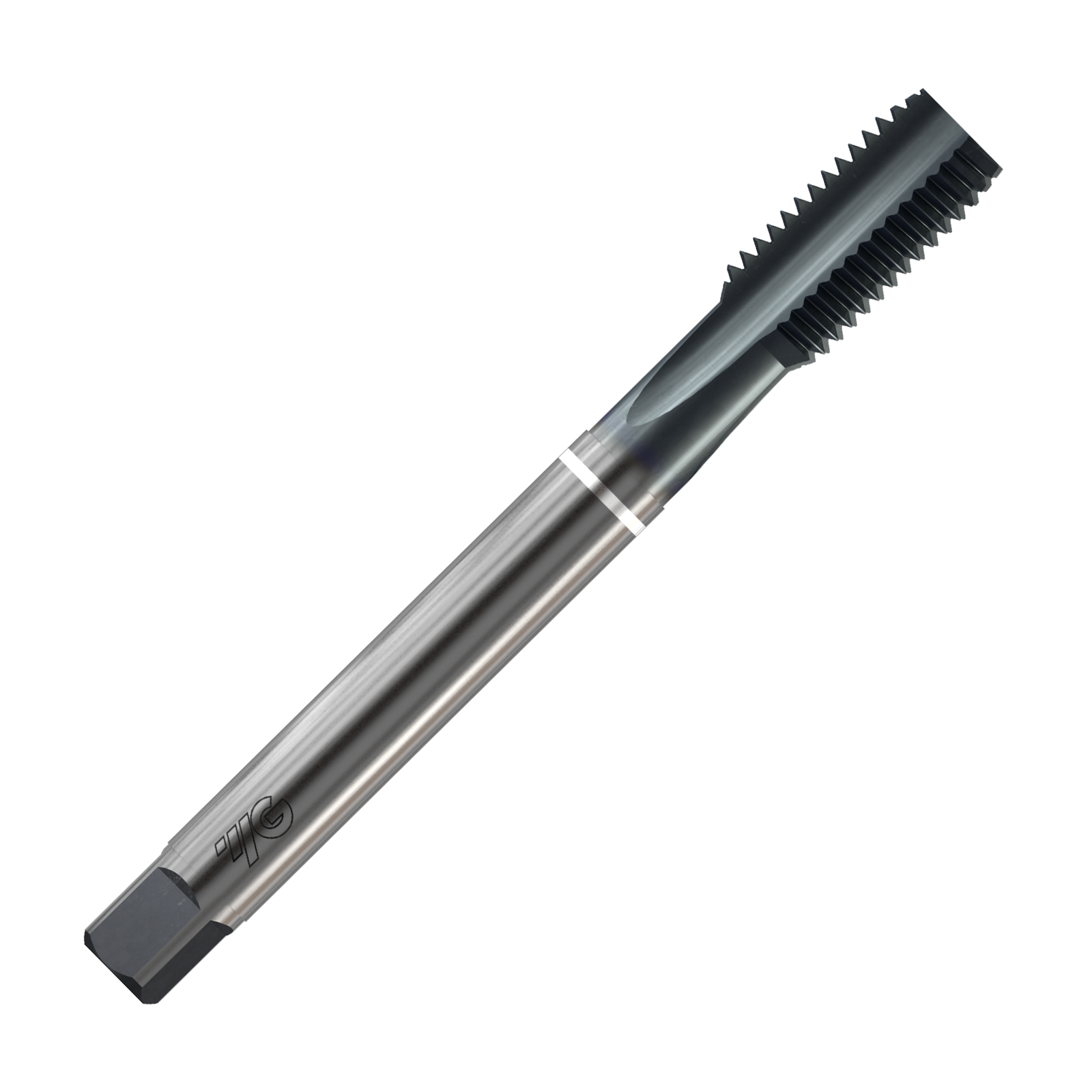

M12 x 1.25 Metric Fine Powder Metal Straight Flute TiCN Coated Synchro Machine Tap (6HX Tolerance) - TKS36 Series (YG-1)
M12 x 1.25 Metric Fine Powder Metal Straight Flute TiCN Coated Synchro Machine Tap (6HX Tolerance) - TKS36 Series (YG-1)

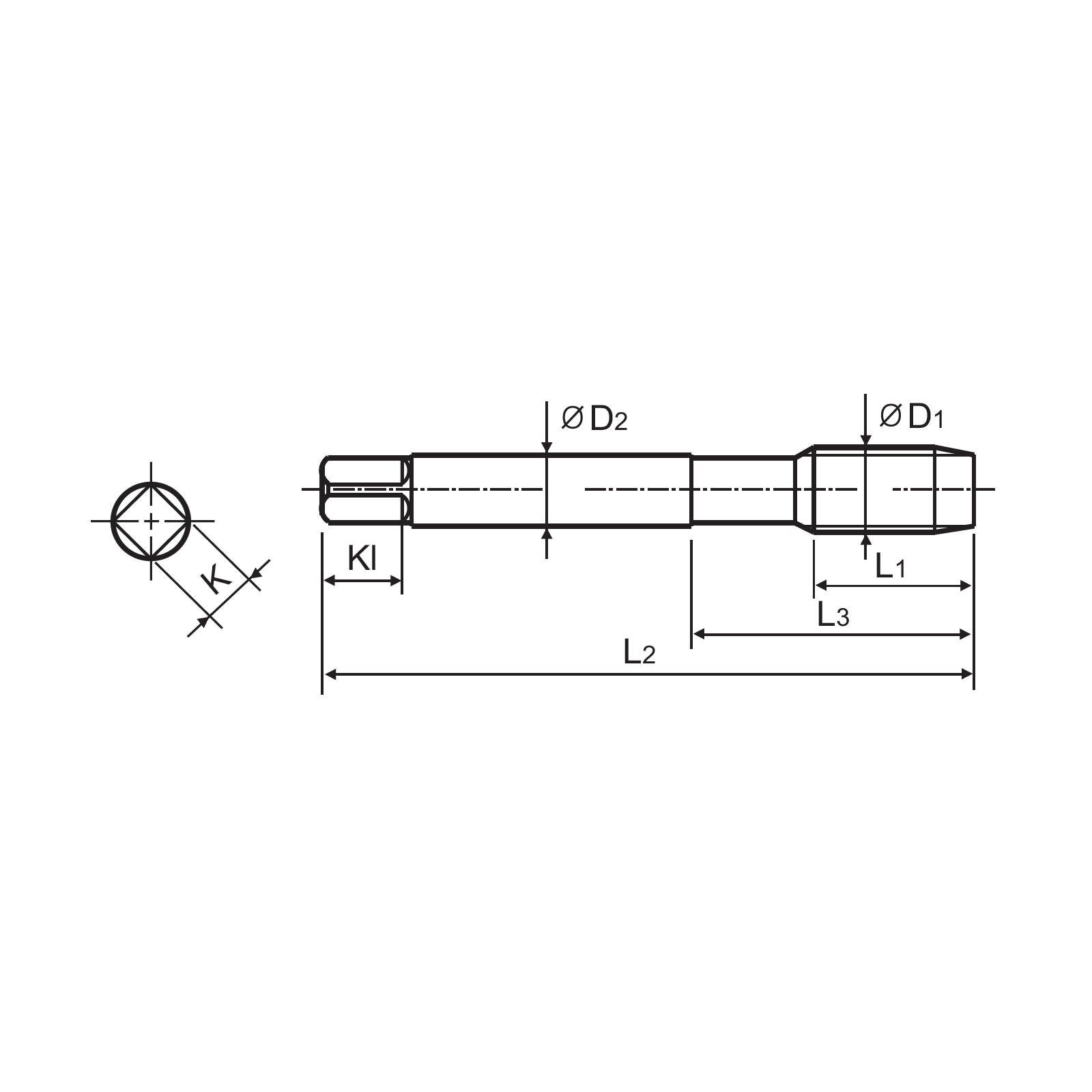

| Overall Length (mm) | 100 |
|---|---|
| Flute Length (mm) | 13 |
| Shank (mm) | 9 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Up to 3 times faster in tapping compared to conventional taps
- High precision threads
- HSS-PM substrate for more reliable performance and wear resistance
- For high performance tapping on steel, stainless steel, cast iron and non-ferrous
- TiCN coated with straight flute geometry
- Synchro rigid machine taps are only recommended for use with synchro tap chucks
- Manufactured by global leading supplier YG-1
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M12 |
| Sub Category 2 | Synchro Rigid Machine Taps |
| Shank (mm) | 9 |
| Pitch | 1.25 |
| Flute Length (mm) | 13 |
| Overall Length (mm) | 100 |
| Flutes | 4 |
| L3 | 40 |
| Drill Diameter | 10.75 |
| Square | 7 |
| Substrate | HSS-PM |
| Applicable Materials | Steel |
| Flute Geometry | Straight Flute |
| Performance | 5 |
| Coating Description | Titanium Carbon Nitride Coated |
| Helix Angle | 60° |
| Thread Form | Metric ISO |
| Chamfer Lead | Form C (Chamfer Lead 2-3 Thread) |
| Brand | YG-1 |
