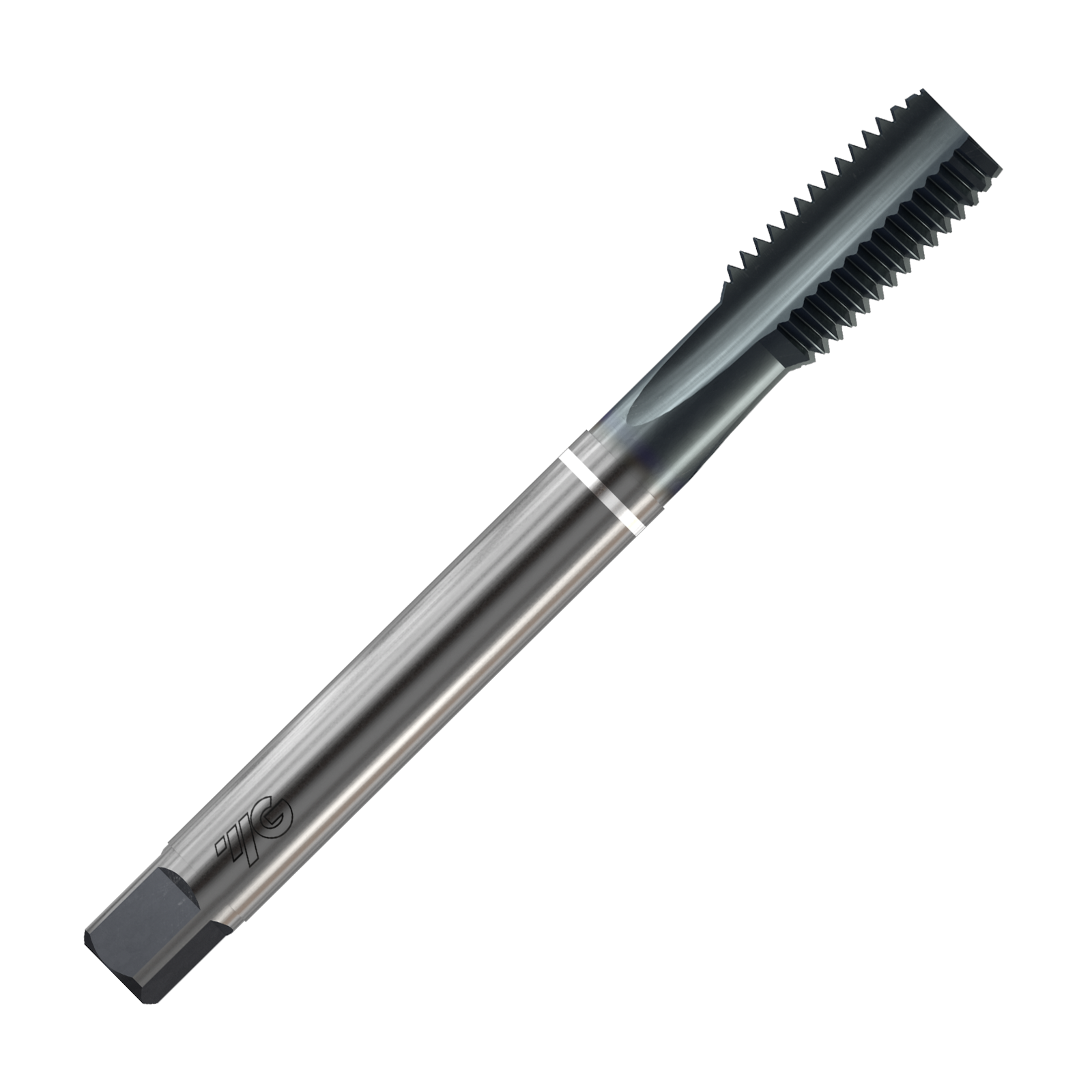

Metric Fine Powder Metal Straight Flute TiCN Coated Synchro Machine Tap (6HX Tolerance) - TKS36 Series (YG-1)
Metric Fine Powder Metal Straight Flute TiCN Coated Synchro Machine Tap (6HX Tolerance) - TKS36 Series (YG-1)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

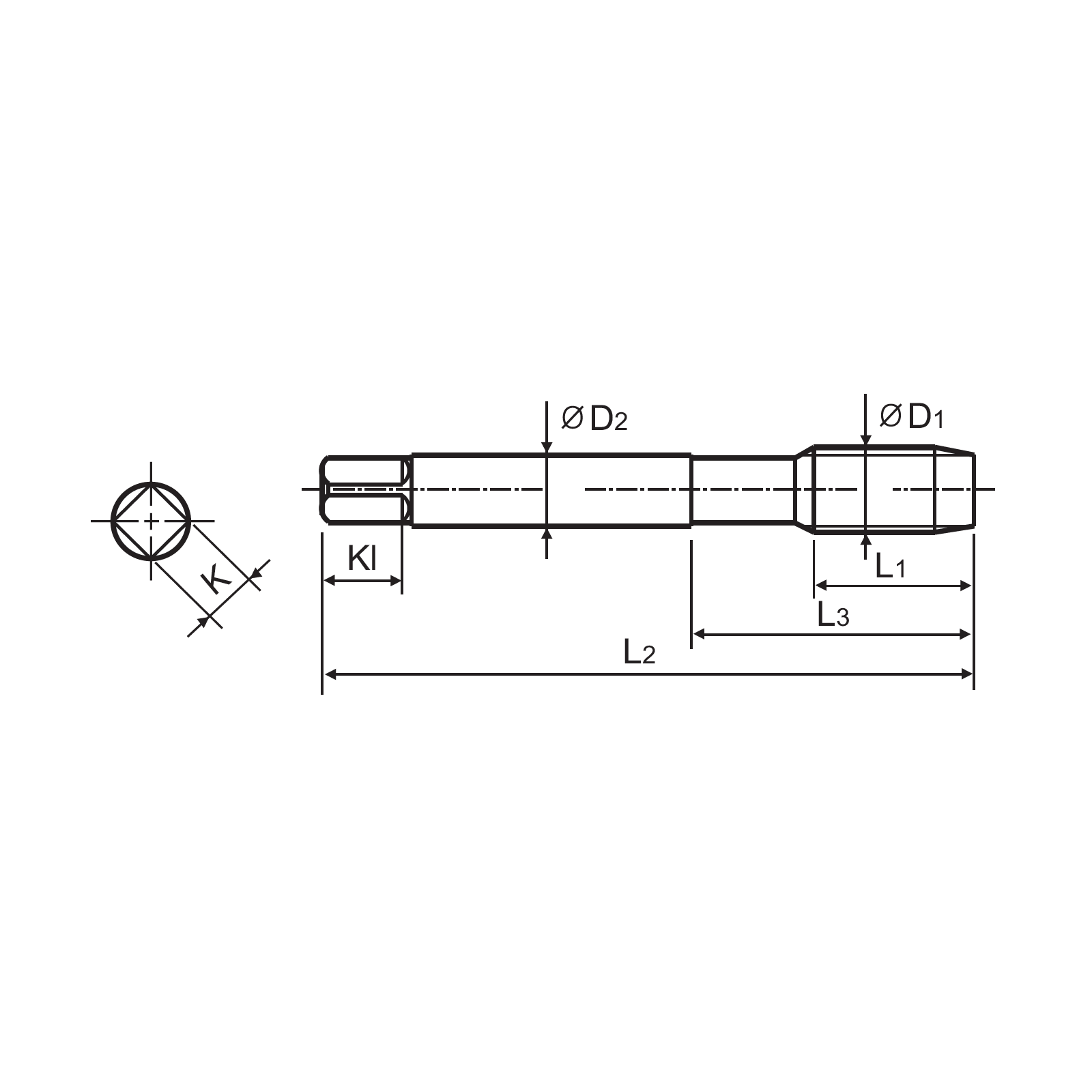

Thread
|
Shank (mm)
|
Pitch
|
Flute Length (mm)
|
Overall Length (mm)
|
Flutes
|
L3
|
Drill Diameter
|
Square
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread: M8 | Shank (mm): 6 | Pitch: 1 | Flute Length (mm): 10 | Overall Length (mm): 90 | Flutes: 3 | L3: 36 | Drill Diameter: 7 | Square: 4.9 |
5 days*
|
£27.26
£22.72
|
|
|
| Thread: M10 | Shank (mm): 7 | Pitch: 1.25 | Flute Length (mm): 13 | Overall Length (mm): 100 | Flutes: 4 | L3: 40 | Drill Diameter: 8.75 | Square: 5.5 |
5 days*
|
£32.48
£27.07
|
|
|
| Thread: M10 | Shank (mm): 7 | Pitch: 1 | Flute Length (mm): 10 | Overall Length (mm): 90 | Flutes: 4 | L3: 40 | Drill Diameter: 9 | Square: 5.5 |
5 days*
|
£30.85
£25.71
|
|
|
| Thread: M12 | Shank (mm): 9 | Pitch: 1.25 | Flute Length (mm): 13 | Overall Length (mm): 100 | Flutes: 4 | L3: 40 | Drill Diameter: 10.75 | Square: 7 |
5 days*
|
£39.07
£32.56
|
|
|
| Thread: M12 | Shank (mm): 9 | Pitch: 1.5 | Flute Length (mm): 15 | Overall Length (mm): 100 | Flutes: 4 | L3: 40 | Drill Diameter: 10.5 | Square: 7 |
5 days*
|
£36.34
£30.28
|
|
|
| Thread: M14 | Shank (mm): 11 | Pitch: 1.5 | Flute Length (mm): 15 | Overall Length (mm): 100 | Flutes: 4 | L3: 40 | Drill Diameter: 12.5 | Square: 9 |
5 days*
|
£45.13
£37.61
|
|
|
| Thread: M16 | Shank (mm): 12 | Pitch: 1.5 | Flute Length (mm): 15 | Overall Length (mm): 100 | Flutes: 4 | L3: 40 | Drill Diameter: 14.5 | Square: 9 |
5 days*
|
£56.41
£47.01
|
|
|
| Thread: M18 | Shank (mm): 14 | Pitch: 1.5 | Flute Length (mm): 17 | Overall Length (mm): 110 | Flutes: 4 | L3: 44 | Drill Diameter: 16.5 | Square: 11 |
5 days*
|
£70.91
£59.09
|
|
|
| Thread: M20 | Shank (mm): 16 | Pitch: 1.5 | Flute Length (mm): 17 | Overall Length (mm): 125 | Flutes: 4 | L3: 50 | Drill Diameter: 18.5 | Square: 12 |
5 days*
|
£79.60
£66.33
|
|
Product Information
Features & Benefits
- Up to 3 times faster in tapping compared to conventional taps
- High precision threads
- HSS-PM substrate for more reliable performance and wear resistance
- For high performance tapping on steel, stainless steel, cast iron and non-ferrous
- TiCN coated with straight flute geometry
- Synchro rigid machine taps are only recommended for use with synchro tap chucks
- Manufactured by global leading supplier YG-1
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Sub Category 2 | Synchro Rigid Machine Taps |
| Substrate | HSS-PM |
| Applicable Materials | Steel |
| Flute Geometry | Straight Flute |
| Performance | 5 |
| Coating Description | Titanium Carbon Nitride Coated |
| Helix Angle | 60° |
| Thread Form | Metric ISO |
| Chamfer Lead | Form C (Chamfer Lead 2-3 Thread) |
| Brand | YG-1 |
